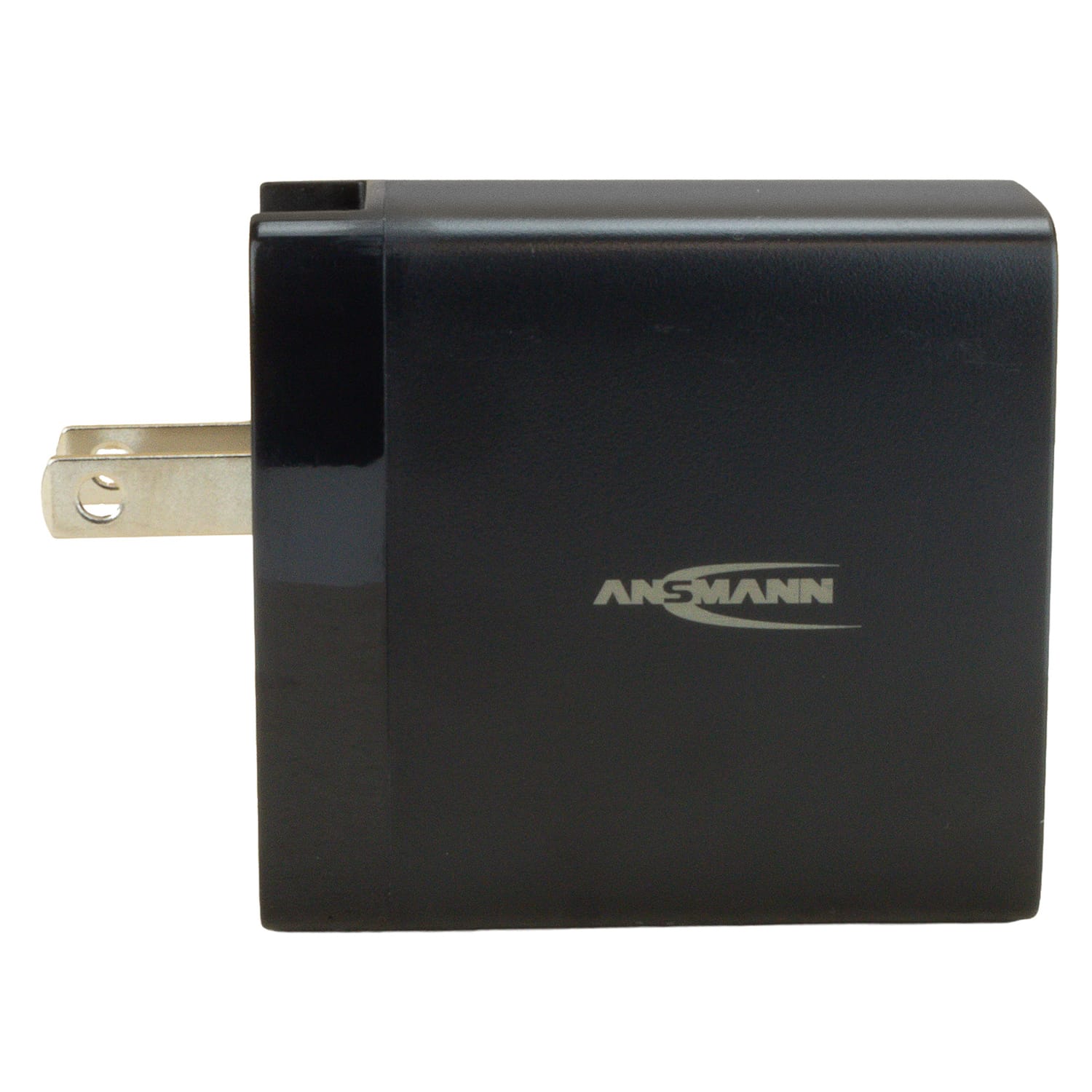

The AnsmannTC130PD Travel Charger is a compact and versatile USB-Ccharger designed for use at home or while travelling. It features a built-in fold-out US plug and includes interchangeable UK and EU plug adapters, making it suitable for use in a wide range of countries.
The USB-C port delivers up to 30W of power and supports numerous fast-charging protocols, including PD3.0, PPS, Quick Charge, AFC, FCP, SCP, and MTK-PE+2.0, ensuring compatibility with a wide variety of devices.
With a universal 110-240V AC input, built-in protection against short circuits, overvoltage, and overcurrent, an IP20 rating, and CE certification, it provides safe and reliable charging wherever you are. Supplied in white box packaging.
Features
Economical and intelligent USB device charger

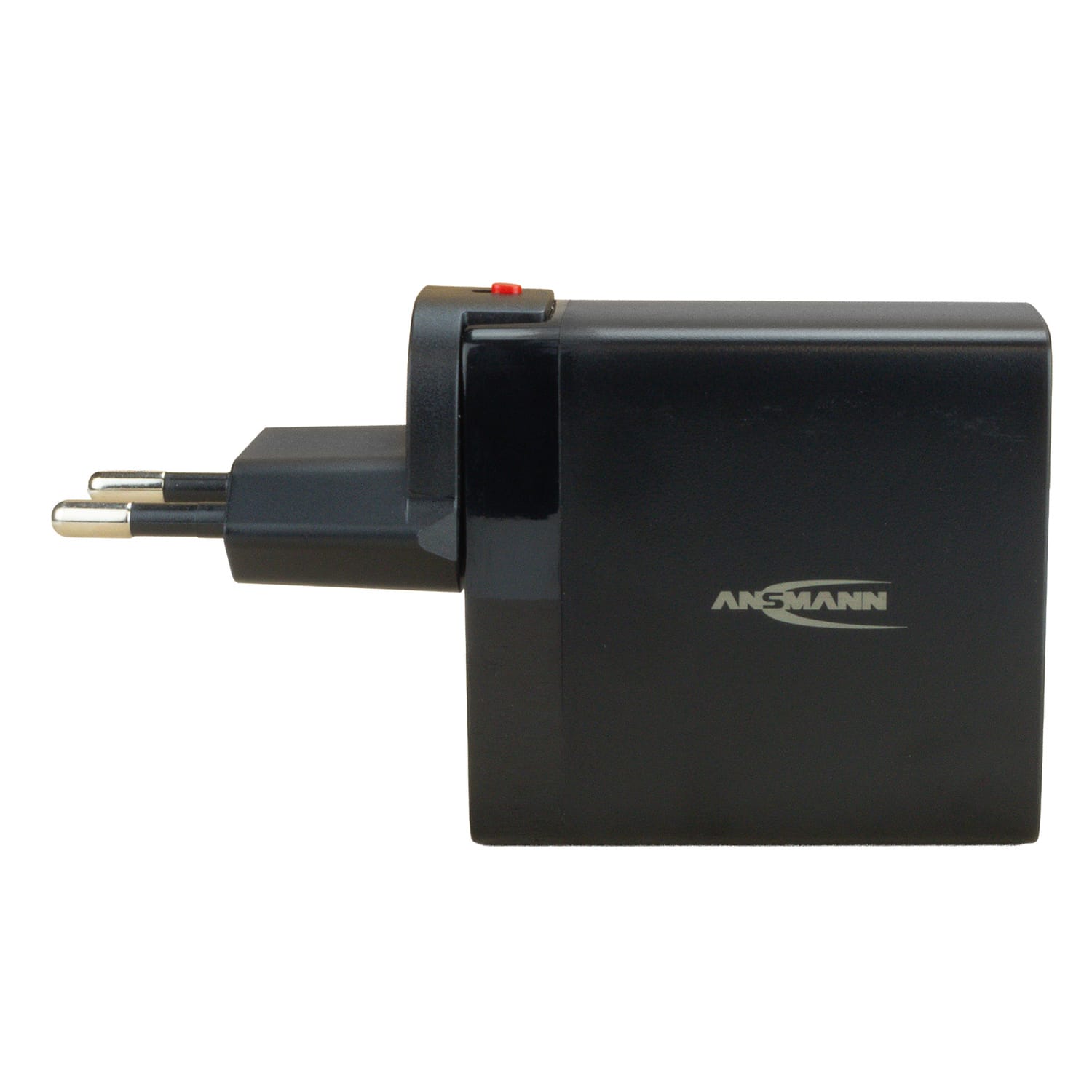

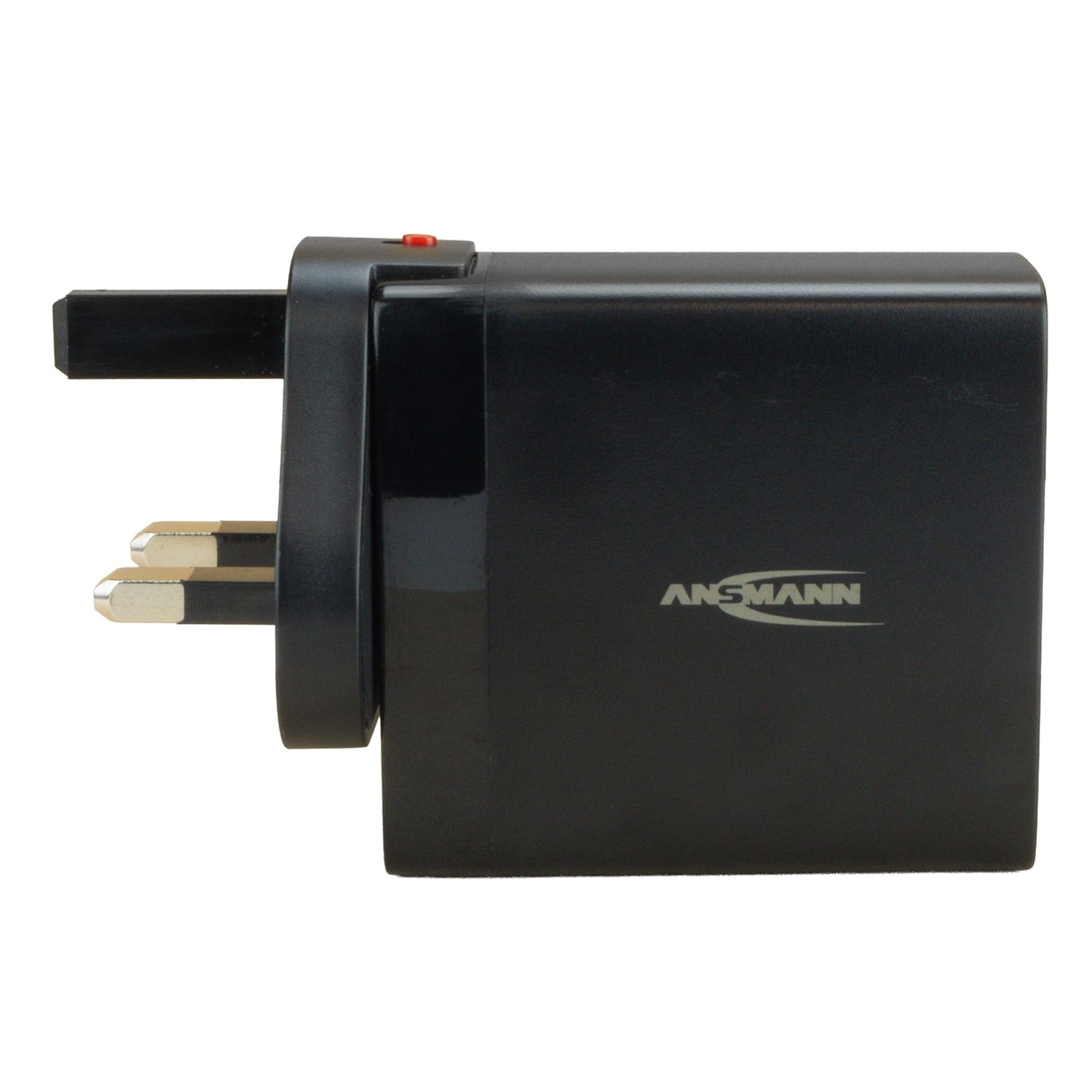

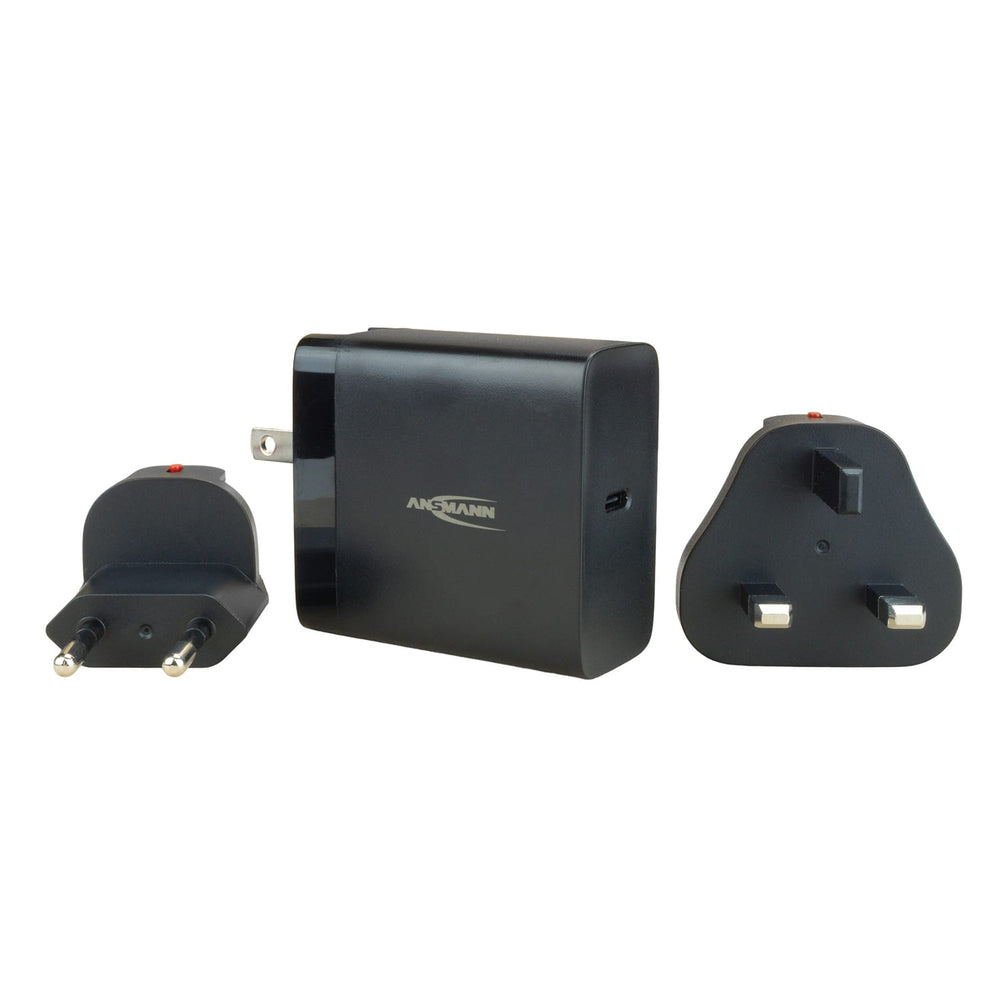

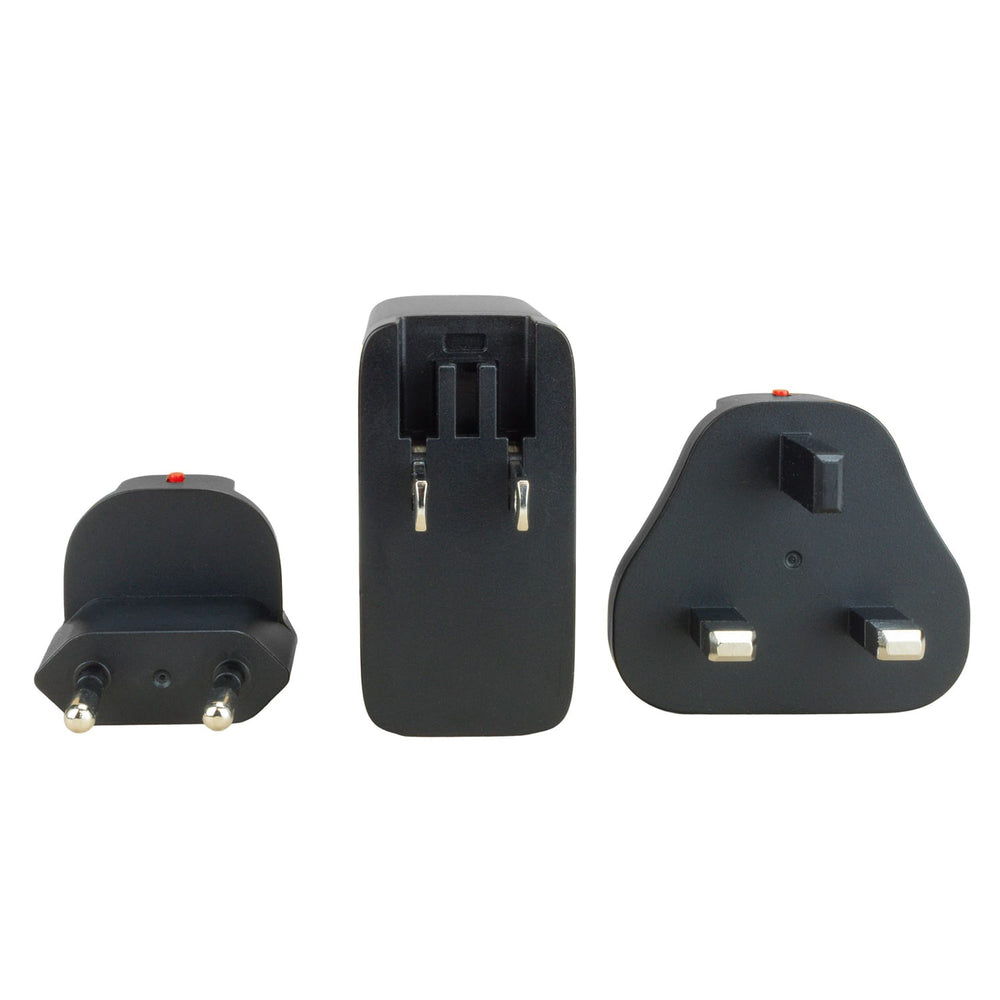

Built-in fold-out US plug with changeable 3 pin UK and 2 pin EU plug options
Single USB-C port with up to 30W power delivery
Input: 110-240V AC at 50/60Hz for worldwide use
Output: 5-20V at 3A maximum
Compatible with PD3.0, PPS, QC4+, QC3.0, QC2.2, AFC, FCP, SCP, MTK-PE+2.0, DCP, Apple 2.4A and Samsung 5V-2A protocols
Multi-protection against short circuit, over voltage and over current
IP20 ingress protection rating and CE marked
Specifications
Input Voltage
110V-240V AC
Max. Input current
1.5A
AC frequency
50/60Hz
Port
USB-C
Output voltage
5V - 20V DC
Max. output current
3A
Maximum power
30W
Functions
Over voltage protection, over current protection, short circuit protection
Charging protocol
USB
USB-ports
1
Average operational efficiency
84.67%
Efficiency at low load
80.53%
Colour
Black
Storage temperature
-20°C --- 70°C
Operating temperature
-20°C --- 25°C
Ingress protection marking
IP20
Dimensions
Body 59x56x29mm UK Plug 31x50x44mm EU Plug 42x35x30mm
