ANO Directional Navigation and Scroll Wheel Rotary Encoder

Name: ANO Directional Navigation and Scroll Wheel Rotary Encoder
Brand: The Pi Hut
SKU: 105733
Price: 8.90 GBP
Availability: InStock

The Pi HutSKU: 105733

£8.90

incl. VAT

excl. VAT

In stock

Awesome Extras

Adafruit ANO Rotary Navigation Encoder Breakout PCB - The Pi Hut

Adafruit Adafruit ANO Rotary Navigation Encoder Breakout PCB

£1.50 incl. VAT excl. VAT

Antex Antex Lead Free Solder - 4m Tube

£4.40 incl. VAT excl. VAT

Notify me

Antex XS25 Soldering Iron (UK Plug) - The Pi Hut

Antex Antex XS25 Soldering Iron (UK Plug)

£34.30 incl. VAT excl. VAT

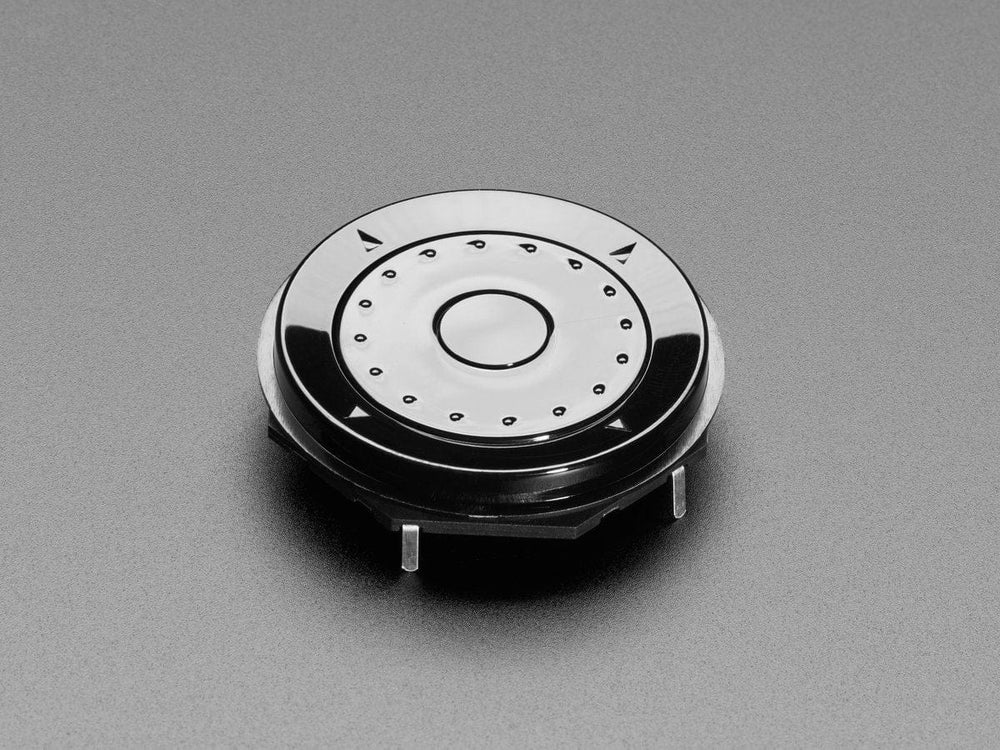

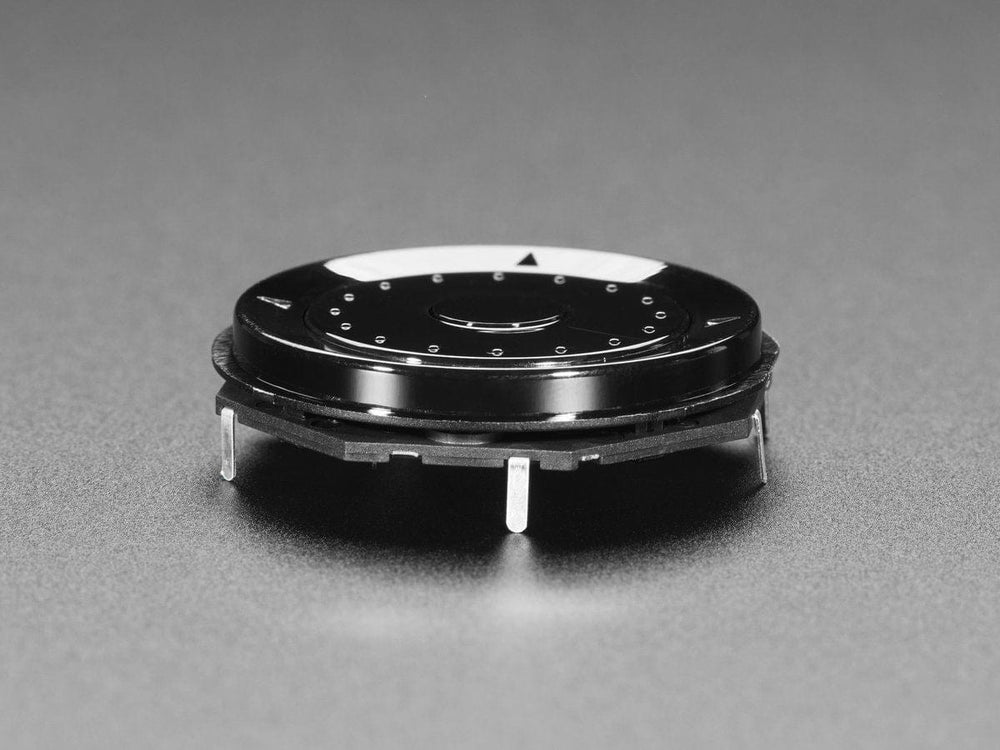

This funky user interface element is reminiscent of the original clicking scroll wheel interface on the first iPods. It's a fancy mechanical kit but has intuitiveness that is hard to argue with - everyone knows how to use this kind of rotary encoder to scroll and select.

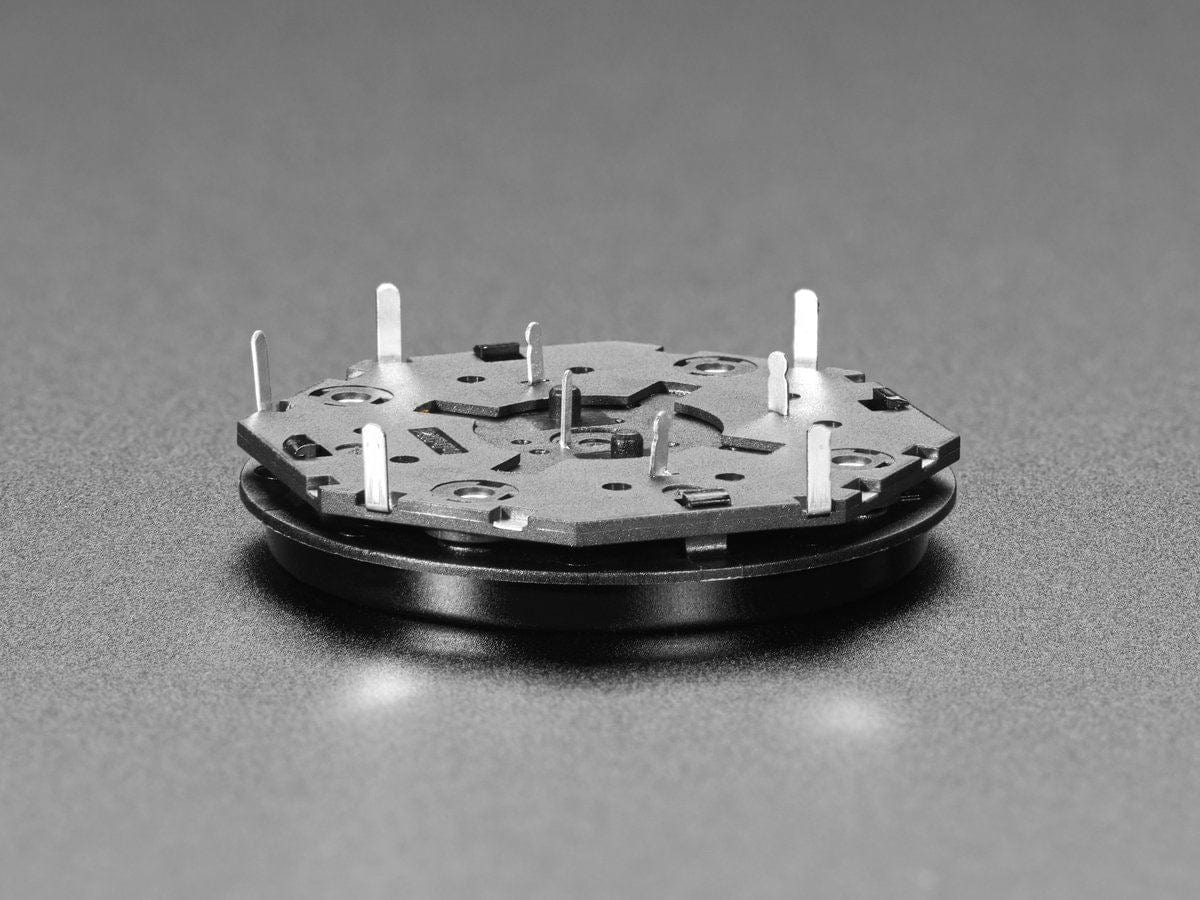

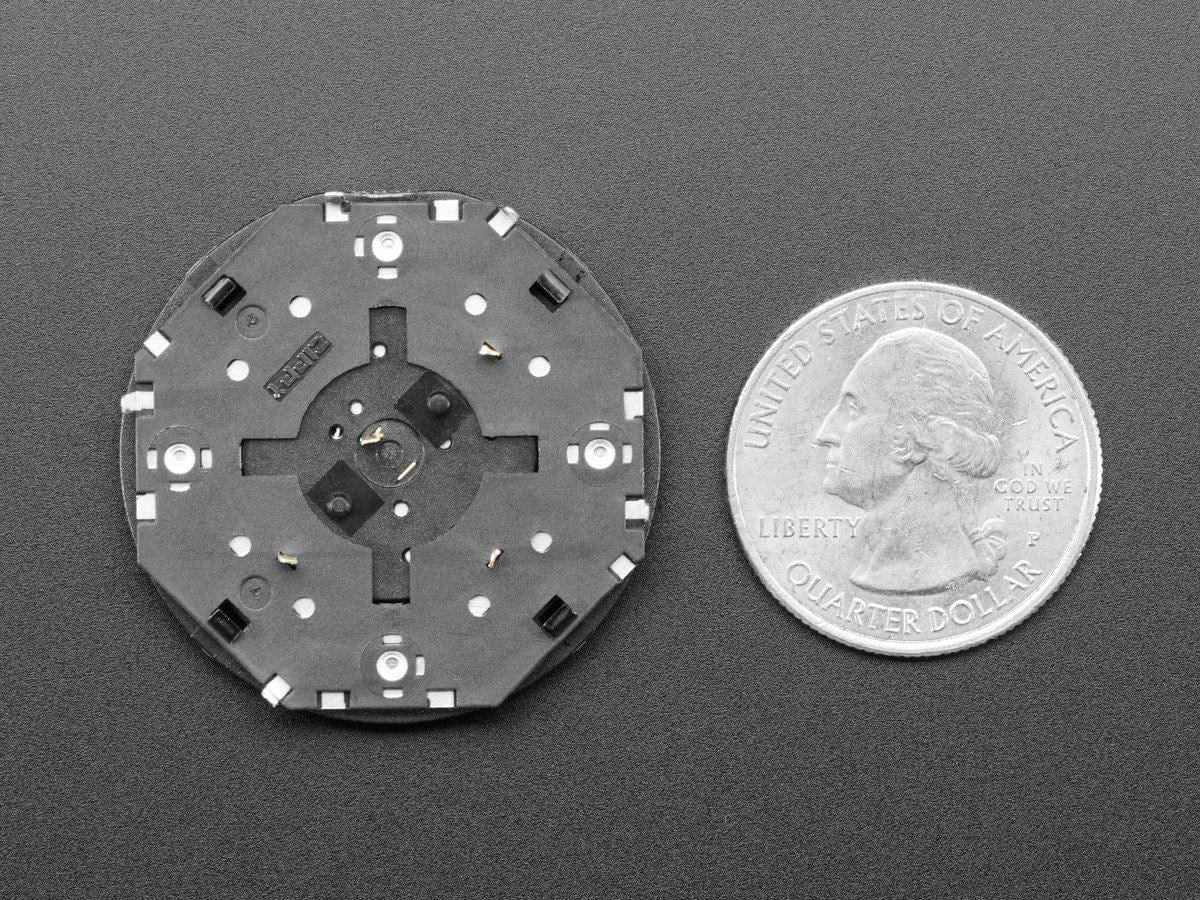

This product is just the encoder/button wheel element. The pin-out is a little odd, we really recommend our breakout PCB to turn it into a breadboard-friendly device. But, you could solder to the pins if you like.

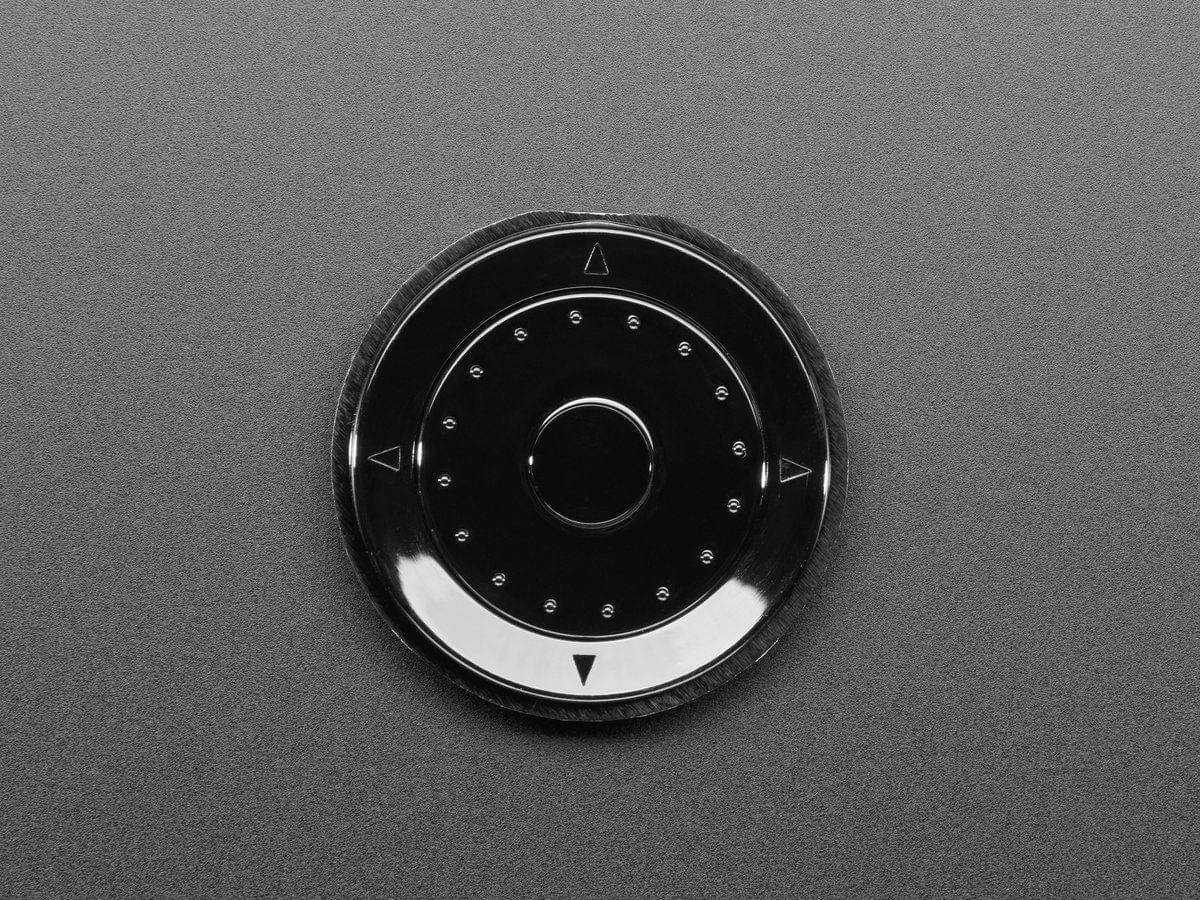

There are 5 buttons (up down left right center) and a rotary encoder wheel in the center. Use with any microcontroller that can read pulse-code rotary encoders!
