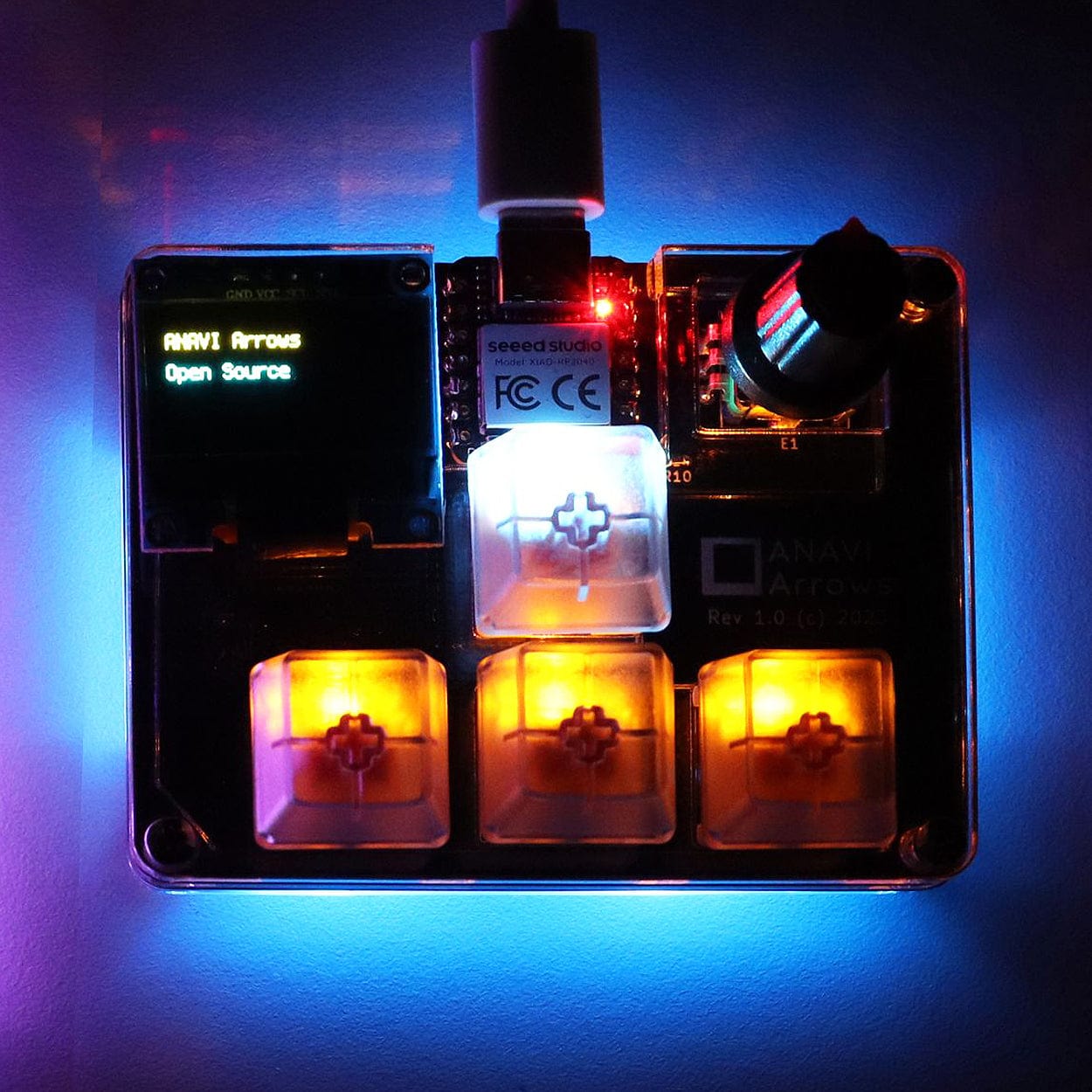

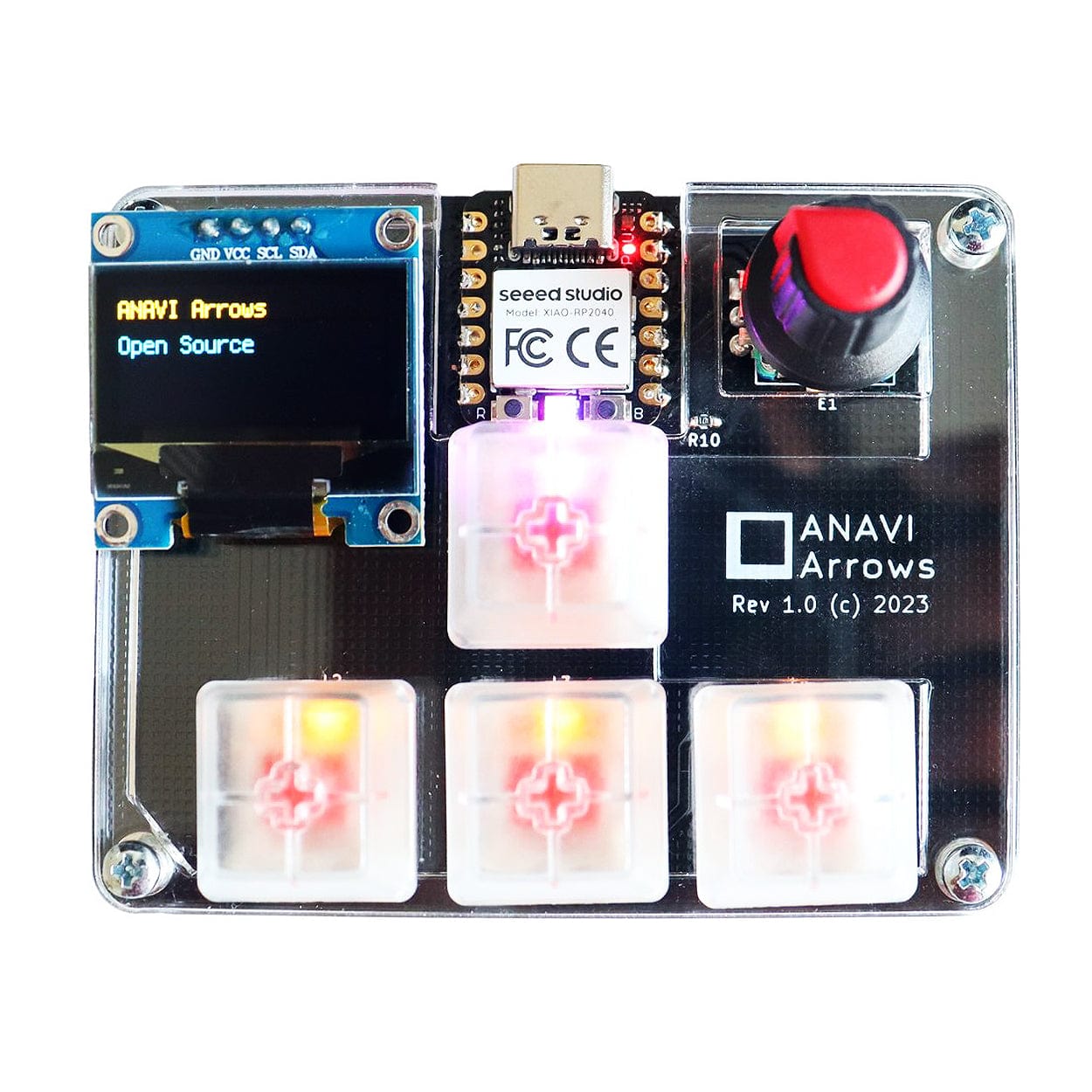

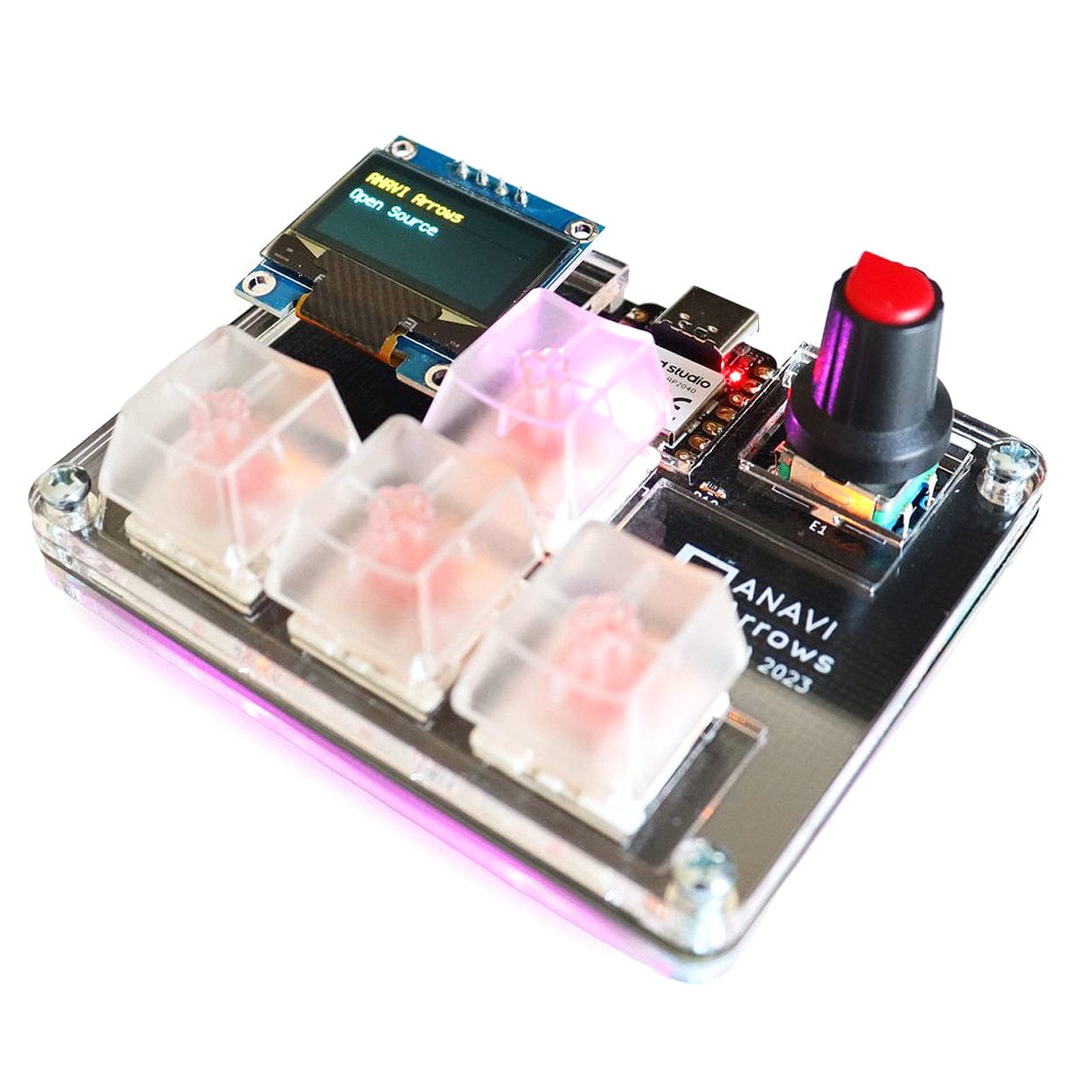

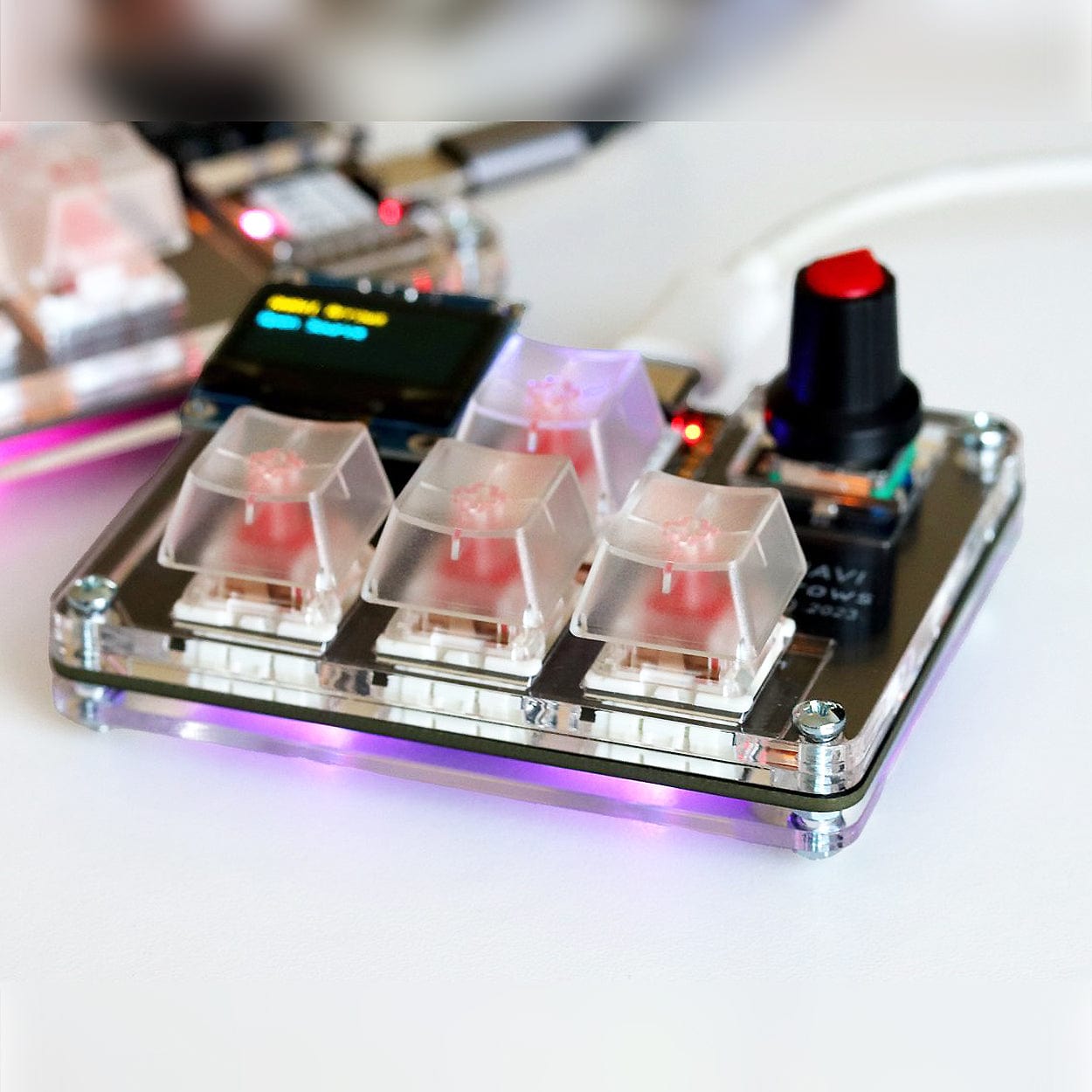

The Anavi Arrows is a small, fully programmable, mechanical keyboard with a Seeed XIAO RP2040 onboard.

The device offers a single rotary encoder with a clickable switch, a RGB LED, and four Gateron red, linear, non-clicky mechanical switches with transparent keycaps and yellow LED back-lighting. You can easily turn the rotary encoder left or right, and you also can click it, which is all fully programmable!

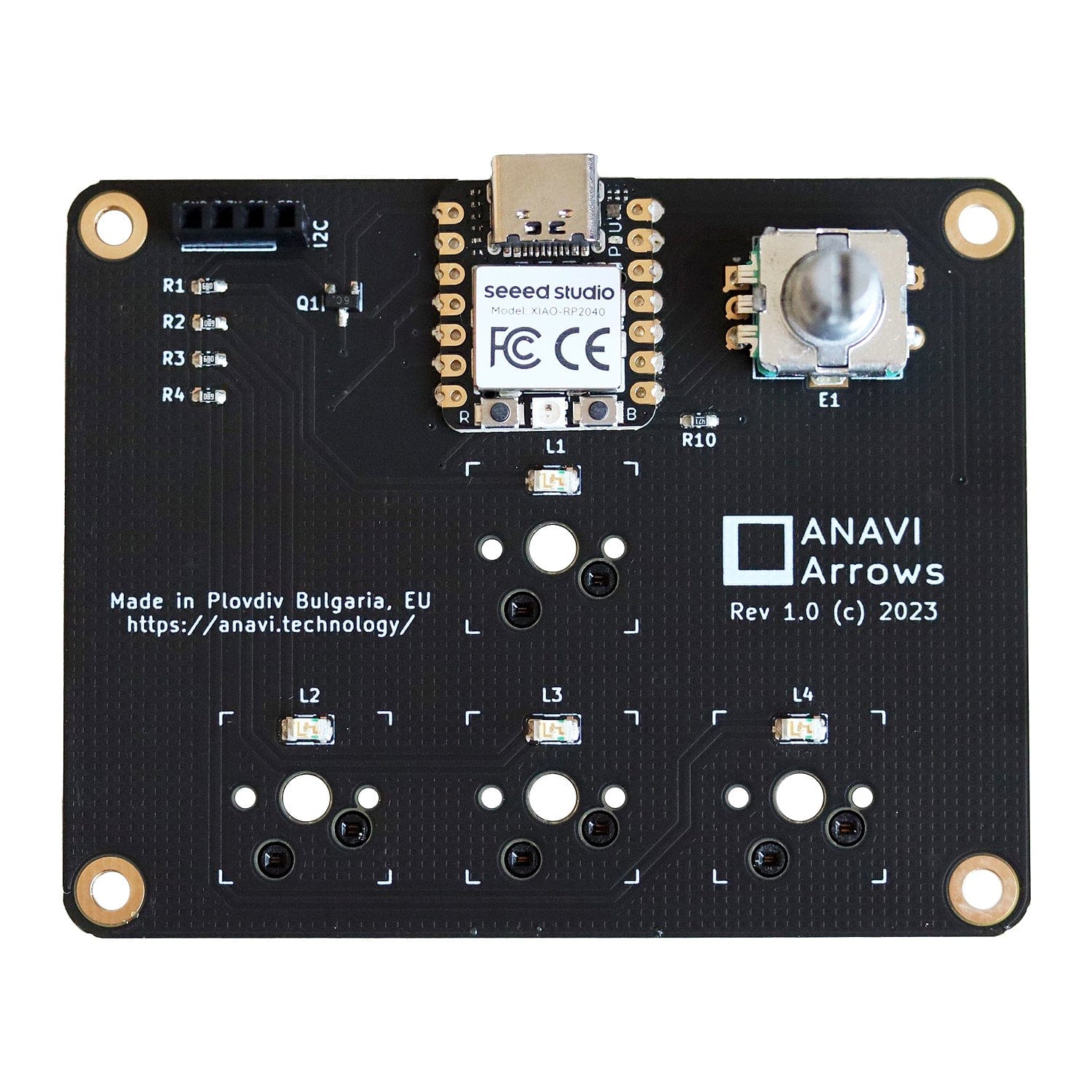

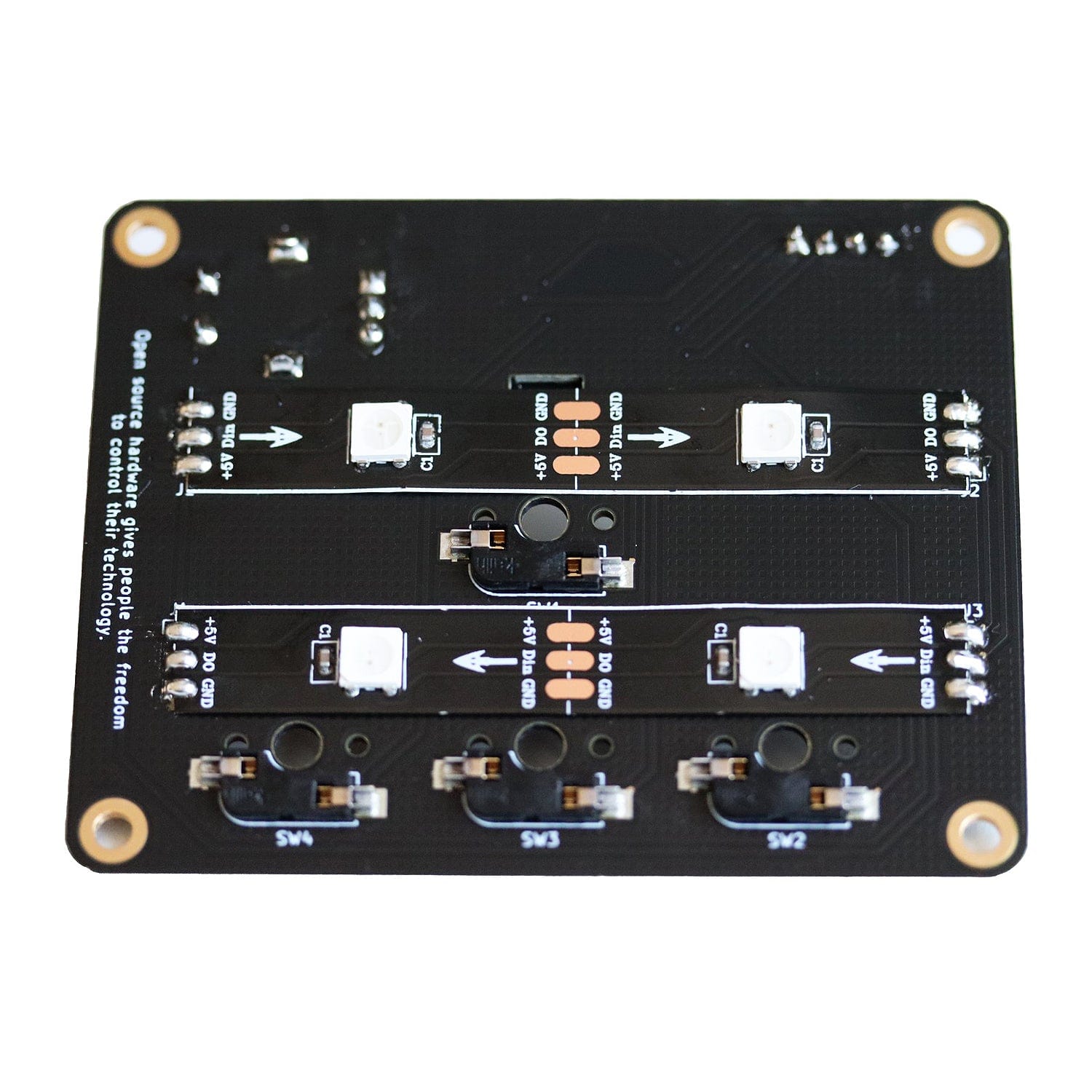

ANAVI Arrows uses a black, gold-plated PCB and features yellow back-lighting under each key. It also has four WS2812B LEDs on the underside for under-lighting effects. An I²C slot allows for adding peripherals, such as the included mini OLED display.

You will need a USB-C cable (not included) to use this product (along with a PC for programming). We also stock the Anavi Macro Pad 12 and Macro Pad 10!

This is a kit and requires assembly. No soldering is required.


  • Keys: Four Gateron red, linear, non-clicky hot-swap mechanical switches and transparent keycaps with yellow LED back-lighting
  • Inputs: One rotary encoder with clickable switch
  • Peripherals: RGB LED on front and four addressable WS2812B LED strip for bottom-lighting, I²C slot for mini OLED display or other peripherals
  • MCU: Raspberry Pi RP2040
  • Connectivity: USB-C
  • Firmware: KMK firmware
  • Compatibility: Windows, macOS, and Linux support
  • Dimensions: 80.0mm x 63.2 mm


Package Contents

This product is sold as a build-yourself kit, including the following parts:

  • 1x Anavi Arrows PCB (XIAO and rotary encoder pre-soldered)
  • 3x Acrylic Layers
  • 4x Gateron red mechanical switches
  • 4x Keycaps
  • 1x Mini OLED display
  • 1x Cap for rotary encoder
  • 8x Soft feet
  • 1x Keycap sticker set
  • 1x Fixings set
