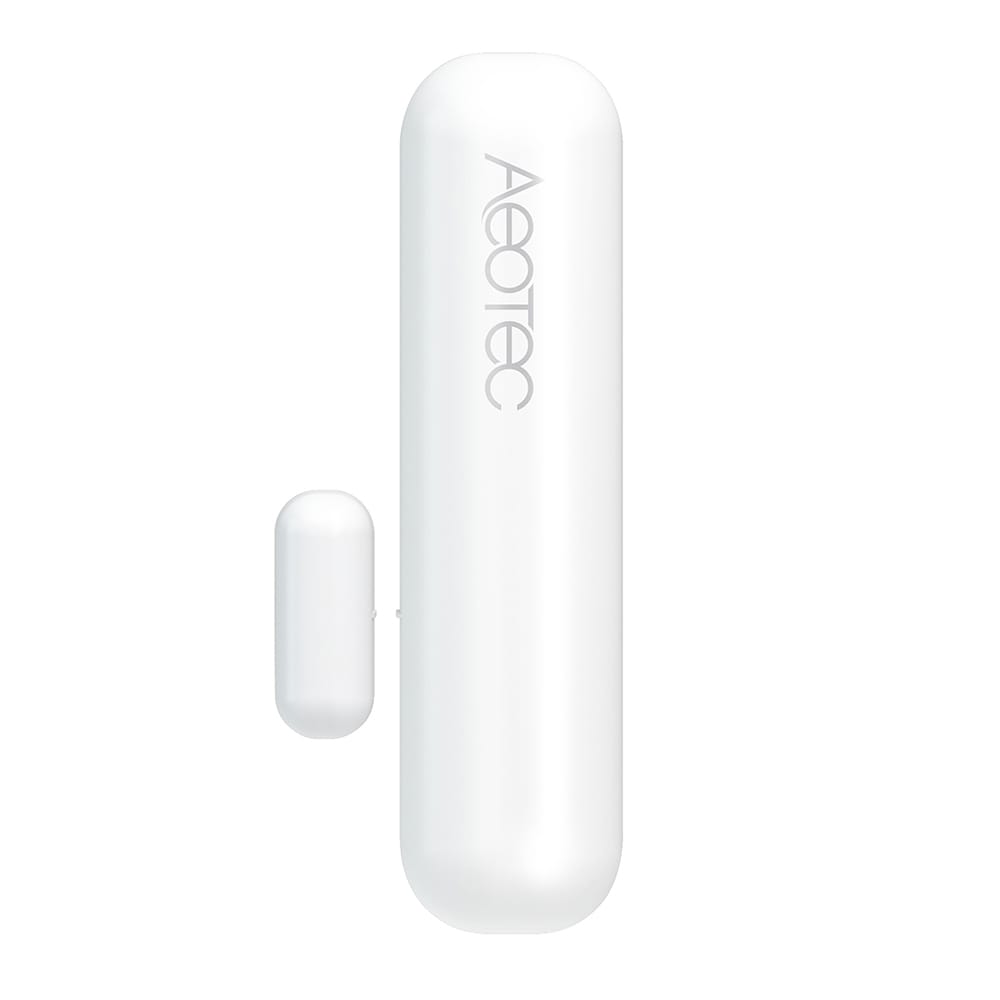

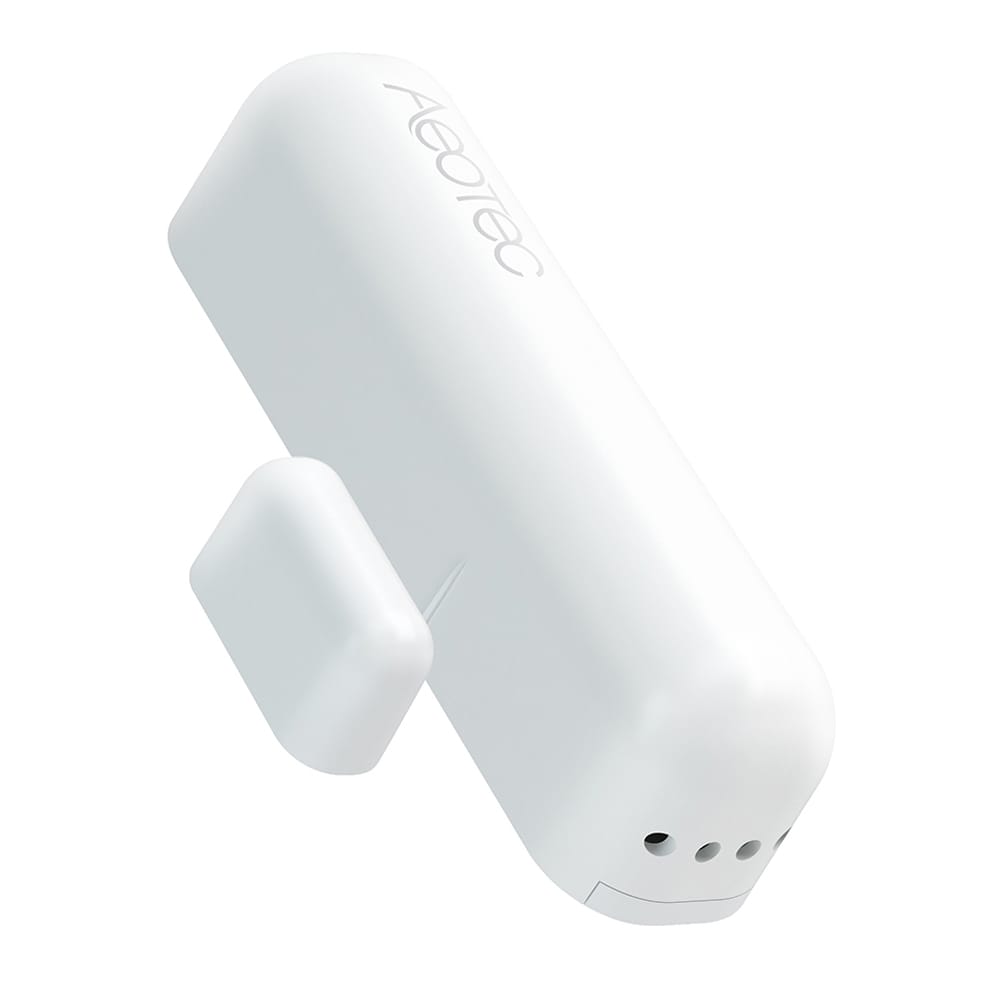

The AeotecDoor/Window Sensor 7 Pro goes way beyond basic open/close detection.

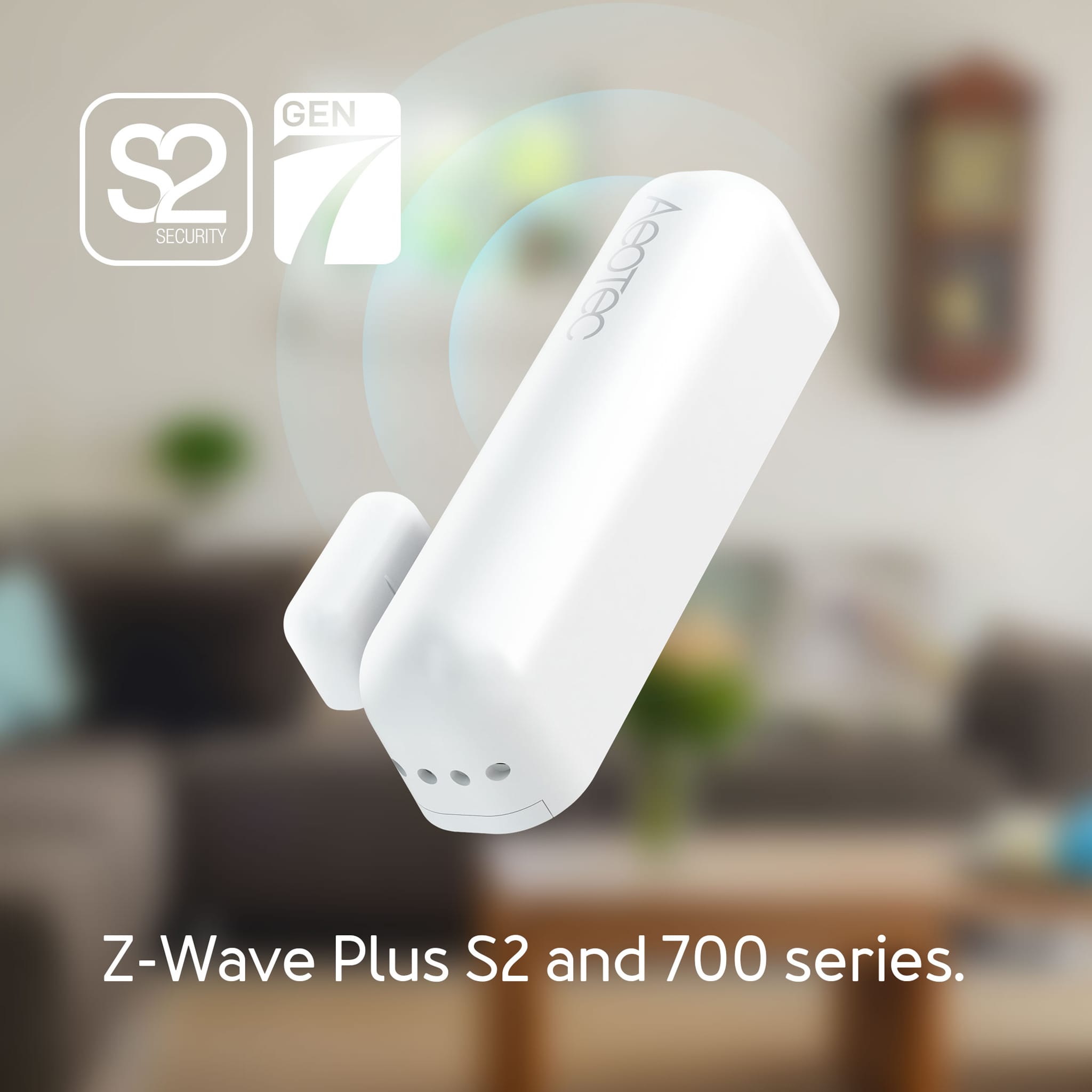

Built on Z-Wave Gen7, this clever sensor adds built-in tilt monitoring for tilt-and-turn windows and features internal dry contact terminals. This gives you the flexibility to wire in older external sensors, hook up a physical switch, or hardwire it to a permanent power supply so you never have to change a battery again.
You will need a Z-Wave hub/existing Z-Wave network to use this device.
Standard vs Pro
While both the standard Aeotec Door/Window Sensor 7 and the 7 Pro offer ultra-reliable Z-Wave Plus Gen7 open/close detection, the Pro model unlocks advanced capabilities for power users.
The 7 Pro features a built-in spatial sensor to detect the exact angle of European-style tilt-and-turn windows, plus internal dry contact terminals that allow you to bridge wired third-party sensors or physical switches into your Z-Wave network. It even gives you the option to hardwire the unit to a permanent 3.3V power supply, eliminating battery changes entirely.
Protect your home
Door / Window Sensor 7 is your first line of defence against an intruder. The instant a door or window opens, your automation system can alert you and activate compatible sirens, cameras, and other security devices. Sometimes it’ll know even before anything opens. With Aeotec’s patented Spatial Intrusion Algorithm™ built in and when paired with compatible software, it detect some break-ins before they happen, alerting you before anyone breaks in.
Open window alerts
Leaving home but have left a window open? Never again. Whether privately triggered by your geolocation or the arming of a smart security system, Door / Window Sensor 7 can remind you to close the doors and windows you left open.
Smart inside
Attached to internal doorways, Door / Window Sensor 7 can provide the intelligence that discreetly powers your smart home. Open a room and everything from its lights to its heating can be activated. Attached to objects, such as safes or alcohol cabinets secured, and you can be instantly alerted whenever they’re touched.

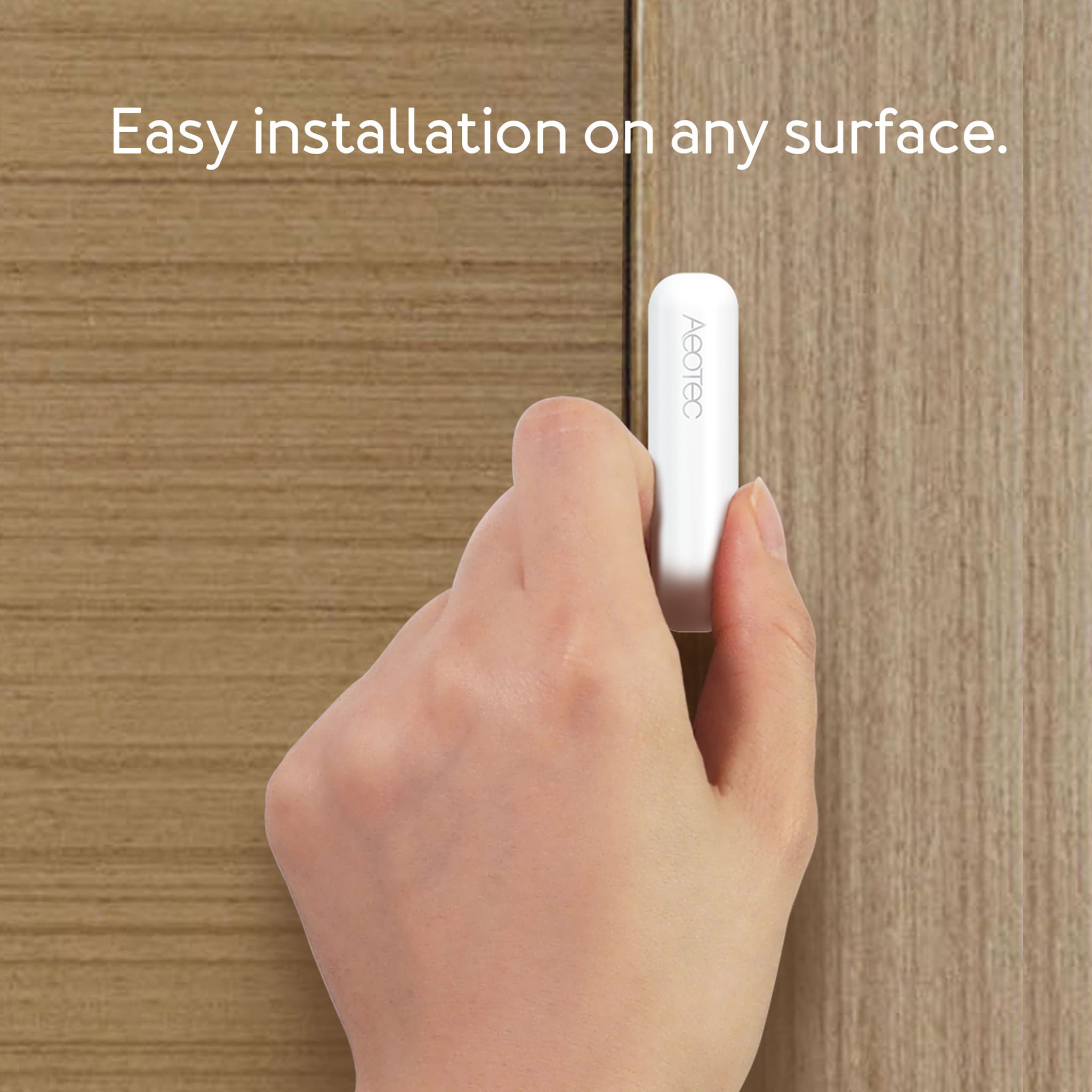

Instant installation
Every home is different, but the Door / Window Sensor 7 Pro has been carefully crafted to be easily installed in any home, no matter its shape or size. 15 years’ experience of designing security sensors has allowed us to make it our smallest yet. And our most universal.

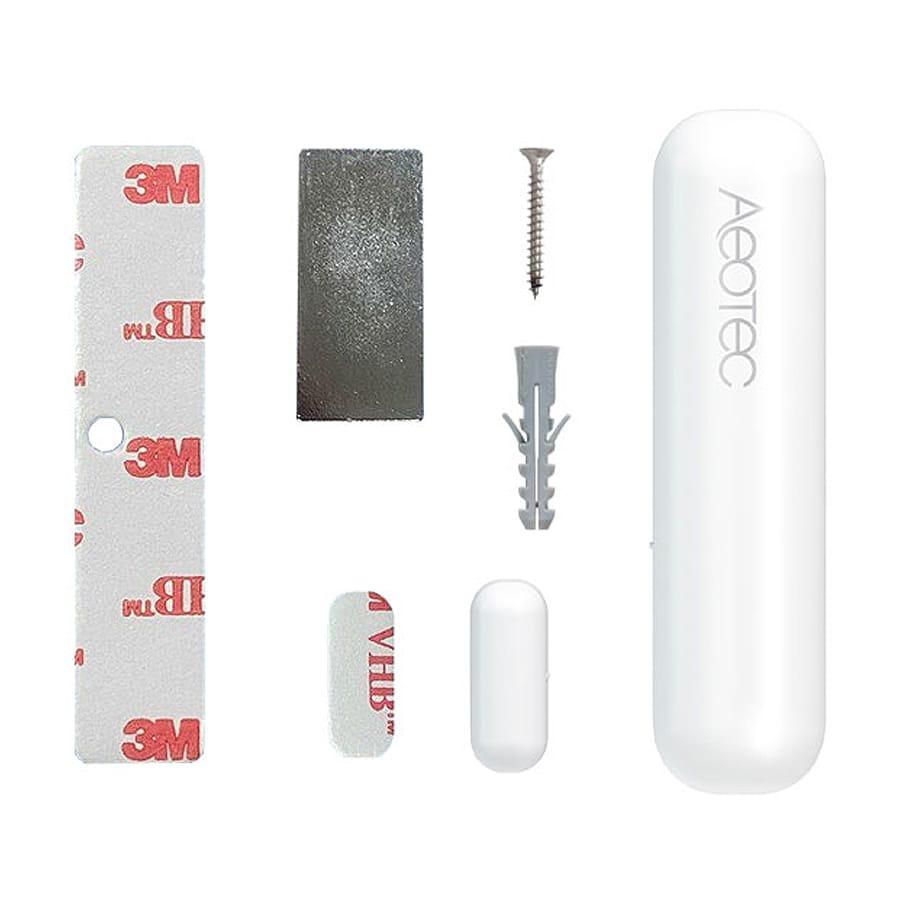

Installable in only moments, this Sensor can be mounted to any door or window frame with as little as the provided double-sided tape. It even takes smaller spaces into consideration being the only Z-Wave door or window sensor to come with 2 detection-magnets including slimline rare-earth magnet technology first pioneered by Aeotec.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Specifications
Model number
EU: ZWA012-C / ZWA042-C
Z-Wave Product ID
EU: 0371.0002.000C / 0371.0002.002A
Sensors
Magnetic
Tilt Detection
Must be over 5 degrees
Dry Contact
Yes
Support External Power
Yes
VCC current
Max 500mA
VCC
Max 3.6V
Weight
26 g
Dimensions
19 x 71 x 18 mm
Magnet Dimensions
8 x 20 x 11 mm
UPC/EAN
EU: 1220000016682
Waterproofing
IP20 rating
Radio protocol
Z-Wave Plus 2
Z-Wave hardware
ZGM130S
Z-Wave Version
7.12 or later
Radio frequency
868.4 - 869.8 MHz EU
Z-Wave Plus Certified
Yes
S2 Security
Yes
Smart Start
Yes
Repeater
No
Beaming
No
Power supply
No
Battery charger input
No

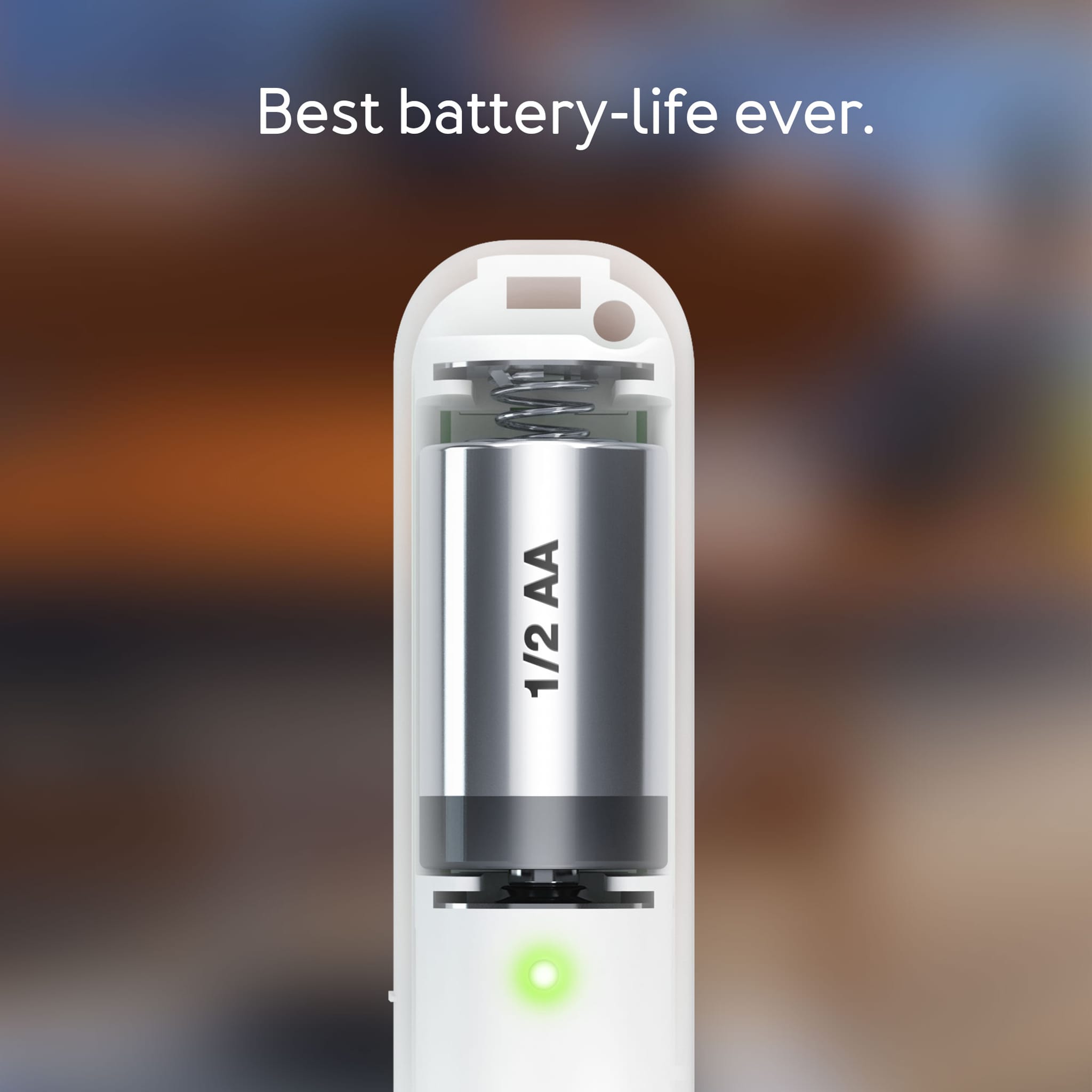

Battery type
14250 lithium 3V
Battery life
3 years assuming 5 open and 5 close events per day with Wakeup reports disabled
Max current consumption
5mW
Operating humidity
10 to 95%
Operating temperature
-20°C to 45°C
Storage temperature
-30°C to 70°C
Operating distance
More than 50 meters indoors Up to 150 meters outdoors
