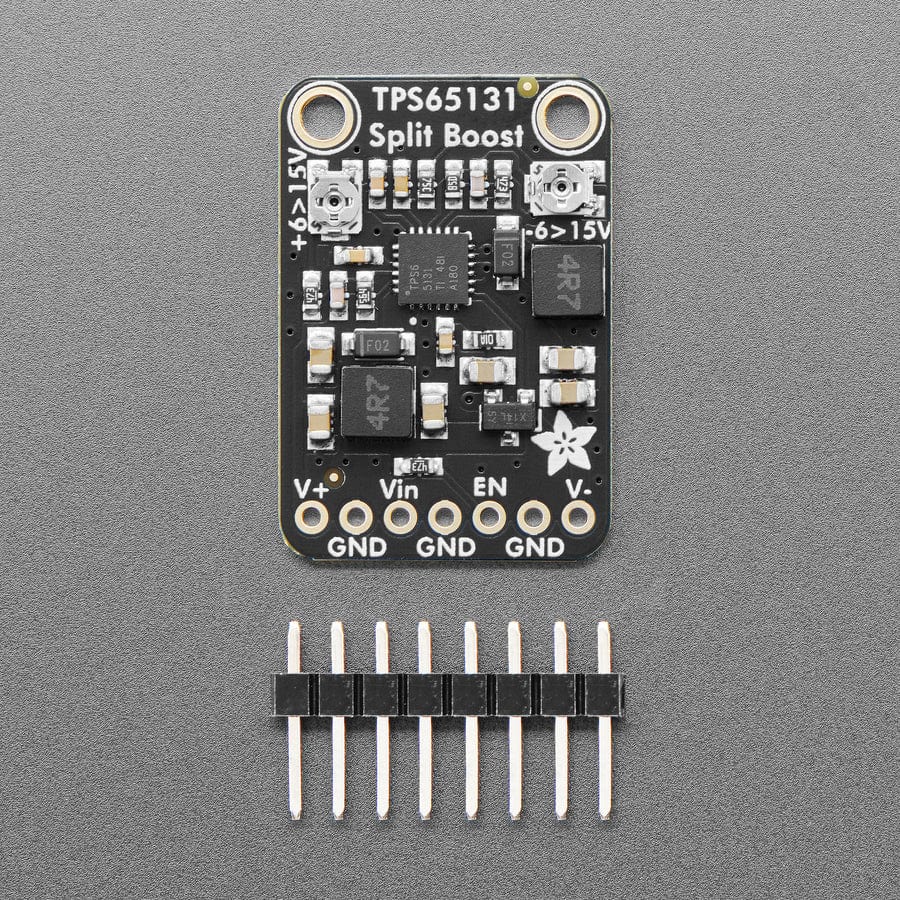

Need those tricky split-rail voltages for your vintage electronics? TheAdafruit TPS65131 Split Rail Boost Convertergenerates both positive and negative voltage rails from a single 3-5V input.
This makes it great for mimicking or replacing a transformer-based power supply or something that needs negative bias. We kept the design compact, and it even has adjustable output pots, so you can tune the voltages from about +6~+15VDC and -6~15VDC. Perfect for use with audio or retro projects now that transformer supplies are hard to get, or if you want to have something that could run on battery or USB.
We initially designed this to generate a -12V bias voltage on an Apple ][ disk drive, but you could definitely use it for synthesisers/modulars, TTL logic or op-amps that want a wide power supply, biasing LCDs or OLEDs, as well as other uncommon voltages. The trimmers let you tweak the outputs so you could get +6V and -12V or +12 and -8V.

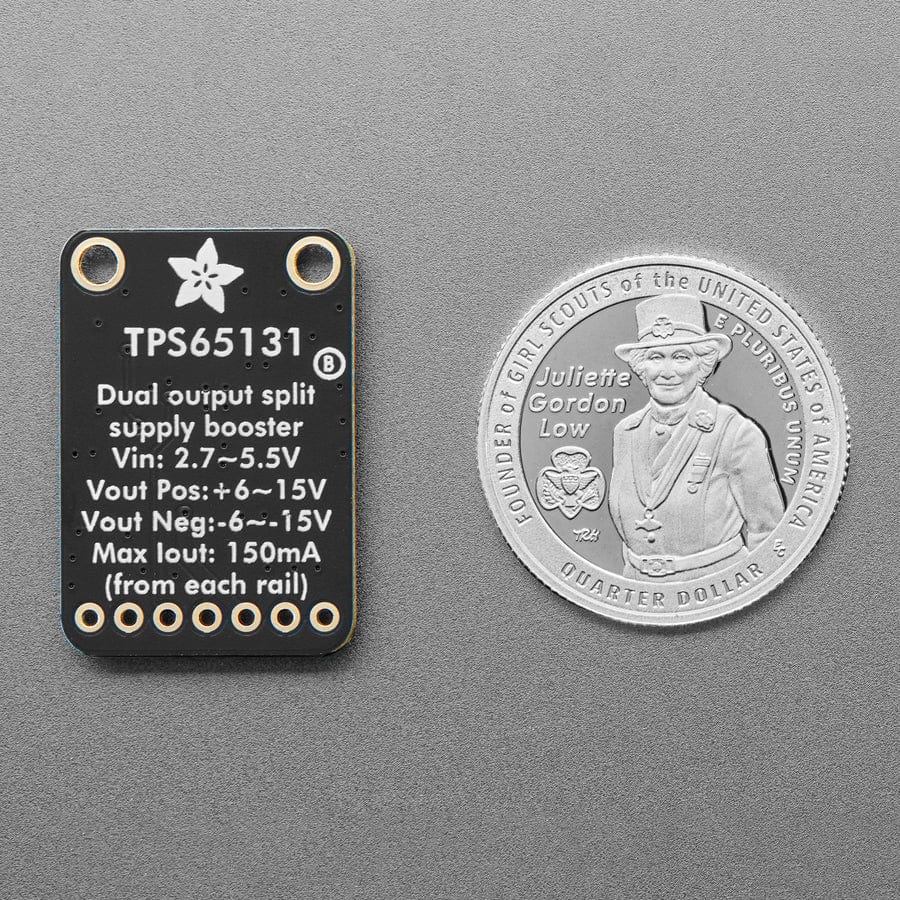

Features
The TPS65131 can generate positive and negative voltages simultaneously
Adjustable voltage ranges: +6V to +15V and -6V to -15V, these are somewhat approximate because the trimmer pot can vary, you may find +/-0.5V variance on the bookend values
Input voltage: 3 to 5.5V
Output current: 150mA from each rail (assuming +12/-12V from 4.5V input). So not good for a motor, best for biasing or powering analog/digital electronics

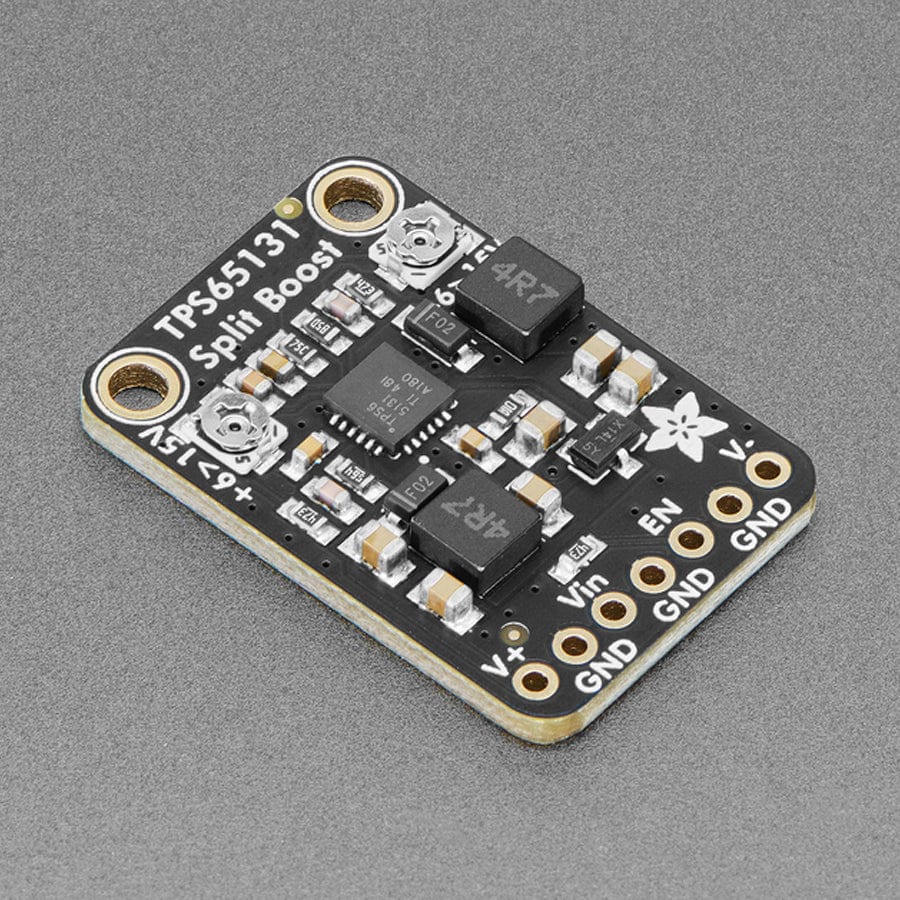

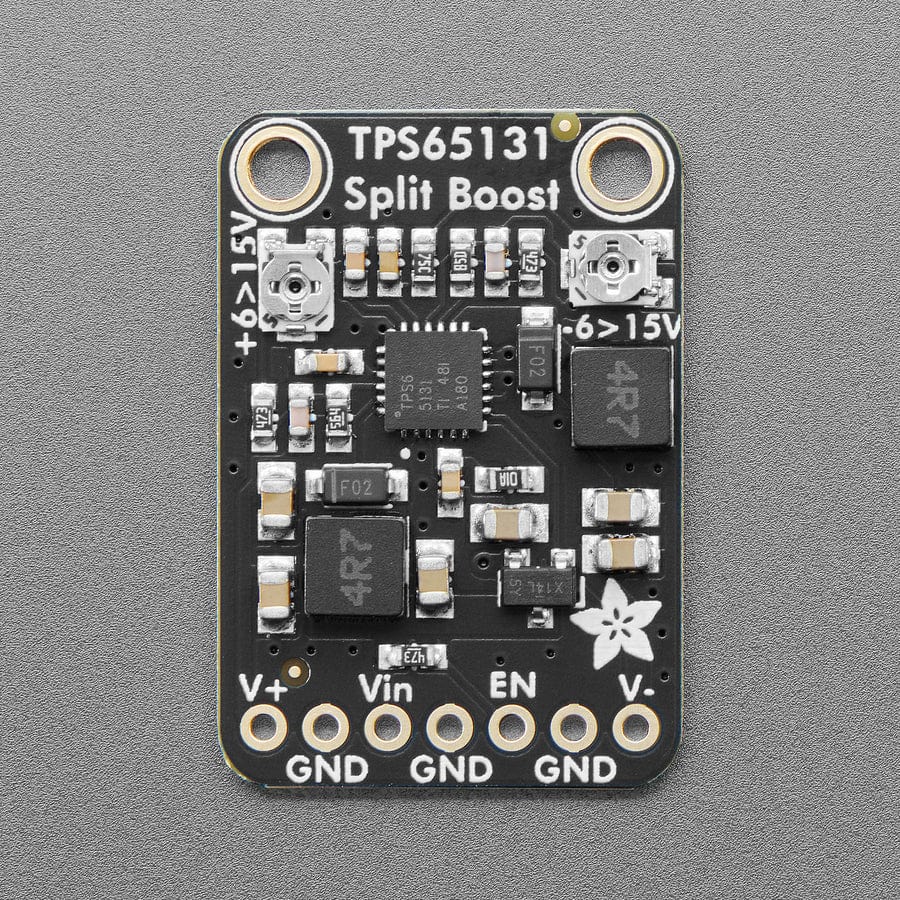

Compact breadboard-friendly design with mounting holes and two trimmer pots
