Adafruit LiIon/LiPoly Backpack Add-On for Pro Trinket/ItsyBitsy

AdafruitSKU: ADA2124
(2 Reviews)
Price:
Sale price £4.80
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

Adafruit ItsyBitsy 32u4 - 5V 16MHz - The Pi HutAdafruit ItsyBitsy 32u4 - 5V 16MHz - The Pi Hut
(5 Reviews)
AdafruitAdafruit ItsyBitsy 32u4 - 5V 16MHz
Sale price £9.60 incl. VAT excl. VAT
Adafruit Pro Trinket - 5V 16MHz - The Pi HutAdafruit Pro Trinket - 5V 16MHz - The Pi Hut
(2 Reviews)
AdafruitAdafruit Pro Trinket - 5V 16MHz
Sale price £9.60 incl. VAT excl. VAT
1200mAh 3.7V LiPo Battery - The Pi Hut
(5 Reviews)
The Pi Hut1200mAh 3.7V LiPo Battery
Sale price £8 incl. VAT excl. VAT
Half-Size Breadboard - White - The Pi HutHalf-Size Breadboard - White - The Pi Hut
(90 Reviews)
The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT
Breadboard-friendly SPDT Slide Switch - The Pi HutSPDT Slide Switch - 0.1" Breadboard-friendly - The Pi Hut
(14 Reviews)
The Pi HutBreadboard-friendly SPDT Slide Switch
Sale price £0.80 incl. VAT excl. VAT
On-Off Power/Push Button Toggle Switch - The Pi HutOn-Off Power/Push Button Toggle Switch - The Pi Hut
(3 Reviews)
The Pi HutOn-Off Power/Push Button Toggle Switch
Sale price £1.70 incl. VAT excl. VAT
Polyimide Tape - The Pi HutPolyimide Tape - The Pi Hut
The Pi HutPolyimide Tape
Sale priceFrom £4 incl. VAT excl. VAT

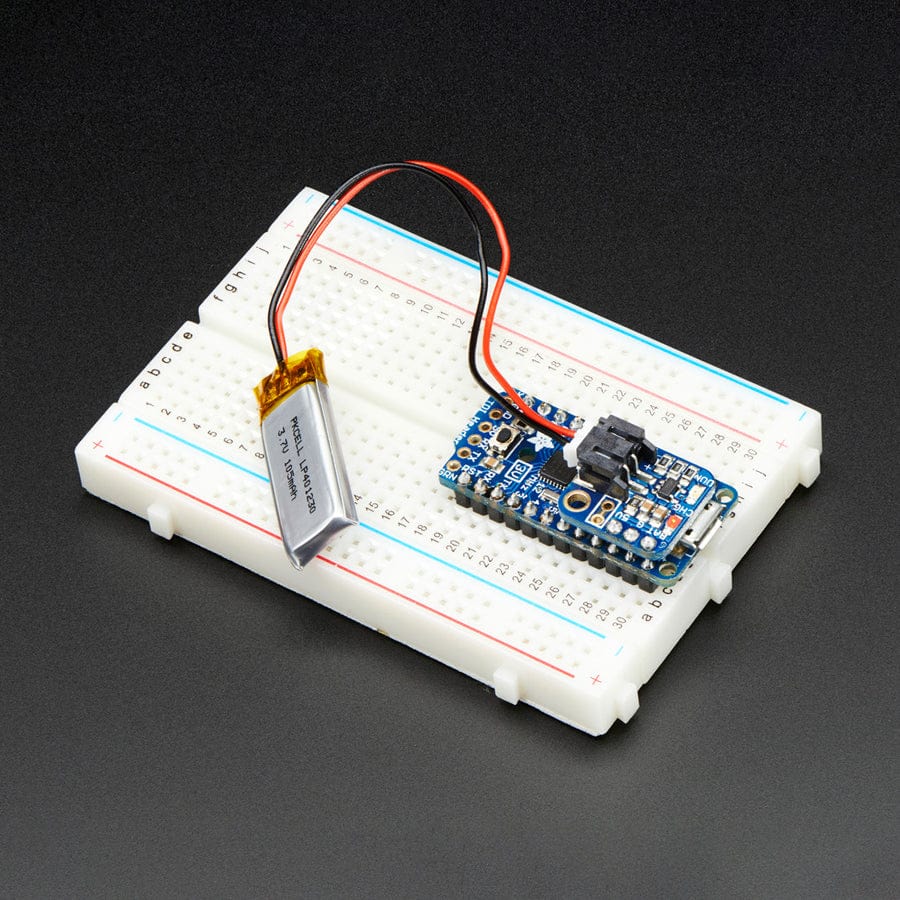

If you have an ItsyBitsy or Pro Trinket you probably know it's the perfect little size for a portable project. This LiPoly backpack makes it really easy to do! Instead of wiring 2 or 3 boards together to make a charging system, this little PCB sits on top of the PCB and allows a LiPoly/LiIon battery to plug in. When the Pro Trinket or ItsyBitsy USB port is powered, the battery is recharged automatically. Unplug the USB port and the microcontroller will switch over to the rechargeable battery.

Ideally, this backpack is for use with the 3.3V Pro Trinkets & ItsyBitsy, so that the battery voltage (3.7V-4.2V) will get regulated down to 3.3V on the board. However, many times, you can run a 5V microcontroller + accessories off of the ~4V from the LiPoly battery with no problem. (Technically it's overclocking but we've never seen that affect the microcontroller itself, AVRs are happy to overclock without complaint).

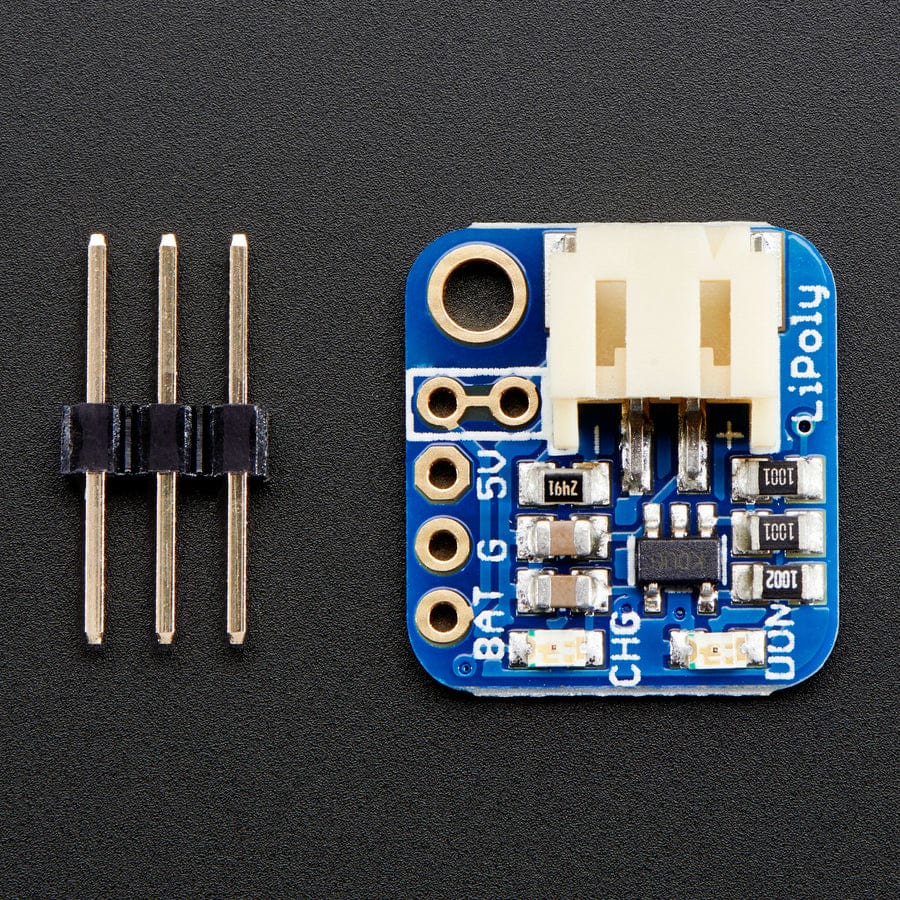

Solder the backpack on with the extra long header so that it can still plug into a breadboard, or clip the long header leads short afterwards for a slim package. There are two LEDs - one red and one green. While charging, the red LED is lit. When the battery is fully charged and ready for use, the green LED turns on. Seriously, it could not get more easy.

If you want to add an On/Off switch, we also made that really easy. The two 0.1" holes with a box around them are the battery output line. Carefully cut the trace between them with a hobby knife and replace it with two wires from a switch like this slide switch, or this pushbutton one, for example.

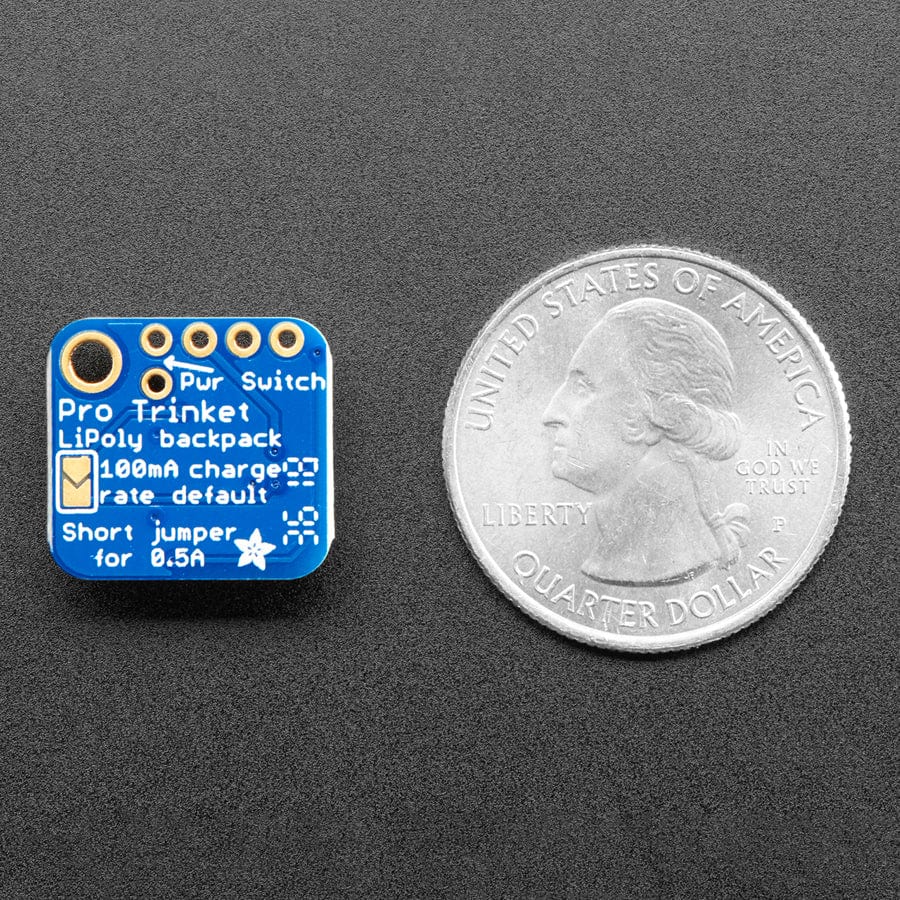

Charging is performed in three stages: first, a preconditioning charge, then a constant-current fast charge and finally a constant-voltage trickle charge to keep the battery topped up. The charge current is 100mA by default, so it will work with any size battery and USB port. If you want you can easily change it over to 500mA mode by soldering closed the jumper on the bottom, for when you'll only be charging batteries with 500mAh size or larger.

For use with Adafruit LiPoly/LiIon batteries only! Other batteries may have different voltage, chemistry, polarity or pinout.

  • Comes assembled and tested
  • Uses the 5V input via Micro-B USB connector on the Pro Trinket or ItsyBitsy
  • For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)
  • 100mA charge current, adjustable to 500mA by soldering a jumper closed

Batteries and Pro Trinket or ItsyBitsy are not included. You may also want to have some Kapton tape or other tape on hand to protect the backpack from shorting against the USB connector.

Notes

  • For the Itsy nRF52840, this backpack covers the reset/user buttons (you could use 3 wires instead of having it sit on top.
  • You may get an off-white or a black JST connector. It's normal for the red and green LEDs to be very faintly glowing when the battery is attached but not charging, there is 500uA reverse-leakage current from the Schottkey diode from the battery that back powers the charger chip.

Specifications

  • Dimensions: 15mm x 17mm x 2mm
  • Height with JST: 7mm
  • Weight: 1.3g
