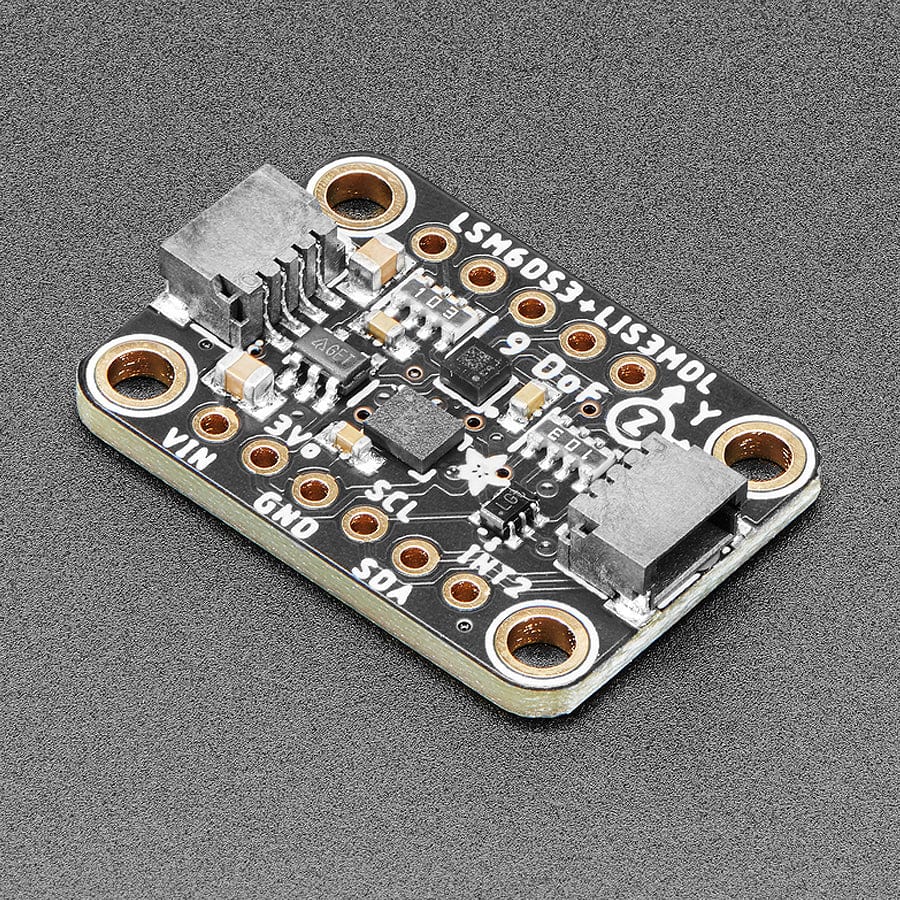

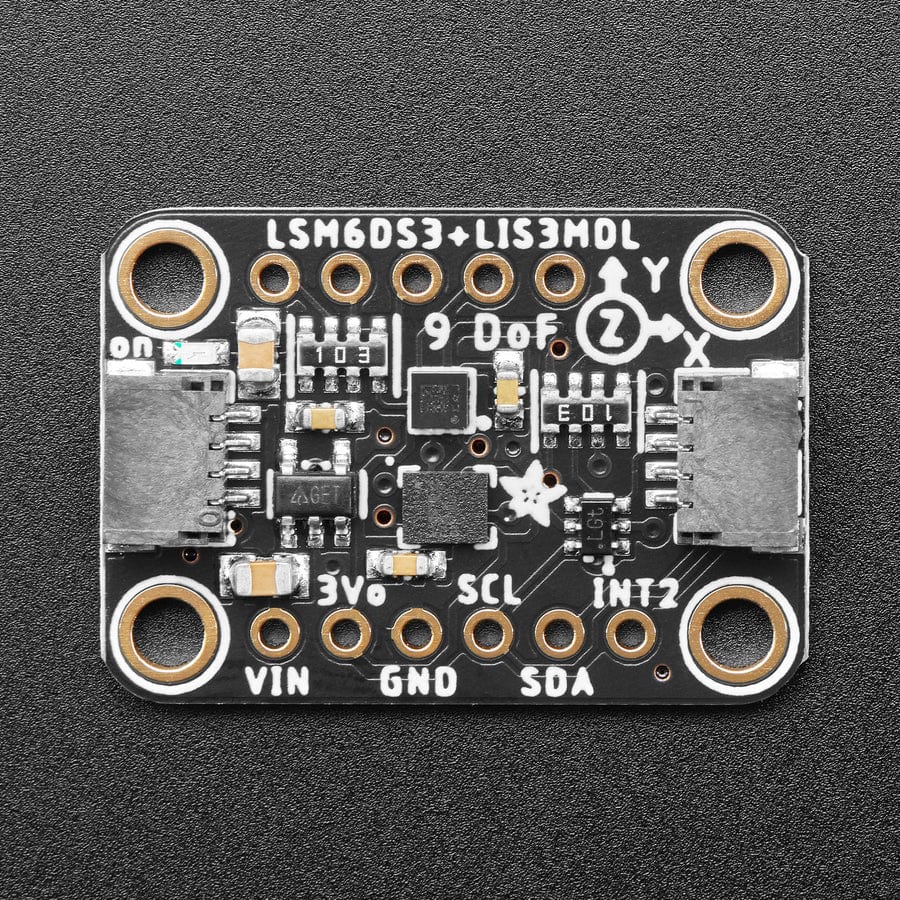

Add high-quality motion, direction, and orientation sensing to your Arduino project with this all-in-one 9 Degree of Freedom (9-DoF) sensor with sensors from ST. This little breakout contains two chips that sit side-by-side to provide 9 degrees of full-motion data.
The board includes an ST LSM6DS3TR-C (a.k.a LSM6DS3), a great entry-level 6-DoF IMU accelerometer + gyro. The 3-axis accelerometer can tell you which direction is down towards the Earth (by measuring gravity) or how fast the board is accelerating in 3D space. The 3-axis gyroscope can measure spin and twist.
This chip isvery similarto the now-discontinued LSM6DS33, a great entry-level IMU. As part of the illustrious LSM6DS family, it's well-established and well-supported, and this chip even has better performance! Note it is not firmware-compatible with the 'DS33, so you will need to recompile code (e.g our Arduino and Python libraries support the whole family but you do have to indicate which exact chip you're using)
It also includes aLIS3MDL3-axis magnetometer that can sense where the strongest magnetic force is coming from, generally used to detect magnetic north. The three triple-axis sensors add up to 9 degrees of freedom, by combining this data you can orient the board. Check out our guide on how to do that!

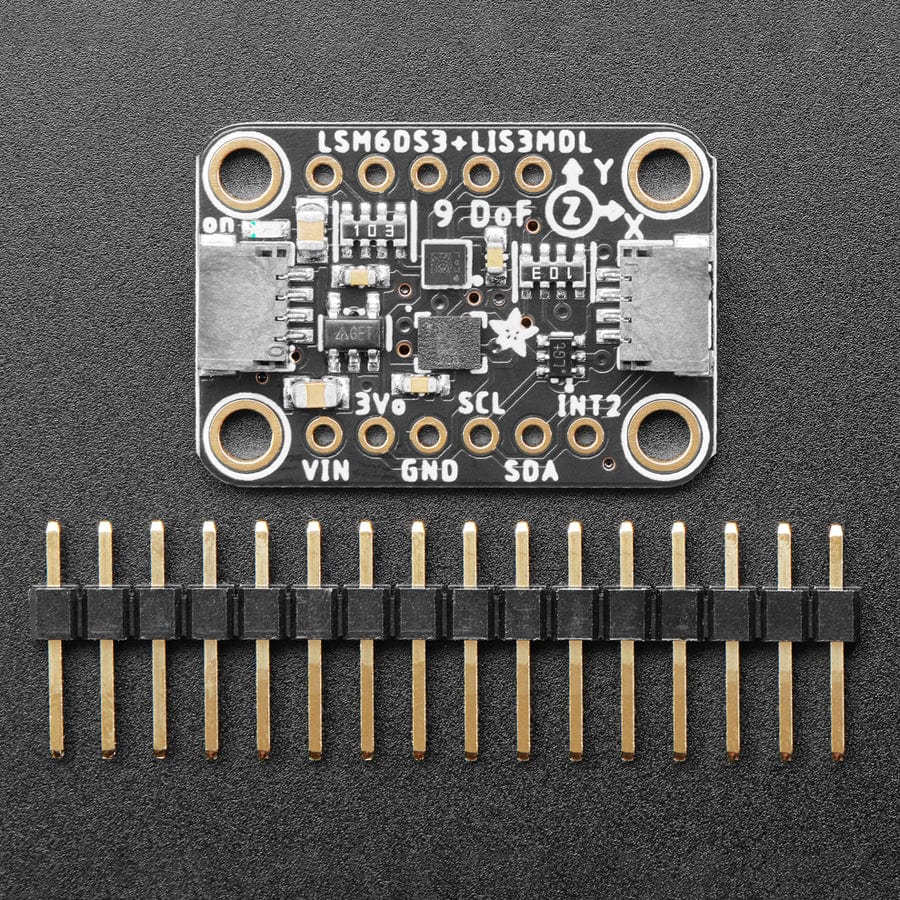

To make getting started fast and easy, we placed the sensors on a compact breakout board with voltage regulation and level-shifted inputs. That way you can use them with 3V or 5V power/logic devices without worry. To make usage simple, we expose only the I2C interface and some interrupt pins from each chip. The breakout comes fully assembled and tested, with some extra header so you can use it on a breadboard. Four mounting holes make for a secure connection.

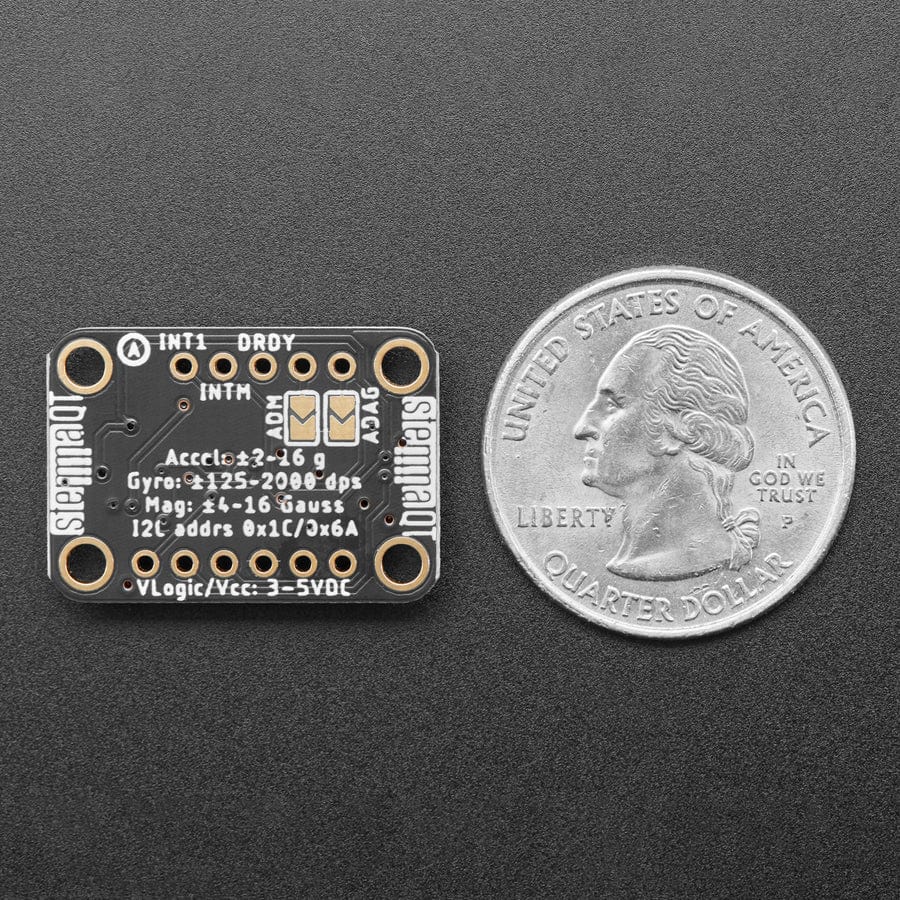

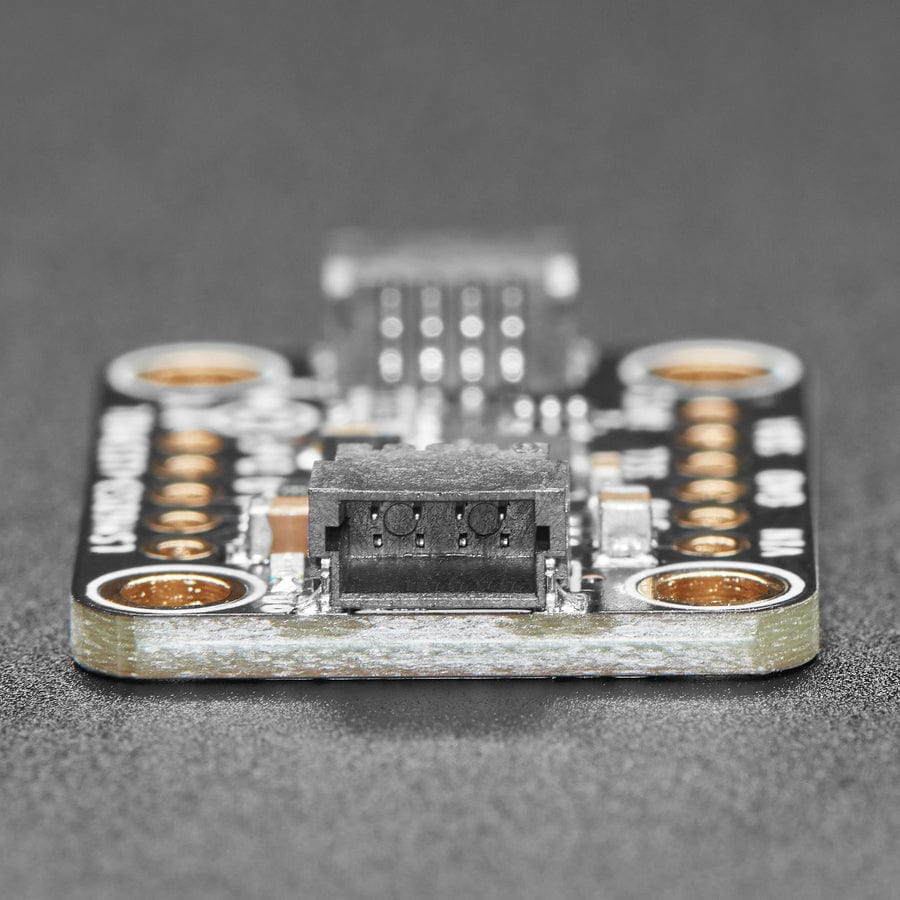

Additionally, since it speaks I2C you can easily connect it up with two wires (plus power and ground!). We've even includedSparkFun qwiiccompatible STEMMA QT connectors for the I2C bus soyou don't even need to solder!Just wire up to your favourite micro like the STM32F405 Featherwith a plug-and-play cable to get 9 DoF data ASAP. You can change the I2C addresses on the back using the solder jumpers, to have two of these sensor boards on one bus. QT Cable is not included, but we have a variety in the shop.
