7" IPS Display + Aluminium Enclosure for Raspberry Pi

This touch display + enclosure combo from Waveshare provides a 7" IPS display combined with a tough aluminium enclosure, along with an internal adapter board to re-route all the main ports to one side! Just add a Raspberry Pi 5 or Pi 4 (not included) and you have a great platform for a project interface.

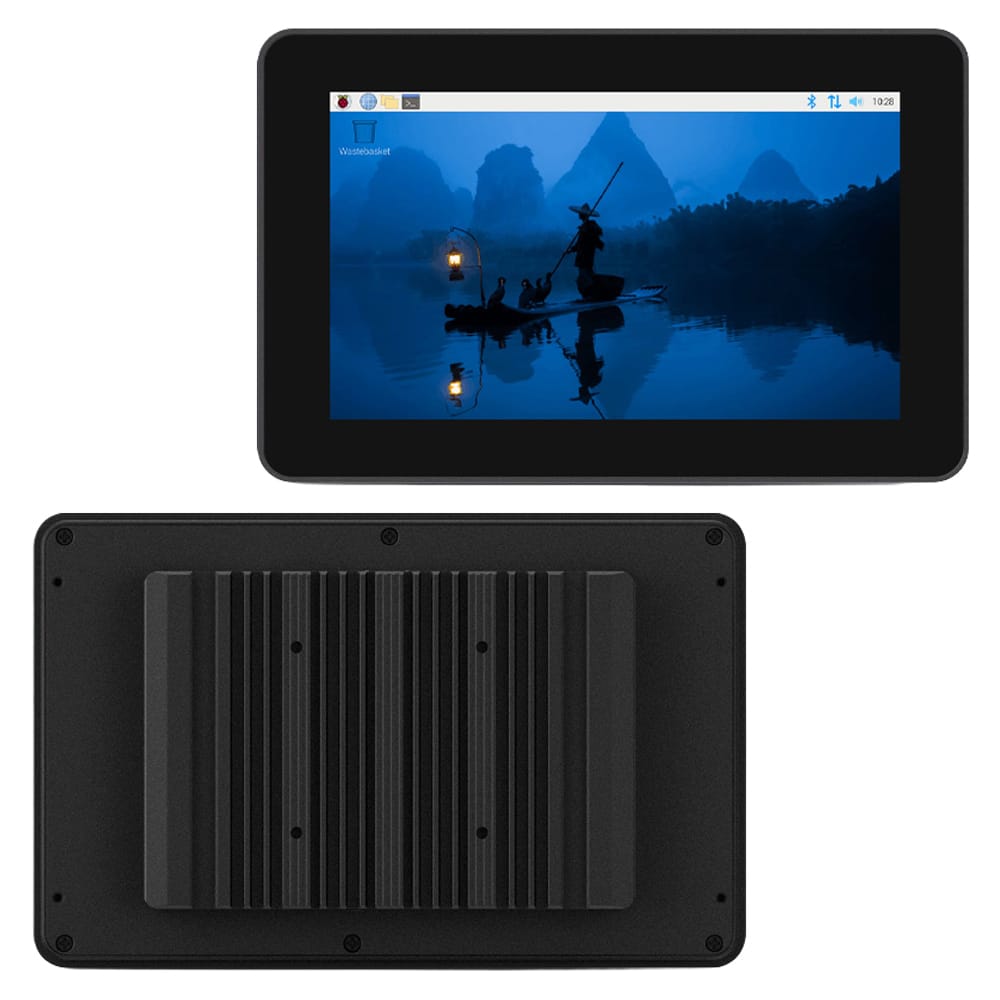

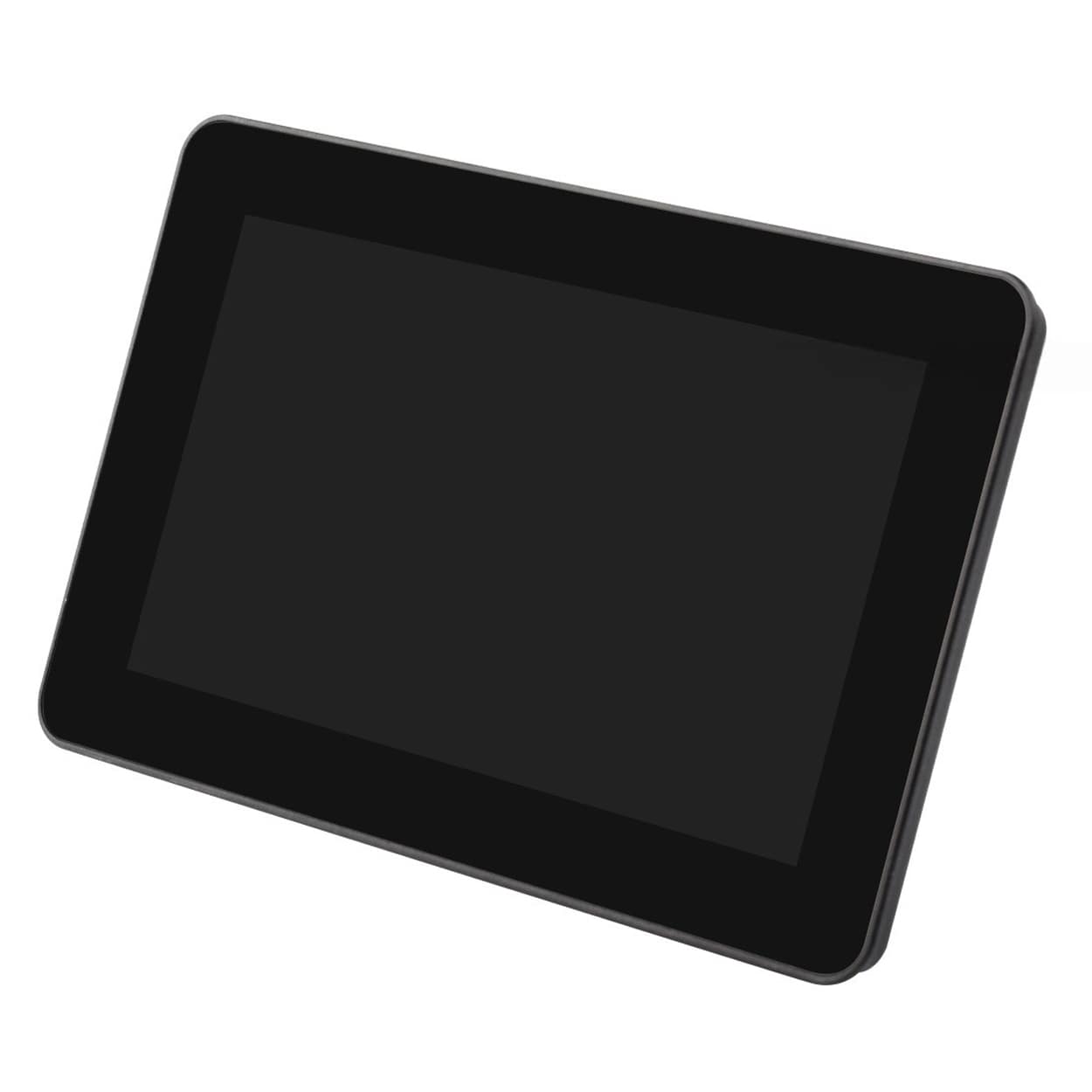

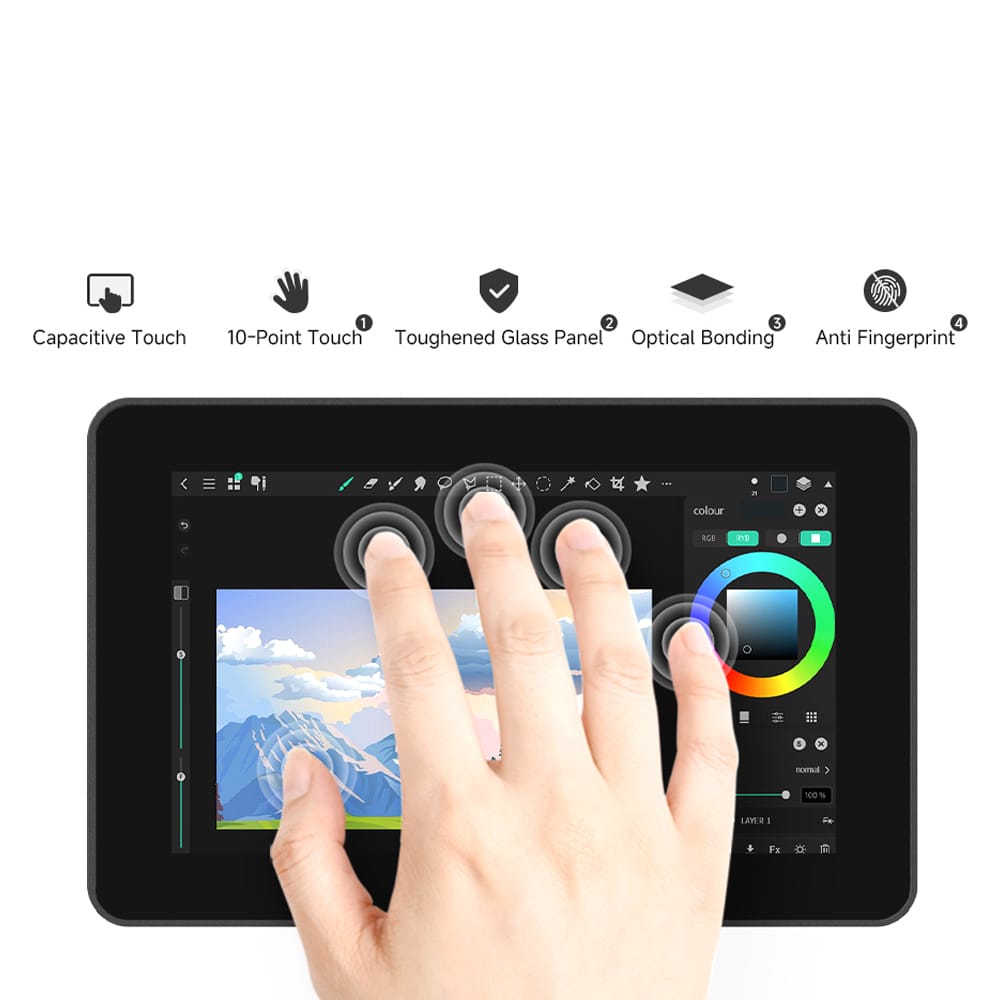

The display is a 7" 720x1280 IPS capacitive touch toughened glass panel, with 170° viewing angles and up to 10-point touch input. It connects to your Raspberry Pi via the DSI connection, with DSI ribbon cables for both the Pi 5 and Pi 4 included in the box for your convenience.

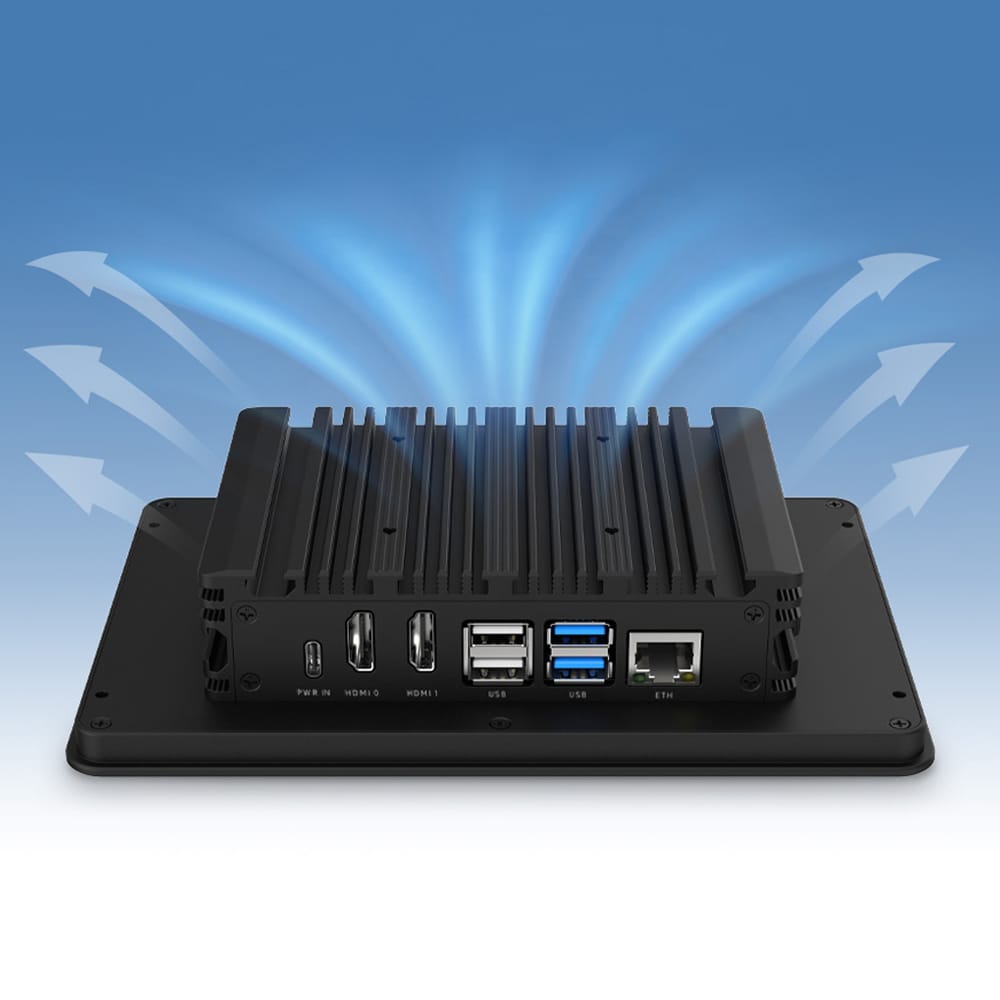

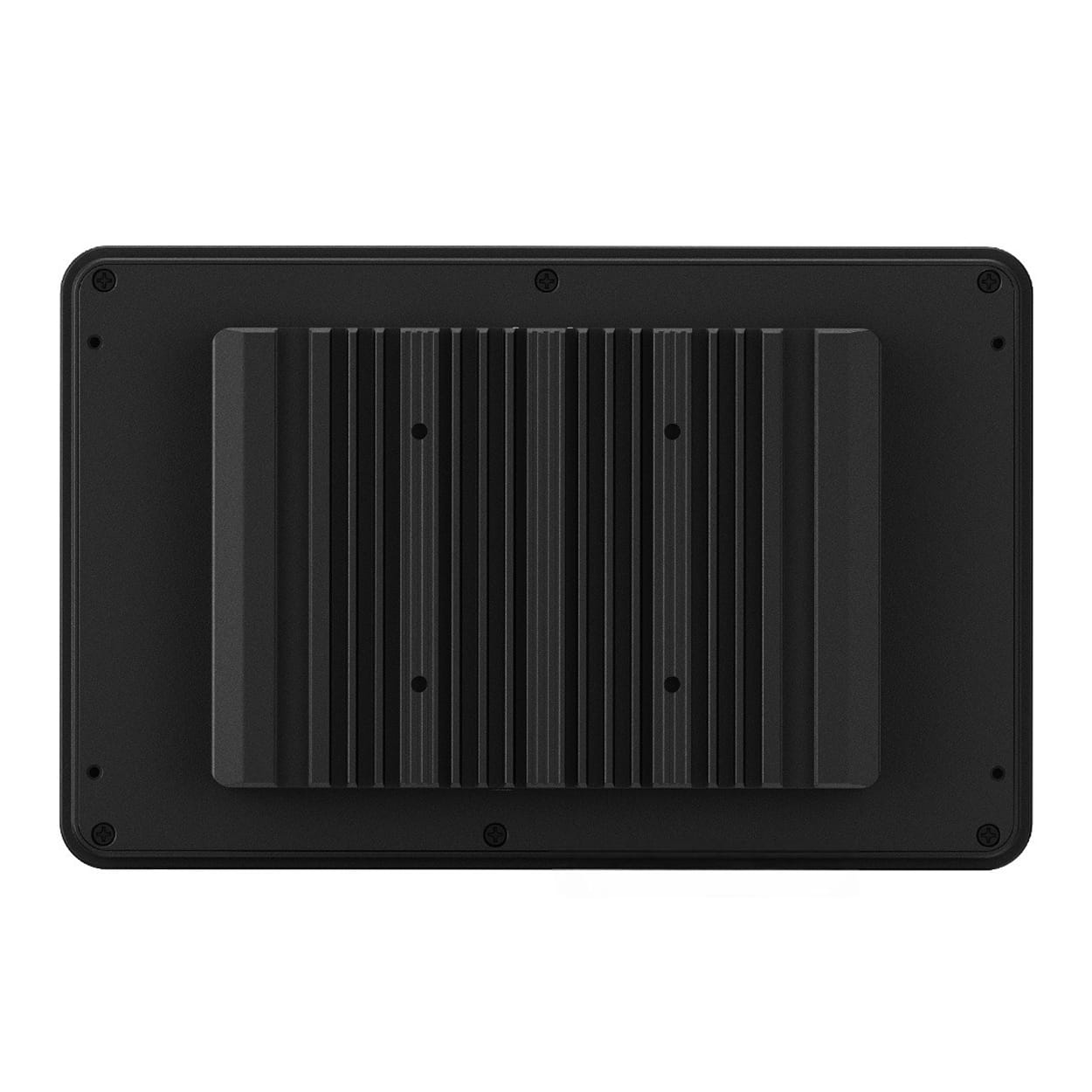

The enclosure is made from aluminium alloy, providing a durable case for the display and your Raspberry Pi, with the added benefit of excellent heat transfer (aided by the included heatsinks!). It includes 50mm VESA mounting and provides access to all of the key ports on your Raspberry Pi, including dual HDMI, USB-C power input, Ethernet, all four USB ports, power button and the SD slot. Two different IO panels are included to ensure compatibility with both the Pi 5 and Pi 4.

Inside is an adapter board that relocates ports to one side of the case, and upgrades the Micro-HDMI to full-size HDMI. The adapter also provides a debug port, and an optional way to power your project via a 5V/GND terminal block.

Raspberry Pi, power supply and SD card not included.

Features

• 7" IPS capacitive touchscreen with 720x1280 resolution
  • Toughened glass panel with 170° viewing angles
  • 10-point multi-touch input support
  • 60Hz refresh rate
  • DSI ribbon cable connection to Raspberry Pi
  • DSI cables included for both Raspberry Pi 5 and Pi 4
• Aluminium alloy enclosure

  • Access to key Raspberry Pi ports
  • Full-size HDMI output (upgraded from Micro-HDMI)
  • Power button access
  • SD card slot access
  • Two interchangeable IO panels for Pi 5 and Pi 4 compatibility
  • Internal adapter board relocates ports to unified side access
  • Debug port on adapter board
  • Optional 5V/GND input for alternative power input

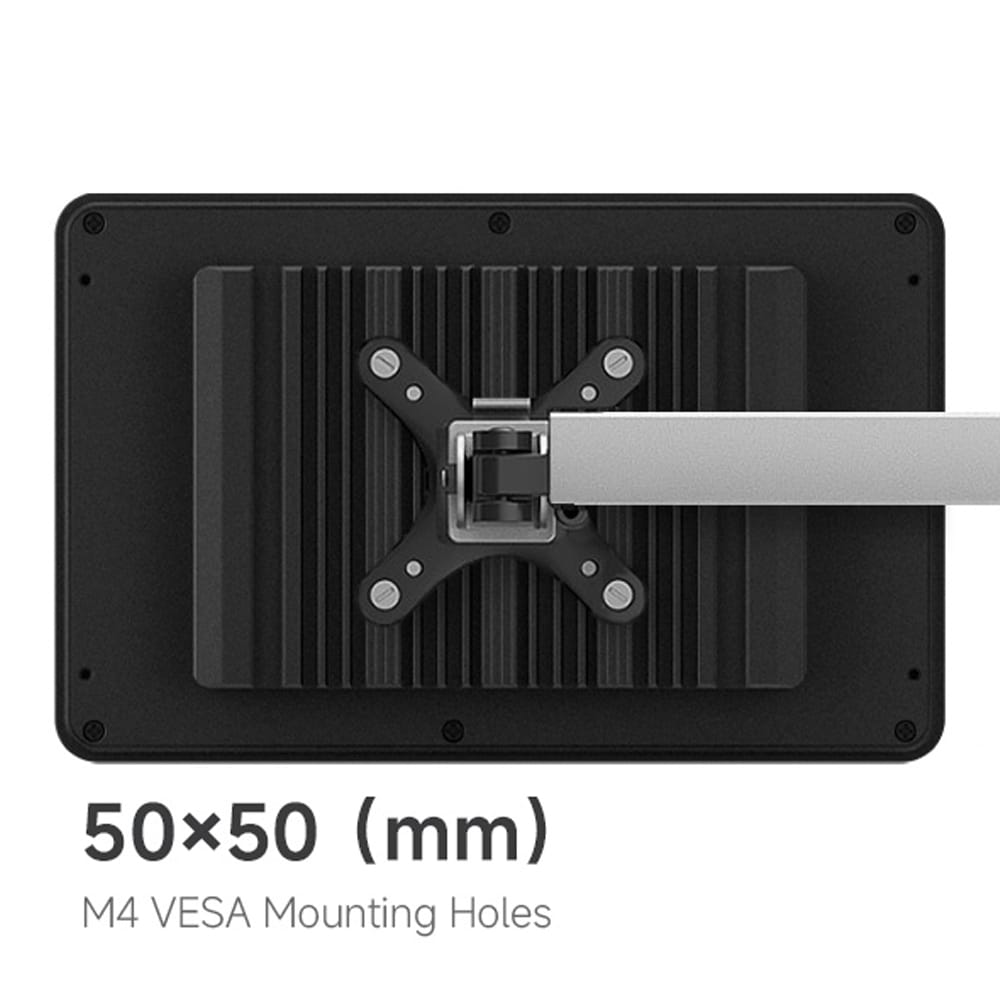

  • VESA compatible (50mm), M4 holes
• Included heatsinks

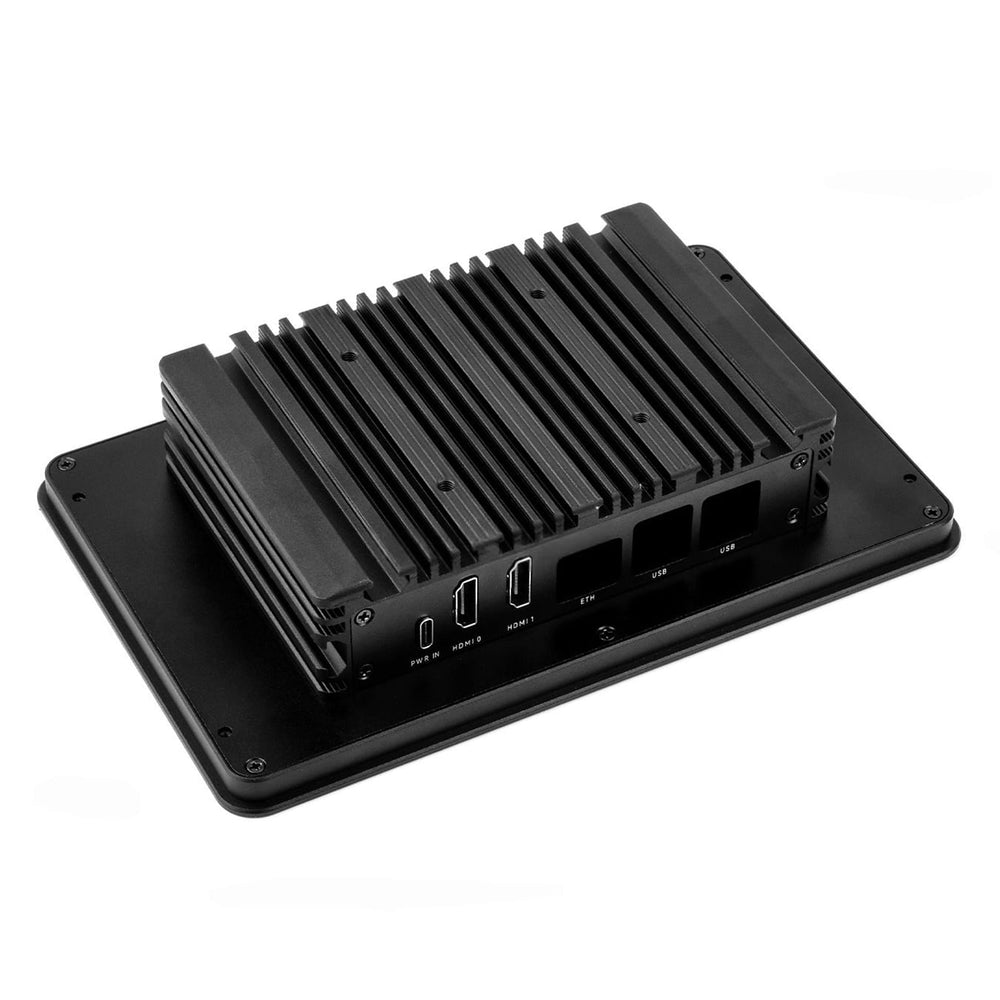

Enclosure Interfaces

1. 5V USB Type-C power port
2. 2× standard HDMI ports
3. 2× USB 2.0 ports
4. 2× USB 3.0 ports
5. Gigabit Ethernet port
6. MicroSD card slot
7. Power button
8. Power indicator

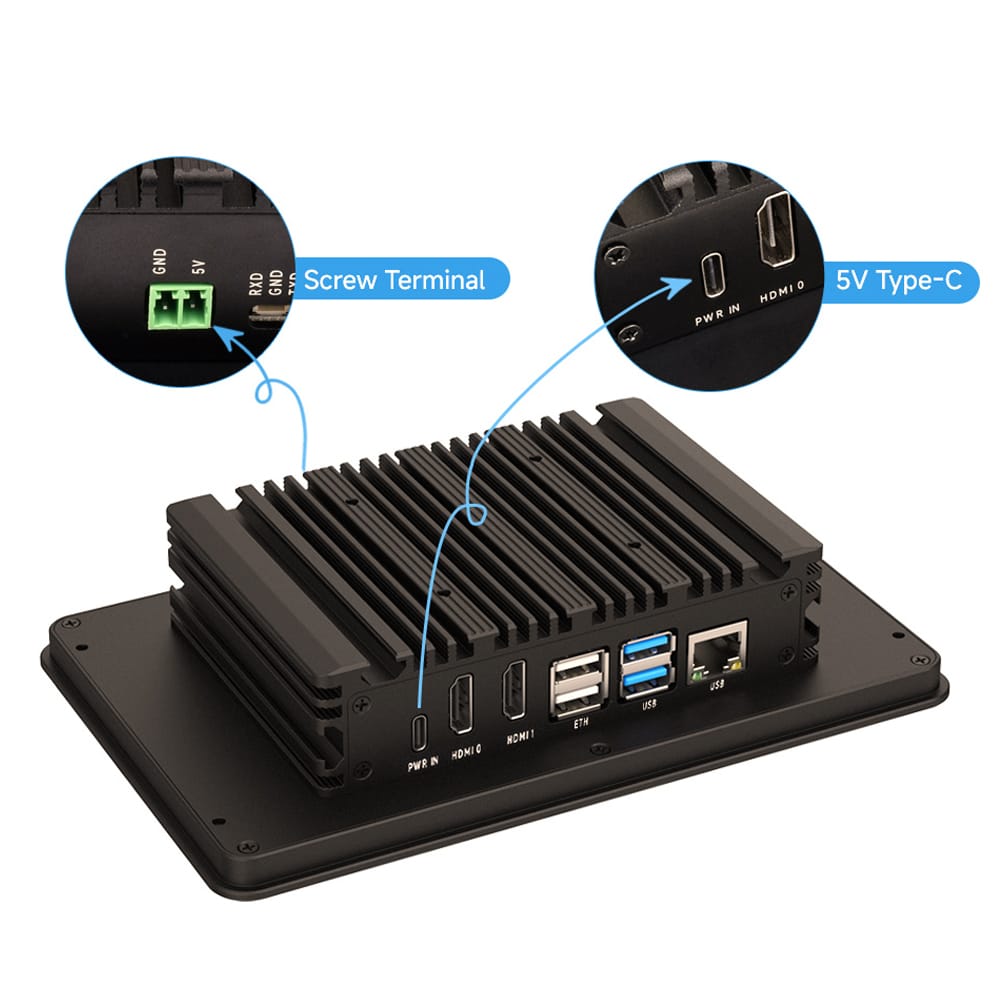

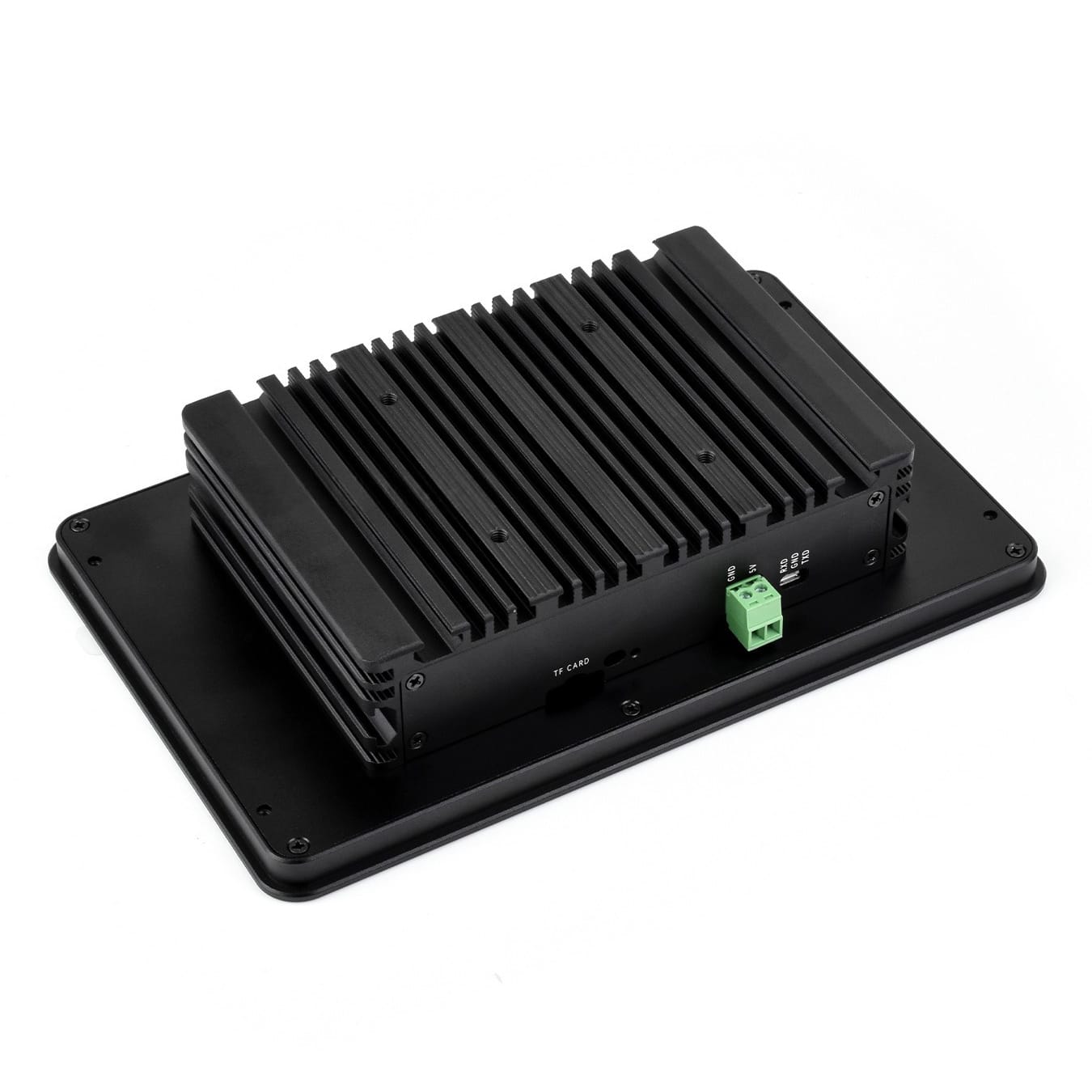

9. 5V power supply screw terminal (3.81mm pitch)
10. Serial debug port

Resources

• Product Wiki

Package Contents

We are stocking the RPI-HMI-7A-ACCE-B pack from Waveshare, which does not include a Raspberry Pi or SD card.

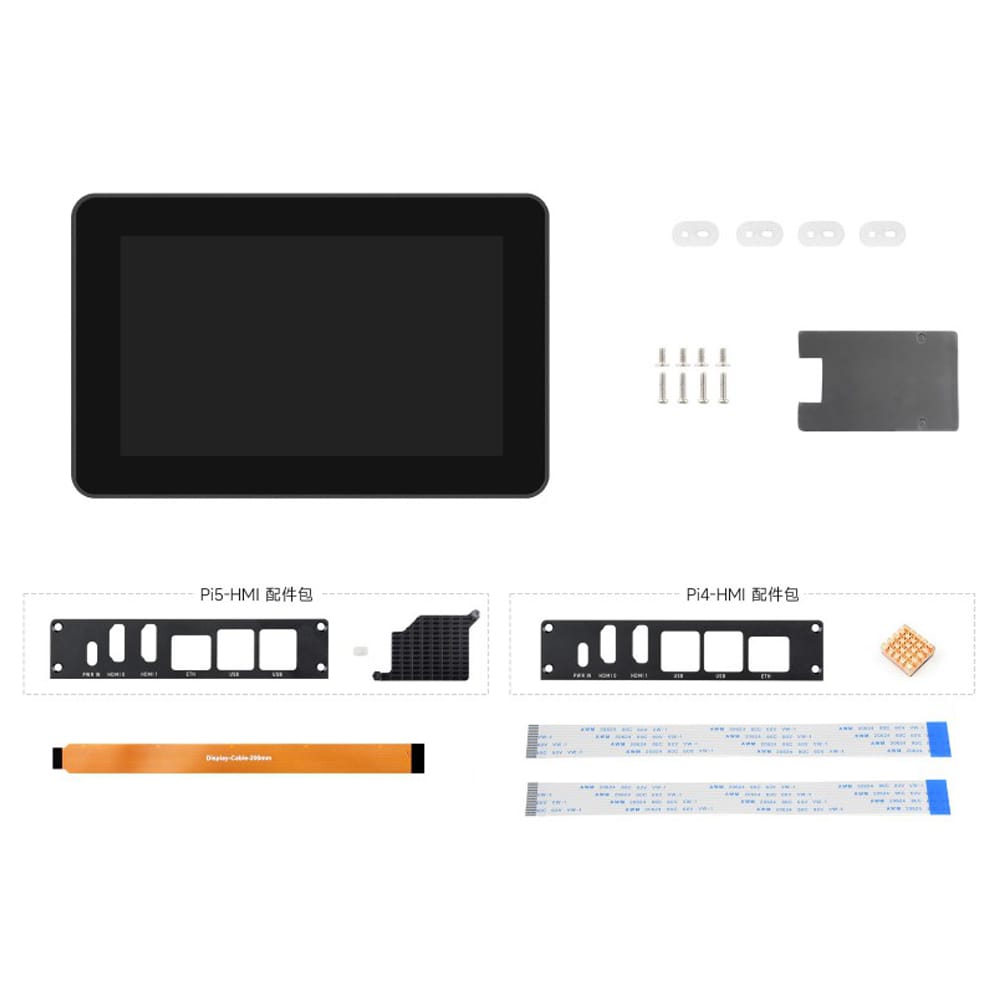

The package includes:

• 1x 7" touch display
• 1x Aluminium enclosure
• 4x Wall mounting buckles
• 1x Screws pack
• 1x 5W thermal pad
• 1x Side panel for Pi 5
• 1x Aluminium alloy heatsink (for Pi 5)
• 1x Silicon button (for Pi 5)
• 1x Side panel for Pi 4
• 1x Copper heatsink (for Pi 4)
• 1x 200mm DSI cable (for Pi 5)
• 2x 200mm DSI cable (for Pi 4)

Raspberry Pi, power supply and SD card not included.
