7" DSI Capacitive Touch Display with 5MP Camera for Raspberry Pi (800x480)

WaveshareSKU: WAV-20806
Price:
Sale price £81
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Compatible with:

Awesome Extras

The Pi HutRaspberry Pi 4 Model B Starter Kit
Sale priceFrom £59.70 incl. VAT excl. VAT
The Pi Hut4-Piece Raspberry Pi 4 Heatsink Set
Sale price £2 incl. VAT excl. VAT

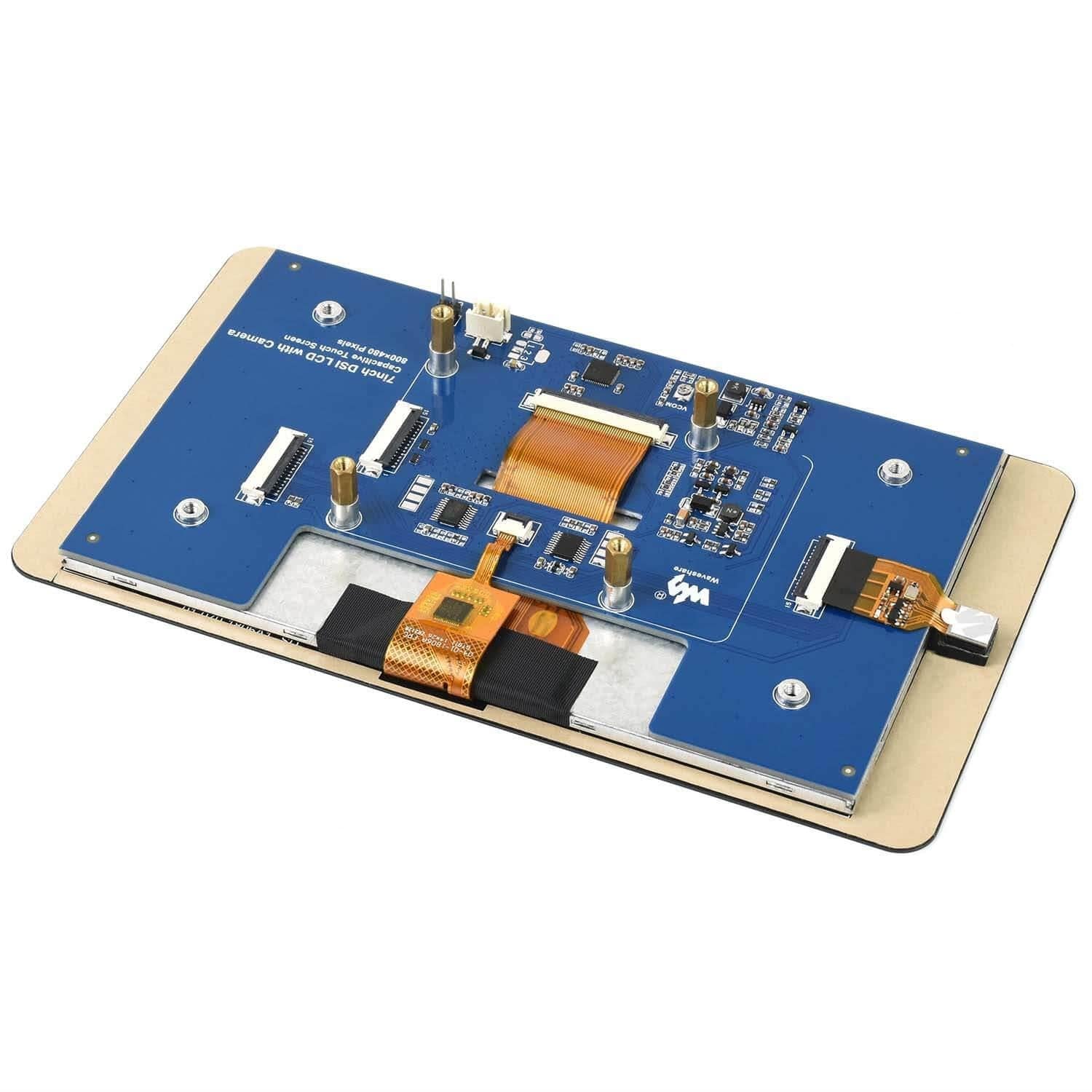

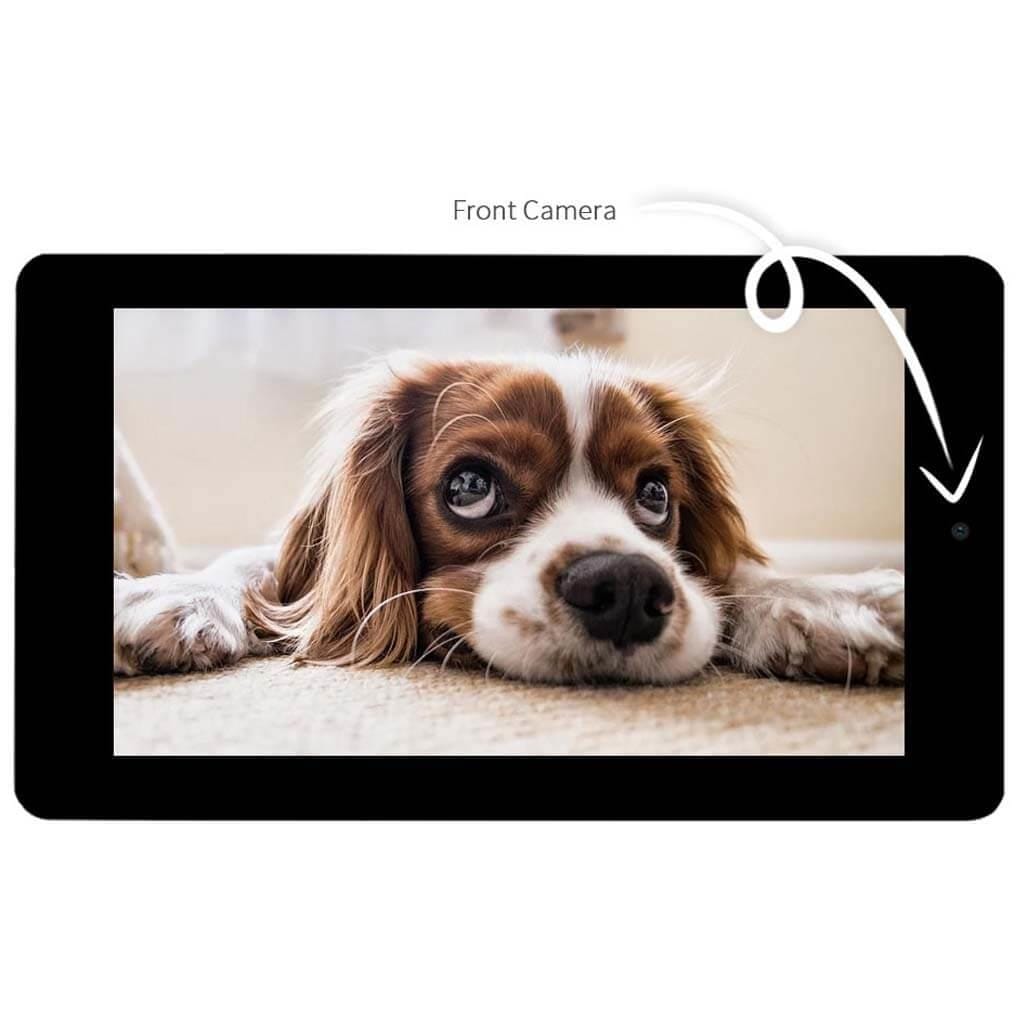

This 7" DSI display for the Raspberry Pi comes with a front built-in 5MP OV5647 camera module which can be used with the same commands as the official Raspberry Pi camera module.

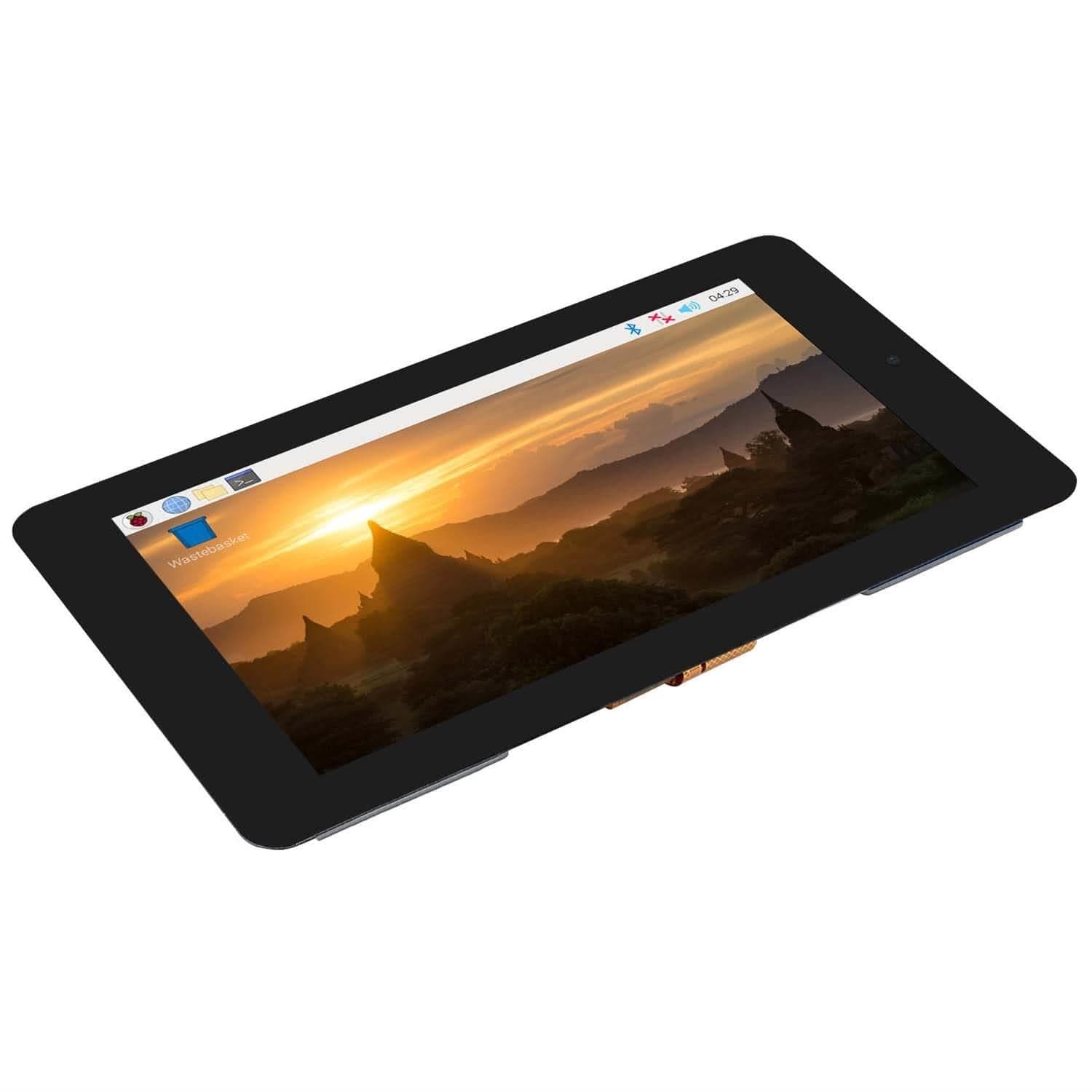

The display is a 7" panel offering up to 5-point capacitive touch (OS dependant) and 800x480 resolution. The screen connects to your Raspberry Pi via the same DSI ribbon cable and 5V/GND jumper wire method as the official Raspberry Pi display. This leaves the majority of your GPIO pins free for your project.

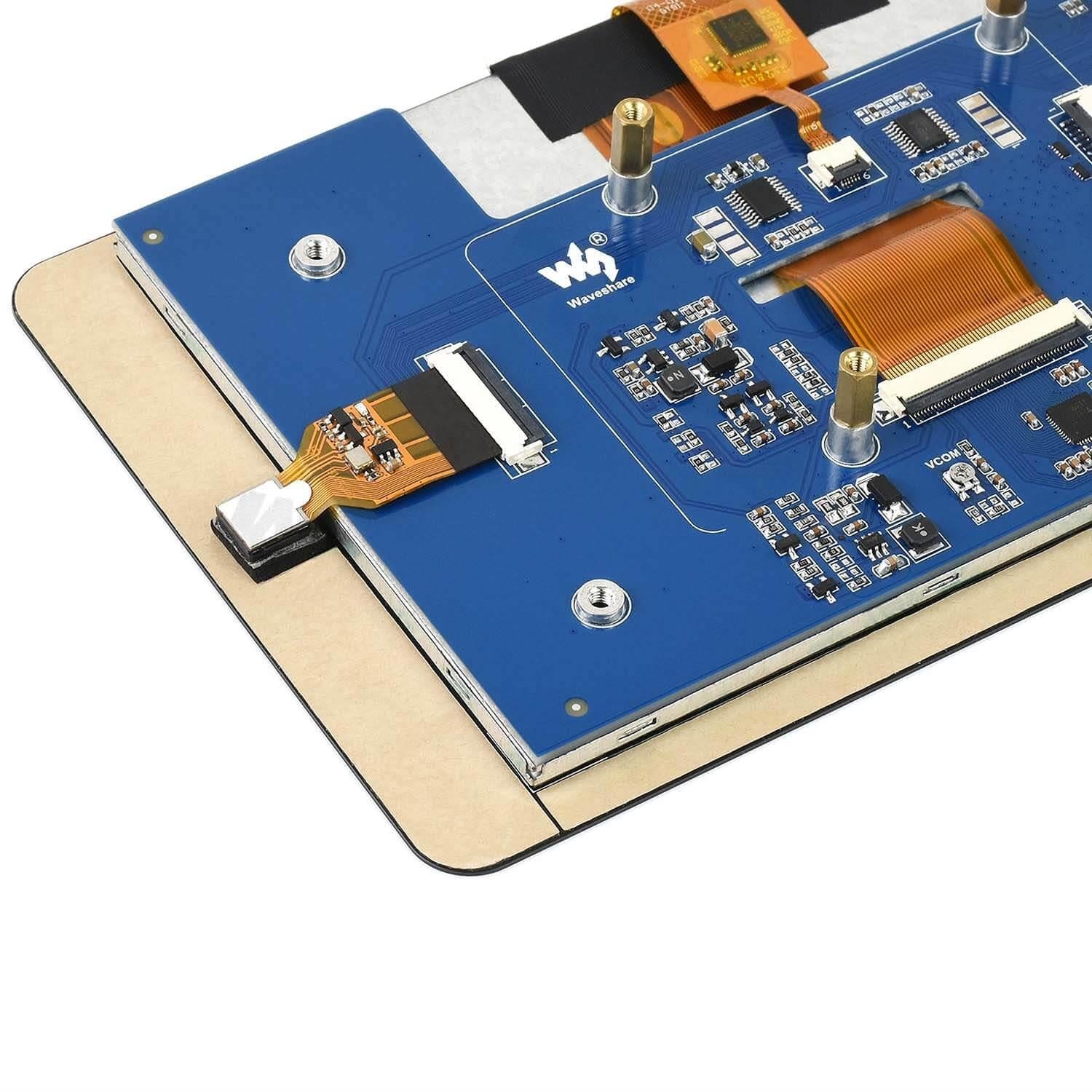

The display backlight can be adjusted via software/touch and the generous outer bezel also makes this a great option for integrating into your project enclosure. The included camera module connects to your CSI port via the included ribbon cable and uses a 5MP OV5647 sensor which can shoot images up to 2592x1944 and videos up to 1920x1080P @30FPS (full specs below).

The display comes with fixings, ribbon cables and jumper wires. The online Wiki provides instructions on how to set up and configure the display.

Features

  • 7" DSI display for Raspberry Pi
  • Supports Raspberry Pi OS driver-free
  • Compatible with Raspberry Pi boards with a DSI connector - Raspberry Pi 4, 3B+, 3A+, 3
  • 800x480 resolution
  • 5-point capacitive touch
  • 5MP OV5647 Camera
    • CSI interface, supports 1920x1080p@30, 1280x720p@60, 640×480p@60, 640×480p@90
  • I2C touch port
  • Toughened glass panel
  • Supports backlight adjustment via software
  • DSI interface, refresh rate up to 60Hz
  • Low power consumption

Connection Example

7" Cam display connection example

Specifications - Display

  • 7" Display
  • 800x480 Resolution
  • DSI interface
  • 5-point capacitive touch
  • Toughened glass
  • Dimensions: 192.96mm x 110.76mm

Specifications - Camera

  • Sensor: OV5647
  • Pixels: 5MP
  • Focal length: 3.89mm
  • Distortion: < 1.5%
  • CMOS size: 1/4"
  • Aperture: F2.4
  • Diagonal FoV: 72.9°
  • Depth of Field: ~20cm
  • Image: 2592 × 1944 still image resolution
  • Video: 1920×1080p @30, 1280×720p @60, 640×480p @60, 640×480p @90

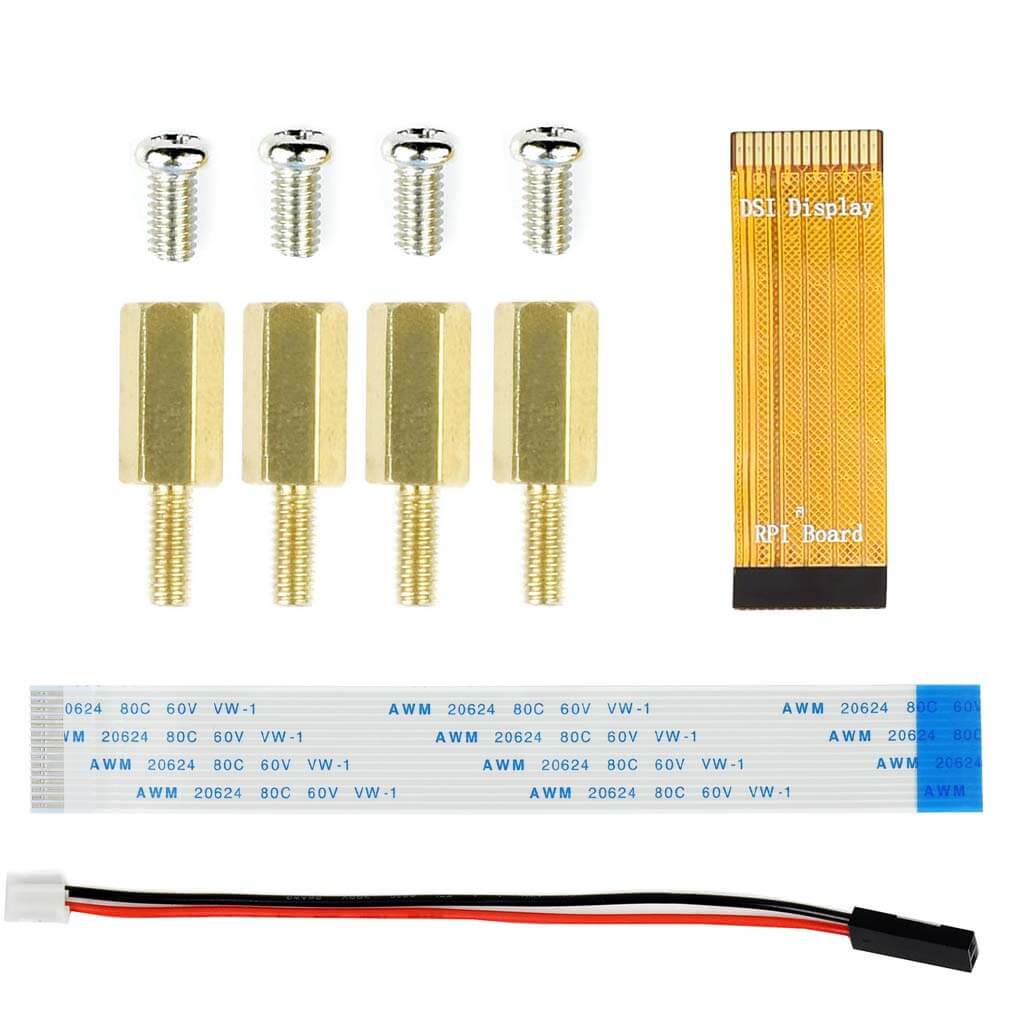

Package Contents

  • 1x 7" DSI LCD
  • 2x FPC 15PIN 1.0 pitch 50mm (opposite sides)
  • 1x FPC 15PIN 1.0 pitch 120mm (opposite sides)
  • 1x 2-pin GPIO wire (10cm)
  • 1x Screws pack

Raspberry Pi not included
