7.2V Buck Converter for Serial Bus Servos
Price:
Sale price
£3.30
Stock:
Coming Soon
Coming Soon
Awesome Extras

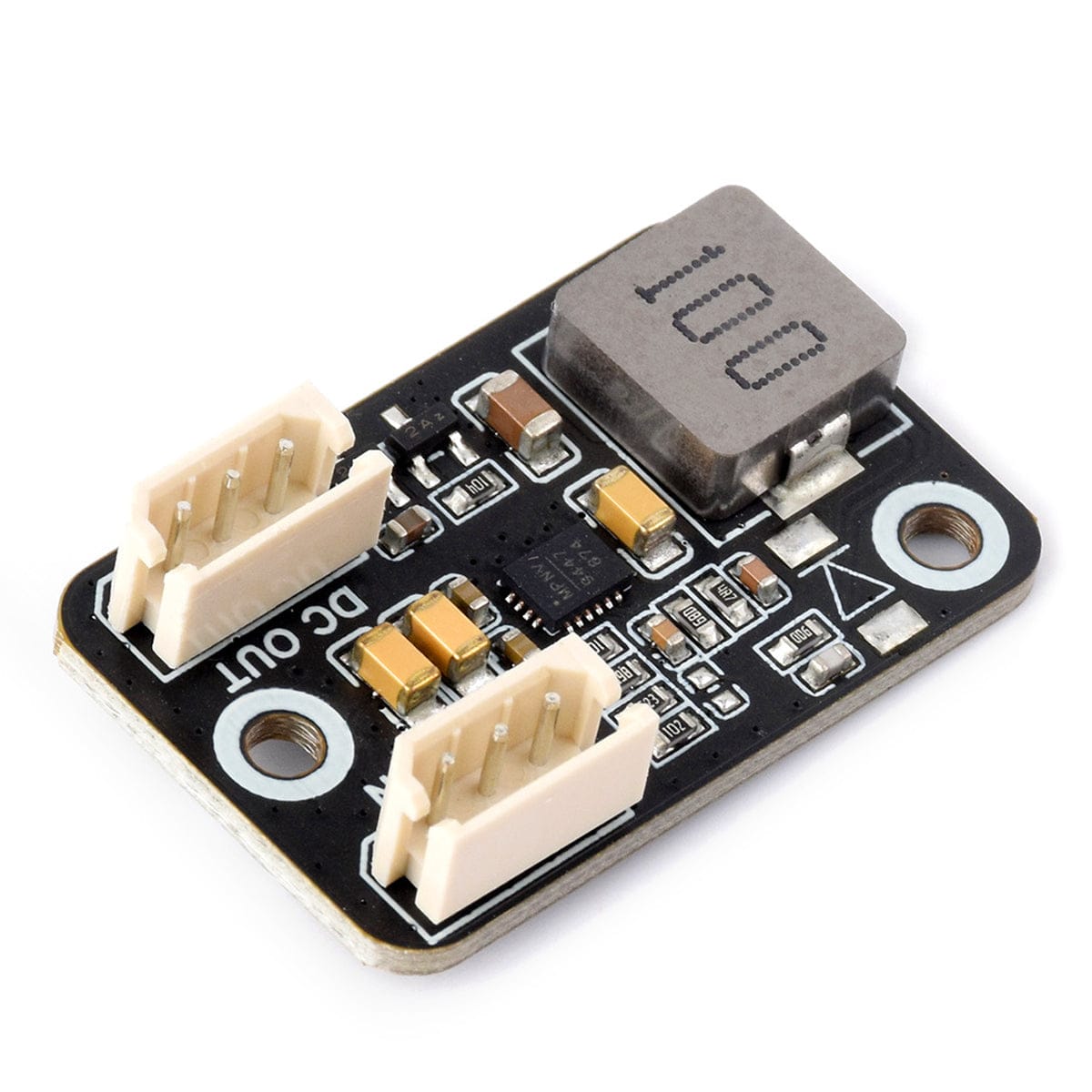

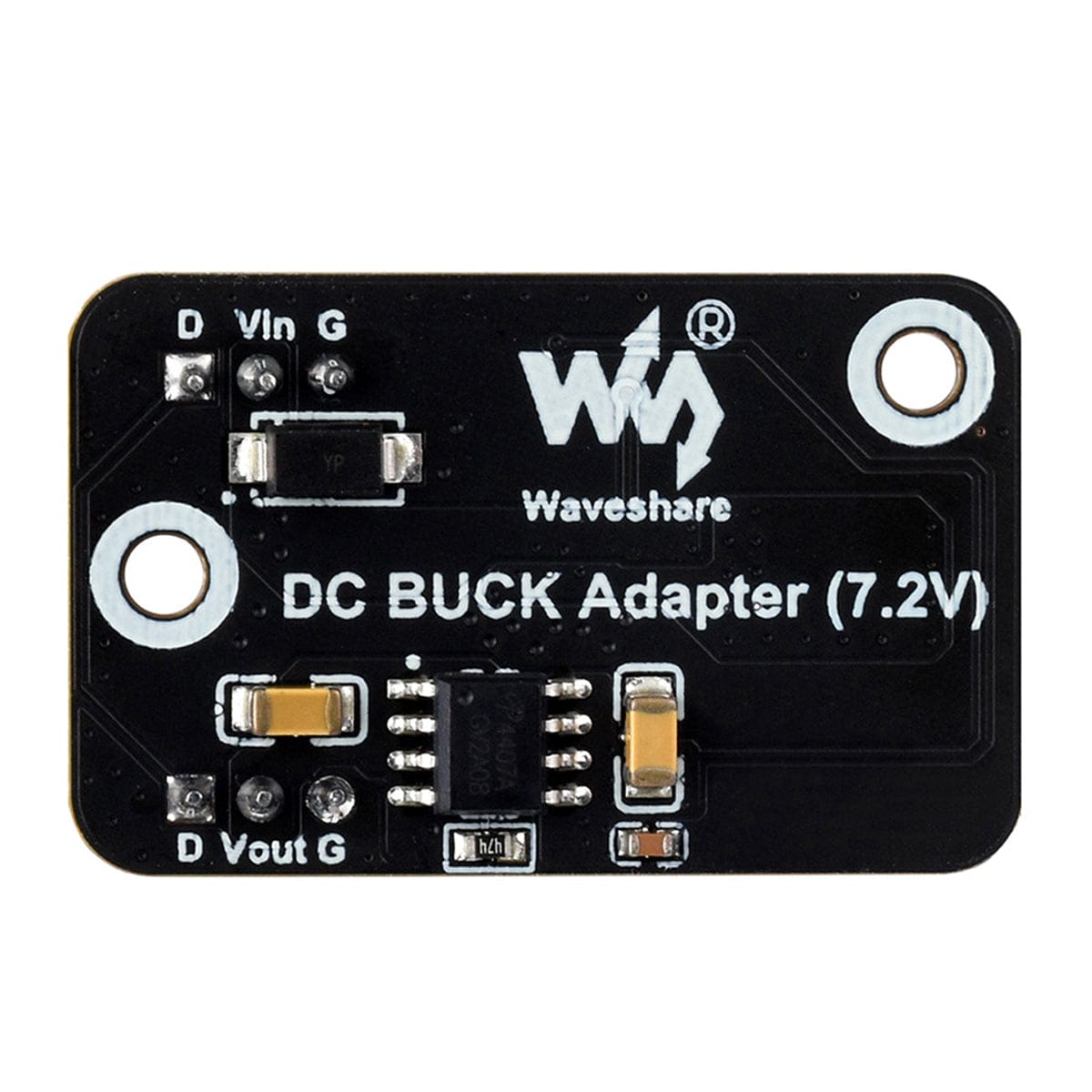

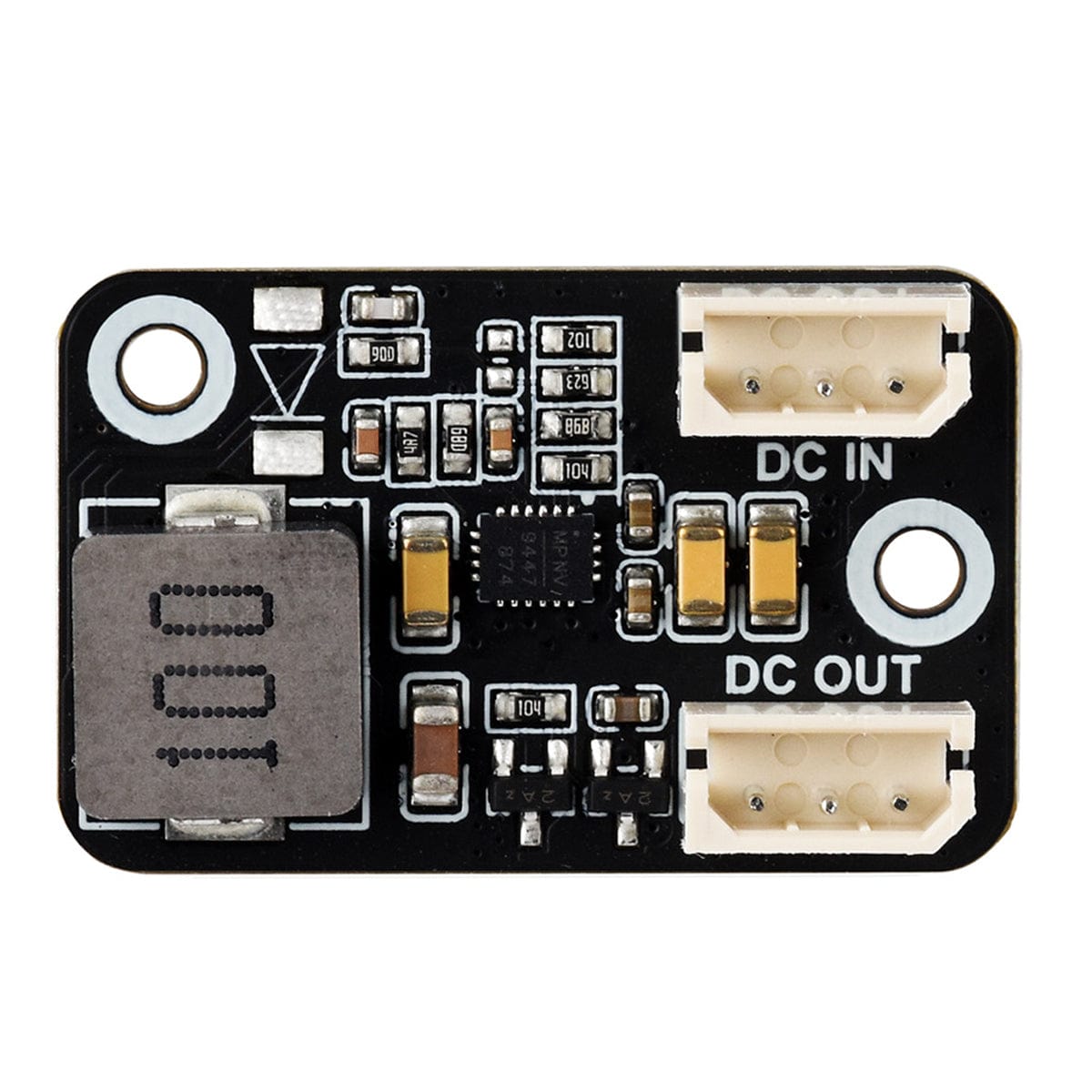

This 7.2V Buck Converter provides a consistent 7.2V output and its compact size makes it a great space-saving addition, easily integrating into your projects even in tight spaces. With a wide input voltage range from 9V to 36V, it offers flexibility in power supply options, accommodating various project needs. Installation is made simple by connecting it to your servo circuit for instant use. Made for servos such as the SC15 and SC09, this converter is a great addition to your next project!
Features
- 7.2V buck regulator, suitable for the servos such as SC15 Servo and SC09 Servo
- Mini size, more space-saving, easy to integrate into projects
- 9-36V wide voltage input for more flexible project power selection
- Simply connect it to the servo circuit to use
What's on Board
Specifications
| Input Voltage | DC 9~36V |
| Output Voltage | DC 7.2V |
| Interface | SC/ST series servo 5264-3P header |

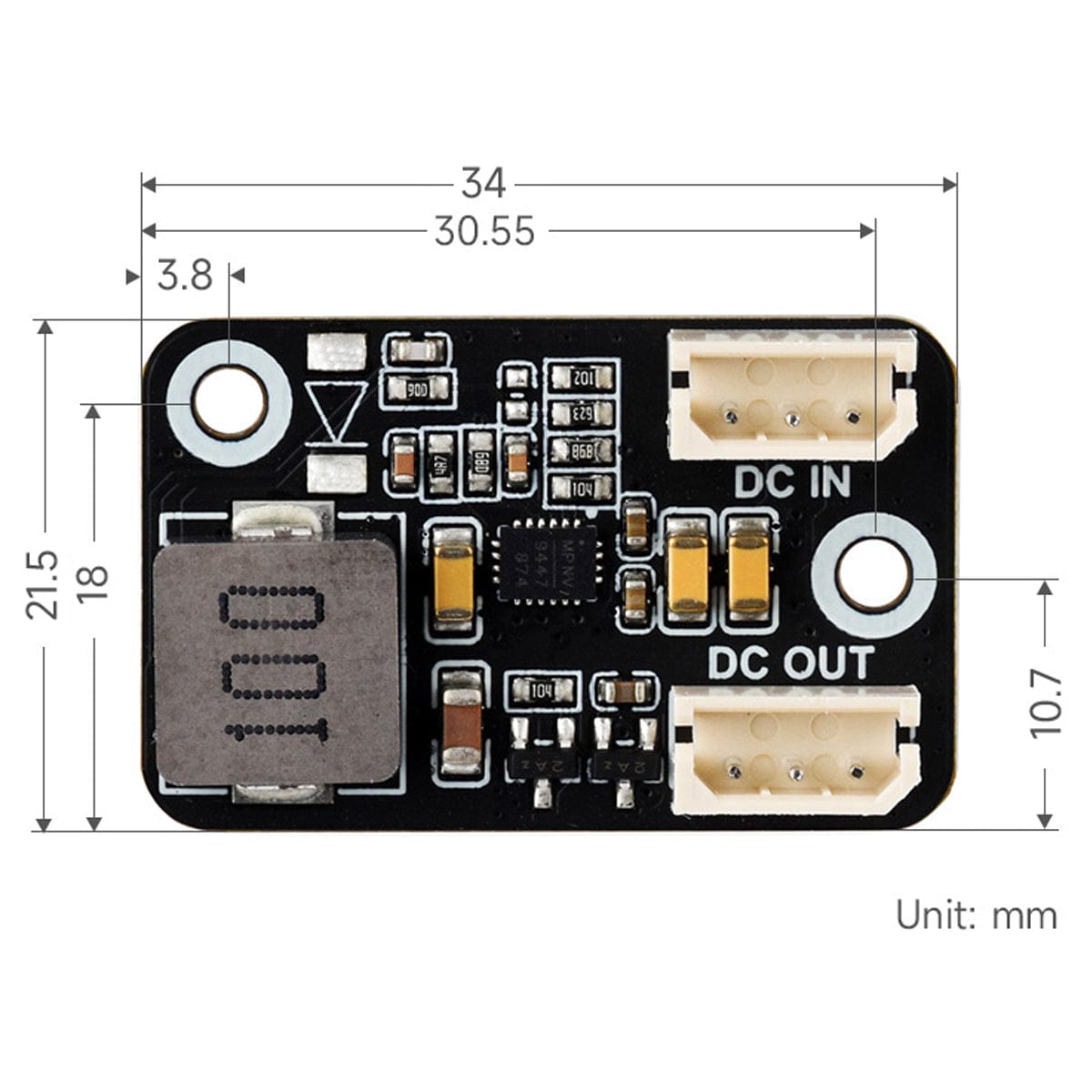

| Dimensions | 21.50 x 34.00mm |
| Mounting Hole Size | 2.70mm |
| Peak Current | 3A |
Resources
Package Contents
- 1x DC Buck Adapter (7.2V)
- 1x 30cm servo cable
