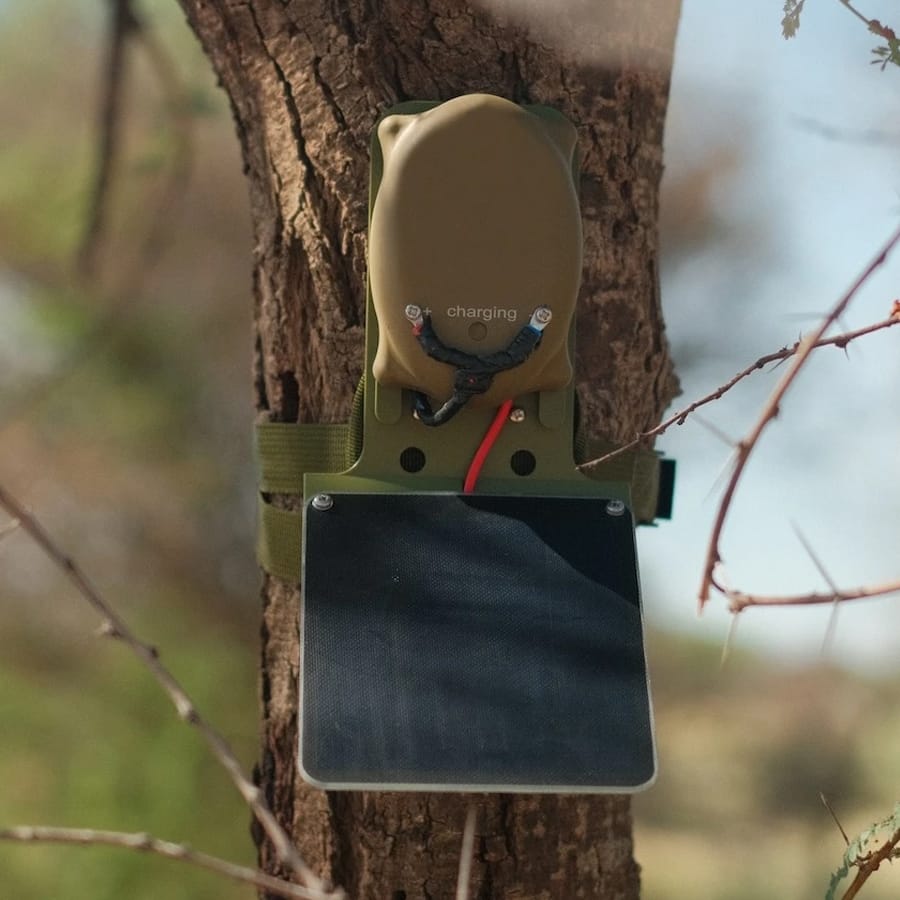

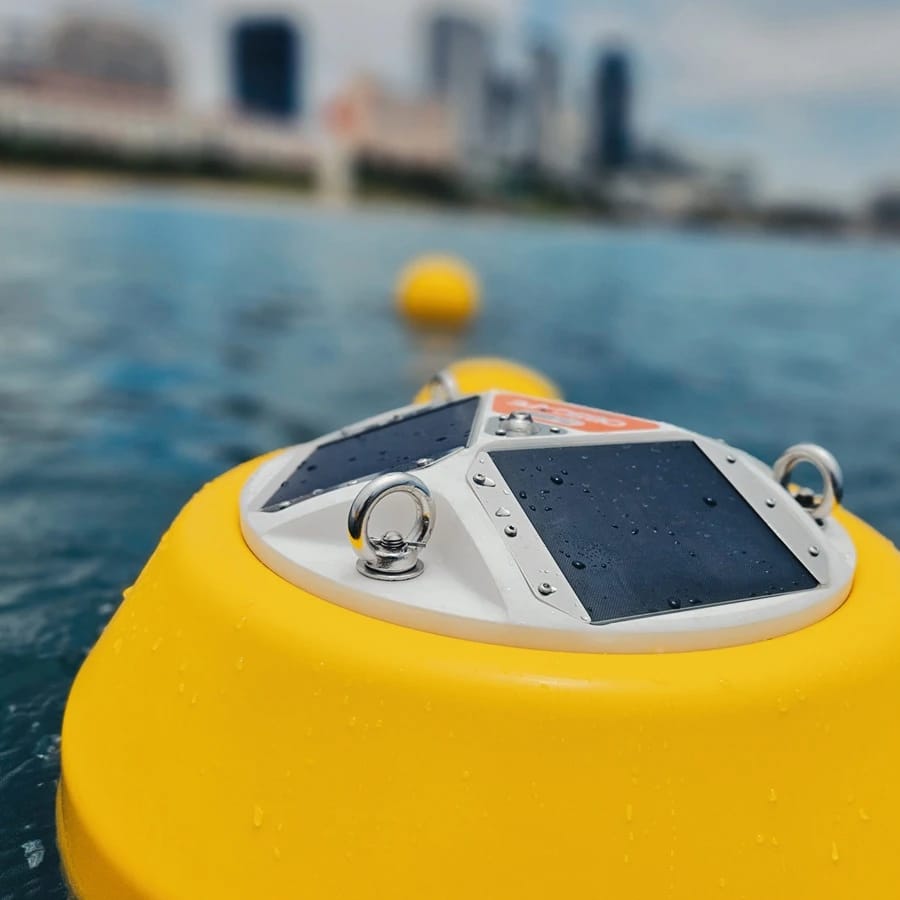

The Voltaic P126 6V Solar Panel provides compact, high-efficiency solar power with a durable ETFE construction, ideal for IoT devices, sensors, and long-term outdoor projects.

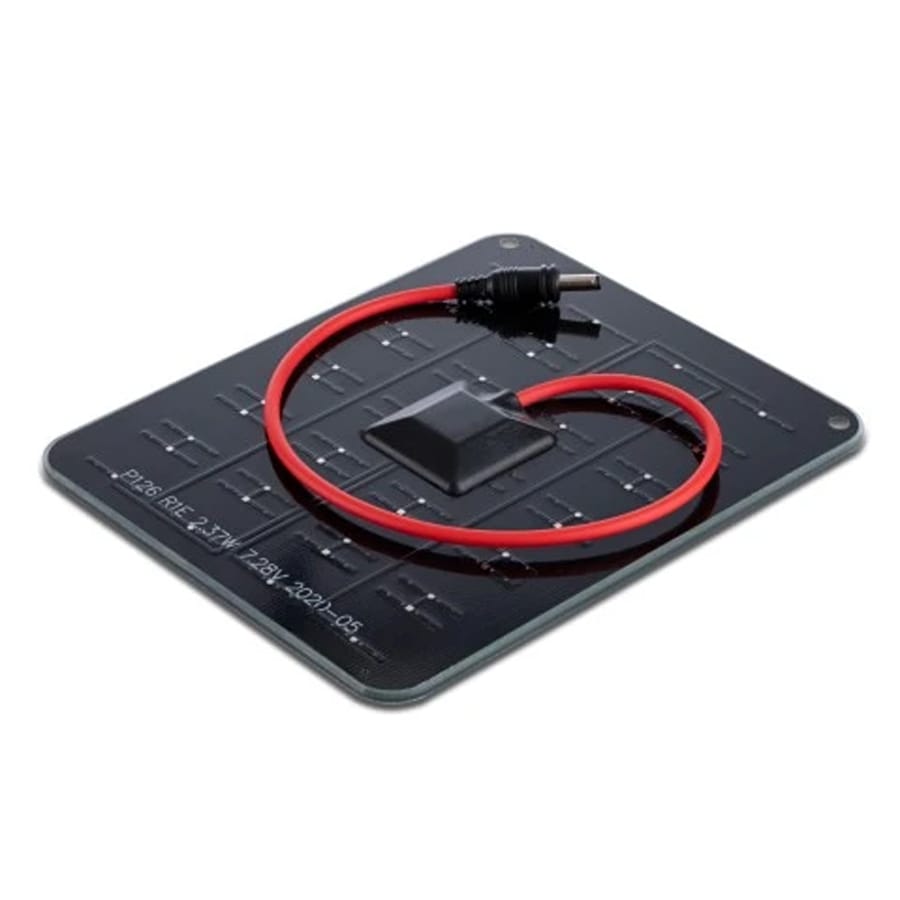

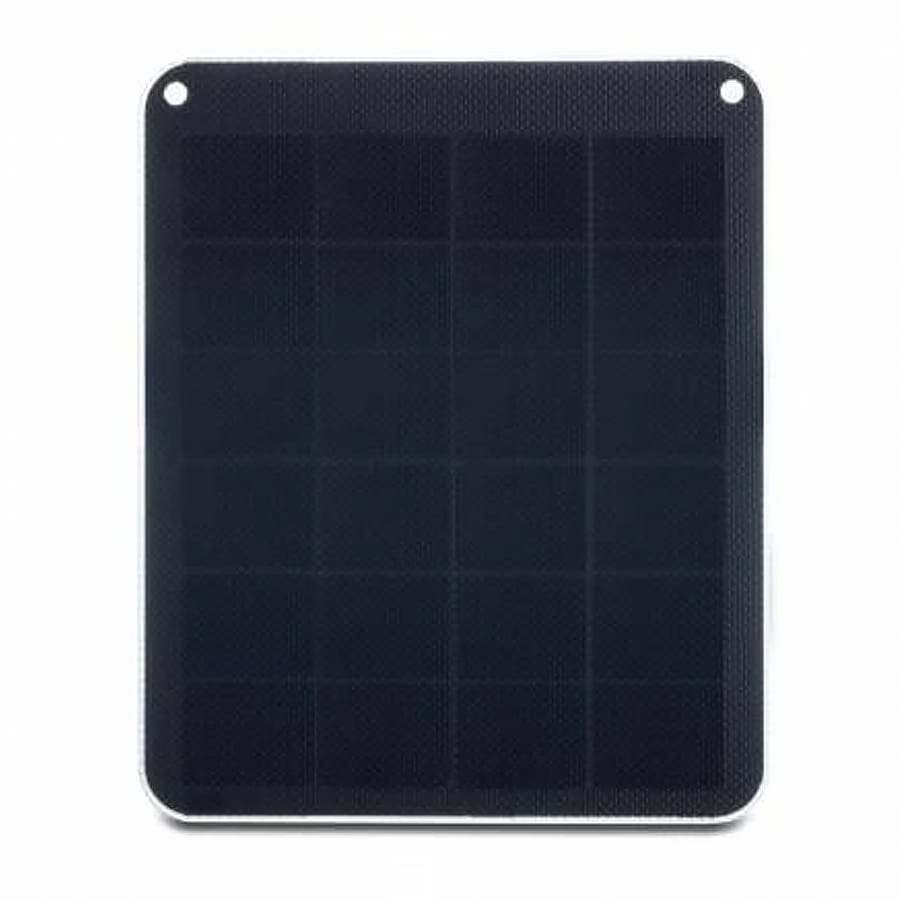

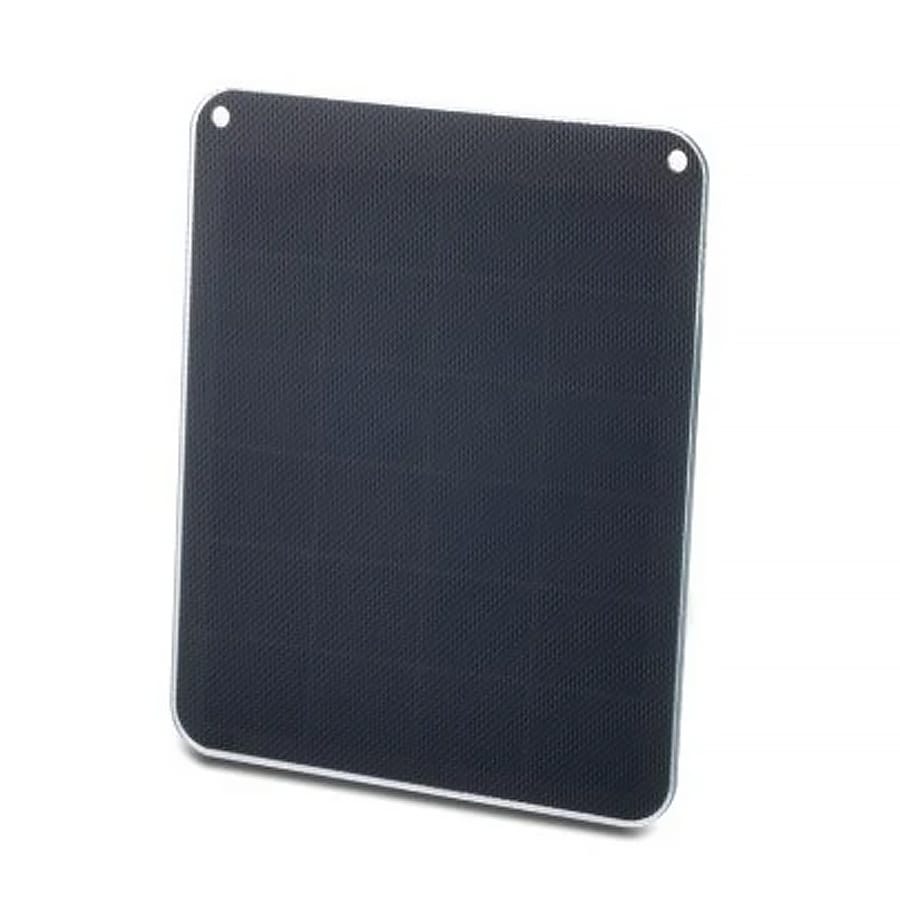

The VoltaicP126 is a 136x112mm high-performance 6V 2WETFE solar panel designed for industrial IoT applications, offering a lightweight, efficient, and cost-effective solution for reliable outdoor power.
SMT ETFE panels are particularly well suited to applications where space or weight is limited, long operational lifetimes are required, and strict quality and dimensional tolerances must be maintained.
Voltaic ETFE panels are manufactured using a carefully sourced and qualified material stack, ensuring consistent performance and reliability. They are third-party tested for the equivalent of over 10 years of UV exposure, as well as for thermal cycling, vibration stress, and resistance to chemicals and oils.
These panels are also used in a range of ATEX-rated applications, demonstrating their suitability for demanding and hazardous environments.
Panel Accessories
VHB Gasket - creates a waterproof, secure seal when mounting P126 solar panels to enclosures
Small Panel Bracket - provides a lightweight, durable way to mount small solar panels to poles or pipes
ETFE Panel Screw & Washer Set - provides a complete screw, washer, and post nut kit for securely attaching ETFE solar panels to compatible mounting brackets
Corner Mounts - make it easy to securely attach solar panels to straps or surfaces
Magnet Mounts - provides a simple, drill-free way to attach solar panels to metal surfaces
ABS Plastic Post Nuts - lightweight mounting nuts designed to securely attach Voltaic solar panels to brackets, corner mounts, and other hardware
Stainless Steel Post Nuts - provides a stronger, more secure mounting solution for Voltaic solar panels
Cable Glands - creates a waterproof seal between your solar panel and enclosure, protecting internal electronics while allowing secure cable routing
Testing: relevant sections of IEC 61215, SAEJ1455, and IEC 60529
Mounting: G110 VHB gasket (not included)
Operating Temperature: −40°C to 85°C
Cable: 3.5x1.1mm jack
Construction
Matte ETFE coating
1.5mm double sided PCB
Electrical characteristics
Symbol
Parameter
Nominal
Expected*
Unit
WP
Max power (mpp)
2.38
2.31
W
VP
Voltage @ mpp
7.09
6.84
V
IP
Current @ mpp
0.34
0.29
A
VOC
Open-circuit voltage
8.59
8.34
V
ISC
Short-circuit current
0.37
0.33
A
η
Cell efficiency
21.5
-
%
*Expected values are adjusted for real-world losses that include cutting of cells, imperfect transmissivity of the EVA and ETFE encapsulation layers, and the tolerance of the lowest performing cell piece in the series
