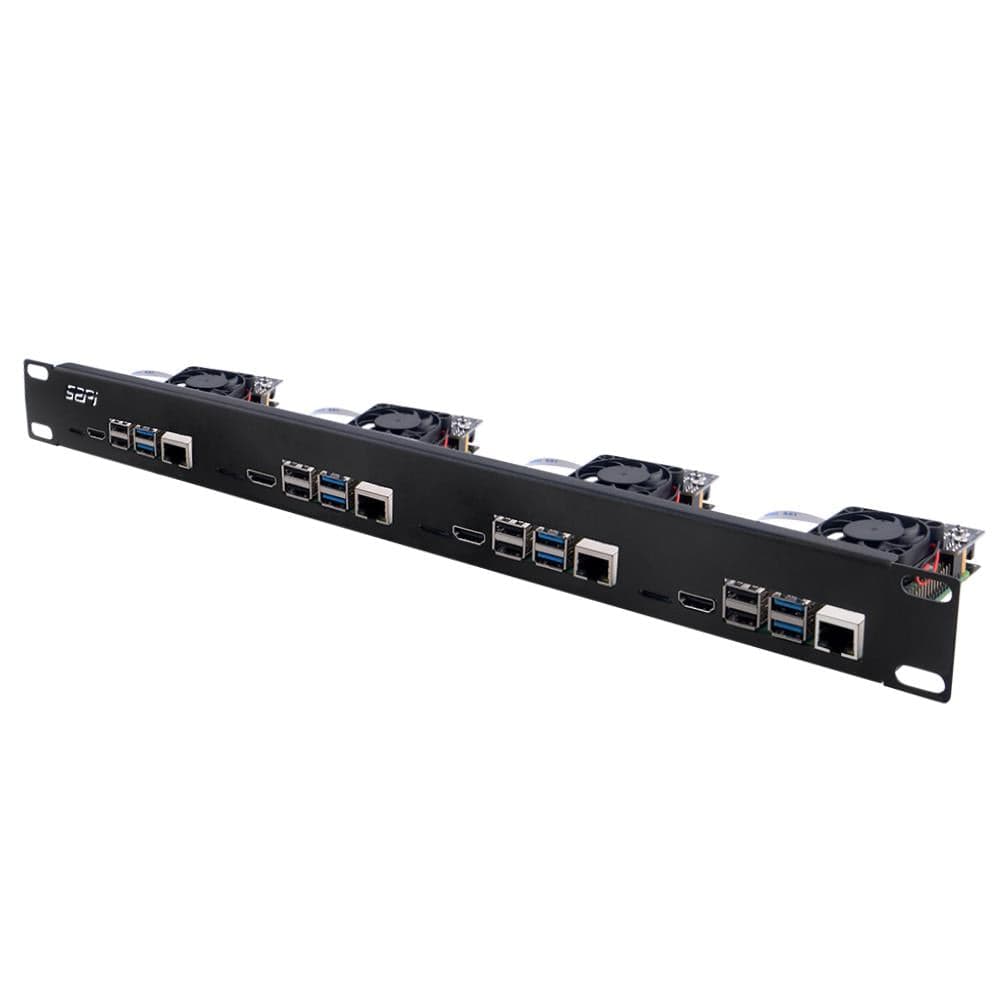

Mount four Raspberry Pi 4 boards in a single 19" 1U rack with this new rackmount from 52Pi!

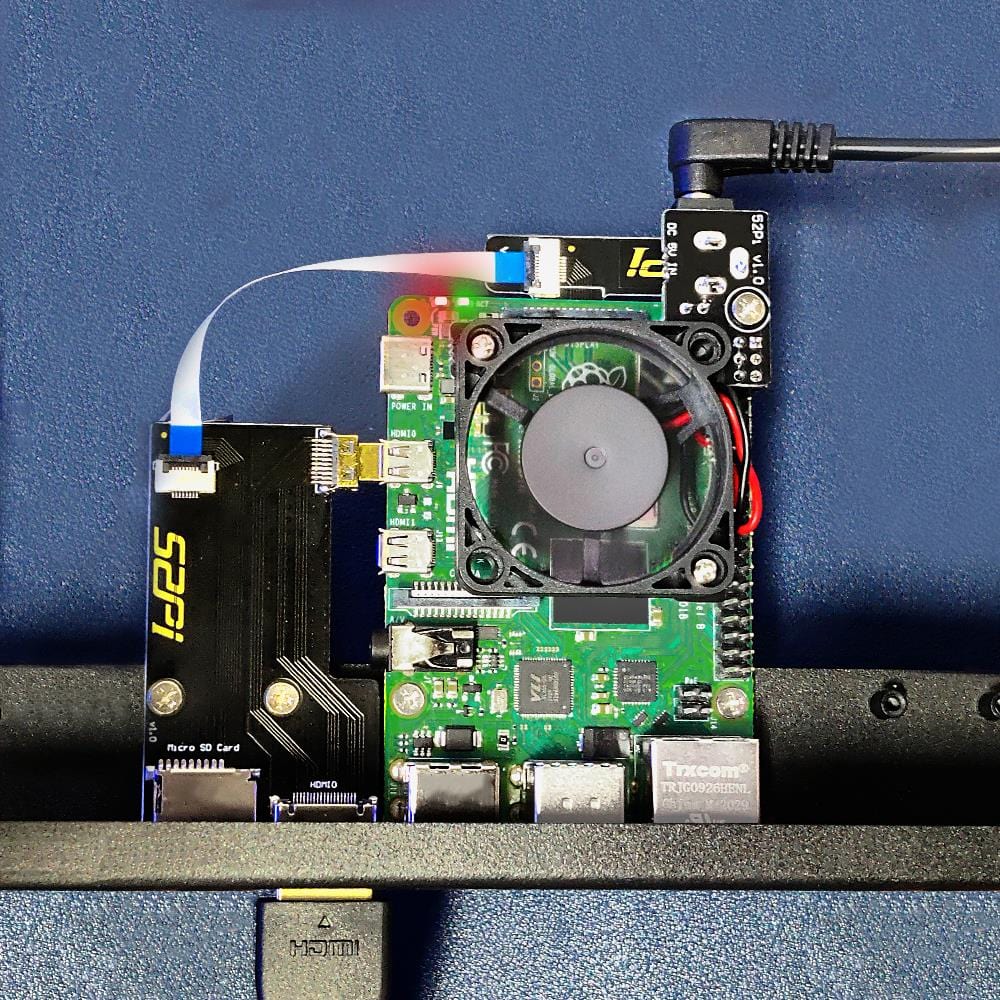

The all-metal rackmount supports 4x Raspberry Pi 4 boards and includes 4x adapter PCBs to relocate the SD card and HDMI0 ports on each Pi to the front of the unit, giving you USB, Ethernet, HDMI and Micro-SD access from the front of your rack.
The package also includes a fan board and a heatsink set for each Pi, ensuring your boards stay cool whilst also providing a 2.1mm DC option for powering your boards (regulated 5V only, no regulation onboard).

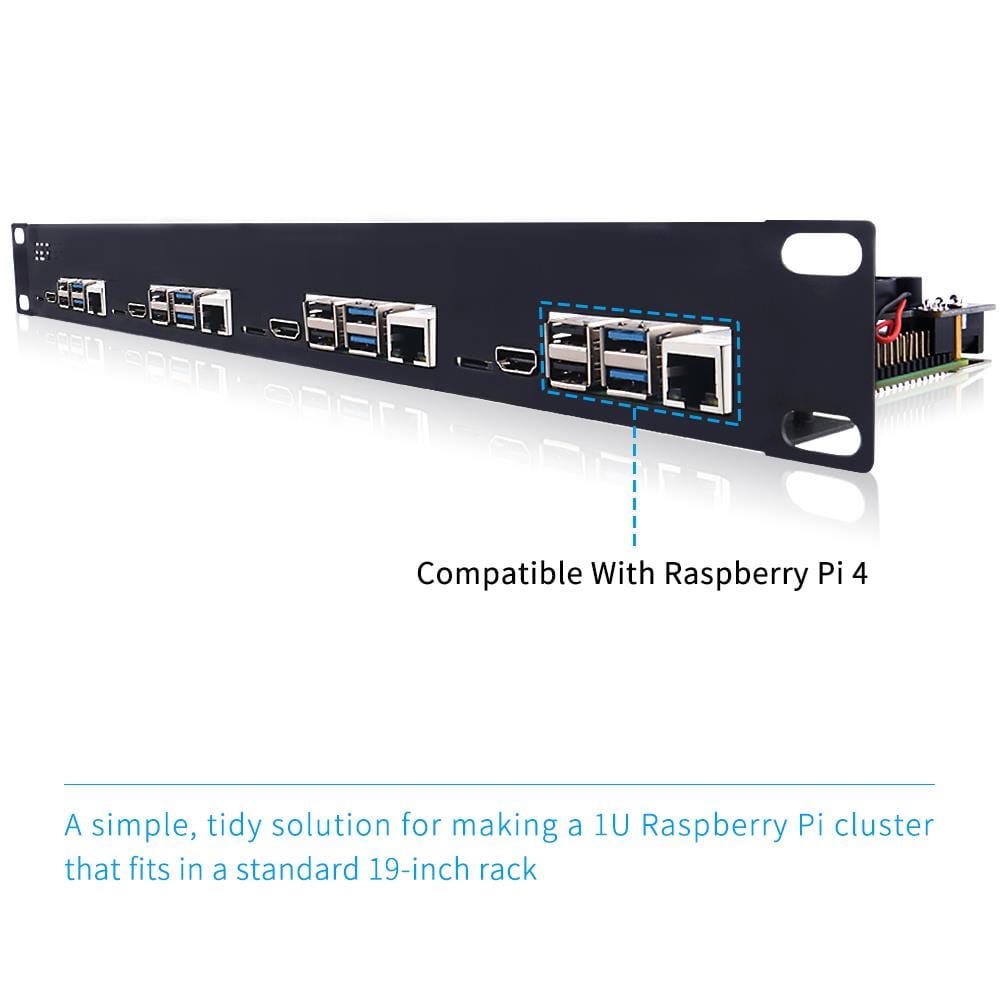

The rack is standard 1U size (19"×1.75" / 482.6×44.5mm) and is the perfect fit for a server rack.
Raspberry Pi boards are not included!
- 19" rackmount is fit for Raspberry Pi 4B only, and each rackmount can hold 4 pcs Raspberry Pi 4B.

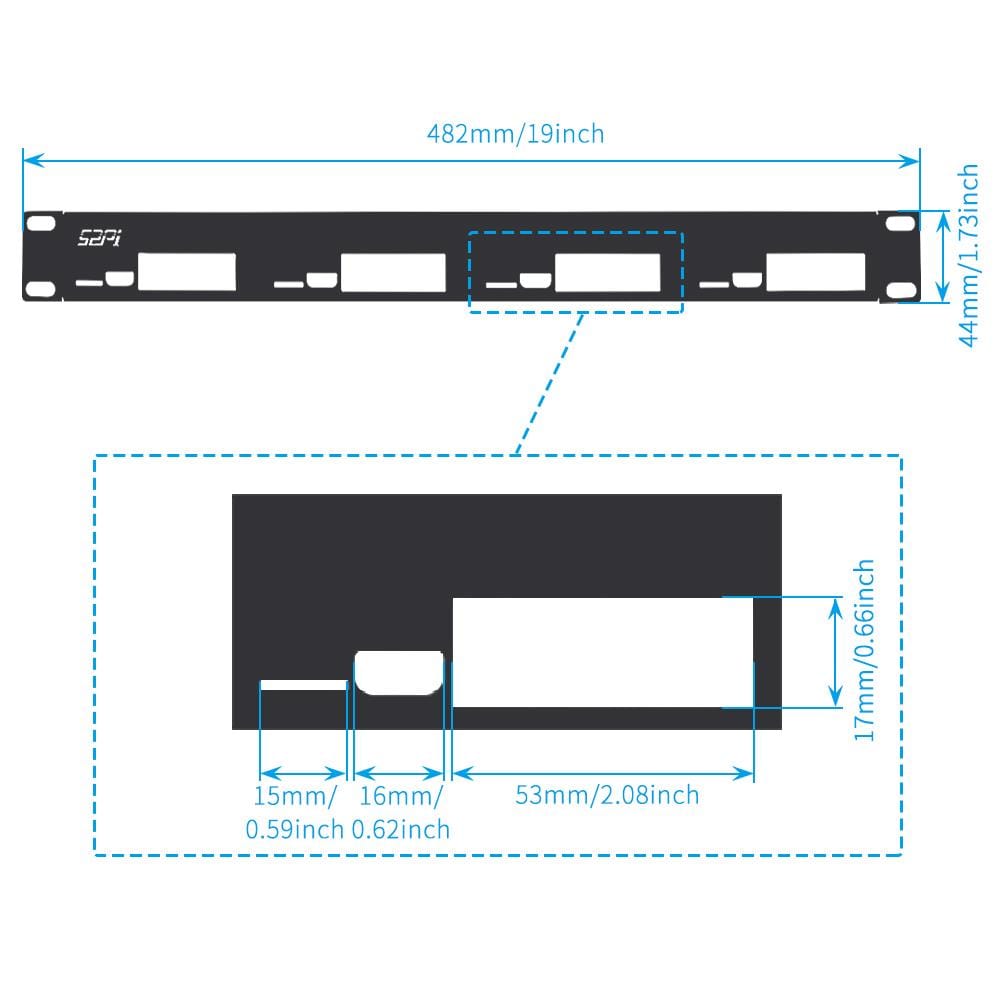

- Rackmount Size is 1U standard, the dimension is 19" x 1.75" (482x44mm), fully compatible with 19" server racks.
- Power Input: 5V DC

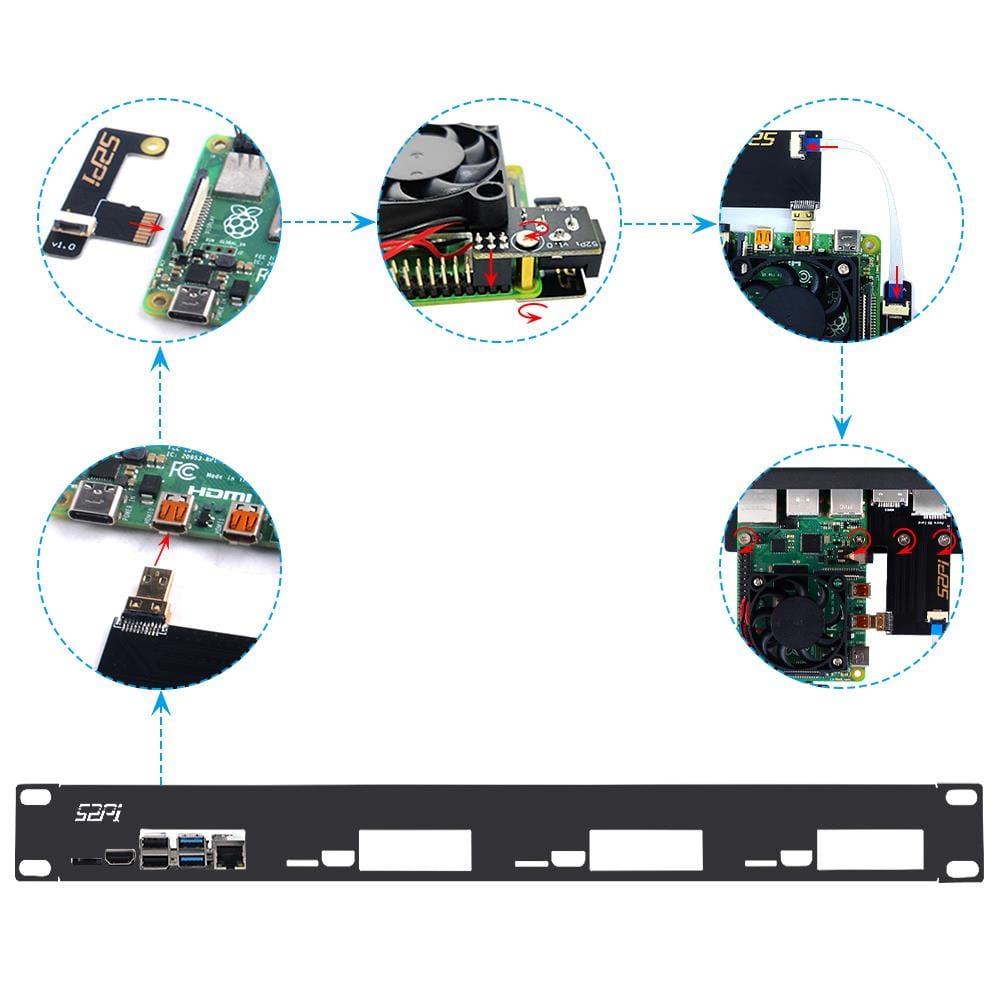

- Easy to assemble with attached screw pack.
- Application: Raspberry Pi clusters,server farm， home assistance control center and so on.
- Cooling Fan included.

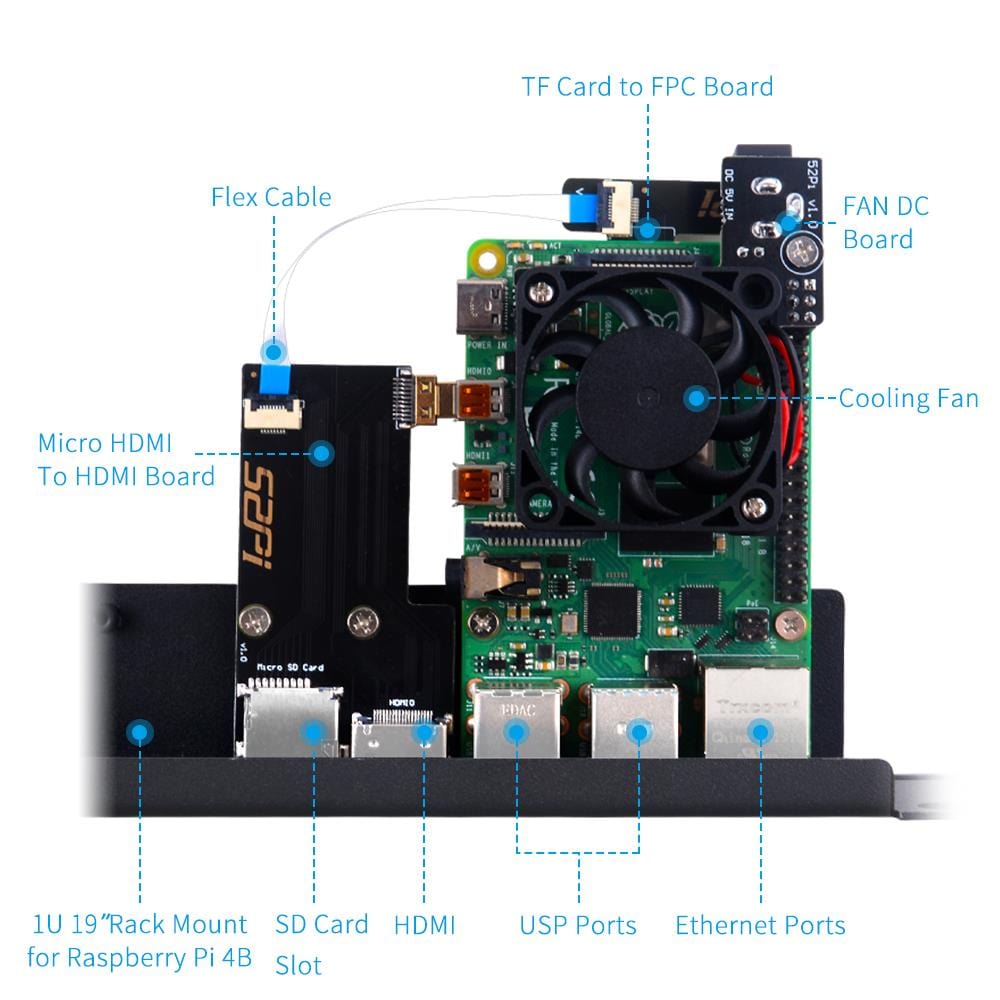

- Micro HDMI to HDMI board provides easy access to HDMI port
- TF card to FPC board provides easy access to TF card slot

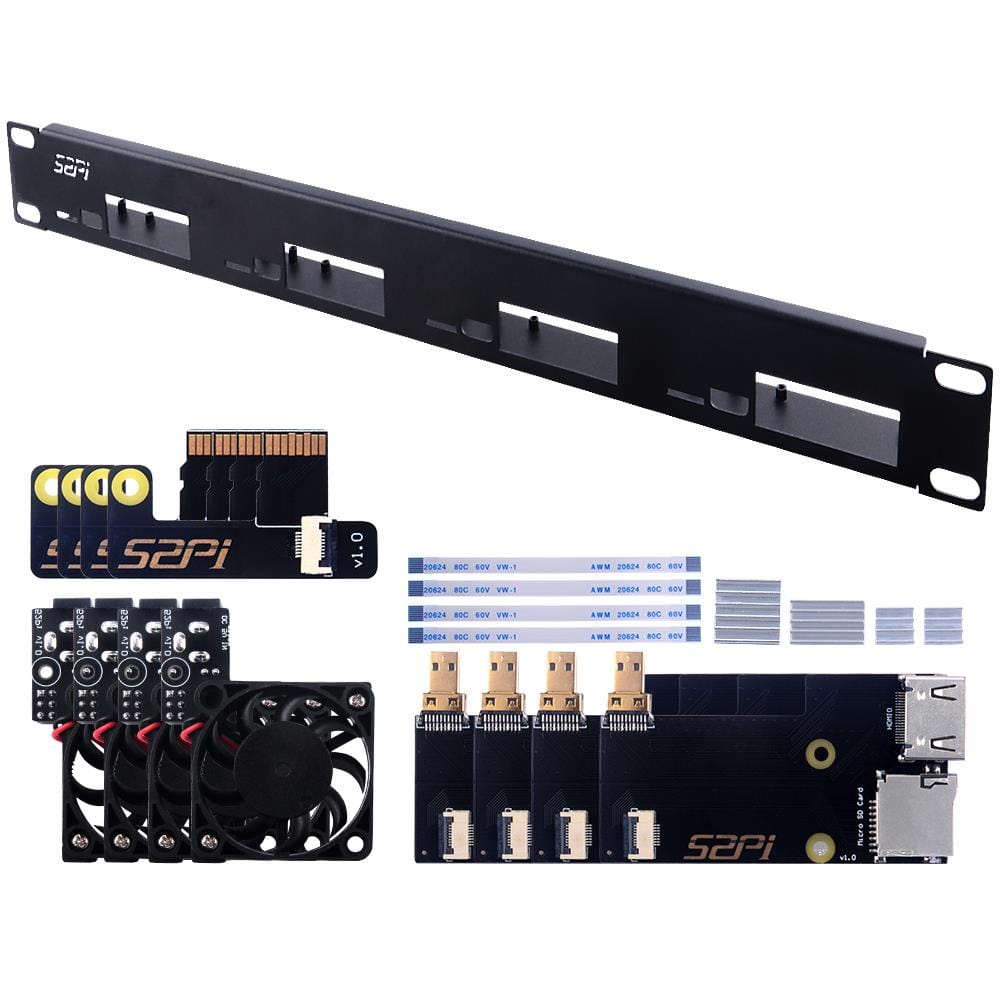

- 1 x 1U 19" Rack Mount for Raspberry Pi 4
- 4 x Fan DC Board
- 4 x Micro HDMI to HDMI board
- 4 x TF card to FPC board
- 4 x Cooling Fan boards
- 4 x HeatSinks
- 4 x Flex Cable
- 1 x Quick Guide
Printed instructions are also included in the package.
