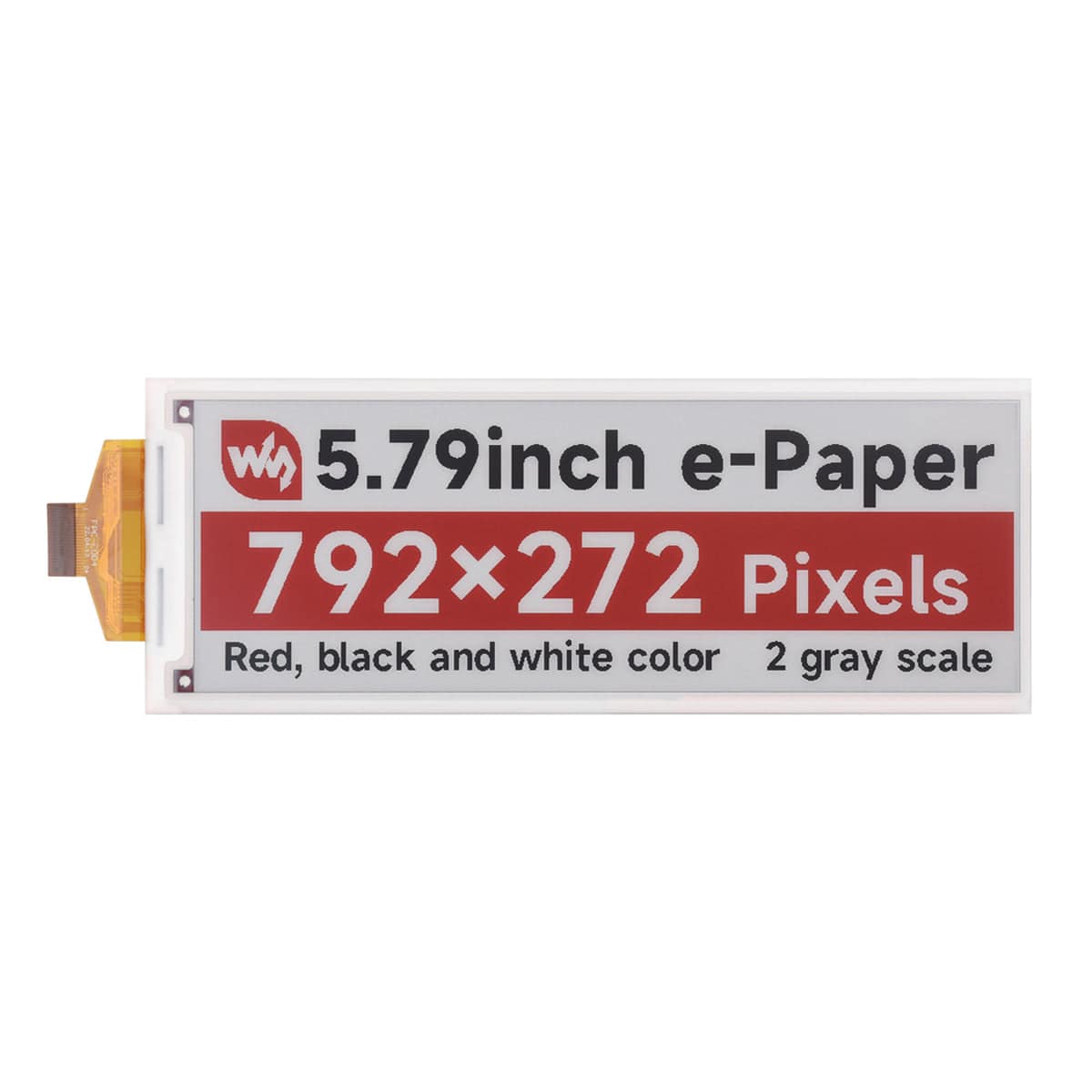

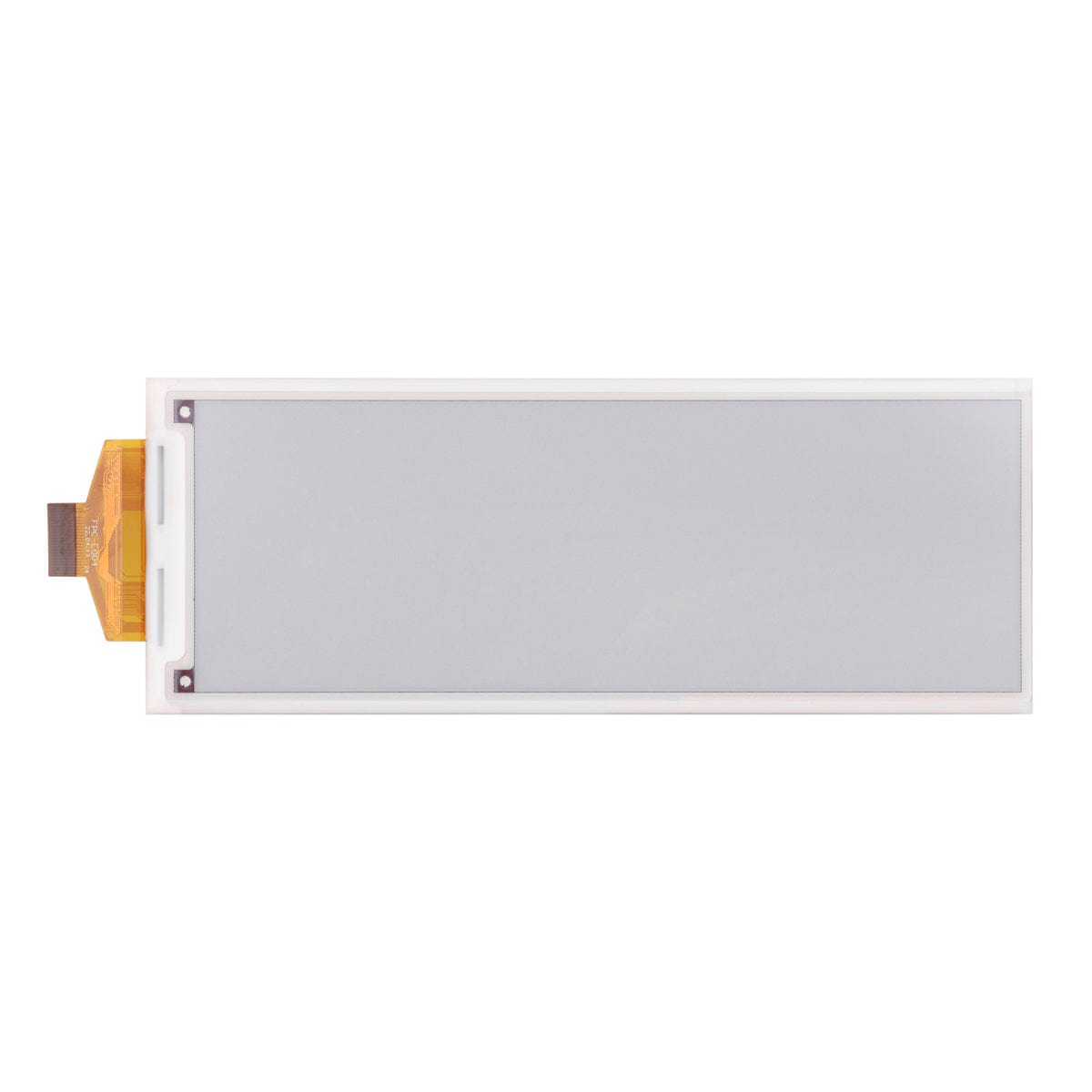

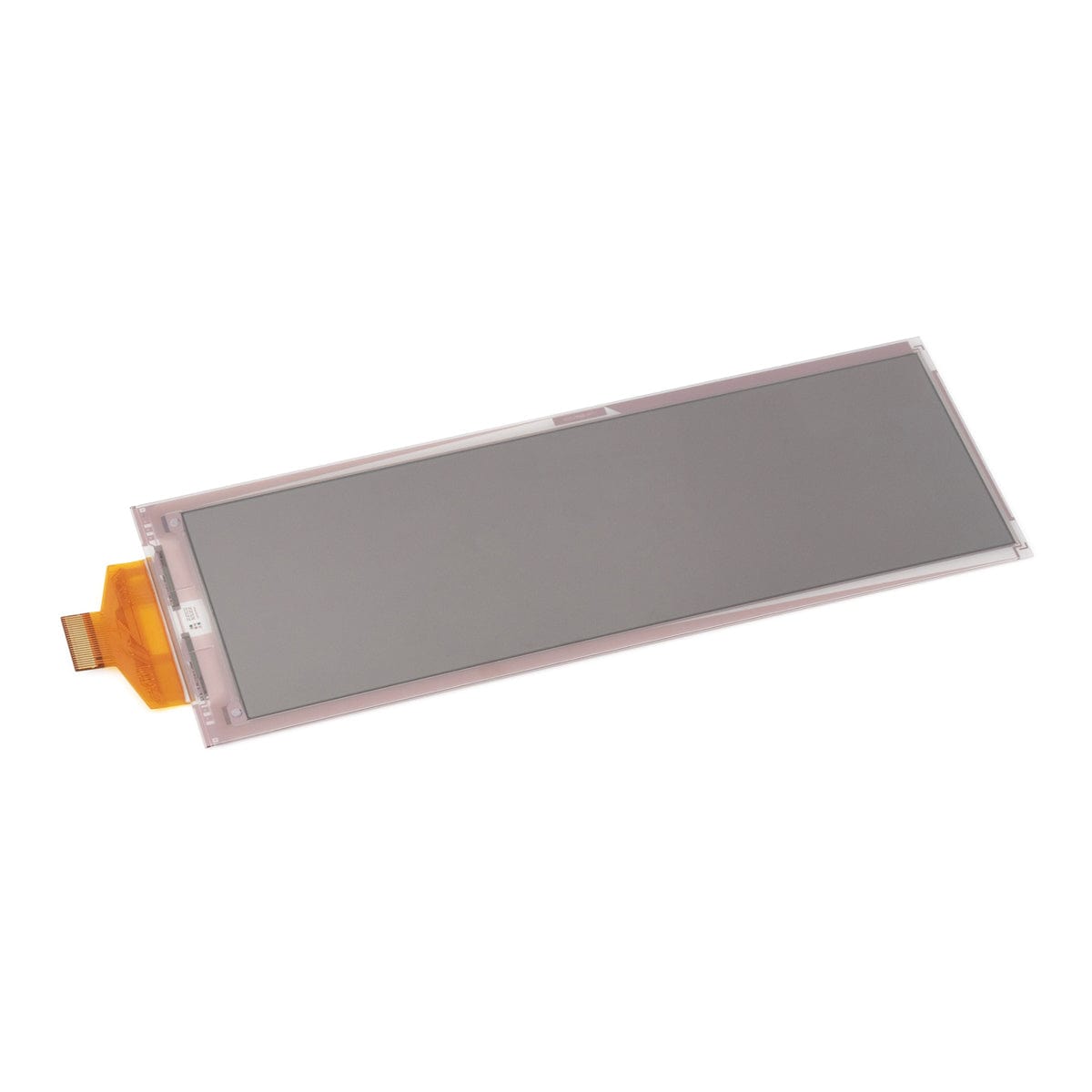

5.79" E-Paper Raw Display Panel (792 x 272)

WaveshareSKU: WAV-26844
Price:
Sale price £20.90
incl. VAT
excl. VAT
Stock:
Coming Soon
Notify me

Awesome Extras

WaveshareUniversal e-Paper Raw Panel Driver HAT
Sale price £10.80 incl. VAT excl. VAT
Raspberry PiRaspberry Pi 5
Sale priceFrom £57.60 incl. VAT excl. VAT
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT

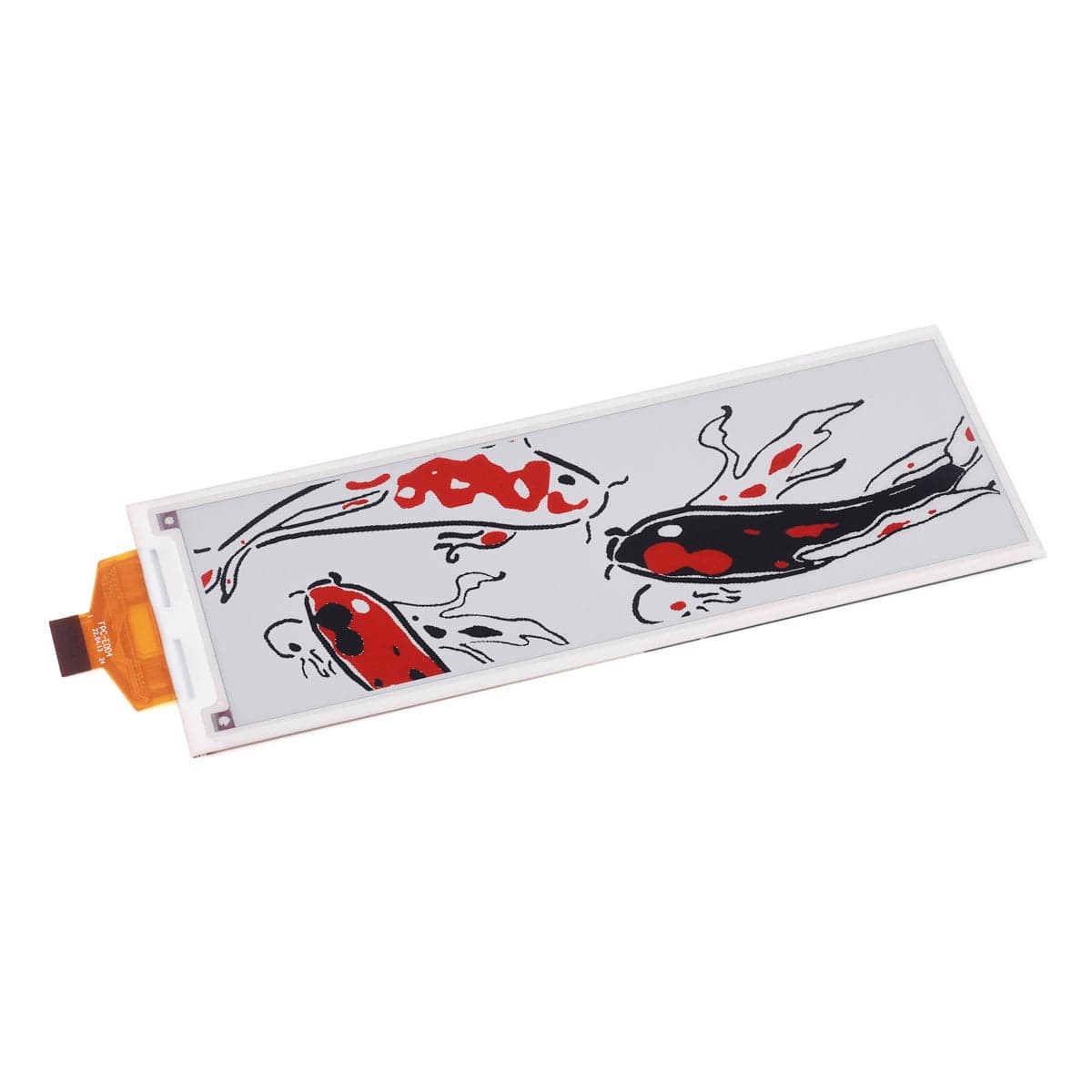

This E-Paper raw display has a 792 x 272 resolution with red, black and white colours for a sharp and colourful display. This display uses SPI communication for easy integration into your projects and offers a viewing angle of over 170°, which provides clear visibility from almost any angle. Without the need for a backlight, it excels in energy efficiency by maintaining the latest content you had put on there even when powered down.

This results in very low power consumption, with power only necessary during refreshing. Online development resources and a manual are also included, featuring examples for Raspberry Pi, Jetson Nano, Arduino, and STM32. This display is ideal for price tags, and shelf labels and has many other uses!

Note: an e-Paper Raw Panel Driver HAT will be needed to run this display. You can find one in our store

Features

  • Red/Black/White Colours
  • Grey Scale 2
  • No backlight, keeps displaying last content for a long time even when powered down
  • Ultra-low power consumption, basically power is only required for refreshingComes with online development resources and manual (examples for
  • Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Operating Voltage 3.3V
Interface 3-wire SPI, 4-wire SPI

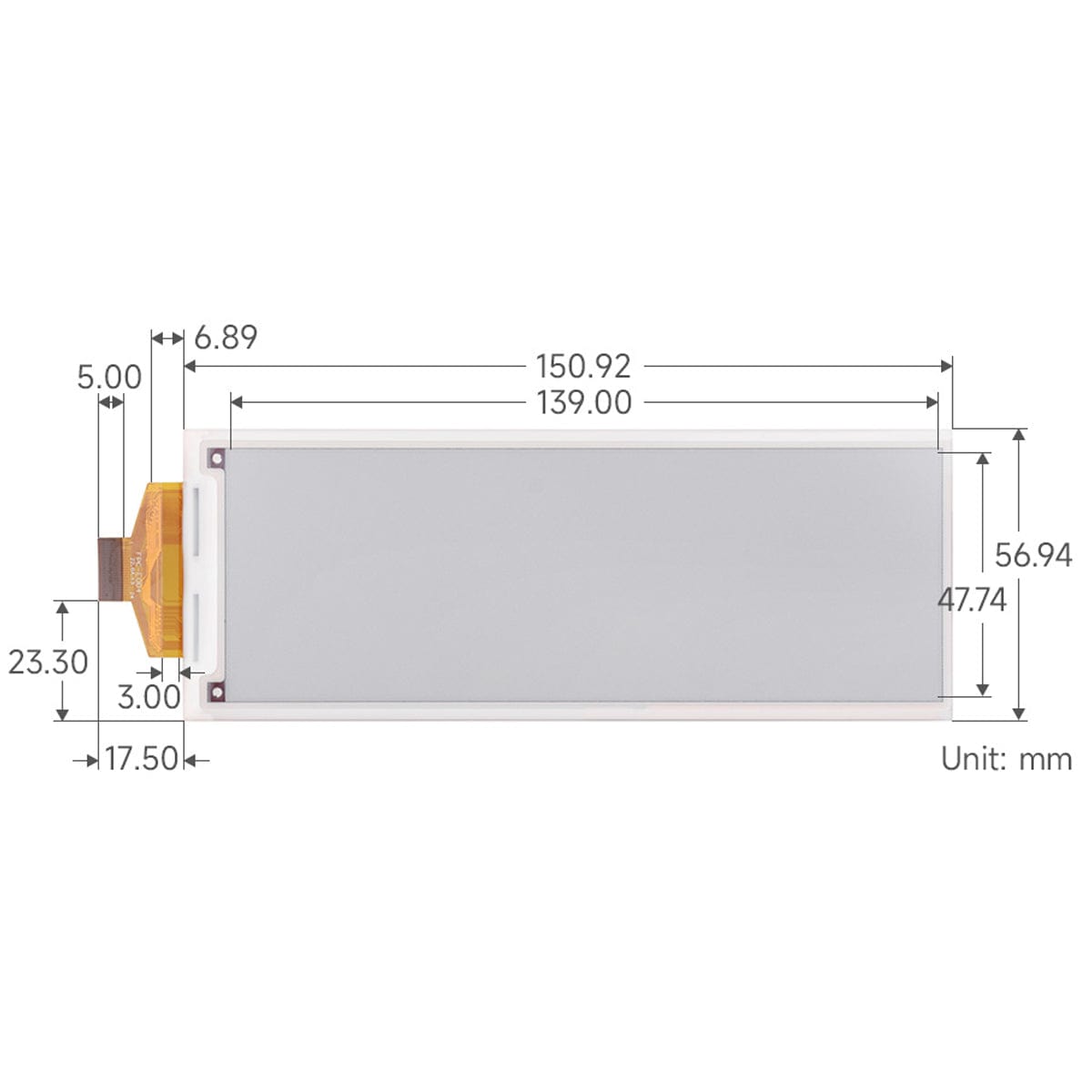

Outline Dimensions 150.92 x 56.94 x 1.00mm
Display Size 139.00 x 47.74mm
Dot Pitch 0.1755 x 0.1755mm
Resolution 792 x 272 pixels
Display Colour Red/Black/White
Grey Scale 2
Full Refresh Time 24s
Refresh Power <50mW
Standby Current  <0.01uA (almost none)
Viewing Angle >170°

Resources

Package Contents

  • 1x 5.79" E-Paper Raw Display
