M5Stack 4-Relay Unit

M5StackSKU: U097
£9.58
incl. VAT
excl. VAT
Only 2 units left

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi HutM5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3 loT Development Kit
£48.25 incl. VAT excl. VAT
ATOM Matrix ESP32 Development Kit - The Pi HutATOM Matrix ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Matrix ESP32 Development Kit
£12.50 incl. VAT excl. VAT
M5Stack Mini Infrared Emitter & Receiver Unit - The Pi HutM5Stack Mini Infrared Emitter & Receiver Unit - The Pi Hut
M5StackM5Stack Mini Infrared Emitter & Receiver Unit
£2.92 incl. VAT excl. VAT

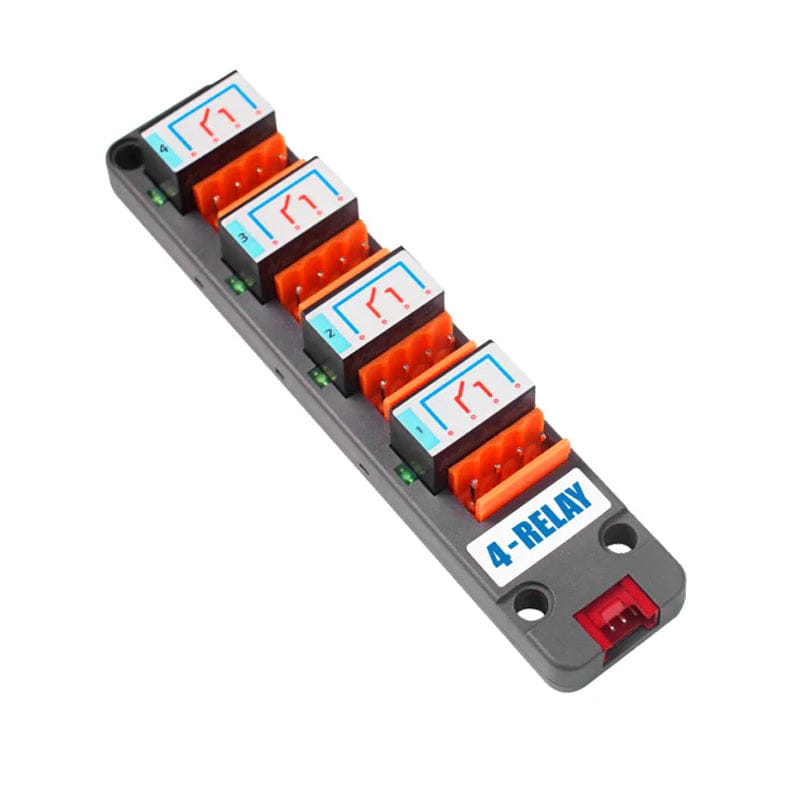

This unit is an integrated 4-way relay module which can be controlled by I2C protocol. The maximum voltage of each relay is AC-250V/DC-28V, the rated current is 10A and the current can hold up to 16A. Each relay can be controlled independently and each relay has a status (LED) indictor as well to show the state of the relay at any given time.

Features

  • 4-way relay
  • AC-250V/DC-28V/10A
  • LED status indication
  • I2C communication (0x26)

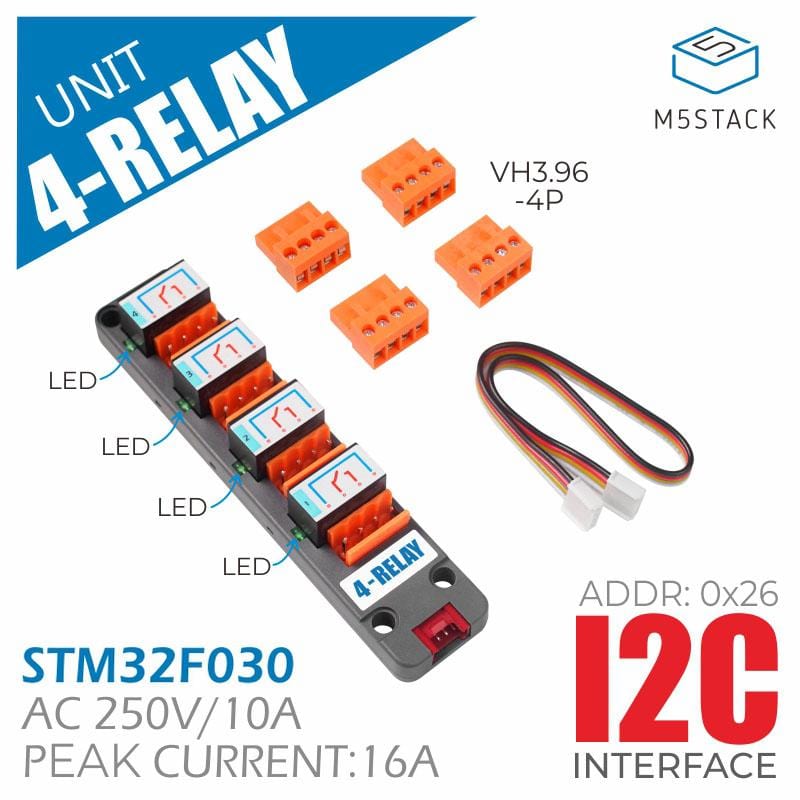

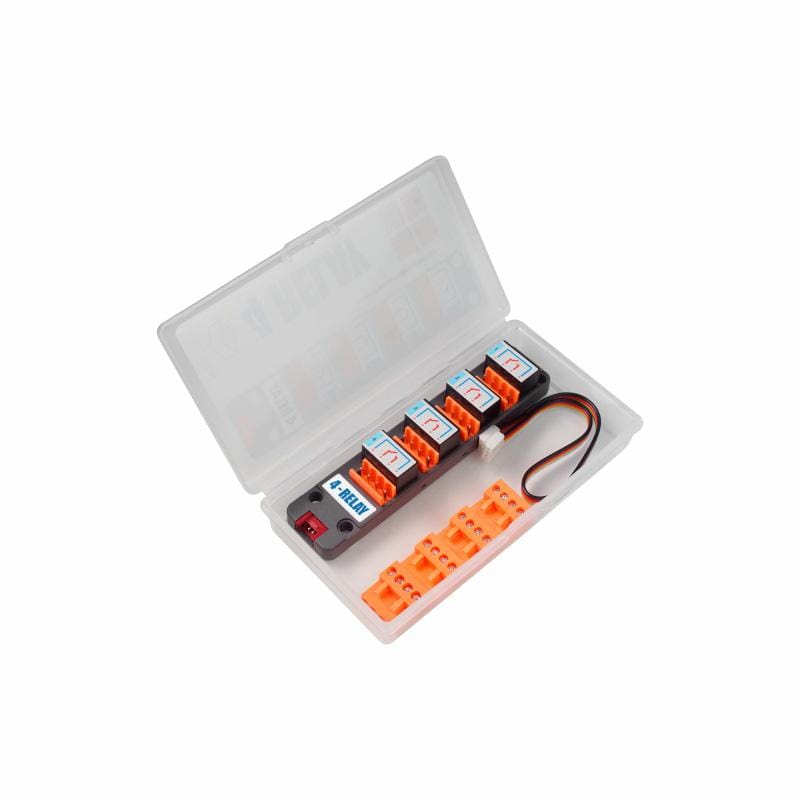

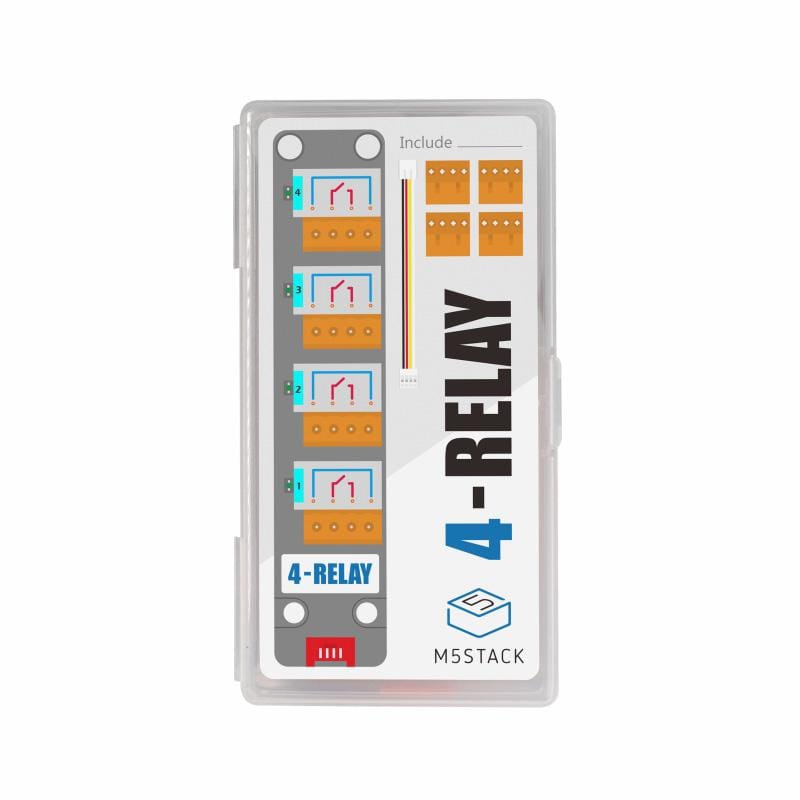

Package Contents

  • 1x 4-Relay Unit
  • 1x Grove Cable(20cm)
  • 4x VH-3.96-4P Plug terminal

    Specifications

    Resources Parameter
    Maximum input voltage AC-250V/DC-28V
    Rated current 10A
    Maximum instantaneous currenta 16A
    Communication I2C(0x26)
    Net Weight 40g
    Gross Weight 84g
    Product Size 112*23*18mm
    Package Size 125*65*22mm

    Resources

  • Documents
    •
