20x30mm Cavity Speakers with PH1.25 Connector (8Ω 2W)

WaveshareSKU: WAV-27745
Price:
Sale price £2.90
incl. VAT
excl. VAT
Stock:
Coming Soon
Notify me

Awesome Extras

Waveshare10.1" IPS HDMI Capacitive Touch Display
Sale price £72.40 incl. VAT excl. VAT
Waveshare8" IPS HDMI Capacitive Touch Display
Sale price £67.60 incl. VAT excl. VAT

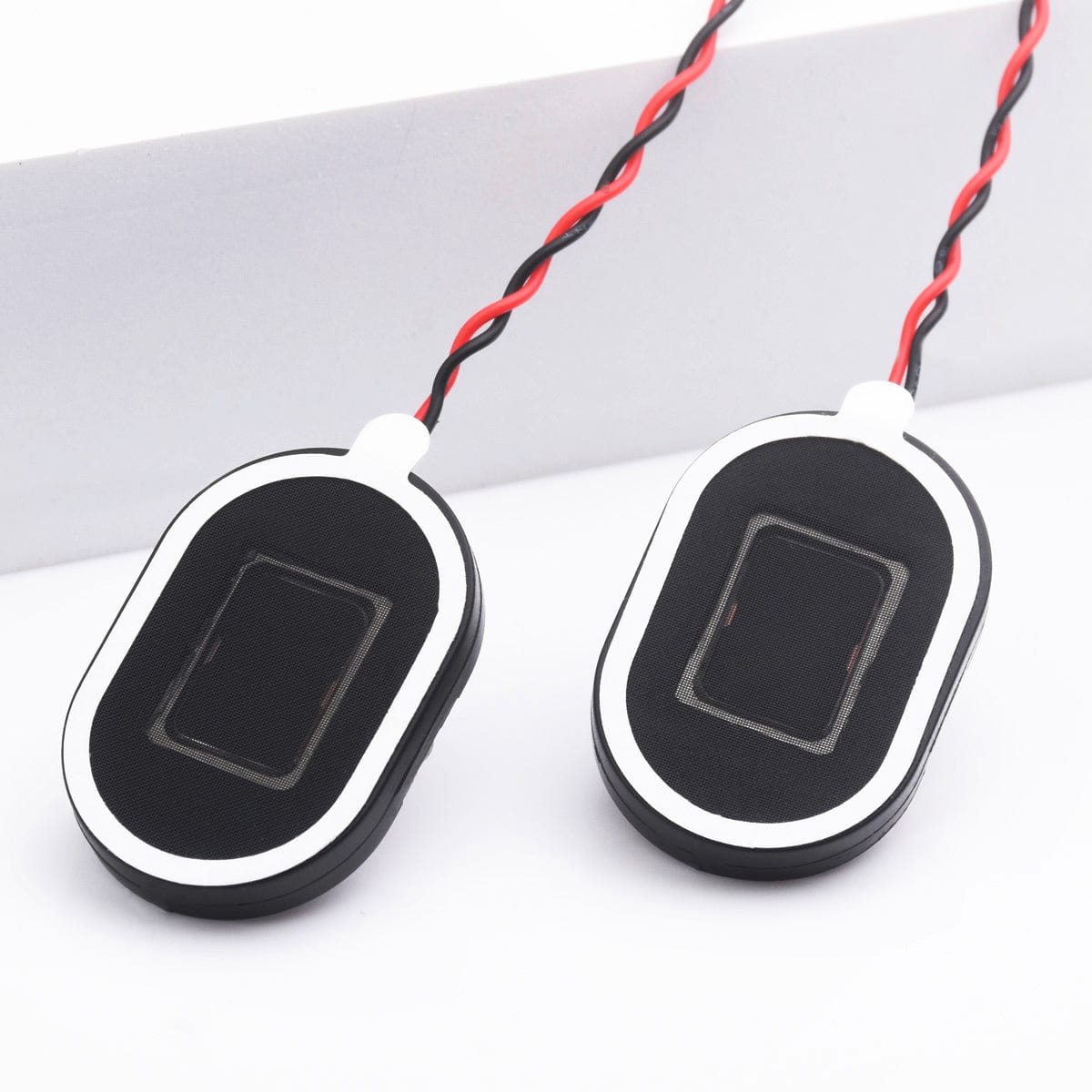

This speaker set has an impedance of 8 ohms and a power rating of 2 watts, which provides clear and great-sounding audio. It is easy to connect with different development boards that have a PH1.25 4-pin speaker connector, making it perfect for DIY electronics, educational projects, and small audio systems.

Note: Please make sure your board has a speaker connector on it that will fit a 4-pin PH1.25 cable before purchasing (See further down the page for an example).

Specifications

Frequency Band 0 ~ 20KHz
Impedance 8 ± 15%Ω
Power 2W
Operating Temperature -20 ~ 55℃

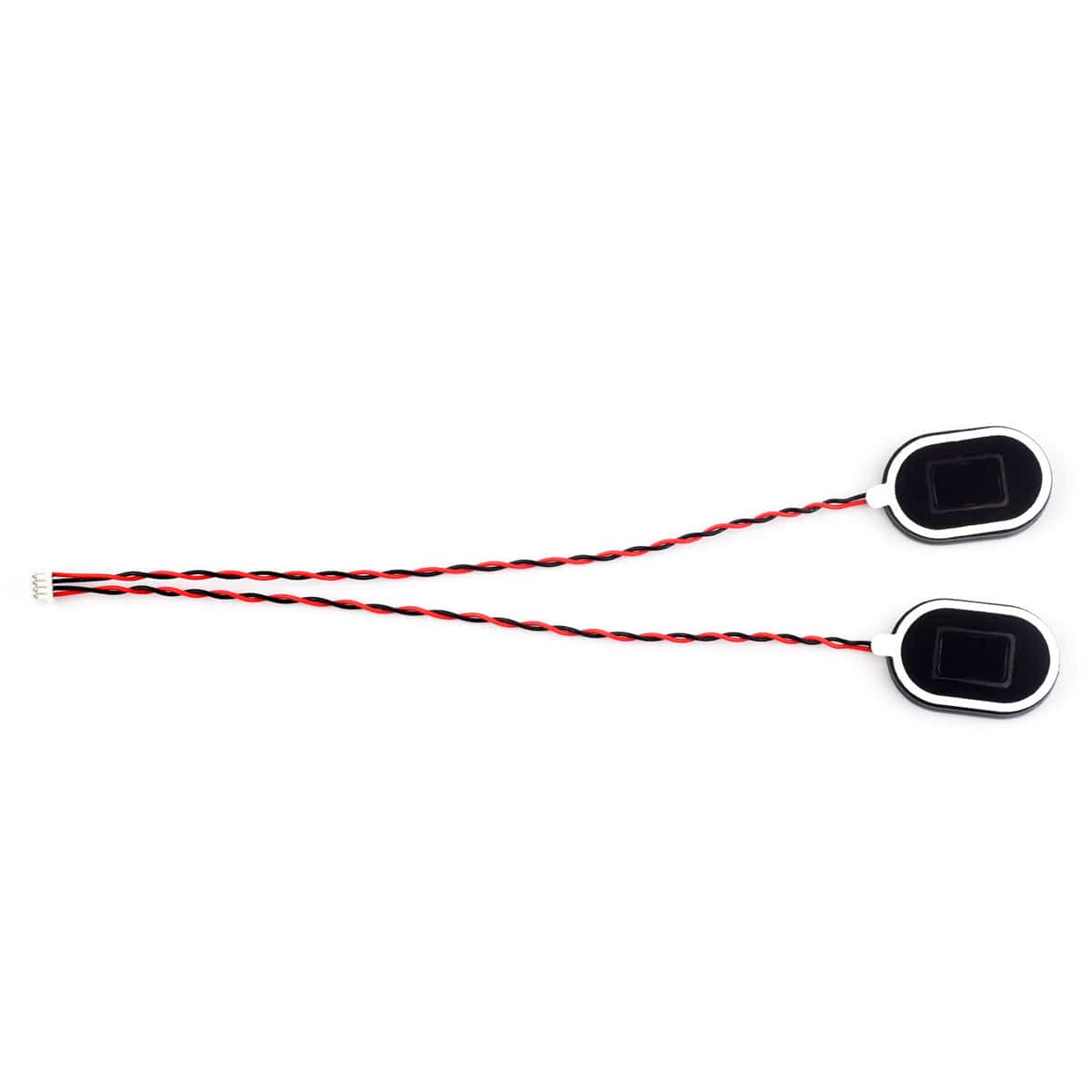

Wire Specifications 4-pin PH1.25 connector, approx. 150mm cable length

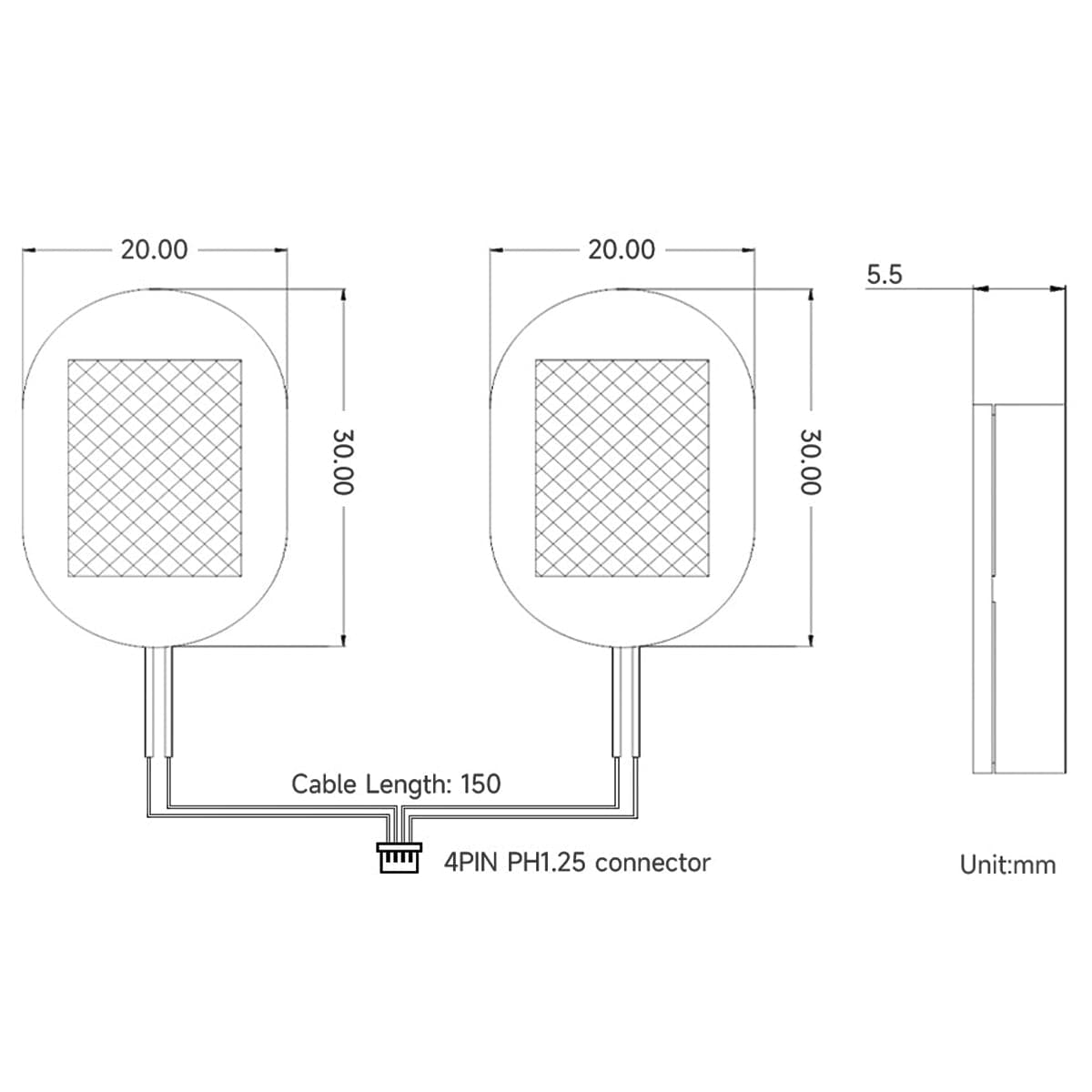

Size 20 x 30 x 5.5mm

Connection Example - HDMI Display

Package Contents

  • 1x 8Ω 2W Speaker set
