8" IPS HDMI Capacitive Touch Display

WaveshareSKU: WAV-23741
Price:
Sale price £67.60
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi Zero 2 W
Sale priceFrom £14.40 incl. VAT excl. VAT
The Pi Hut3.5mm Jack to Jack Stereo Audio Cable
Sale priceFrom £1.50 incl. VAT excl. VAT

Offering a more comfortable viewing size than some of our mini displays, this 8" IPS touchscreen display connects to your Raspberry Pi (4/3/3A+) via the USB-C port and includes Raspberry Pi mounting points - meaning your GPIO header remains completely free for your HATs and components. There is also an HDMI display port to connect to your PC, Jetson Nano and Raspberry Pi Zero 2W. Note: The Zero will need an additional mini HDMI adapter and USB cable.

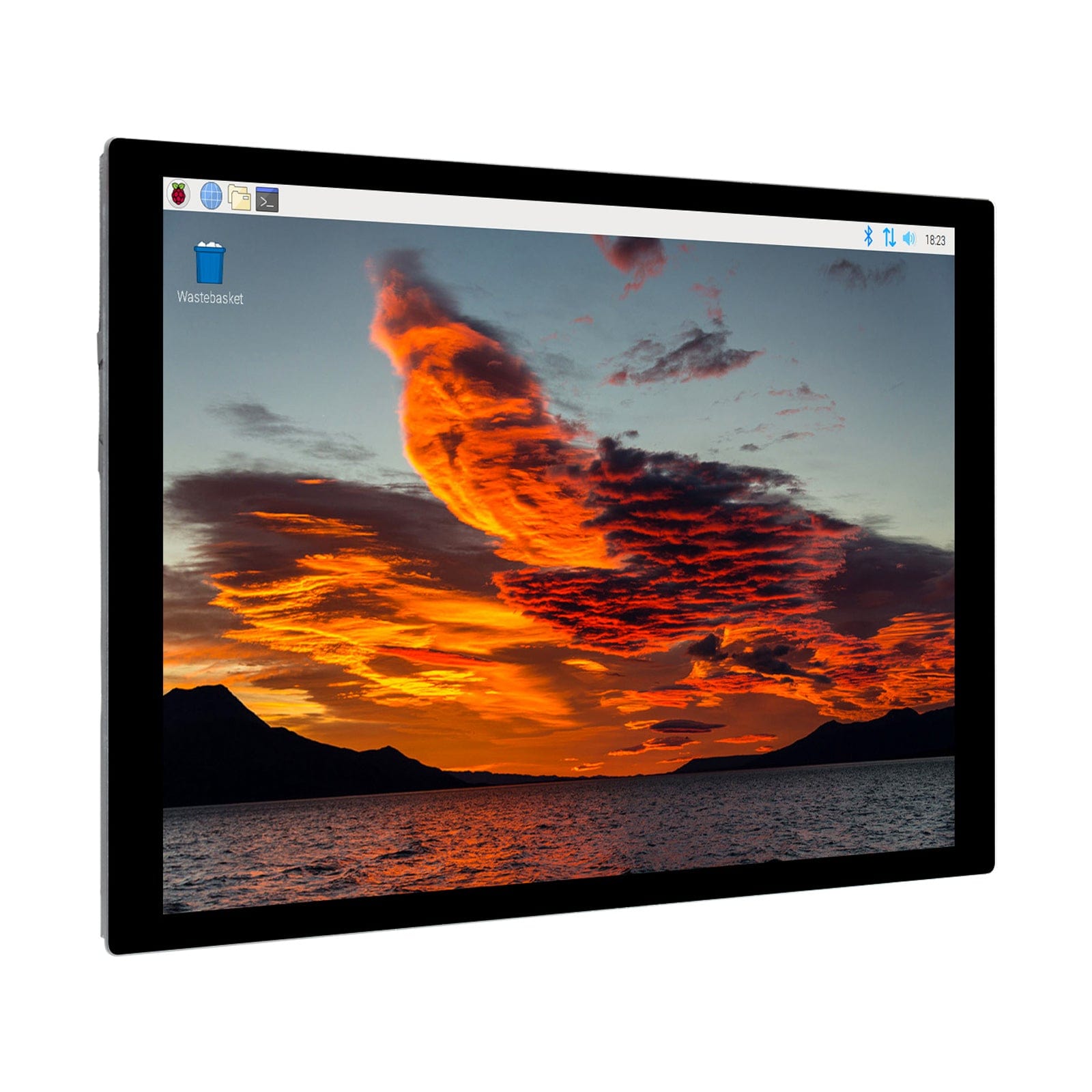

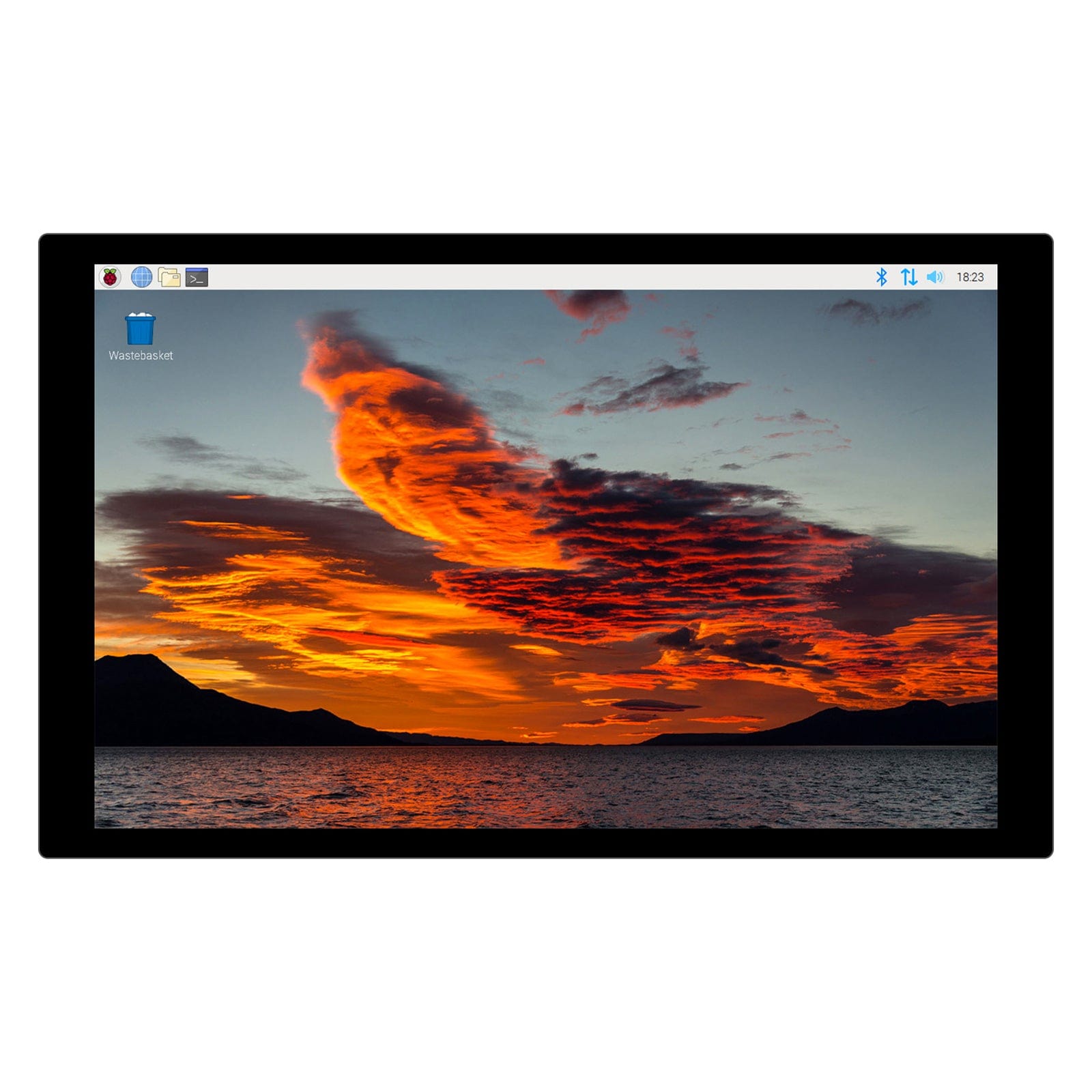

The 8" IPS panel offers clear 178° viewing angles with a 1280x800 HD resolution and toughened glass. The touch interface offers up to 10-point touch (OS dependent) to allow you to interact with your projects and day-to-day activities without the need for peripherals.

Also onboard you'll find 2 audio outputs, including a 3.5mm jack and a 4-Pin header for any headphones and audio gear, a backlight button to turn it on and off when needed, and adjustable brightness using the software.

Features

  • 8-inch IPS screen with a hardware resolution of 1280 x 800.
  • 10-point capacitive touch, with tempered glass panel, hardness up to 6H.
  • Adopting optical bonding touch technology, the display effect is better.
  • Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
  • Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
  • Multi-language OSD menu (can be used for power control, adjusting brightness/contrast, etc.)
  • HDMI audio output, onboard 3.5mm headphone jack, and 4PIN speaker jack.

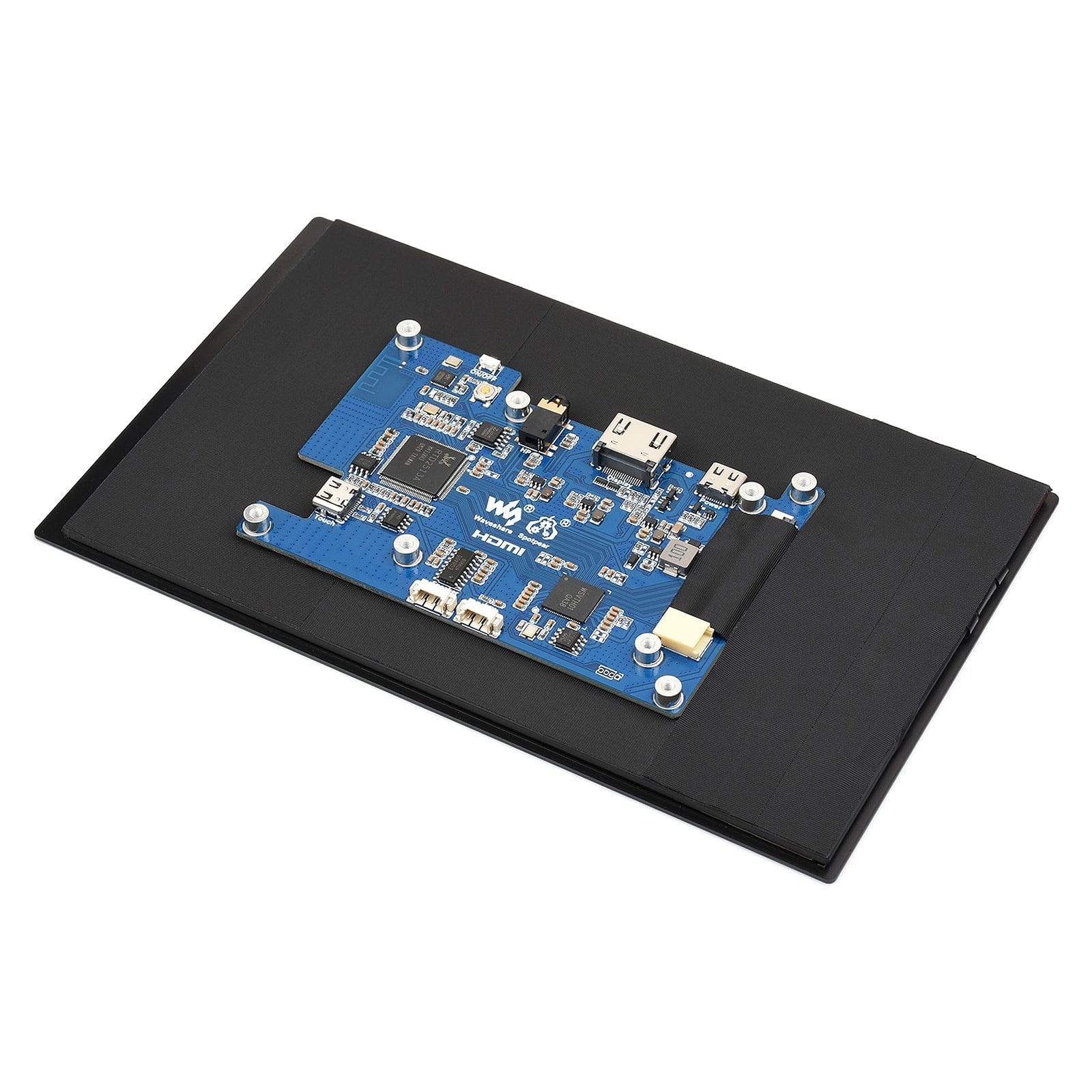

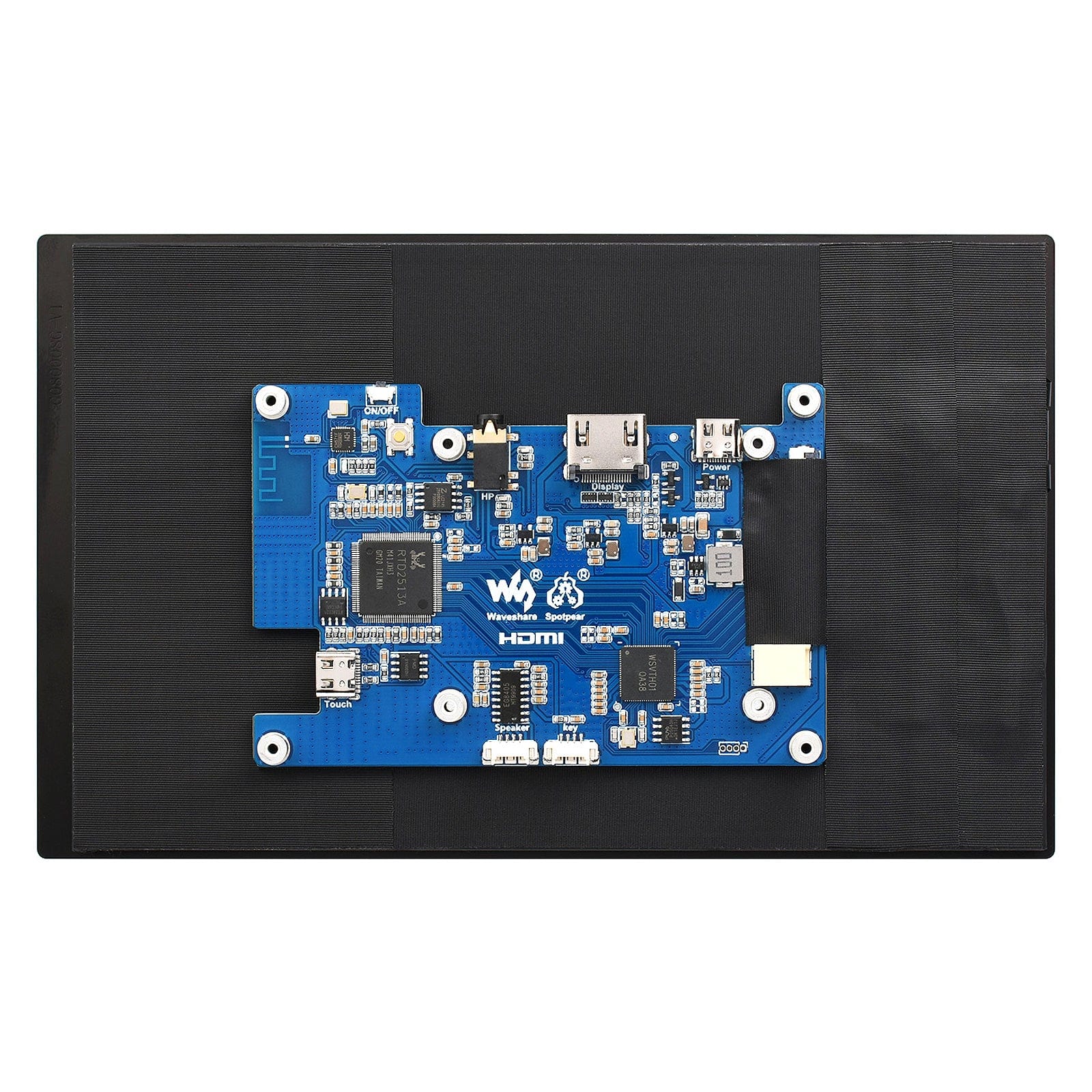

What's on Board

1. Backlight On/Off

2. Audio Jack

3. HDMI Port

4. Power Supply

5. Touch Port

6. Speaker Header

7. Button Board Header

Specifications

Item Description Unit
Model 8DP-CAPLCD /
Size 8 Inch
Viewing Angle 178 Deg
Resolution 1280 x 800 Pixels
Touch Screen Dimensions 194.00 (H) × 119.00 (V) × 2 (D) mm
Display Dimensions 114.66 (H) × 184.16 (V) × 2.6 (D) mm
Display Area 107.64 (H) × 172.22 (V) mm
Pixel Pitch 0.13455 (H) × 0.13455 (V) mm
Colour Gamut 0.62 NTSC
Maximum Brightness 400 cd/m²
Contrast 50.00069444 /
Backlight Adjustment OSD menu dimming /
Refresh Rate 60 Hz
Display Port Standard HDMI port /
Power Port 5V Type-C power supply /
Power Consumption 4 Watt
Weight 406 g

Resources

Product Contents

1. 1x 8" Capacitive Touch Display
2. 1x HDMI Flat Cable ~1m
3. 1x USB-A to USB-C cable ~1m
4. 1x Button Board
5. 1x Button Board Cable
6. 1x USB to Type-C adapter (B)
7. 1x USB to Type-C adapter (C)
8. 1x HDMI to Micro HDMI adapter
9. 1x HDMI Adapter
10. 1x Screws pack
