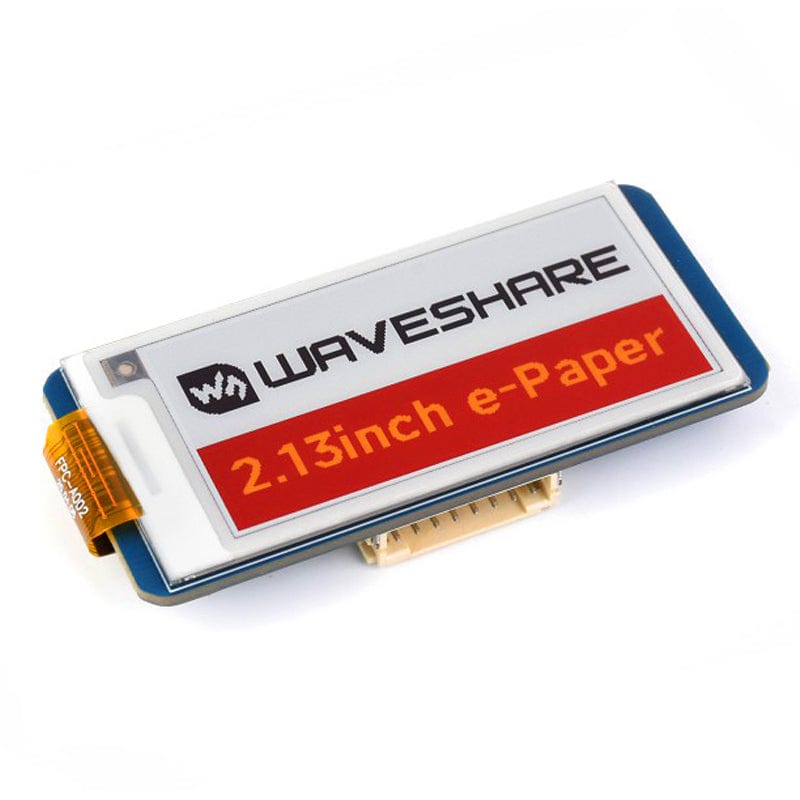

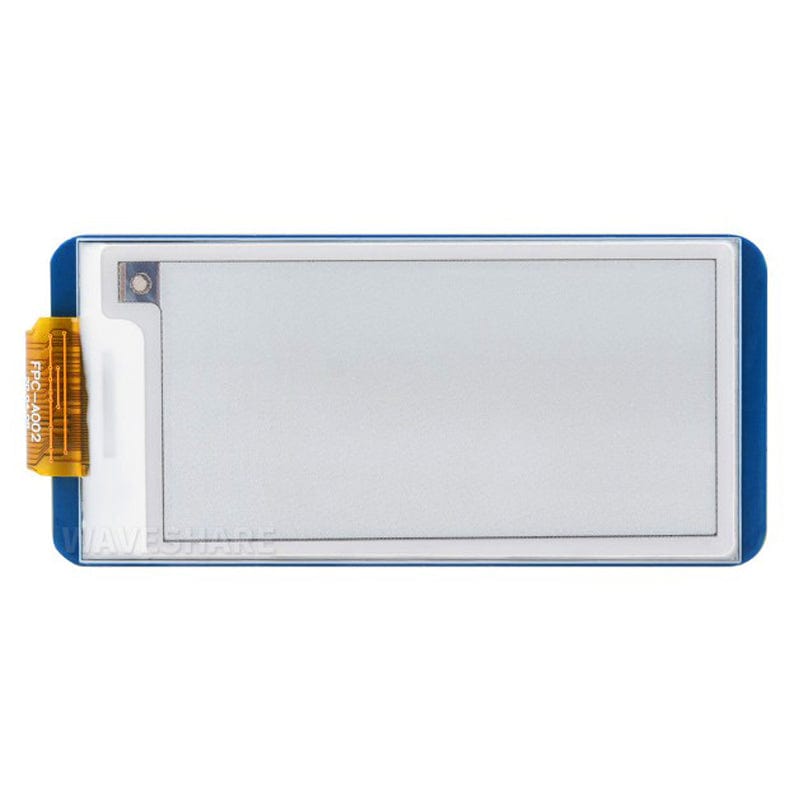

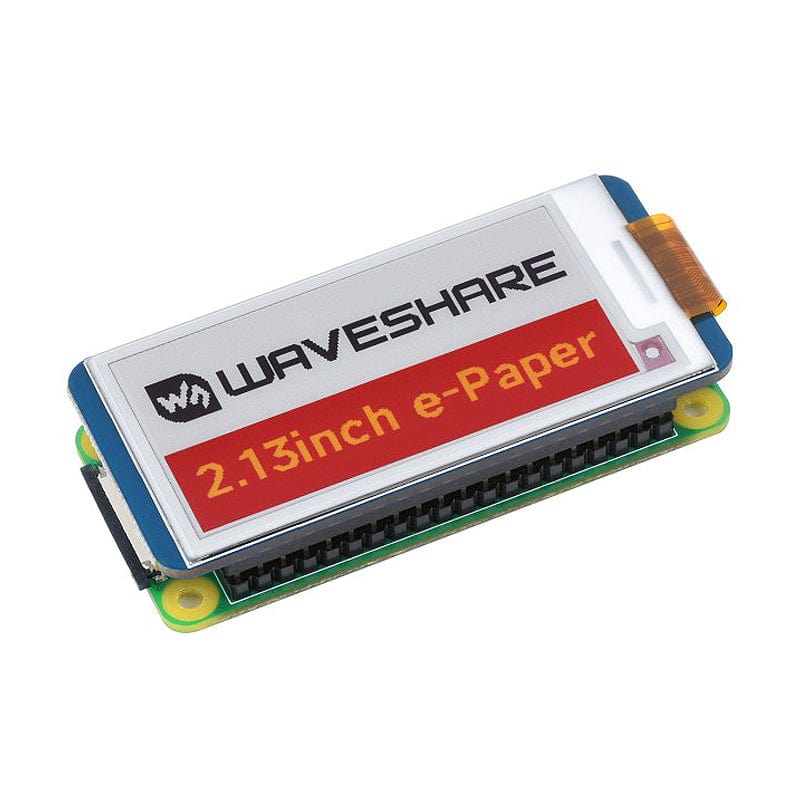

The 2.13" E-Paper HAT is a compact and versatile electronic paper display module designed for various applications where a low-power, high-contrast, and easily readable display is required. With its 2.13" display and resolution of 250 x 122 pixels, it provides a balance between readability and portability, making it suitable for a wide range of projects.

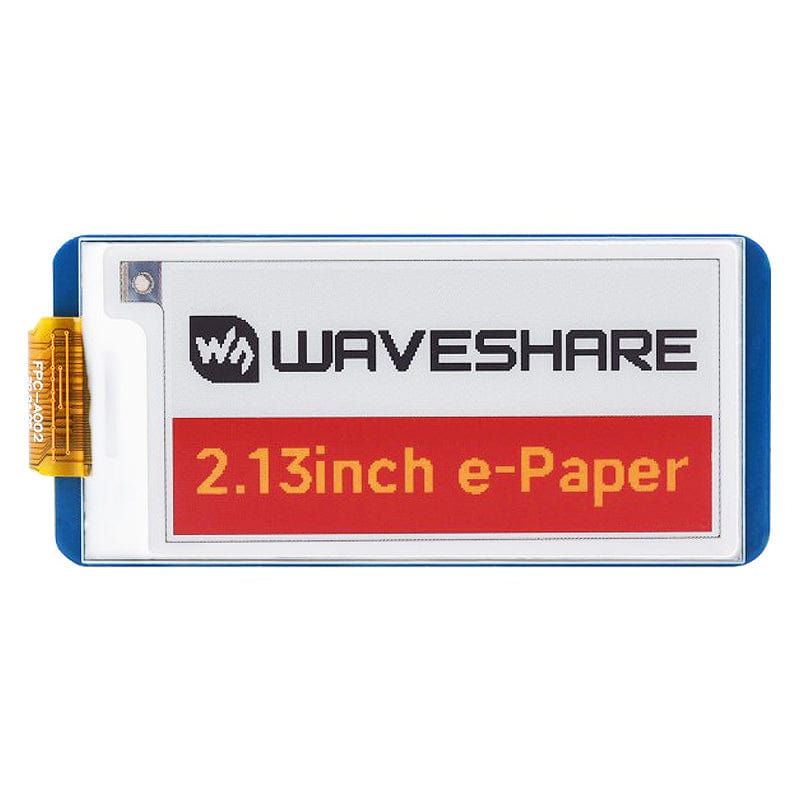

There's a viewing angle of over 170 degrees, so you can comfortably view the content displayed on the screen from various angles without any significant loss in clarity or contrast. It supports a Red/Yellow/Black/White display colour palette, allowing for versatile content presentation. These colours can be used creatively to highlight important information or add visual appeal to your projects.
It also includes an SPI (Serial Peripheral Interface) communication, two levels of greyscale, and long content retention, making it a versatile and power-efficient electronic paper display module with a range of display colours, excellent viewing angles, and grayscale capabilities. Its ability to retain content without power makes it a great choice for applications such as e-readers, signage, IoT devices, and many more projects!
Note: Raspberry Pi boards are NOT included
- No backlight, keeps displaying last content for a long time even when powered down
- Ultra-low power consumption, basically power is only required for refreshing

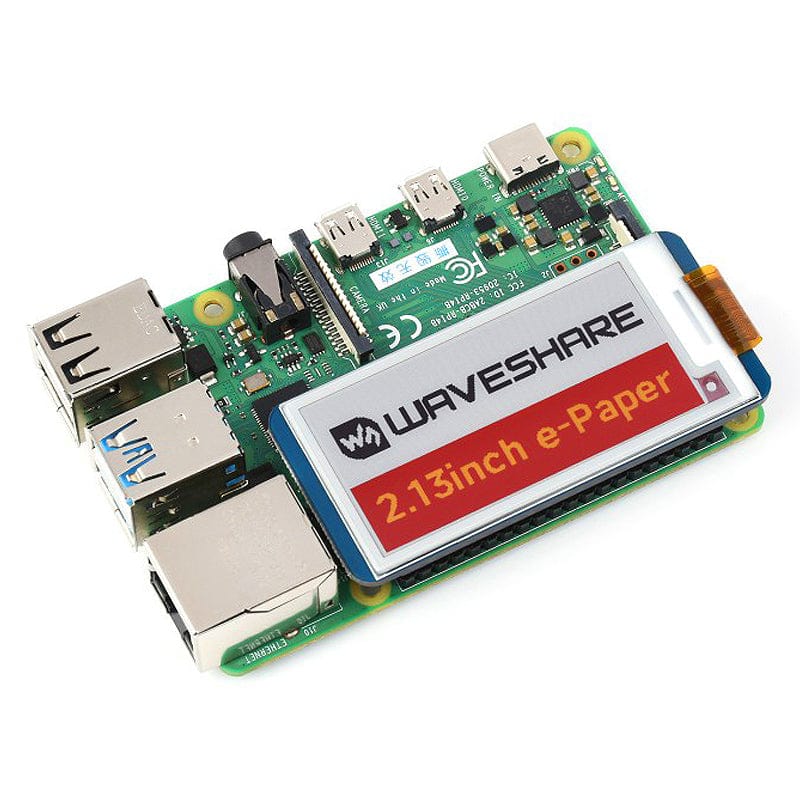

- SPI interface, for connecting with other controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
|Interface||3-wire SPI, 4-wire SPI|
|Outline Dimensions||65 x 30.2mm|
|Display Size||48.55 x 23.70mm|
|Dot Pitch||0.1943 x 0.1942mm|
|Resolution||250 x 122 pixels|
|Full Refresh Time||25s|
|Refresh Power||26.4mW (typ.)|
|Standby Current||<0.01uA (almost none)|

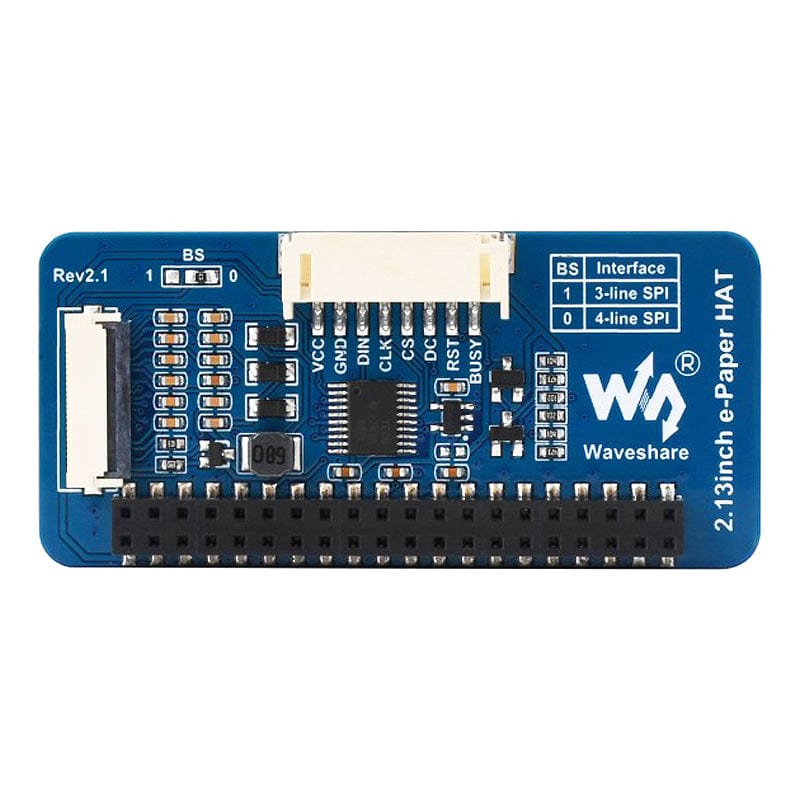

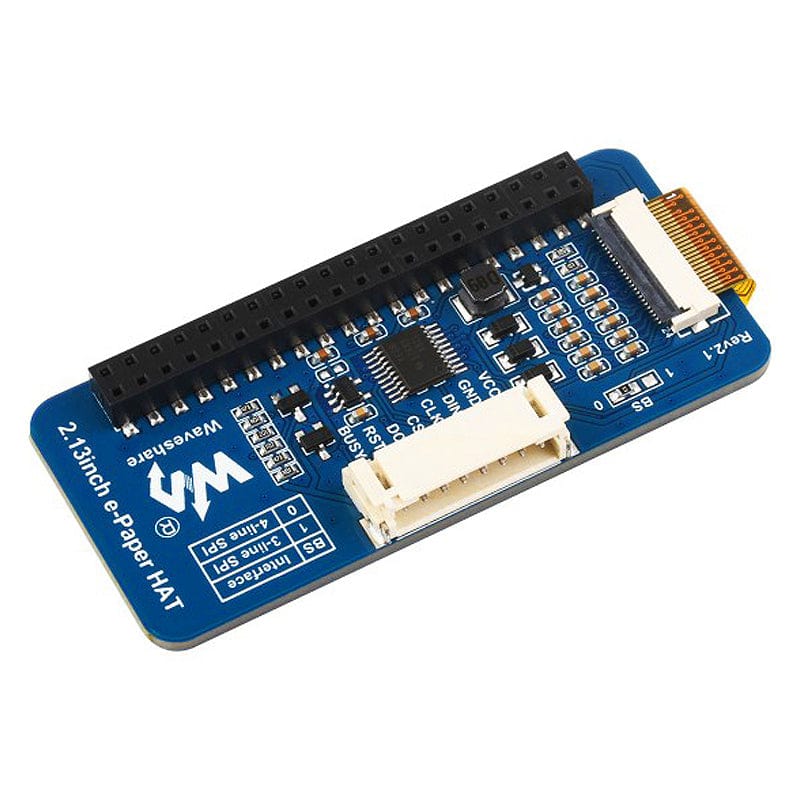

|VCC||Power (3.3V / 5V input)|
|DIN||SPI MOSI pin|
|SCLK||SPI SCK pin|
|CS||SPI chip selection, low active|
|DC||Data/Command selection (high for data, low for command)|
|RST||External reset, low active|
|BUSY||Busy status output pin (high for busy)|
- 1x 2.13" e-Paper HAT
- 1x PH2.0 20cm 8-Pin
