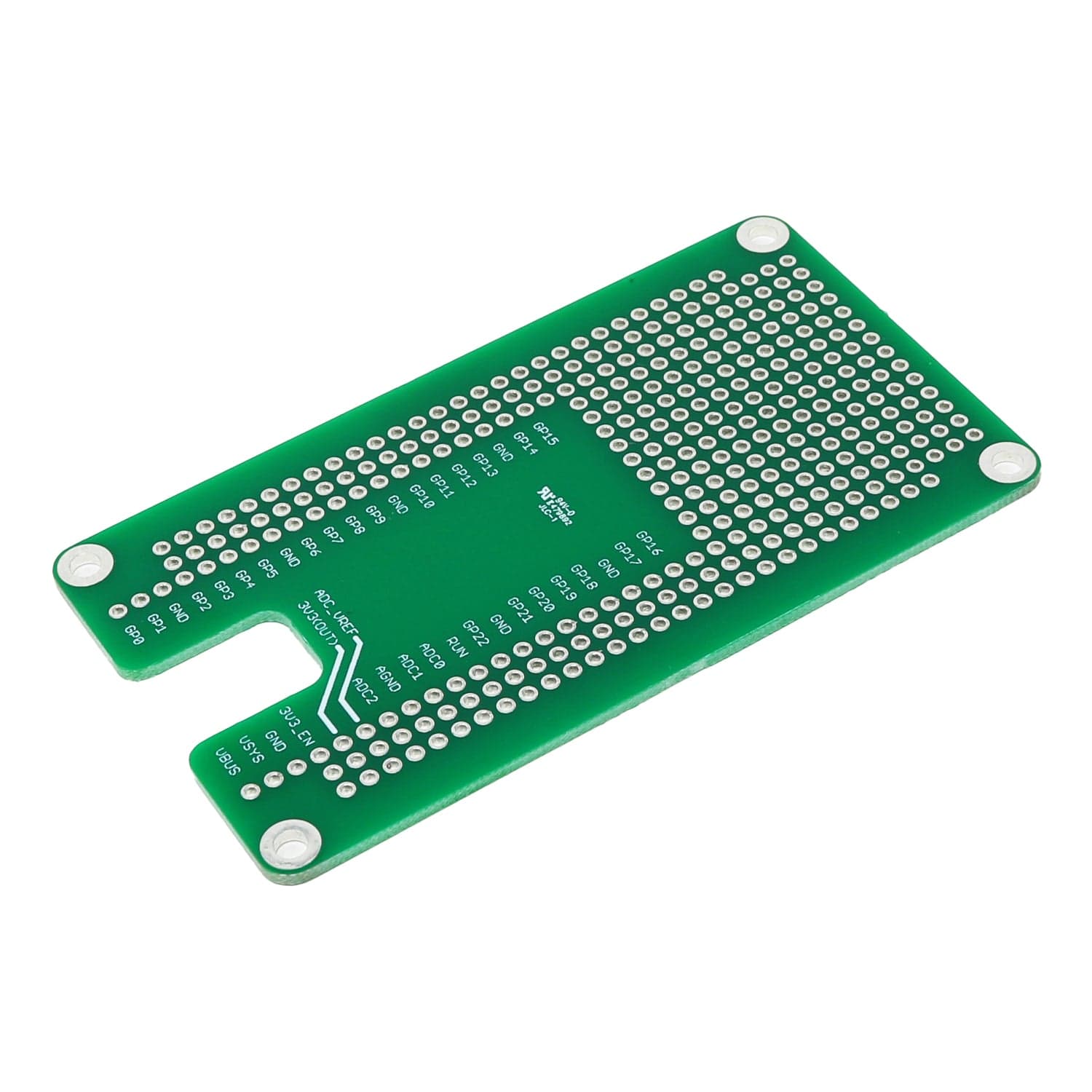

The 1591B Perf Board is very similar to our Raspberry Pi Pico 1591 Proto Board, but rather than breadboard style interconnected busses and rails, this has plain, plated through holes, for the maximum useable area. The board is designed to fit both the Raspberry Pi Pico and the Raspberry Pi Pico W with enough prototyping room for additional components, connectors, or sensors. Best of all, these fit directly inside the Hammond 1591B enclosure. Ideal for a one-off project that needs an easy enclosure and mounting solution!

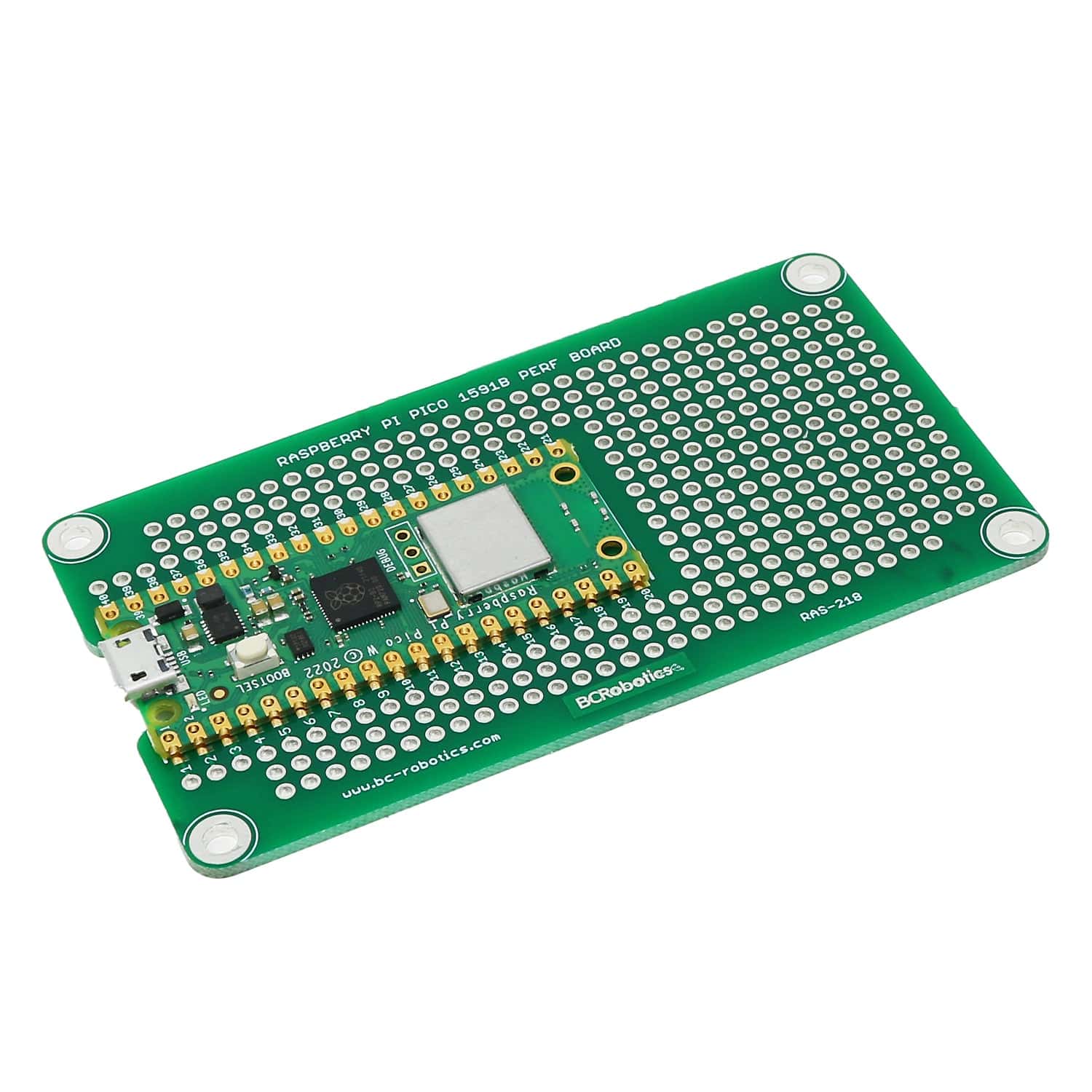

The Pico is attached using large solder pads – these are intended to be soldered using the castellated edges on the Pico and are easily accomplished using a normal soldering iron. The board breaks out all 40 GPIO pins from the Raspberry Pi Pico into easily accessible pins. The prototyping area measures 14 x 13 pins, but we have also included additional pins up the sides to provide the maximum prototyping space possible.
