Three-Colour 1.54" E-Ink Raw Display Panel (200x200)

WaveshareSKU: WAV-13275
Price:
Sale price £7.70
incl. VAT
excl. VAT
Stock:
Only 12 units left
Quantity:

Awesome Extras

Universal e-Paper Raw Panel Driver HAT - The Pi HutUniversal e-Paper Raw Panel Driver HAT - The Pi Hut
WaveshareUniversal e-Paper Raw Panel Driver HAT
Sale price £10.80 incl. VAT excl. VAT
E-Ink Display pHAT - 2.13" (250x122) - The Pi HutE-Ink Display pHAT - 2.13" (250x122) - The Pi Hut
WaveshareE-Ink Display pHAT - 2.13" (250x122)
Sale price £14.50 incl. VAT excl. VAT
Flex Cable for Raspberry Pi Camera/Display - 100mm - The Pi HutFlex Cable for Raspberry Pi Camera/Display - 100mm - The Pi Hut
The Pi HutFlex Cable for Raspberry Pi Camera/Display - 100mm
Sale price £0.80 incl. VAT excl. VAT

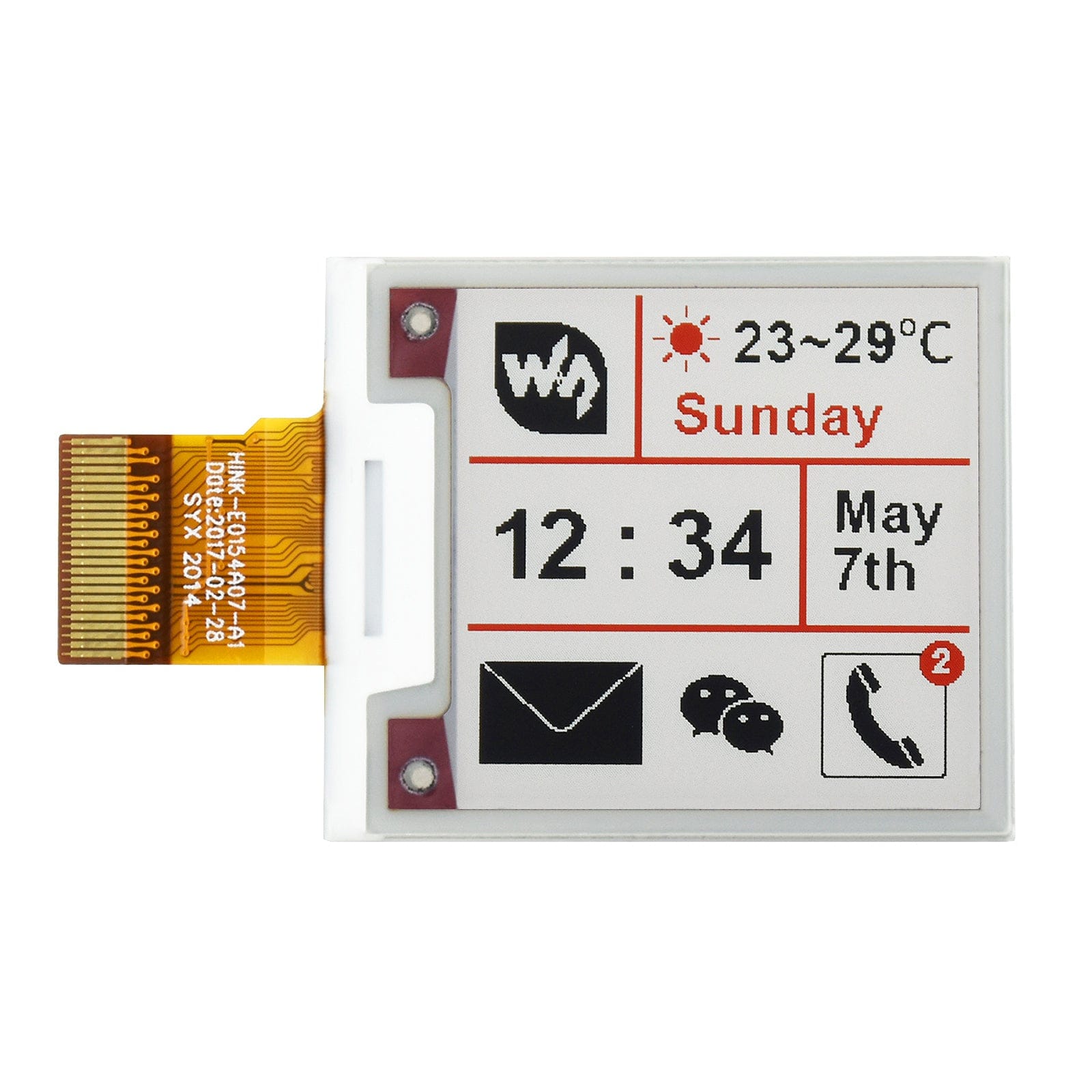

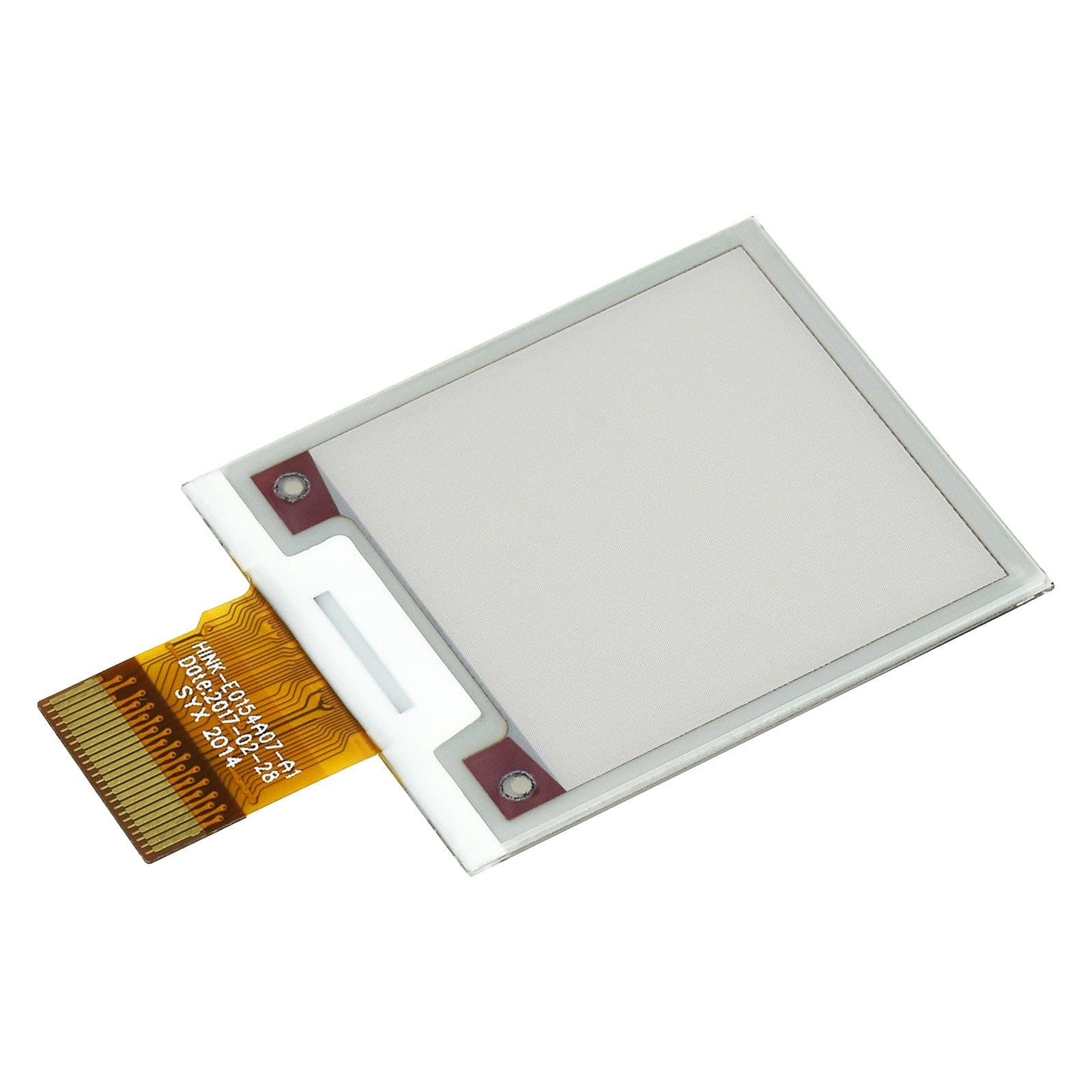

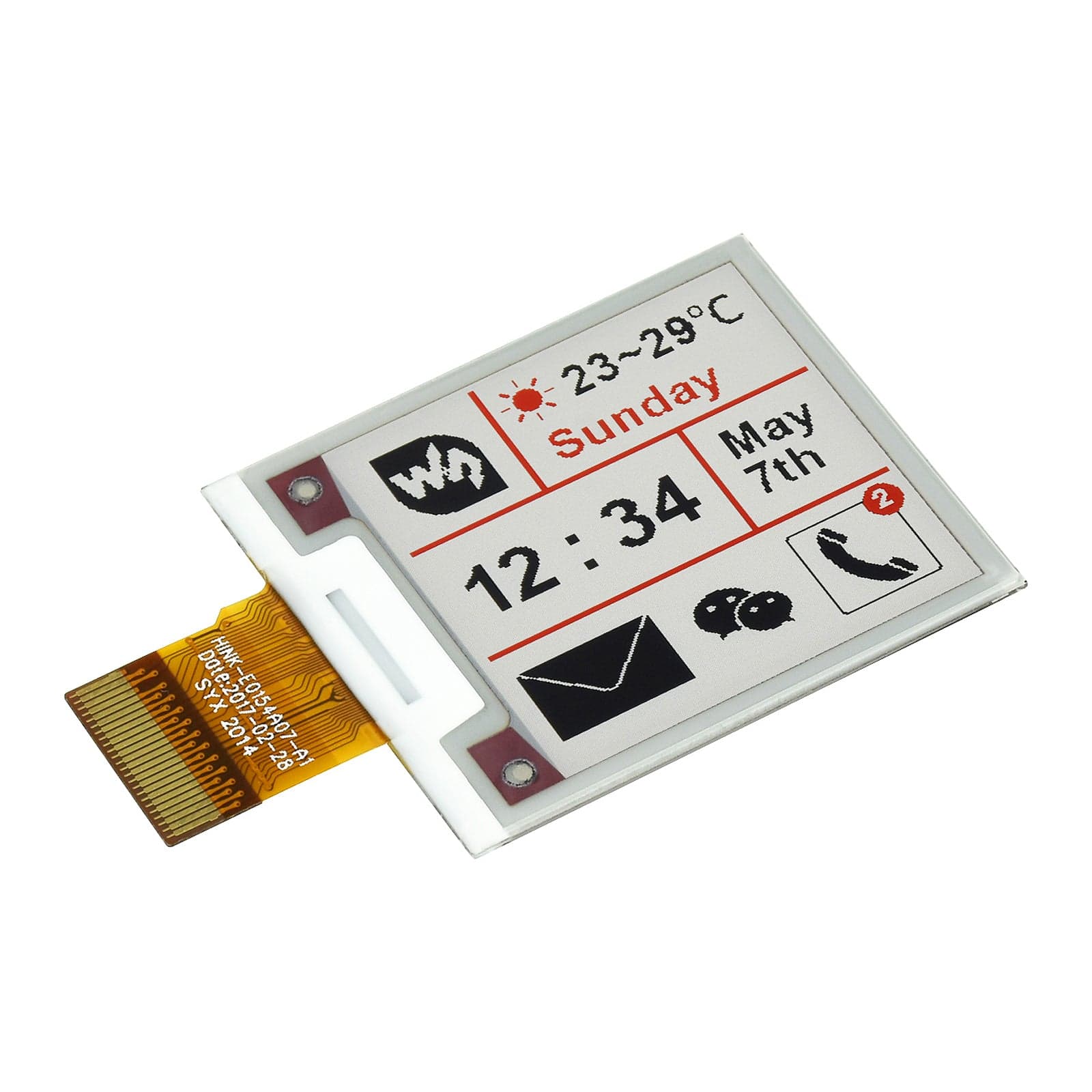

This 200x200 display panel has an E-Ink screen which is a display technology that looks like paper with high visibility and contrast, no glare (paper-like), Low power consumption, and is very easy on the eyes. It supports a red, black and white three-colour display, and has an SPI interface to connect to different development boards, including Raspberry Pi, Arduino, STM32 and others!

Thanks to its low-power feature it can retain text and images even when the power is off, and power is only needed when refreshing the display. This display is an ideal choice for applications such as shelf labels, industrial instruments, and many more!

This is for the screen only! This does not come with a controller PCB.

Features

  • No backlight, keeps displaying last content for a long time even when powered down
  • Ultra-low power consumption, basically power is only required for refreshing
  • Comes with online development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 31.8mm × 37.32mm × 1.05mm
  • Display size: 27.6mm × 27.6mm
  • Dot pitch: 0.138 × 0.138
  • Resolution: 200 × 200
  • Display colour: red, black, white
  • Grey level: 2
  • Full refresh time: 14s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Resources

Package Contents

  • 1x 1.54" E-Ink raw display panel
