1.3" IPS 240x240 LCD Display HAT for Raspberry Pi

WaveshareSKU: WAV-14972
(3 Reviews)
Price:
Sale price £15.10
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Compatible with:

Awesome Extras

(3 Reviews)
Waveshare1.3" OLED Display HAT for Raspberry Pi (128x64)
Sale price £12.90 incl. VAT excl. VAT
(32 Reviews)
WaveshareE-Ink Display pHAT - 2.13" (250x122)
Sale price £16.20 incl. VAT excl. VAT

Important - kernel support! This HAT will not work currently work correctly on Raspberry Pi kernel 5.4 or later. Customers are advised to use an older version of Raspberry Pi OS (2020-05-27-raspios-buster-full-armhf).

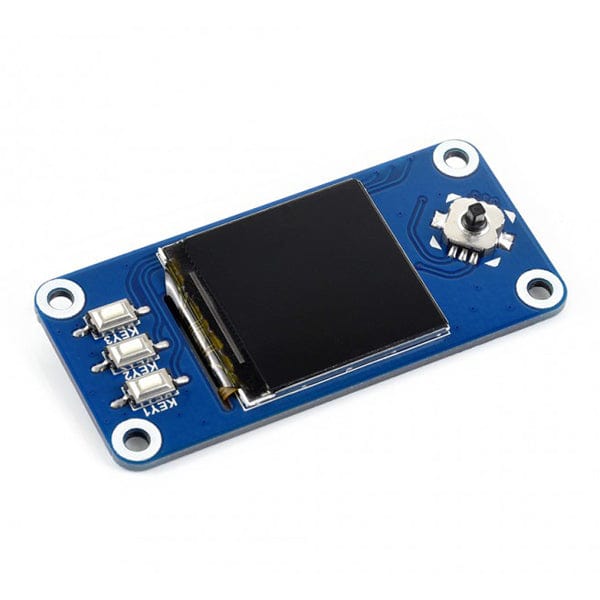

This is an IPS LCD display HAT for the Raspberry Pi. It features a 1.3" diagonal display with 240x240 pixels and includes an embedded controller. The HAT communicates via the SPI interface.

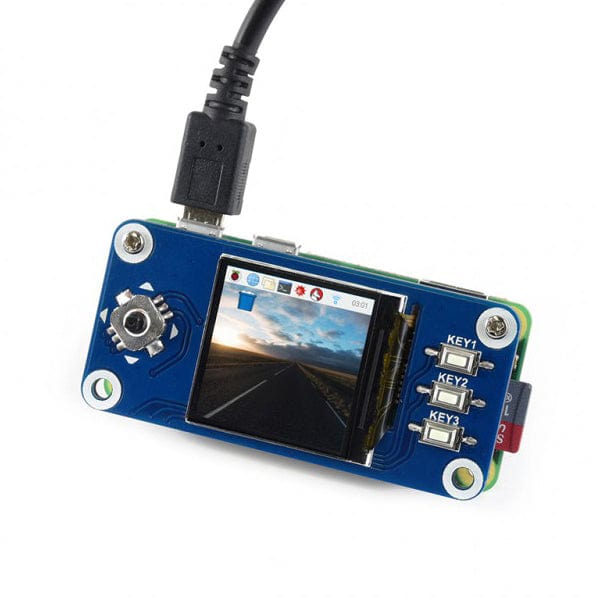

Trying to add a control interface for your Pi? This compact display has everything you need for a neat and tidy solution.

Features

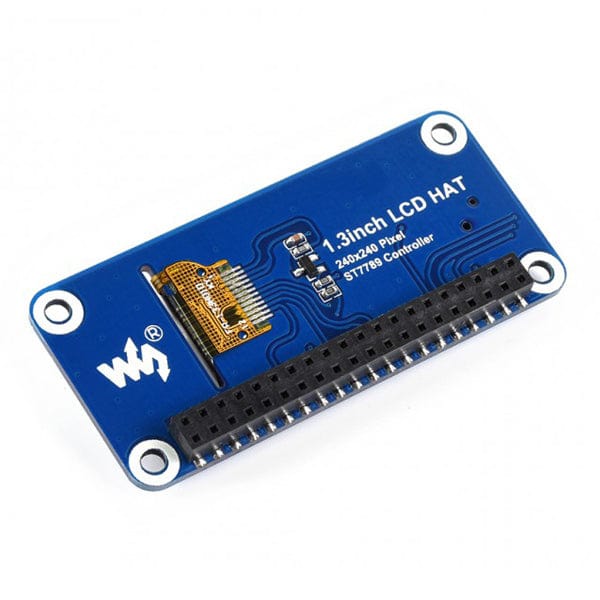

  • Standard Raspberry Pi 40-pin GPIO extension header
  • IPS screen - wide viewing angles
  • High definition in small size
  • 1x joystick, 3x pushbuttons
  • Comes with development resources and manual (examples for Raspberry Pi)

Specifications

  • Driver: ST7789
  • Interface: SPI
  • Display colour: RGB, 65K colour
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V

Resources

Interface

SYMBOL RASPBERRY PI PIN (BCM) DESCRIPTION
KEY1 P21 Button 1/GPIO
KEY2 P20 Button 2/GPIO
KEY3 P16 Button 3/GPIO
Joystick Up P6 Joystick Up
Joystick Down P19 Joystick Down
Joystick Left P5 Joystick Left
Joystick Right P26 Joystick Right
Joystick Press P13 Joystick Press
SCLK P11/SCLK SPI clock input
MOSI P10/MOSI SPI data input
DC P25 Data/Command selection (high for data, low for command)
CS P8/CE0 Chip selection, low active
RST P27 Reset, low active
BL P24 Backlight
