0.91" OLED Display Module

WaveshareSKU: WAV-14657
£7.50
incl. VAT
excl. VAT
Only 14 units left

Awesome Extras

0.96" OLED Display Module - The Pi Hut0.96" OLED Display Module - The Pi Hut

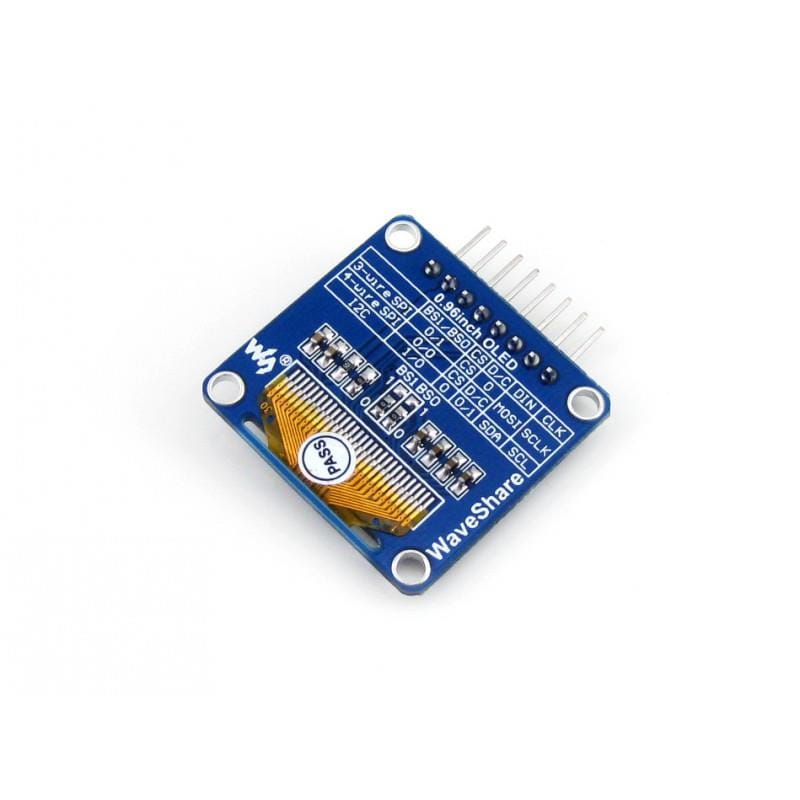

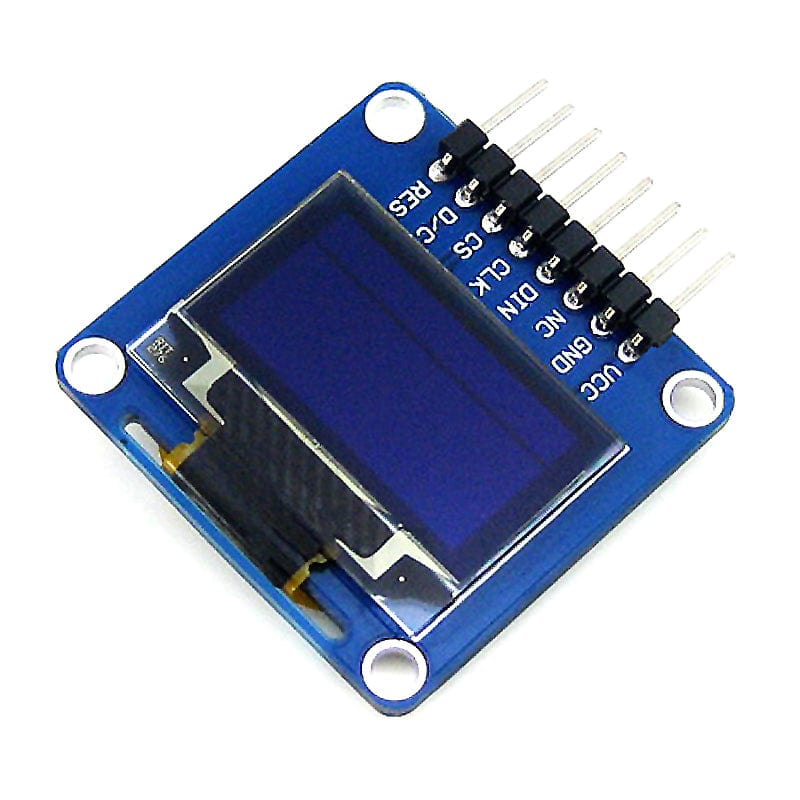

Waveshare0.96" OLED Display Module
£8.60 incl. VAT excl. VAT
Adafruit PiOLED - 128x32 Monochrome OLED Add-on for Raspberry Pi - The Pi HutAdafruit PiOLED - 128x32 Monochrome OLED Add-on for Raspberry Pi - The Pi Hut
AdafruitAdafruit PiOLED - 128x32 Monochrome OLED Add-on for Raspberry Pi
£14.10 incl. VAT excl. VAT
128×32 2.23inch OLED display HAT for Raspberry Pi - The Pi Hut128×32 2.23inch OLED display HAT for Raspberry Pi - The Pi Hut
Waveshare128×32 2.23inch OLED display HAT for Raspberry Pi
£17.30 incl. VAT excl. VAT

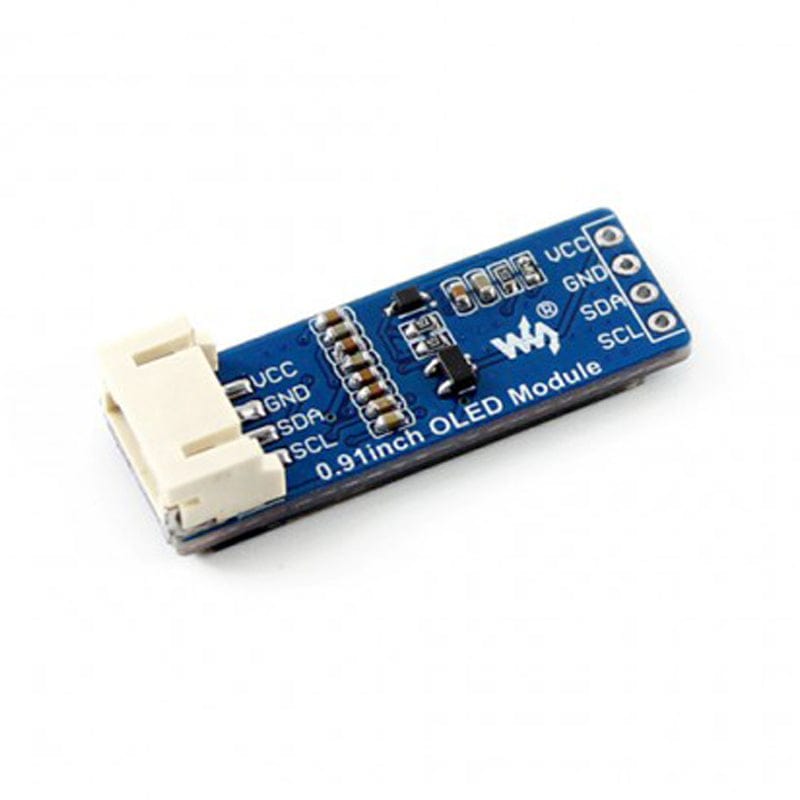

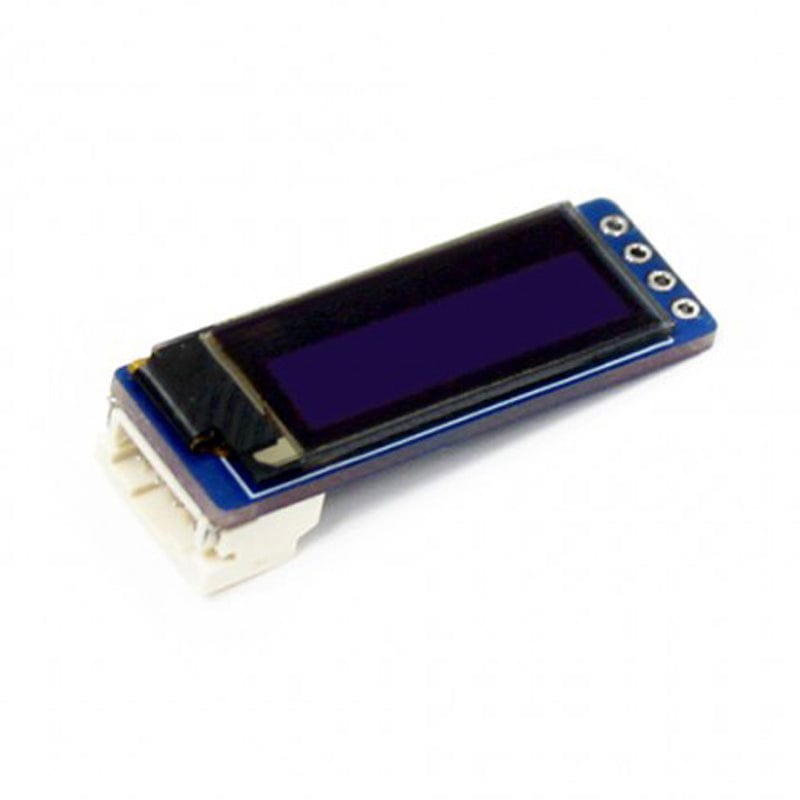

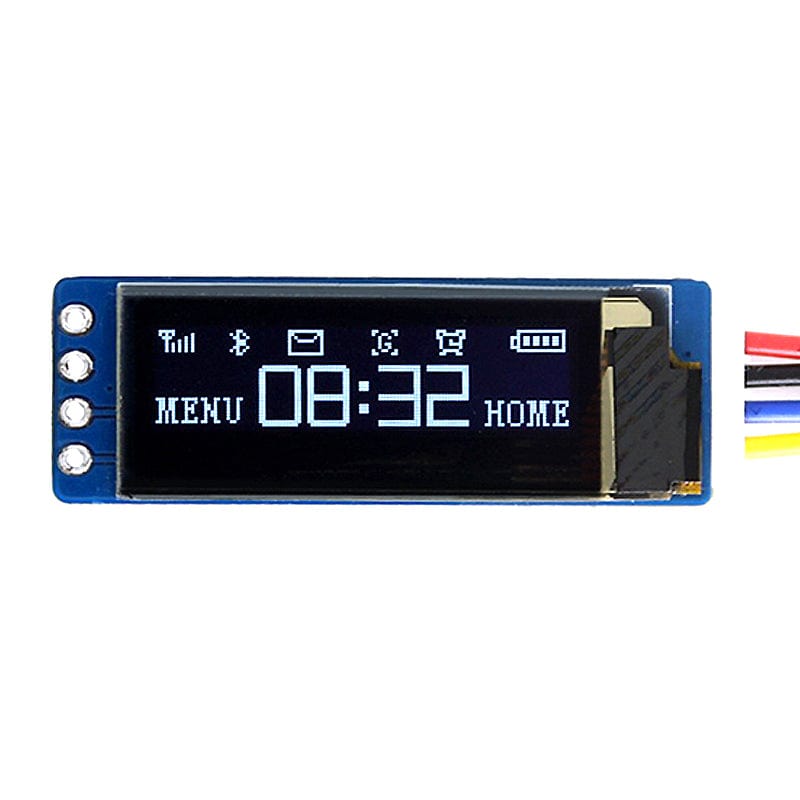

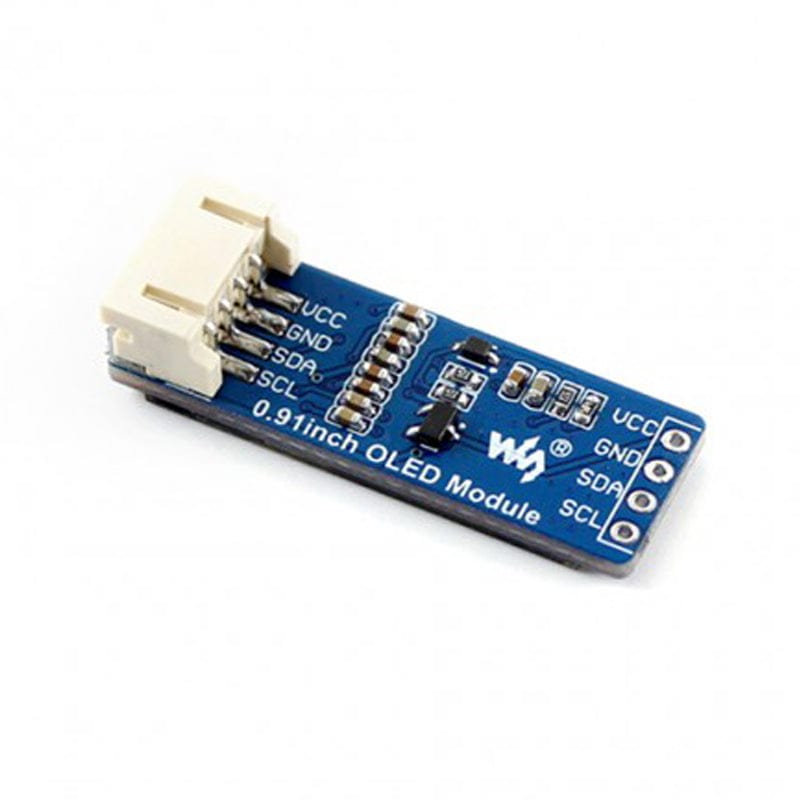

This is a general OLED module for adding a small display to your project - great for robots, data monitors and more! The module is 0.91" diagonal, 128x32 pixels, with an embedded controller communicating via I2C interface.

Features

  • 0.91" small form factor
  • 128x32 high resolution
  • I2C interface requires only two signal pins
  • Comes with development resources and manual (examples for Raspberry Pi)

Resources

Specifications

  • Driver: SSD1306
  • Interface: I2C
  • Display colour: White
  • Resolution: 128x32
  • Viewing angle: >160°
  • Operating voltage: 3.3V / 5V
  • Dimension: 36 x 12.5 (mm)

Interface

SYMBOL DESCRIPTION
VCC Power (3.3~5V input)
GND Ground
SDA Data input
SCL Clock input
