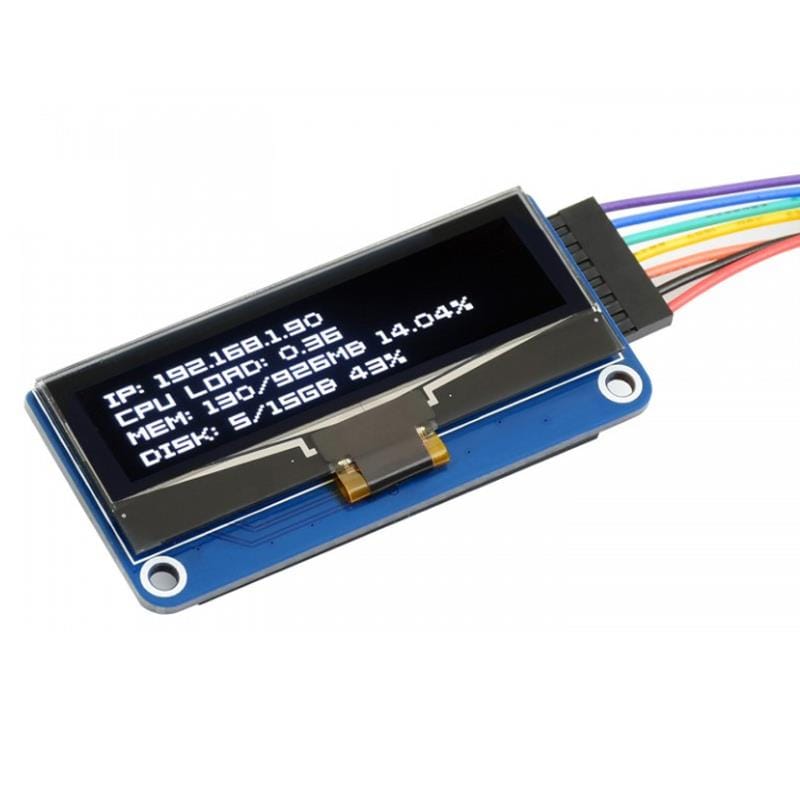

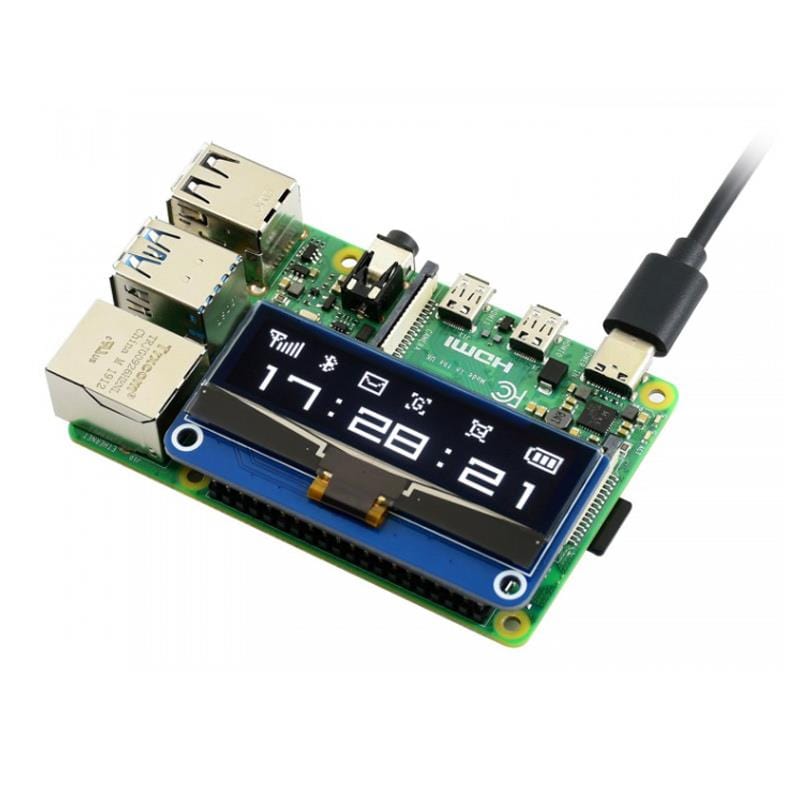

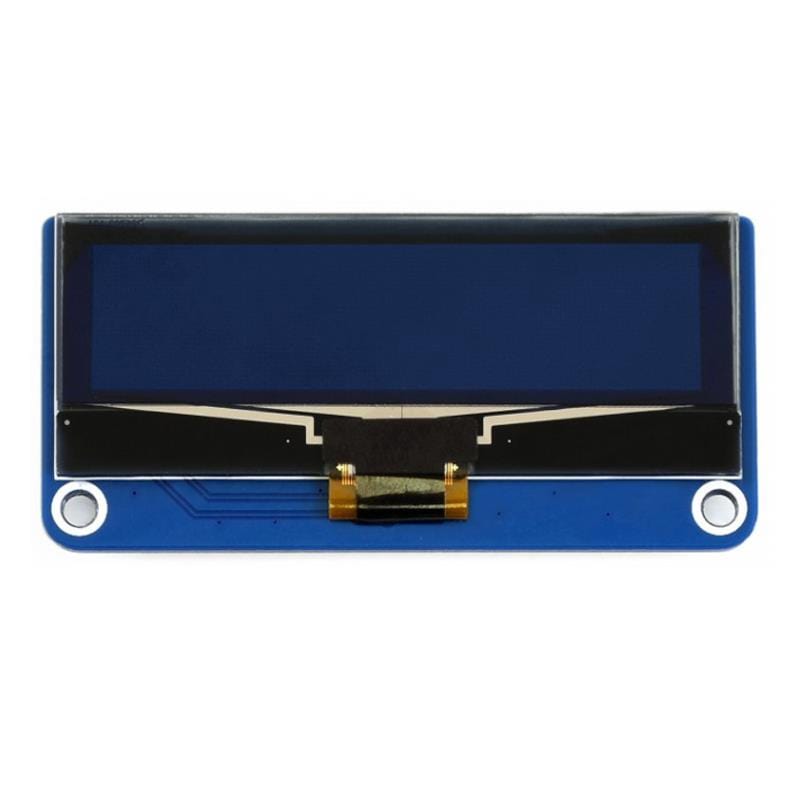

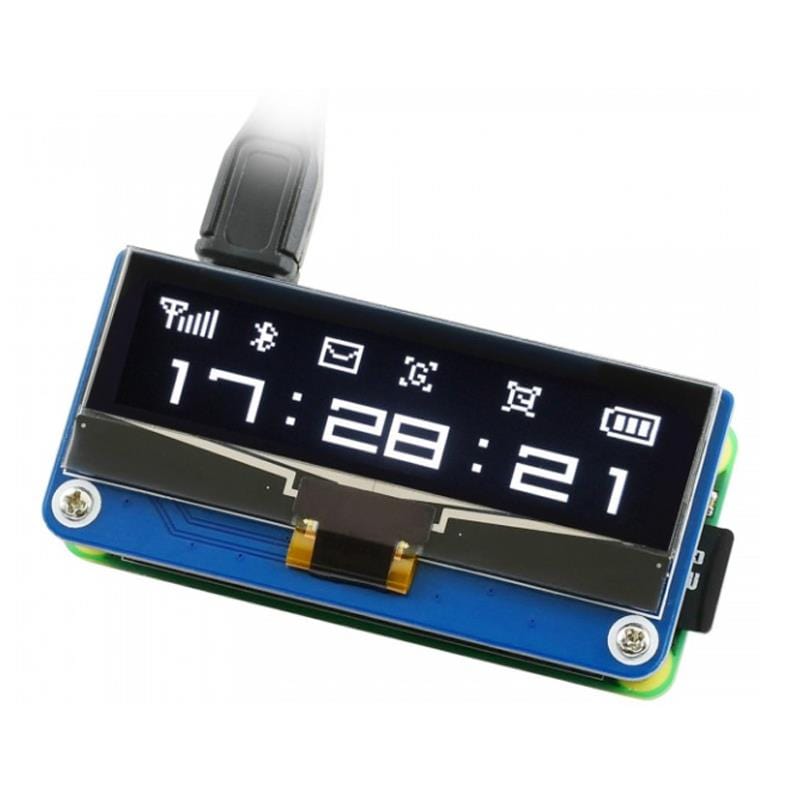

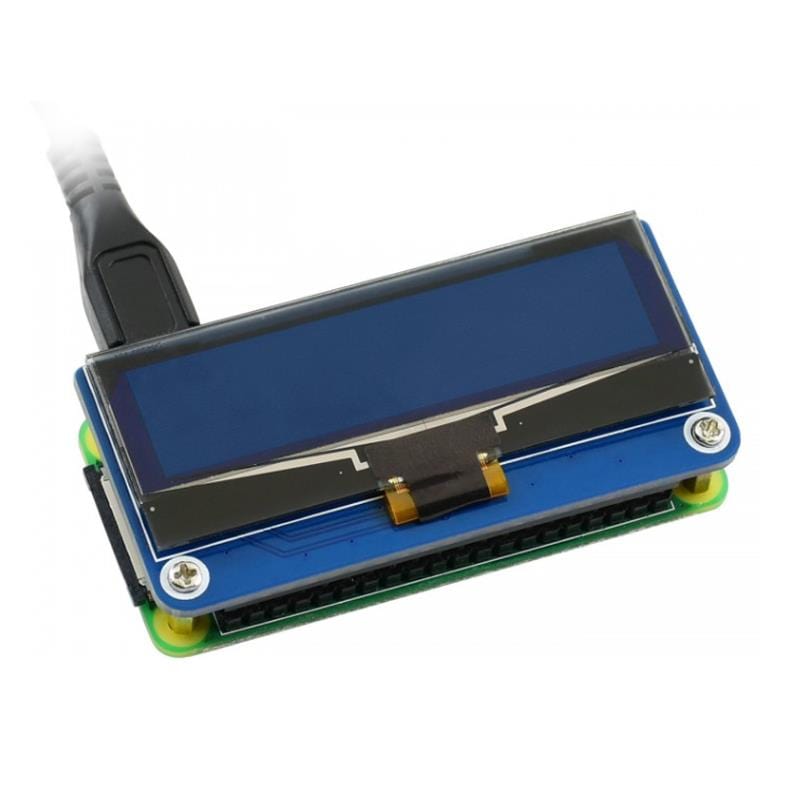

This is an OLED display HAT for the Raspberry Pi. It's 2.23inch diagonal, 128×32 pixels, with an embedded SSD1305 driver, communicating via SPI or I2C interface.

Trying to add a control interface for your project? This compact display is ideal!

Features

Comes with development resources and manual (examples for Raspberry Pi)
Standard Raspberry Pi 40 pin GPIO extension header
Optional interfaces: SPI (default), or I2C, configured via onboard resistor
Brings control pins for host boards such as Arduino/STM32

Resources

Product Wiki: www.waveshare.com/wiki/2.23inch_OLED_HAT

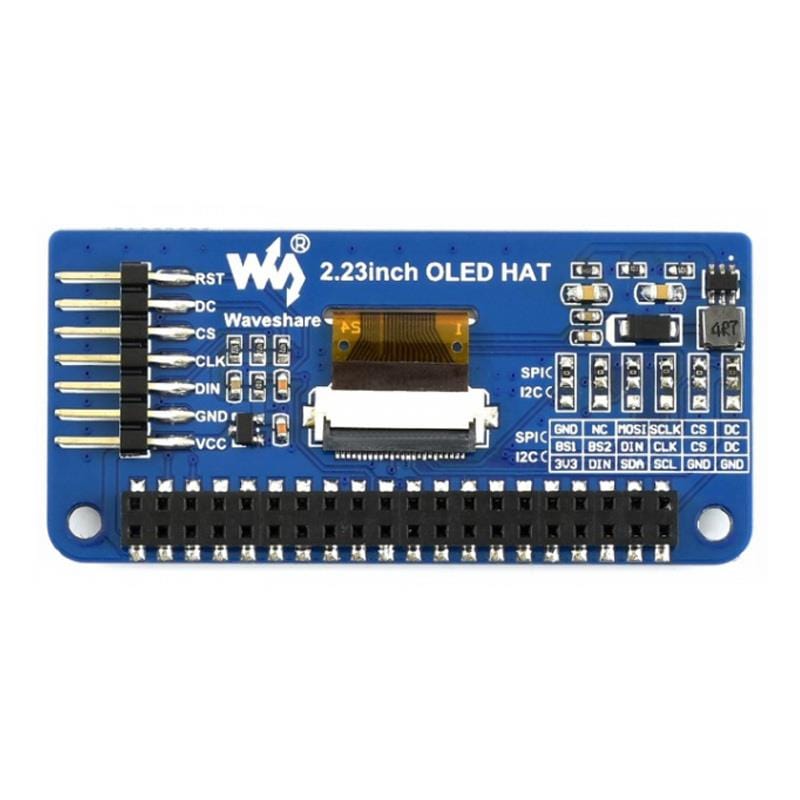

SYMBOL	RASPBERRY PI PIN (BCM)	DESCRIPTION
VCC	3V3/5V	Power input
GND	GND	Ground
DIN	MOSI	SPI data input
CLK	SCLK	SPI clock input
CS	CE0	Chip selection, low active
DC	P24	Data/Command selection (high for data, low for command)
RST	P25	Reset, low active

Specifications

Driver: SSD1305
Interface: SPI / I2C
Display size: 2.23inch diagonal
Display color: white
Resolution: 128×32
Viewing angle: >160°
Power supply voltage: 3.3V/5V
Logic level: 3.3V
