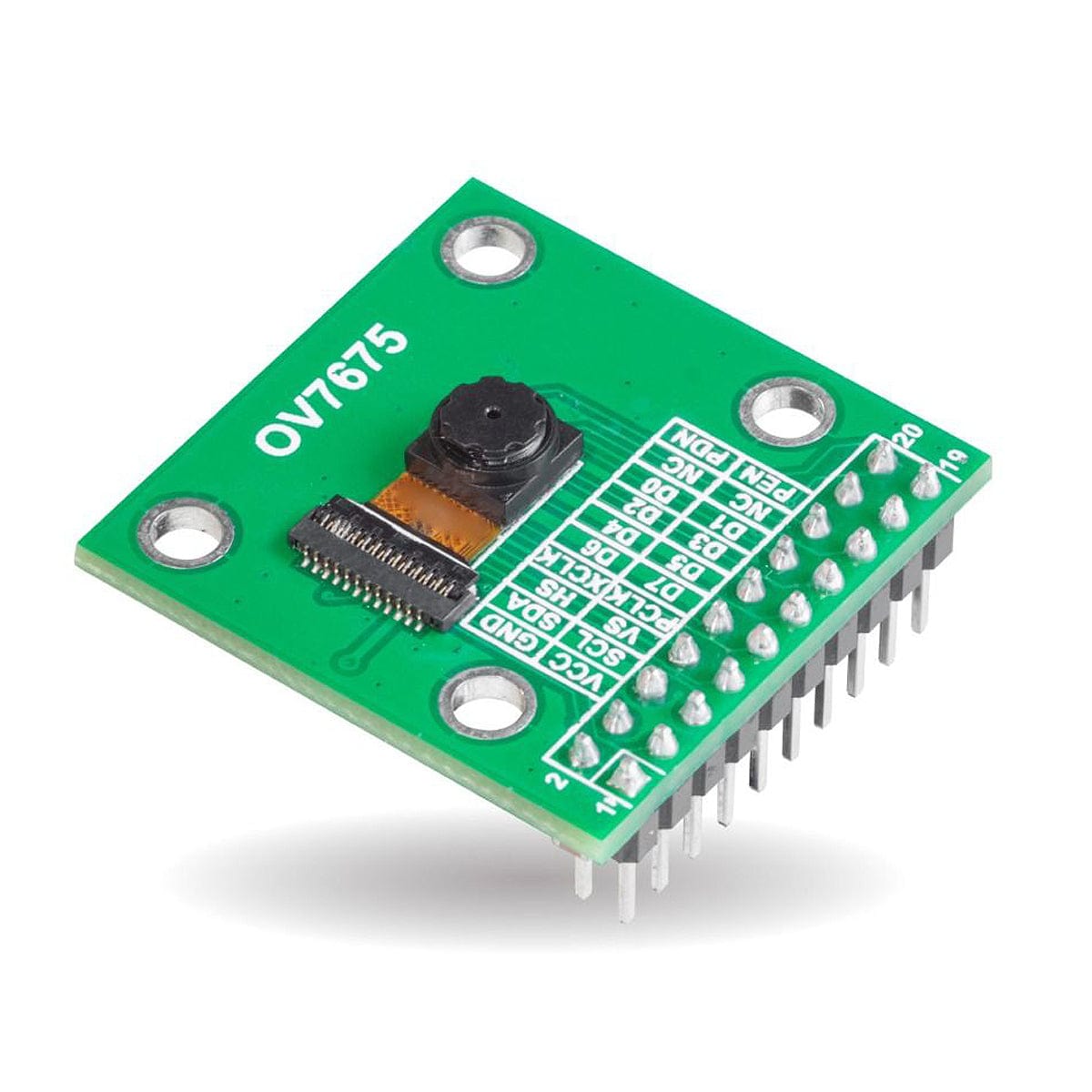

0.3MP OV7675 20-pin DVP Camera Module for Arduino GIGA R1 WiFi

Price:
Sale price £5.60
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

ArduinoArduino Giga R1 WiFi
Sale price £75 incl. VAT excl. VAT
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT

This camera module is based on the OmniVision 0.3MP OV7675 image sensor, which excels in image capture with its advanced features and exceptional performance. Its pixel array captures intricate details with precision and clarity, while its low-light imaging capabilities reveal hidden elements in challenging lighting conditions.

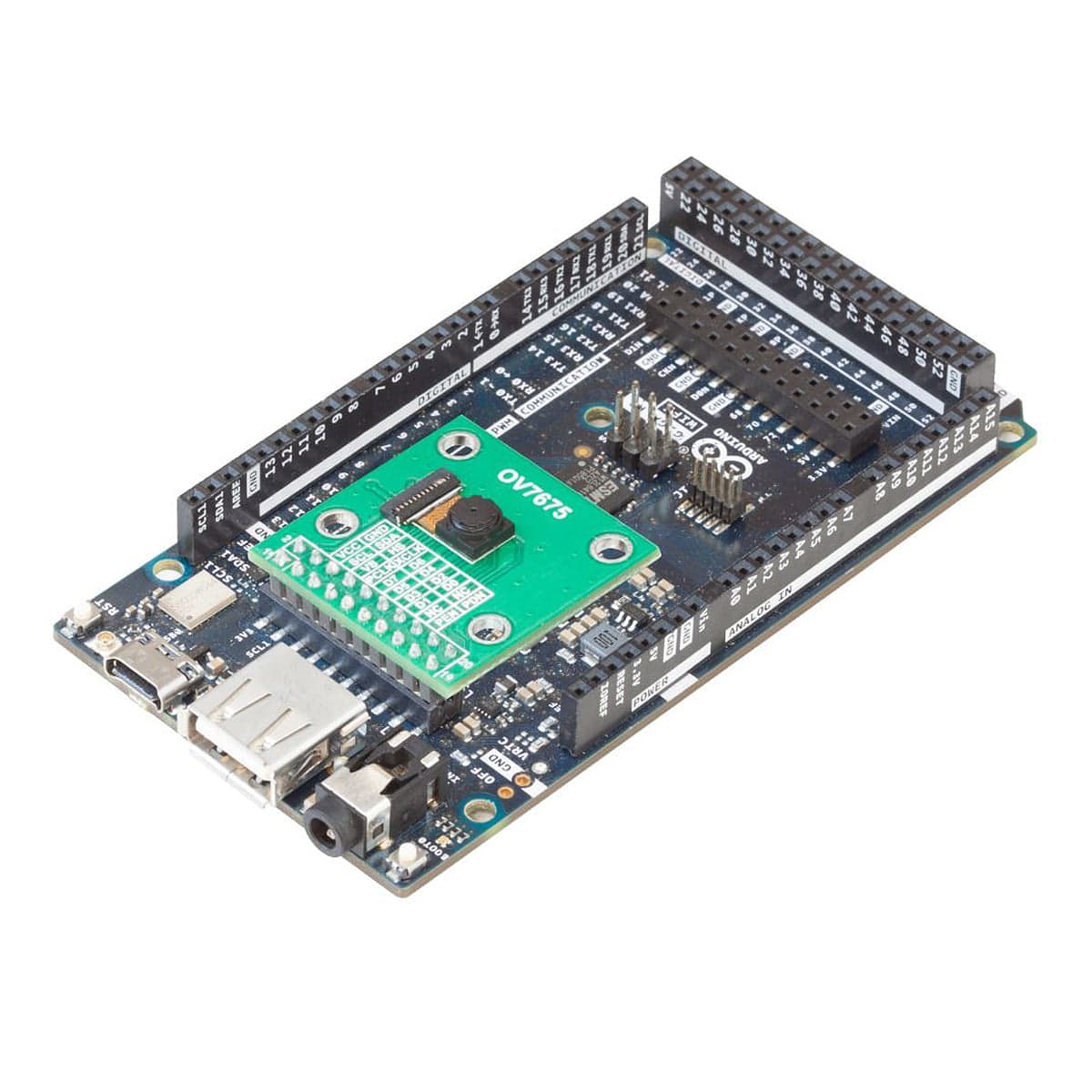

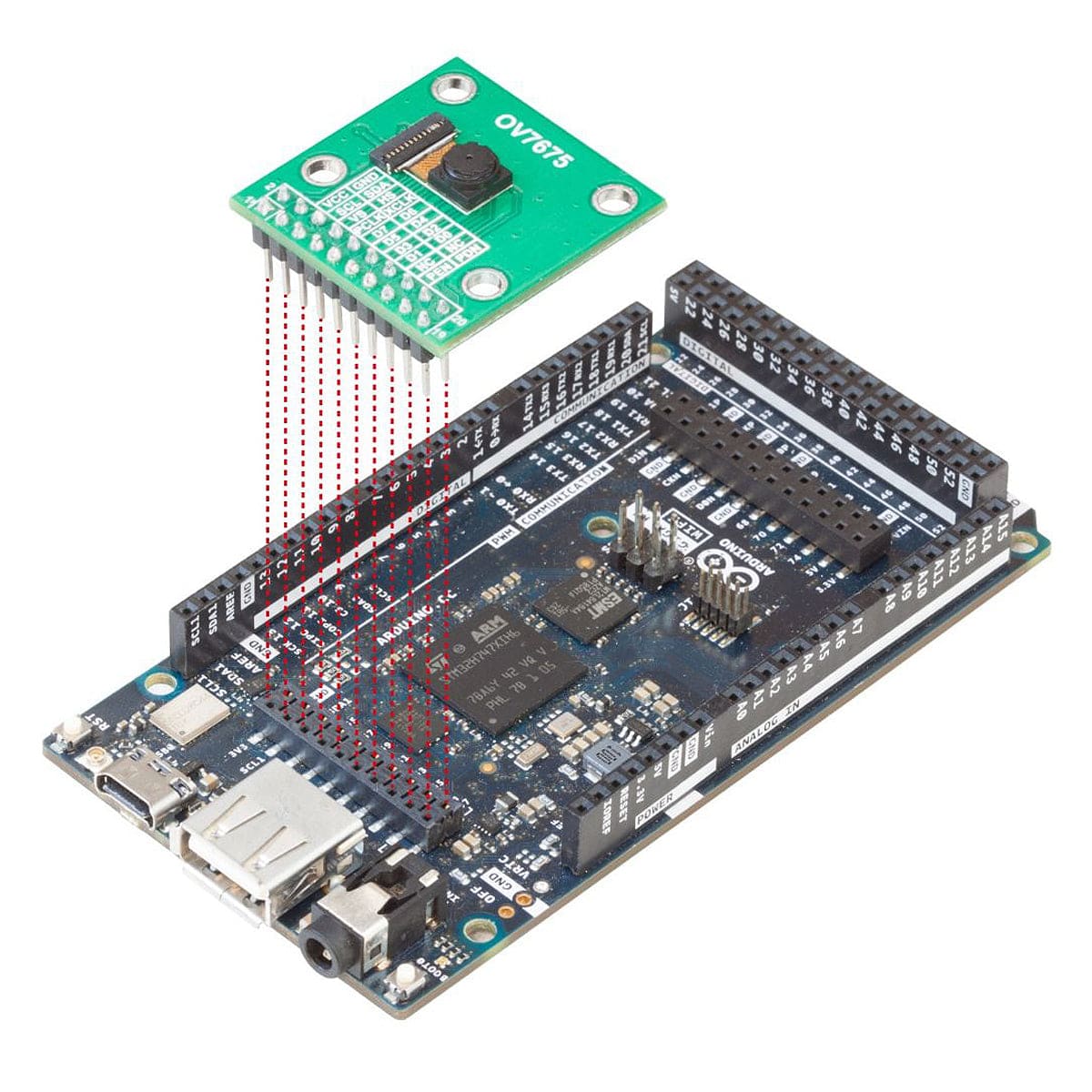

It is fully compatible with Arduino GIGA R1 board, a professional-grade microcontroller development board recently launched by Arduino. The GIGA seamlessly integrates with this camera module, unlocking versatile image capture and processing capabilities.

Features

  • Cost-effective: Affordable solution for implementing visual capabilities in projects
  • Compact size: Compact form factor enables integration into space-constrained applications
  • Simplify embedded vision for all: Easy to set up and operate, making it possible to add machine vision to your GIGA R1 board
  • High precision: Captures images with high resolution and detail, allowing for precise visual analysis
  • Low power consumption: Efficient power usage, making it suitable for battery-powered and energy-efficient applications

Specifications

Image Sensor OV7675
Active Array Pixels 640x480
Pixel Size 2.5µmx2.5µm
S/N Ratio 38 dB
Dynamic Range 71 dB
Interface 20-pin DVP
Shutter Type Electronic Rolling Shutter
Color Filter Array Quad-Bayer RGB
Output Format RAW/YUV/RGB
Resolution&Frame Rate 640x480/320x240/160x120@15fps
Lens Optical Size 1/9 Inch
EFL 1.75mm
F.NO 2.8
Field of View Angle 63.9°(D)
Lens Distortion <1.0%
Focus Distance 0.12M - ∞(AT=0.23M)
Power Supply AVDD: 2.7VA ~ 3.0V
DOVDD: 1.7V ~ 3.0V
DVDD: 1.5V
Operation Temp. -30° C to 70° C
Camera Size 30.5mm x 30.5mm

Package Contents

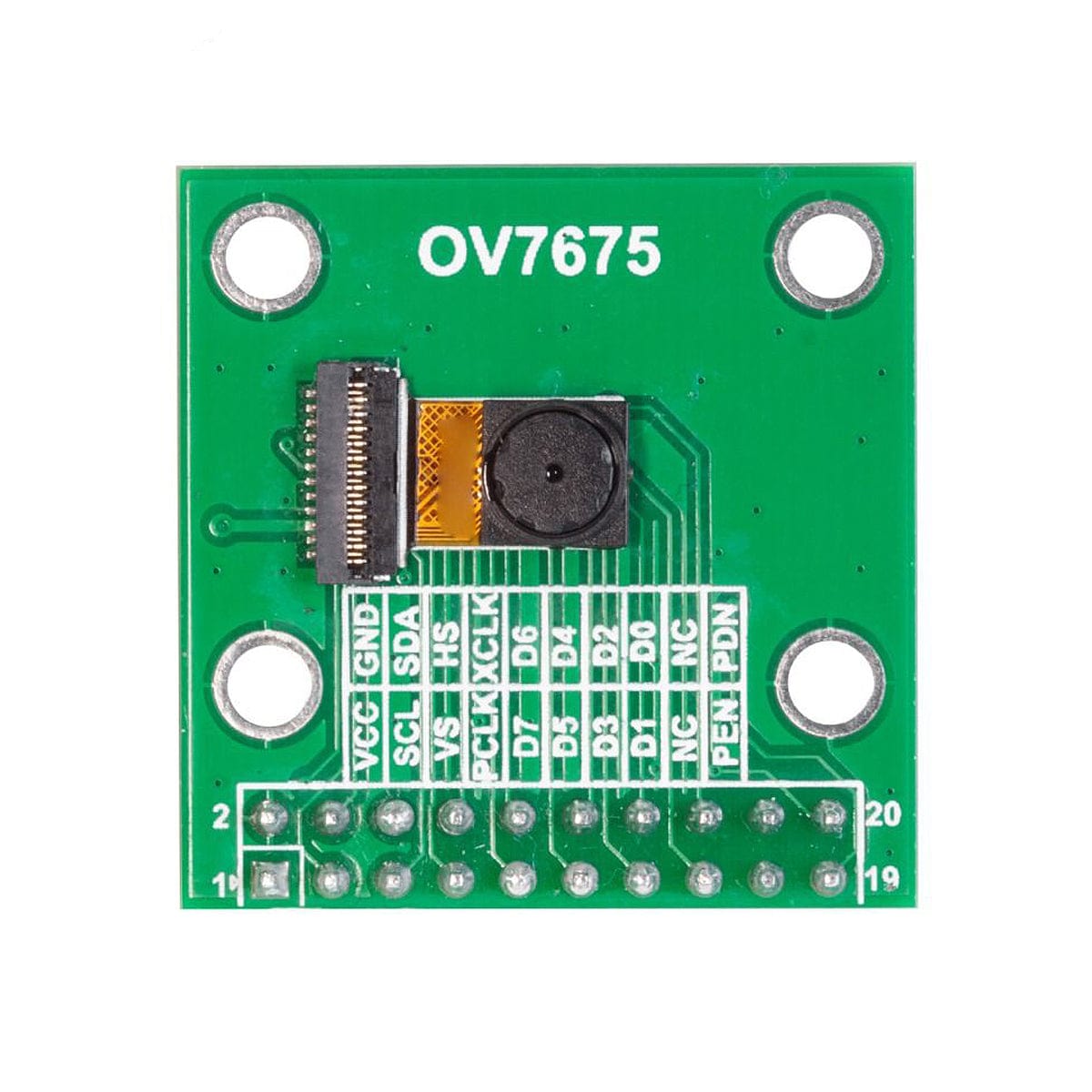

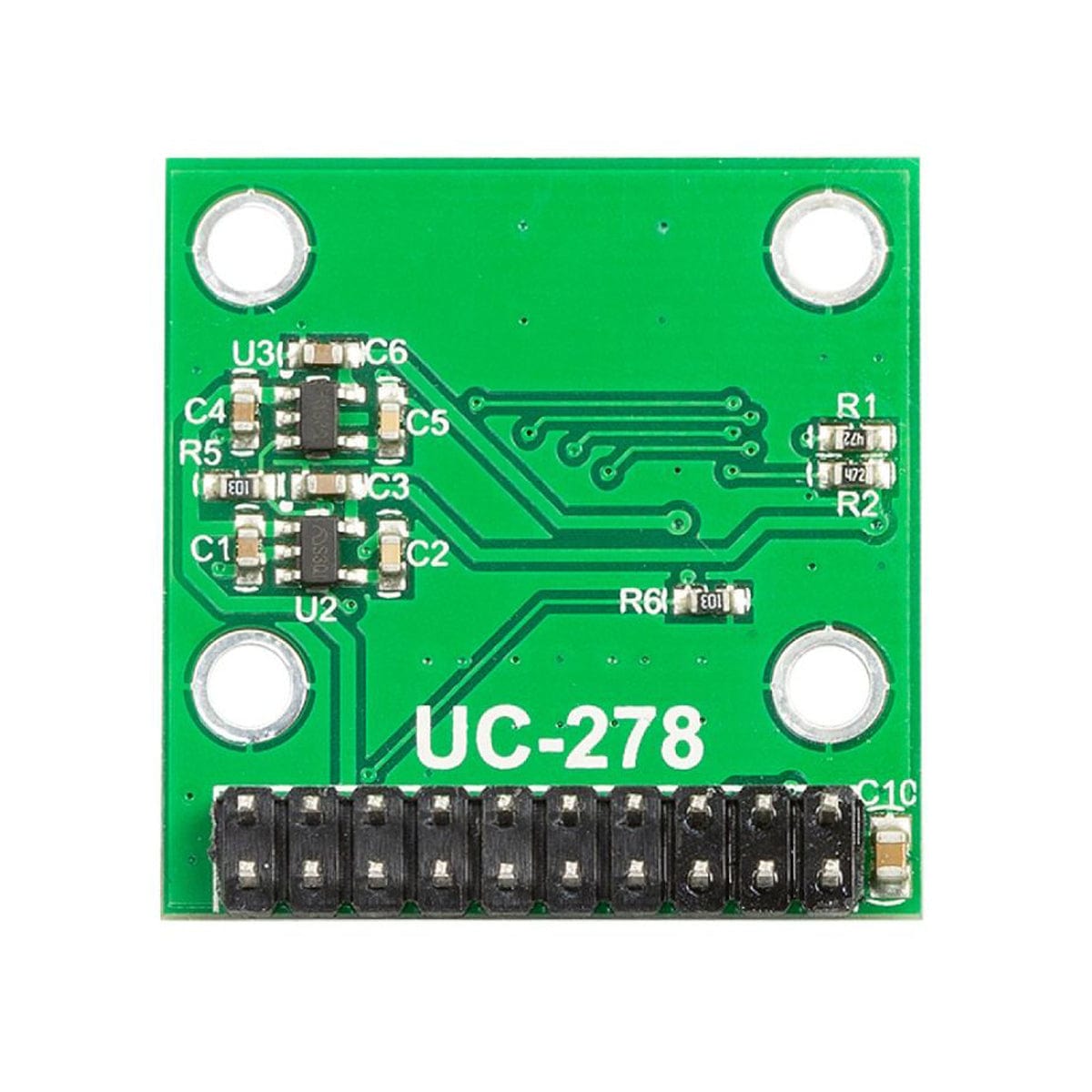

  • 1 x Arducam 20-pin DVP Camera Board with OV7675 CCM Module
