Grove - Gesture Sensor (PAJ7620U2)

SeeedSKU: 103343
Price:
Sale price £9.90
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

SeeedGrove - Base HAT for Raspberry Pi
Sale price £9.50 incl. VAT excl. VAT
(2 Reviews)
SeeedGrove - Base HAT for Raspberry Pi Zero
Sale price £8.50 incl. VAT excl. VAT
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £4.50 incl. VAT excl. VAT

The Grove Gesture is based on the PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 gestures including moving up, moving down, moving left, moving right and more, with a simple swipe of your hand.

We can use the gesture to adjust the sound volume, control a robot, direct an application and more. We can also make a remote-control unit, which is able to operate many devices at the same time using gestures

Features

  • 9 gestures recognition
  • Built-in proximity detection
  • Grove compatible

Part List

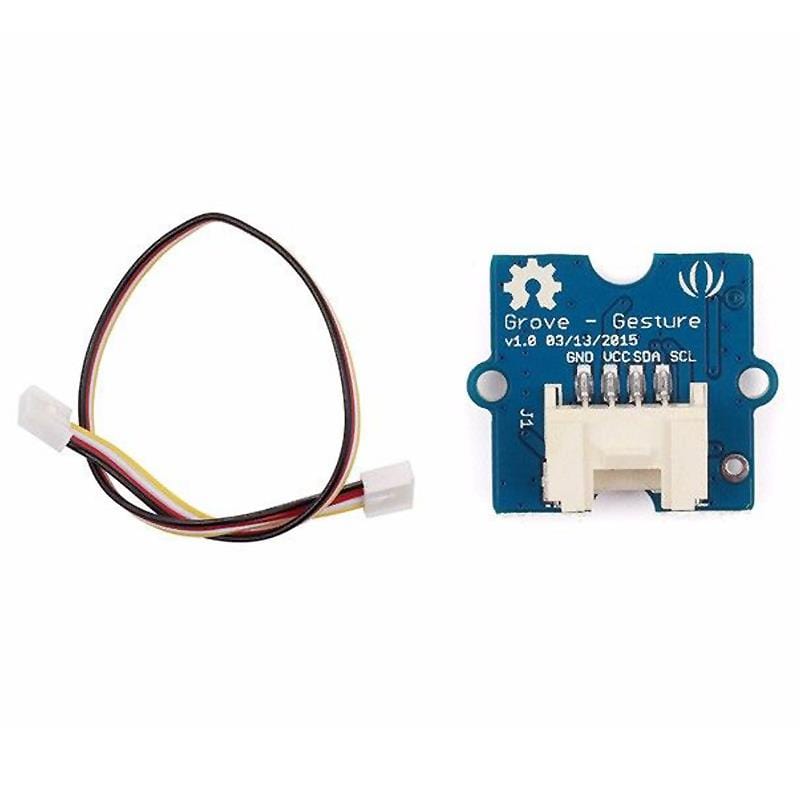

  • 1x Grove Gesture Sensor
  • 1x Grove Cable

Specifications

  • Interface: IIC
  • 9 gesture recognition
  • Operating voltage: 5V

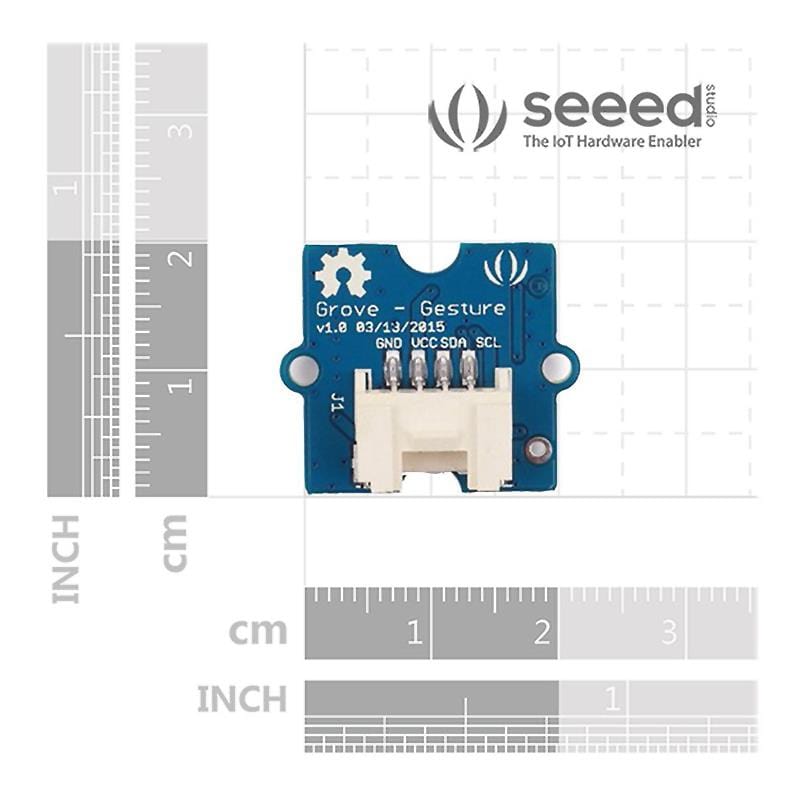

  • Dimensions: 20x20mm
  • Sensor: PAJ7620U2
  • Detecting range: 5-10cm
  • Ambient light immunity: < 100k Lux

Resources
