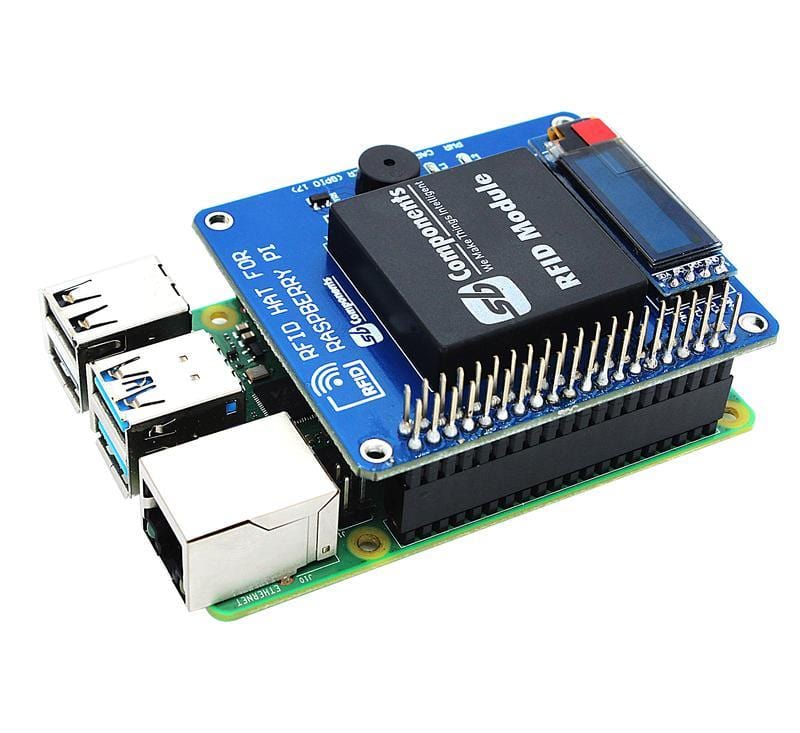

RFID HAT for Raspberry Pi

The RFID HAT for the Raspberry Pi boasts an updated UART interface running at the frequency of 125KHz with a compact design which includes a programmable 0.91” OLED Display.

The HAT is compatible with variants of Raspberry Pi with a 2x20 header. Your project will be able to read the ID information stored on the RFID key fob and tags.

Note: Raspberry Pi not included

Features

• Standard Raspberry Pi 40-pin GPIO header
• UART Communication Interlace
• Comes with development resources and manual
• Supports all Raspberry Pi boards with a 2x20 header
• Onboard Programmable 0.91" OLED Display
• Programmable Buzzer
• Supports 125 KHz Cards / Keyfob /Tags

Resources

• GitHub
• Introduction of RFID HAT for Raspberry Pi
• Easy Steps To Merge RFID With Raspberry Pi

Kit Contents

• 1x RFID HAT

Specifications

• Operating voltage 5V
• Operating frequency 125KHz
• Communication interface UART
• Default baudrate 9600 bps
• Dimensions 65mm x 56mm
