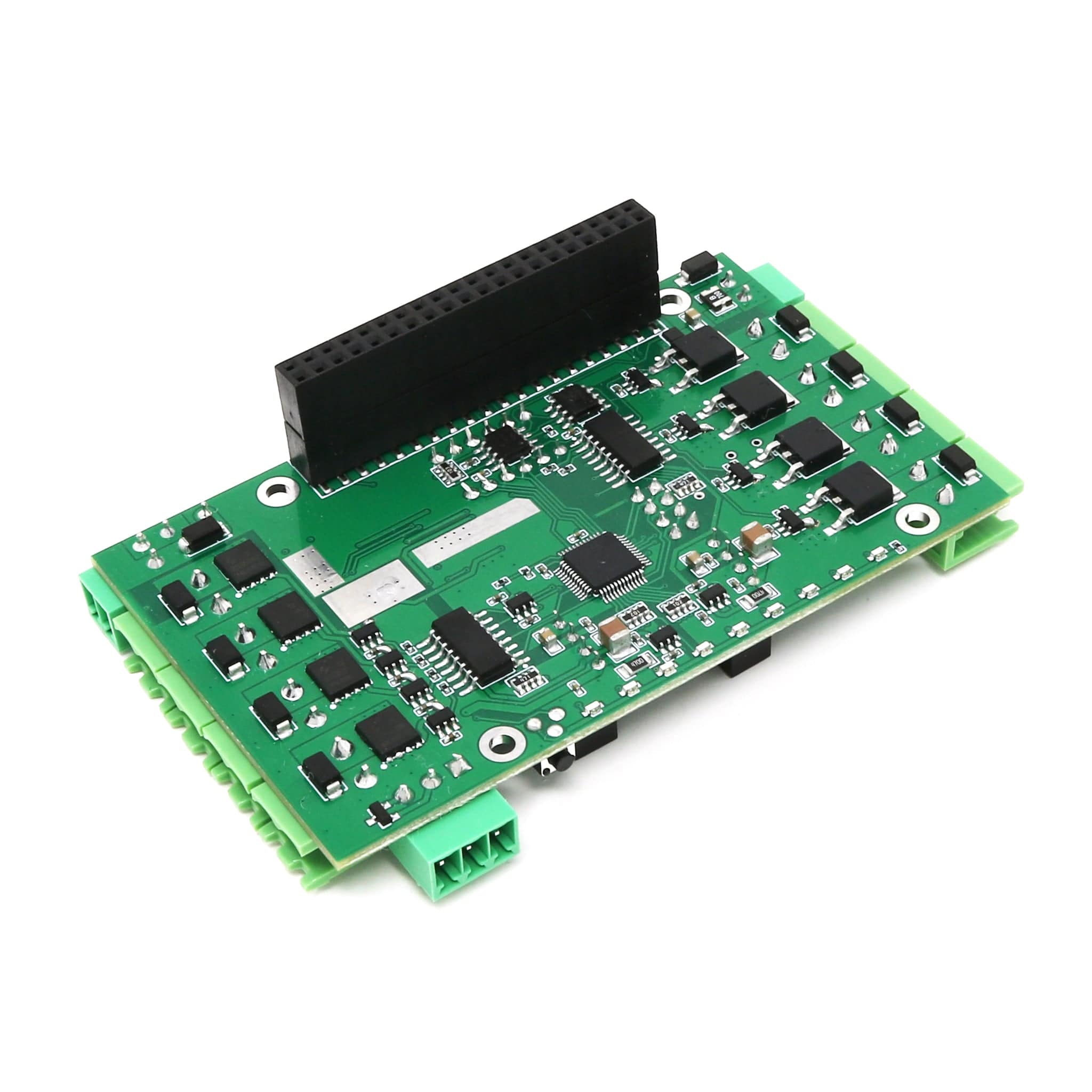

The Eight MOSFETS 8-Layer Stackable HAT is an expansion card for the Raspberry Pi, featuring eight channels split between high current (12A/24V) and high voltage (4A/240V) capabilities. It's stackable up to 8 layers, providing up to 64 outputs per Pi. The card is easy to use with pluggable connectors and status LEDs, and is compatible with all Raspberry Pi versions, efficiently using just two GPIO pins for I2C bus communication.

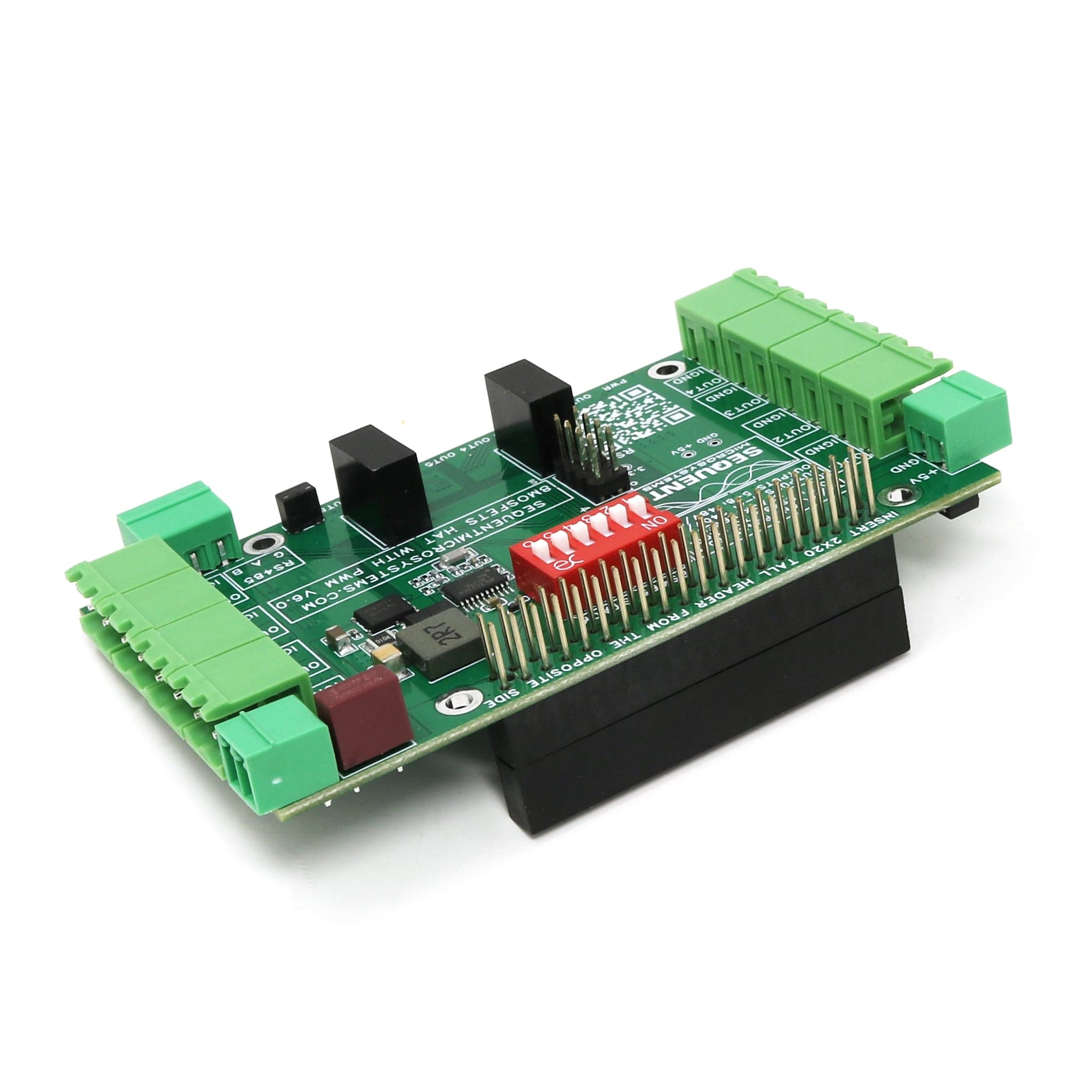

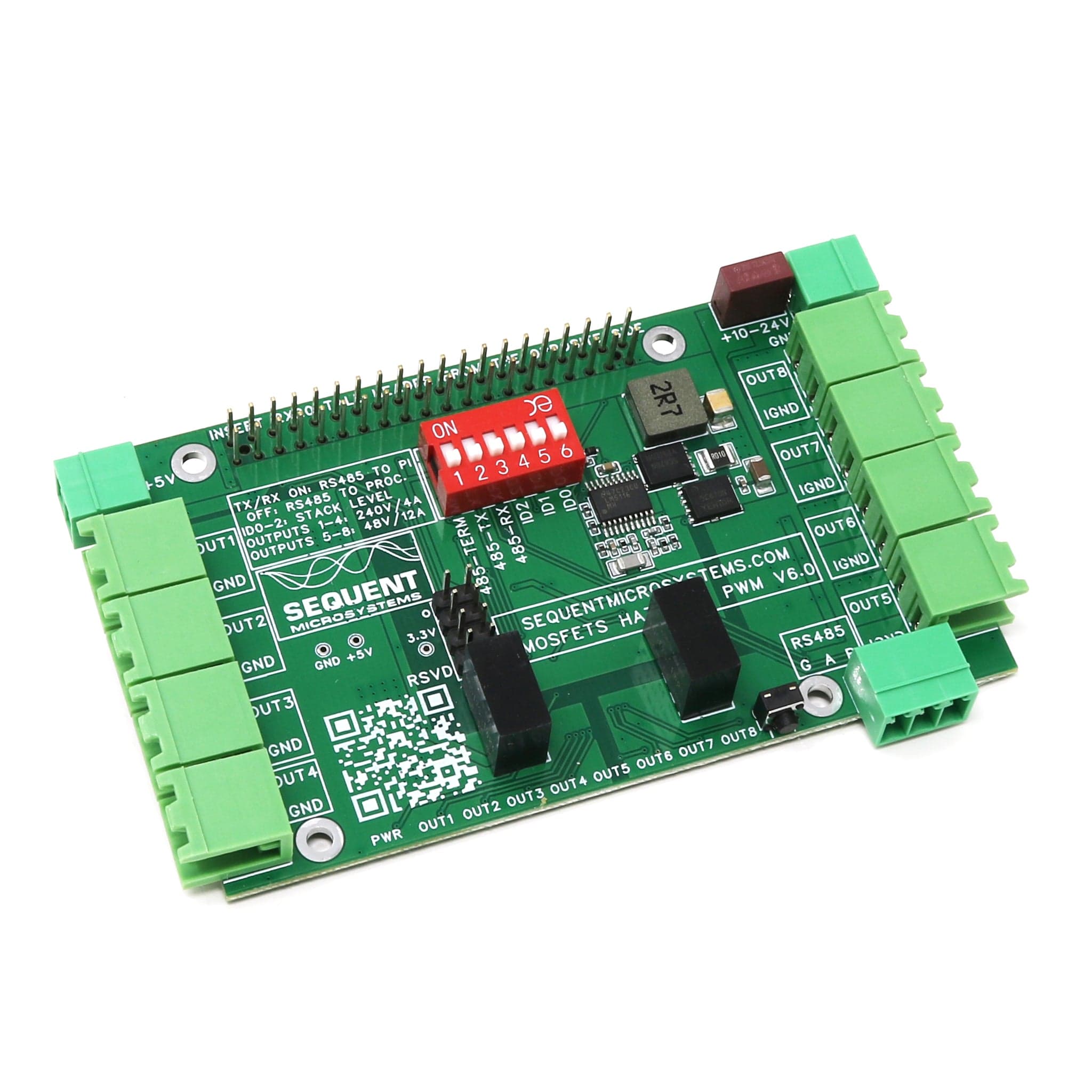

Power-wise, it needs 5V and can be powered either from the Raspberry Pi or its own connector, drawing about 50mA. The card has a six-position DIP switch for RS485 port source selection and stack positioning. It supports up to eight stacked cards, with adjustable settings for stack level.
The RS485 port can be configured for direct Raspberry Pi communication or as a MODBUS slave, depending on the DIP switch settings. Additionally, it includes reverse power supply protection and an RS485 terminator for the end of a chain. A notable feature is the shutdown push button, which safely powers down the Raspberry Pi to prevent SD Card damage. This button, connected to GPIO 26, requires a script for shutdown command execution.
Features
Eight MOSFETS 8-Layer Stackable HAT for Raspberry Pi
Status LEDs on each output
Pluggable Connectors 24-12 AWG wires
Four High Current Loads, 12A/24VDC
Four High Voltage Loads, 2A/240VDC
RS485 with TVS protection and MODBUS protocol
Reverse polarity power supply protection
General purpose pushbutton

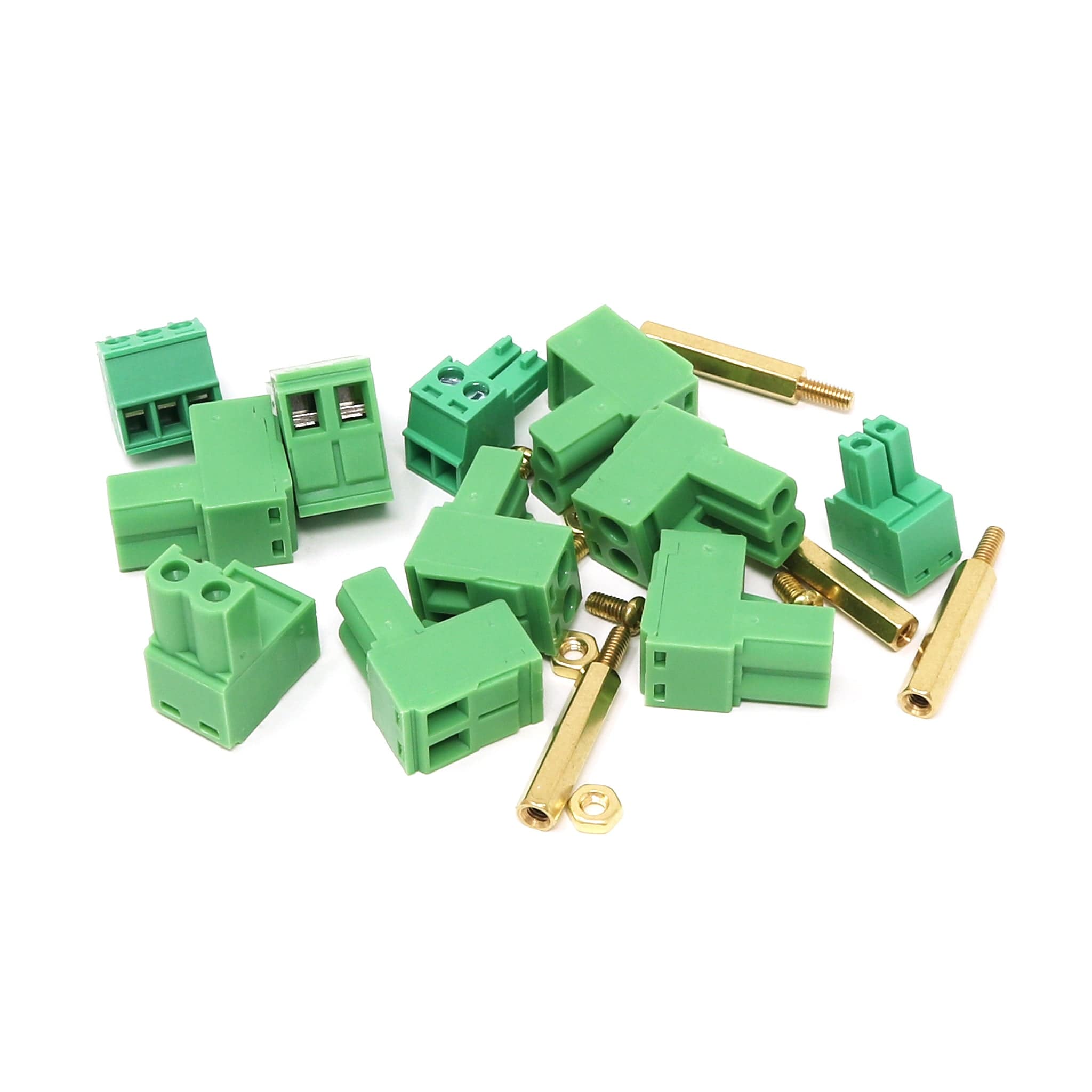

All mounting hardware included: brass stand-offs, screws and nuts
Software self-test
Uses only I2C port (address 0x20..0x27 or 0x38..0x3f ), all GPIO pins available
