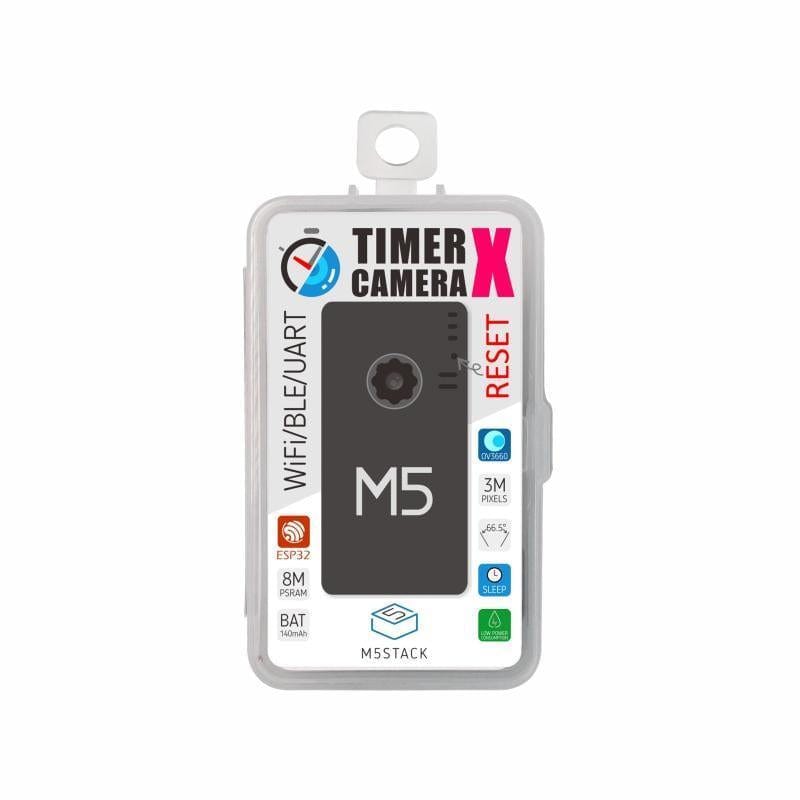

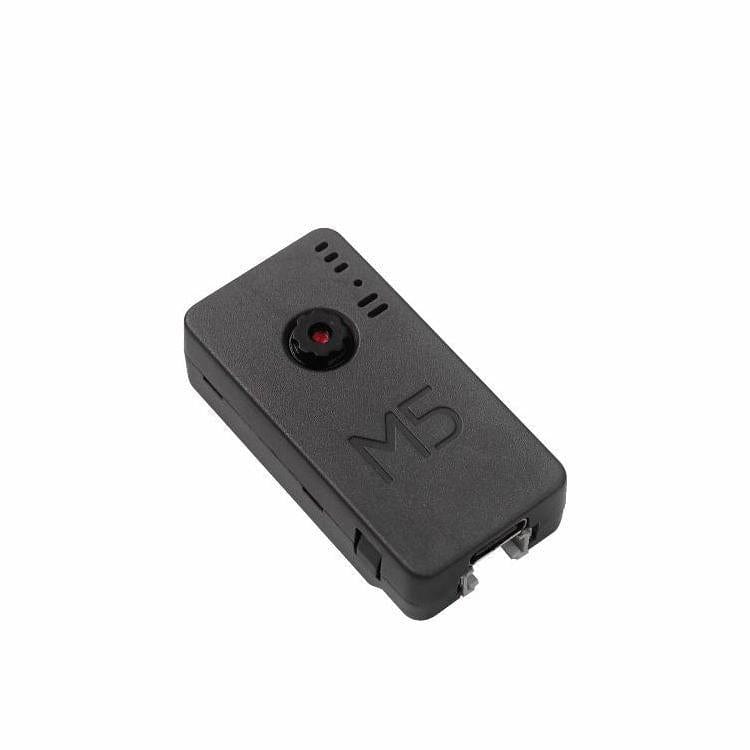

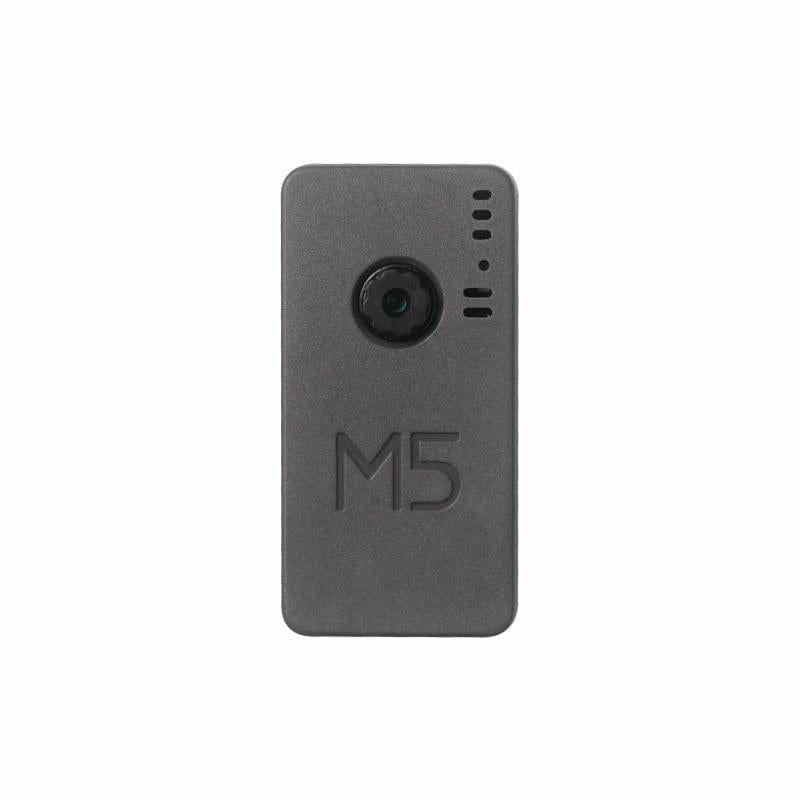

M5Stack Timer Camera X (OV3660, ESP32, PSRAM)

M5StackSKU: U082-X
Price:
Sale price £17.10
incl. VAT
excl. VAT
Stock:
Only 11 units left
Quantity:

Awesome Extras

M5StackM5Stack SandwichC Brick
Sale price £1.20 incl. VAT excl. VAT
M5StackM5Stack Timer Camera F (Fisheye, OV3660, ESP32, PSRAM)
Sale price £17.30 incl. VAT excl. VAT
M5StackM5Stack M5 Box
Sale price £2.10 incl. VAT excl. VAT

An all in one camera with ultra-low power consumption and an inbuilt real-time clock (as well as a battery, Wi-Fi and Bluetooth). Perfect for security or just for making cool timelapses!

Based on the incredibly good value ESP32 chip and armed with 8MB of PSRAM and an OV3660 camera, you could set it up as a security camera, attach it to a remote control vehicle or even use it to spy on your pets remotely.

The camera (OV3660) with 3 million pixels has a 66.5° field of view and a maximum resolution of 1600 x 1200. There's also a built-in 140mAh battery and LED status indicator, and a reset button under the LED.

The Real-Time Clock (BM8563) lets you program the camera to wake up, take a photo and go to sleep again, with a standby current of only 2μA. This low power consumption means that after the timing photo function is turned on and set to take one photo an hour, the battery should be able to keep the camera going for more than a month!

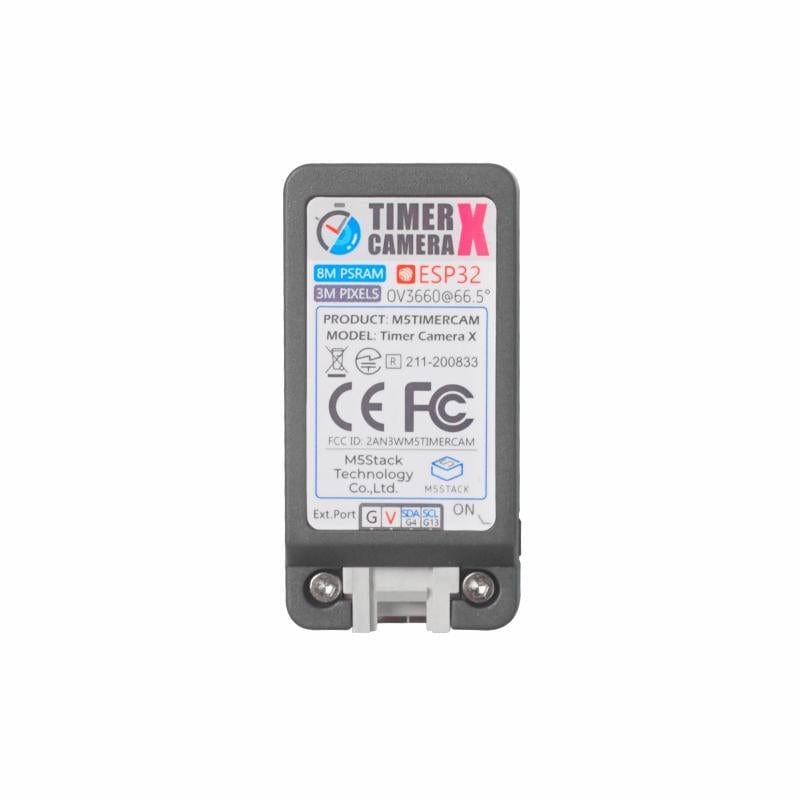

The module supports Wi-Fi image transmission and USB port debugging. The bottom HY2.0-4P port output can be connected to other peripherals. Through the M5Burner burning firmware, Timer Camera X can be programmed directly with Camera-Tool, and Timer Camera X data can be processed in UIFlow.


Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

Product Features

  • Design based on esp32
  • WiFi image transmission
  • Timed sleep wake up
  • Status indicator
  • Ultra low power design
  • Built-in 140mAh battery
  • Programming platform:ESP-IDF/Arduino/UIFlow

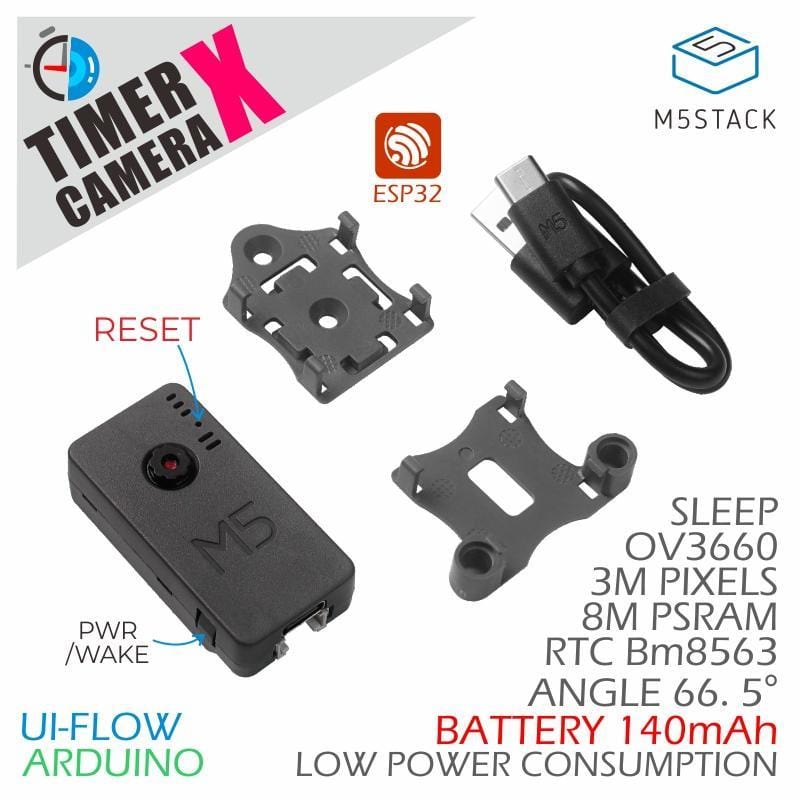

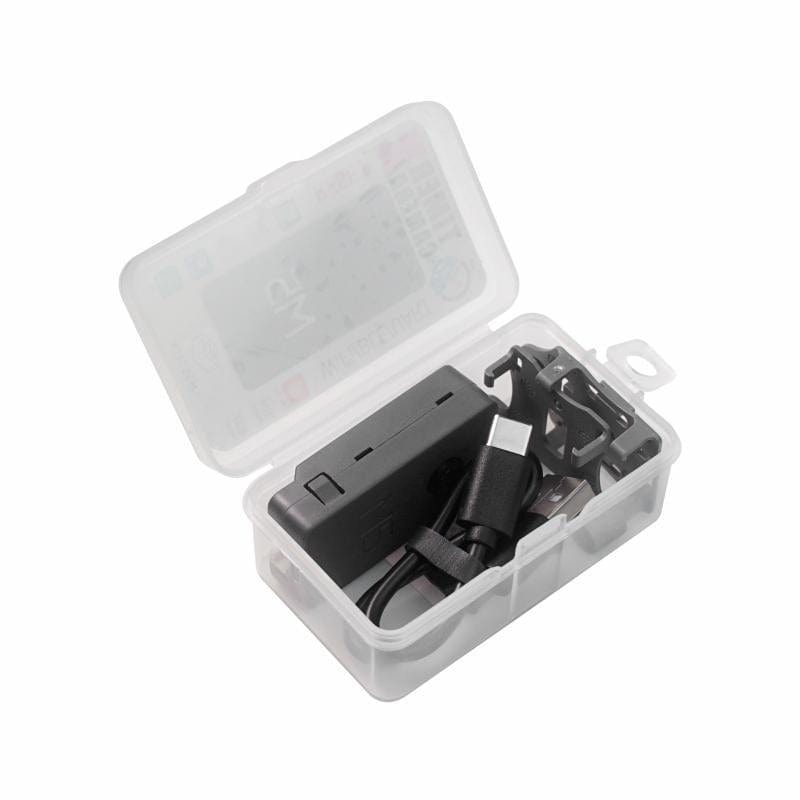

Includes

  • 1x Timer Camera X

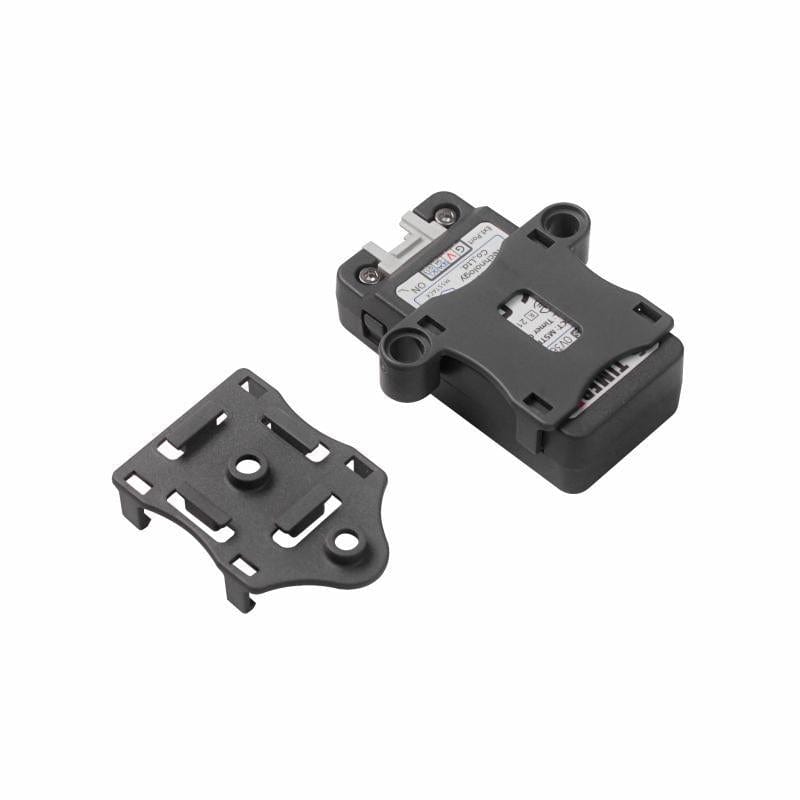

  • 1x Building brick Adapter
  • 1x Wall-1515
  • 1x Type-C USB cable (20cm)

Applications

  • Take pictures regularly
  • Remote video monitoring

Documents

Specification

Resources Parameter
PSRAM 8MB
Flash 4M
Image Sensor OV3660
Maximum resolution 300w pixels
Output format 8-/10-Bit RAW, RGB and YCbCr output, compression.
Maximum image transmission rate (OV3660) 2048x1536: 15fps / 1080p: 20fps / 720p: 45fps / XGA(1024x768) : 45fps / VGA(640x480) : 60fps / QVGA(320x240) : 120fps
DFOV 66.5°
Battery 140mAh
Net weight 15g
Gross weight 39g
Product Size 48*24*15mm
Package Size 75*45*30mm
