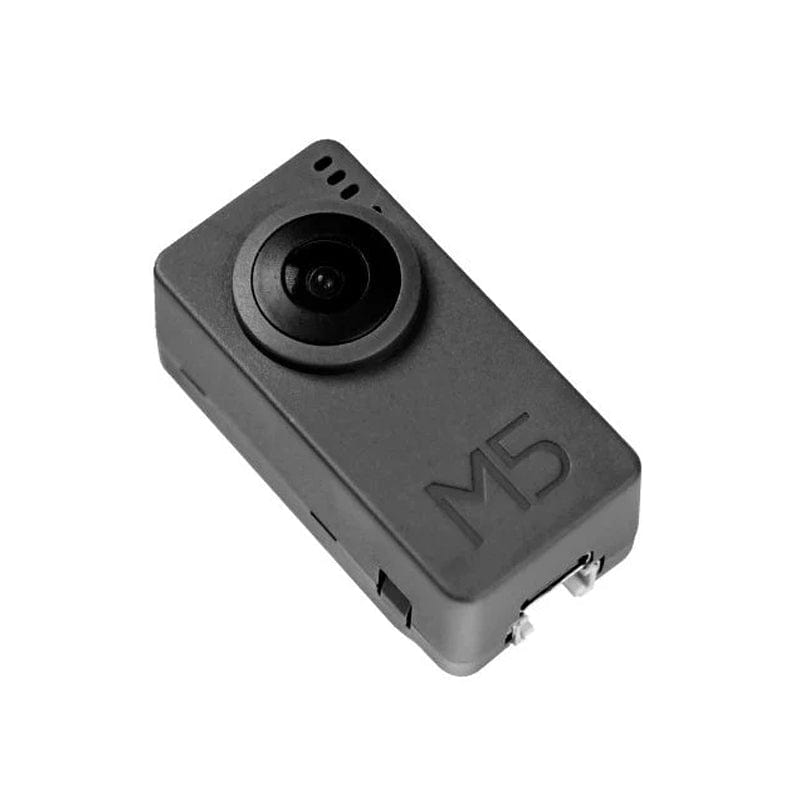

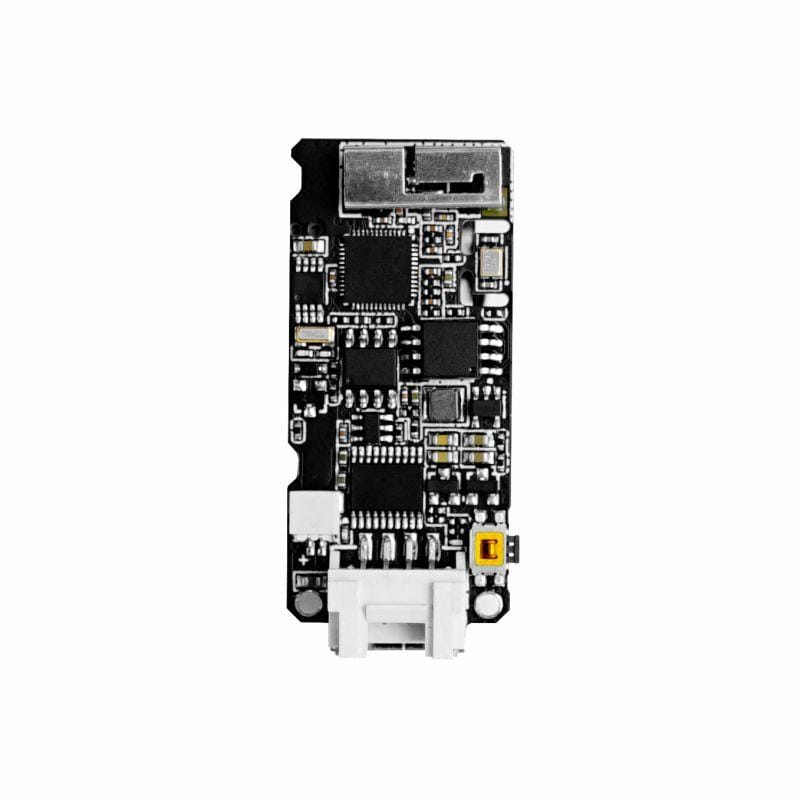

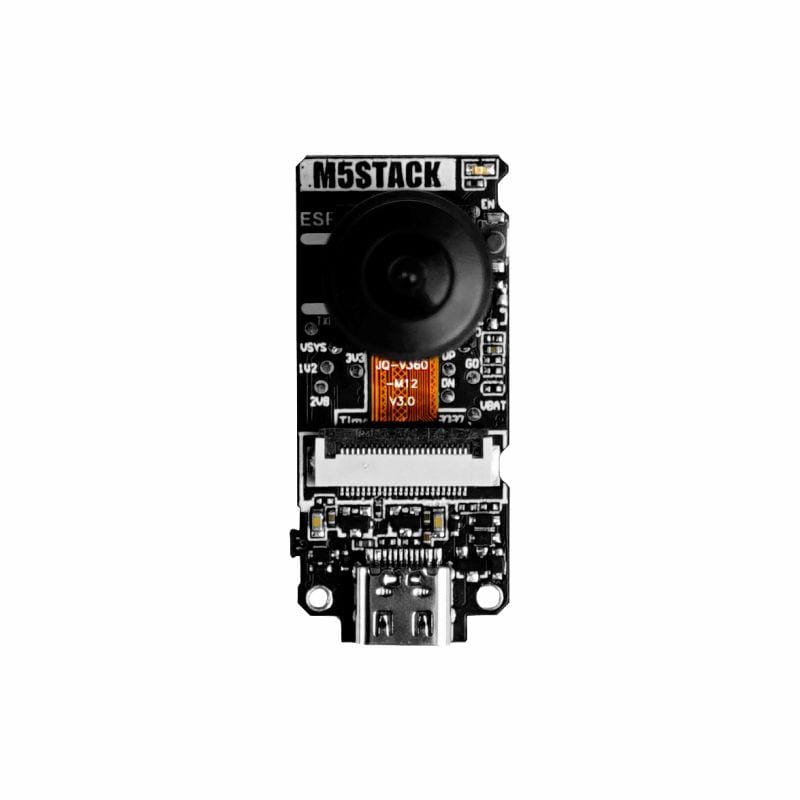

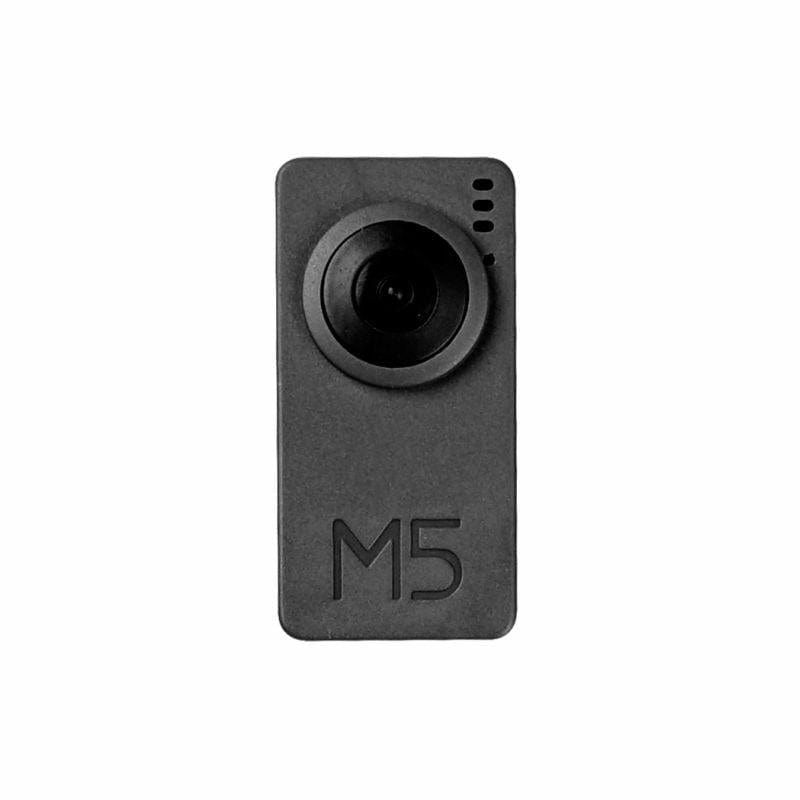

The Timer Camera F is a fisheye camera module based on the ESP32-D0WDQ6-V3 with 8M PSRAM and 4M Flash on board. A 3.0 megapixel camera (OV3660) with DFOV 120° and a maximum resolution of 2048x1536 photos can be captured. The camera features an ultra-low-power design, and the internal integrated RTC (BM8563) draws out the IRQ signal, which can be used for sleep and timer wake-up (sleep current down to 2μA). The built-in 270mAh battery provides more than one month of battery life with timed pictures (one per hour) enabled.

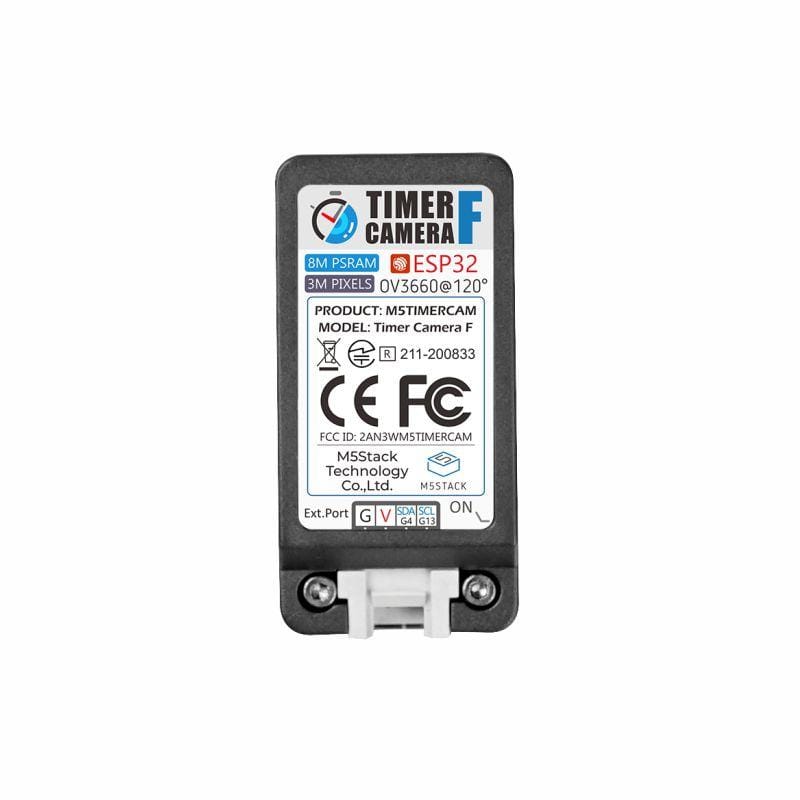

The module supports WiFi image transfer, USB port debugging, and the HY2.0-4P output on the bottom can be used to expand other peripherals. The on-board LED status indicator and reset button facilitate program development and debugging. In terms of application, the M5Stack provides a number of simple and efficient application development methods and interfaces for the TimerCam series, making it easy for you to use and develop. (PC/Mobile photo shooting APP, cloud image HTTP interface for timer shooting, cloud AI recognition interface (not online yet), etc.

The low-power power management solution by the Timer Camera series is different from the CORE and StickC devices. When in use, the PWR button is used as a power-on button (long press 2s). If you need to shut down the device, you need to use the software API or press the reset button on the PCB. When using the external power supply, the device will remain powered on.


Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

Features

  • Design based on esp32
  • WiFi image transmission
  • Timed sleep wake up
  • Status indicator
  • Ultra low power design
  • Built-in 270mAh battery
  • Programming platform: ESP-IDF/Arduino/UIFlow

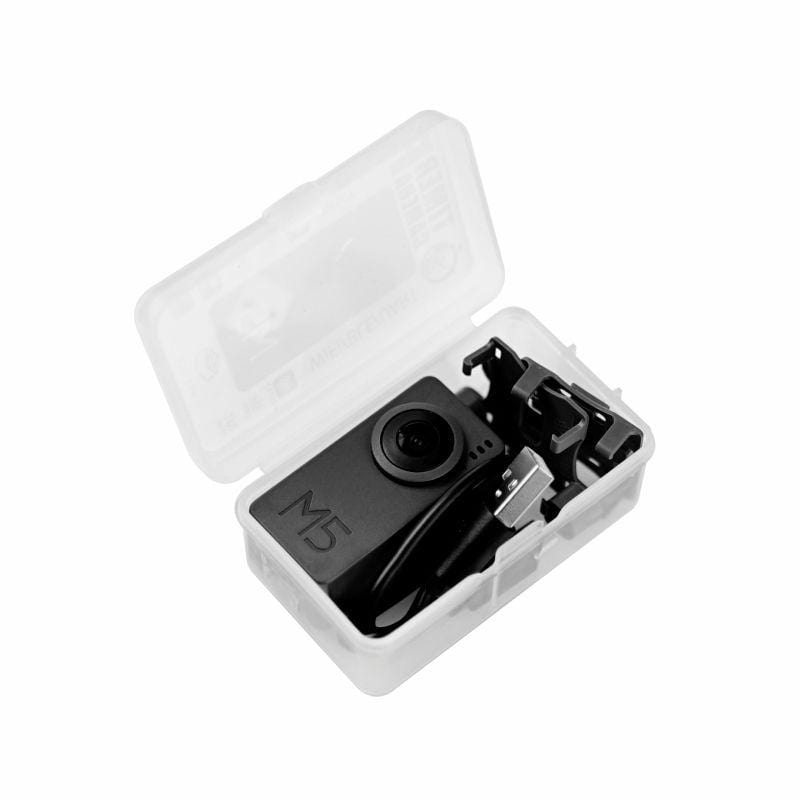

Package Contents

  • 1x Timer Camera F

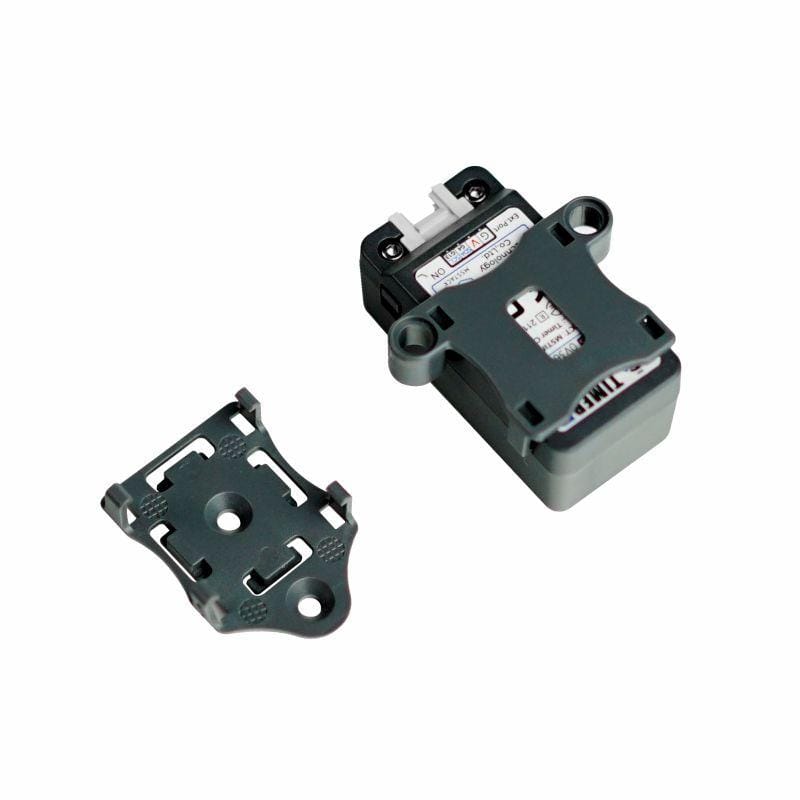

  • 1x LEGO Adapter
  • 1x Wall-1515
  • 1x Type-C USB (20cm)

Driver Installation

The TimerCAM may not work without drive in some systems. You can manually install FTDI Driver to fix this problem. Take the win10 environment as an example, download the driver file that matches the operating system, unzip it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognised device name is usually M5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly).

Specifications

Resources Parameter
PSRAM 8MB
Flash 4M
Battery 270mAh
Image Sensor OV3660
Maximum resolution 300w pixels
Output format 8-/10-Bit RAW, RGB and YCbCr output, compression.
Maximum image transmission rate (OV3660) 2048x1536: 15fps / 1080p: 20fps / 720p: 45fps / XGA (1024x768) : 45fps / VGA (640x480) : 60fps / QVGA (320x240): 120fps
DFOV 120°
Net weight 21g
Gross weight 44g
Product Size 48 x 24 x 22.6mm
Package Size 75 x 45 x 30mm
