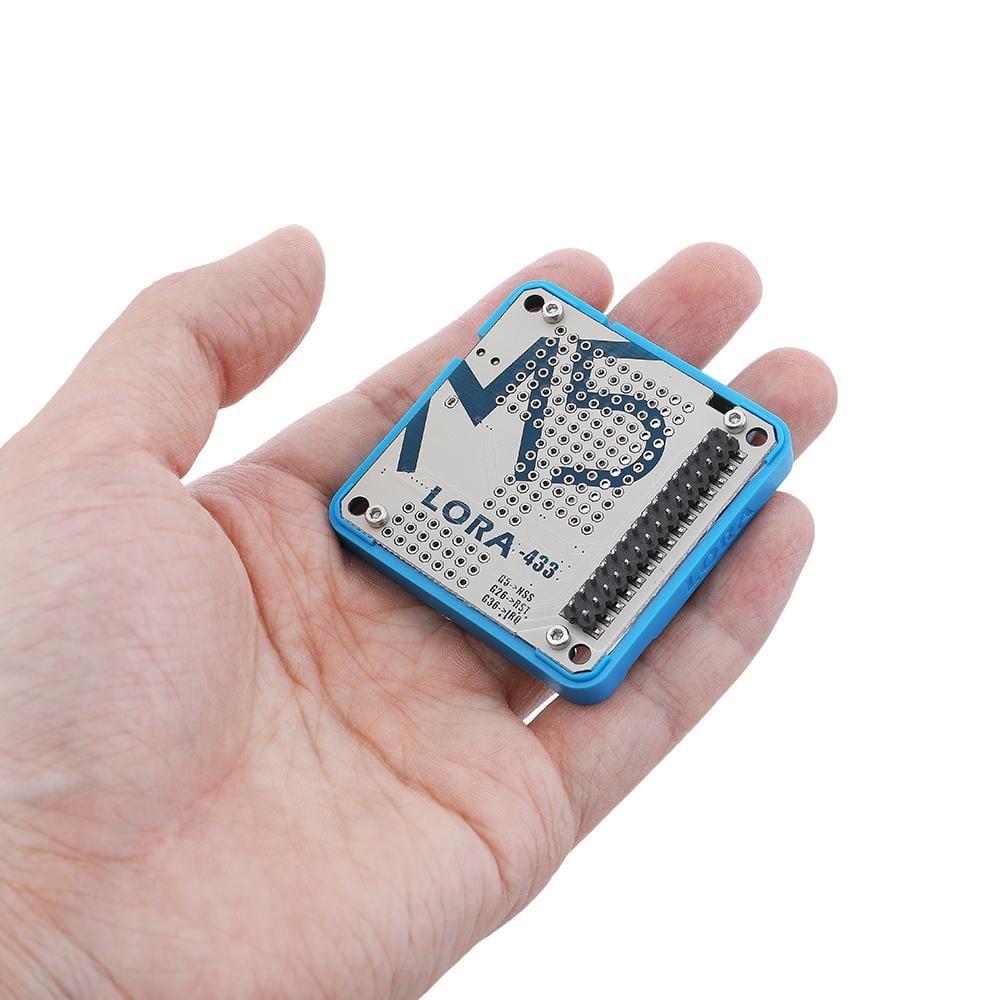

M5Stack LoRa Module (433MHz)

M5StackSKU: M005

£11.10

incl. VAT

excl. VAT

Only 1 unit left

Awesome Extras

M5Stack CoreS3 ESP32S3 by M5Stack - The Pi Hut

M5Stack CoreS3 ESP32S3 by M5Stack - The Pi Hut

M5Stack M5Stack CoreS3 ESP32S3

£57.60 incl. VAT excl. VAT

M5Stack Battery Module for Core ESP32 Development Kit by M5Stack - The Pi Hut

M5Stack Battery Module for Core ESP32 Development Kit by M5Stack - The Pi Hut

M5Stack M5Stack Battery Module for Core ESP32 Development Kit

£7.70 incl. VAT excl. VAT

The LoRa (433MHz) is a LoRa communication module in the M5Stack stack module series (working frequency is 433MHz). A certain expansion space is reserved on the module, which gives you a more functional design. For wireless communication or projects with more customised elements, the LoRa (433MHz) module will be a suitable choice.

Features

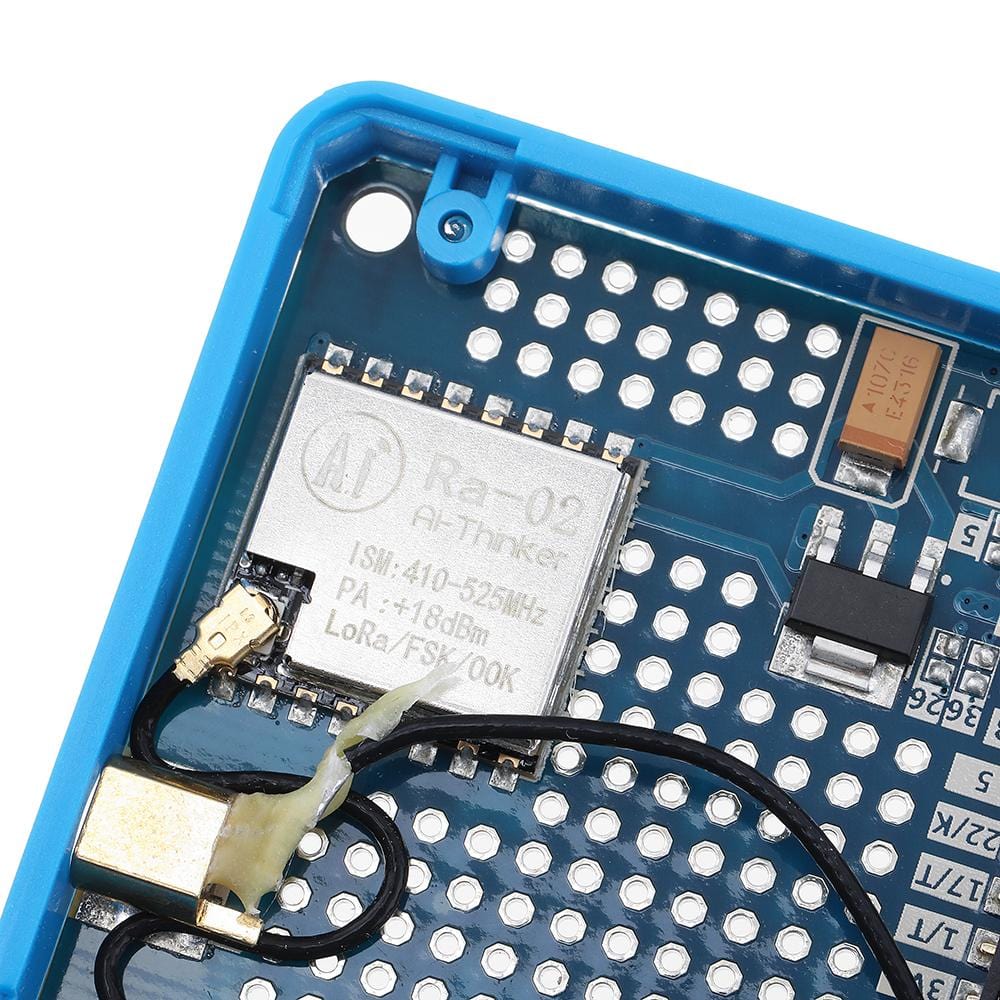

LoRa (433MHz) Module: Ra-02
Series Communication Protocol: SPI
Universal Perboard
Working Frequency: 433 MHz
Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
Receive sensitivity: lowest to -141 dBm
Programmable bit rate up to 300Kbps

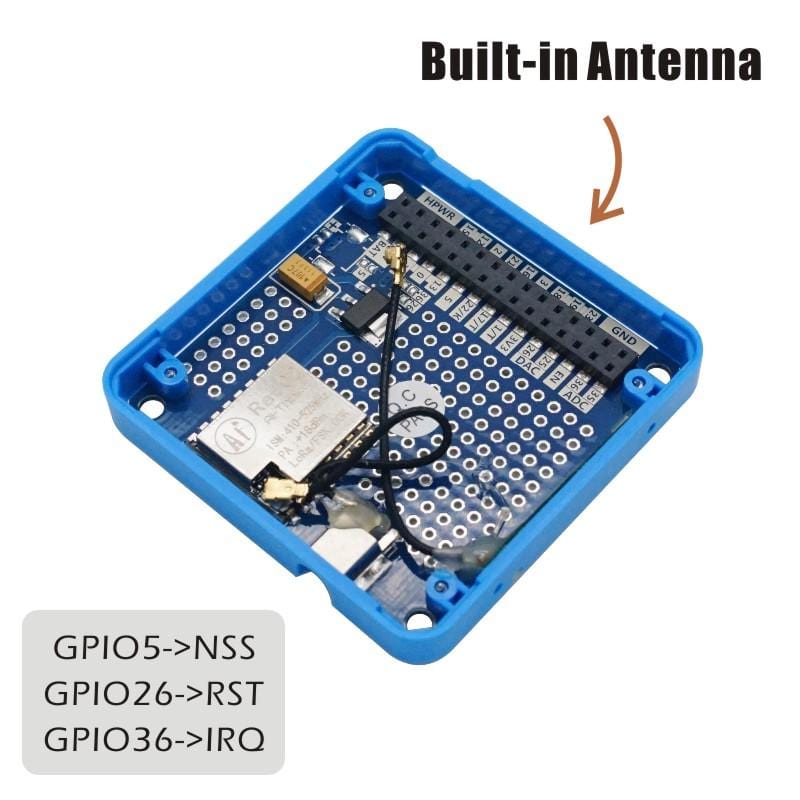

Build-in PCB Antenna
External Antenna port
Program platform: Arduino, MicroPython, UIFlow (Blockly)

Package Contents

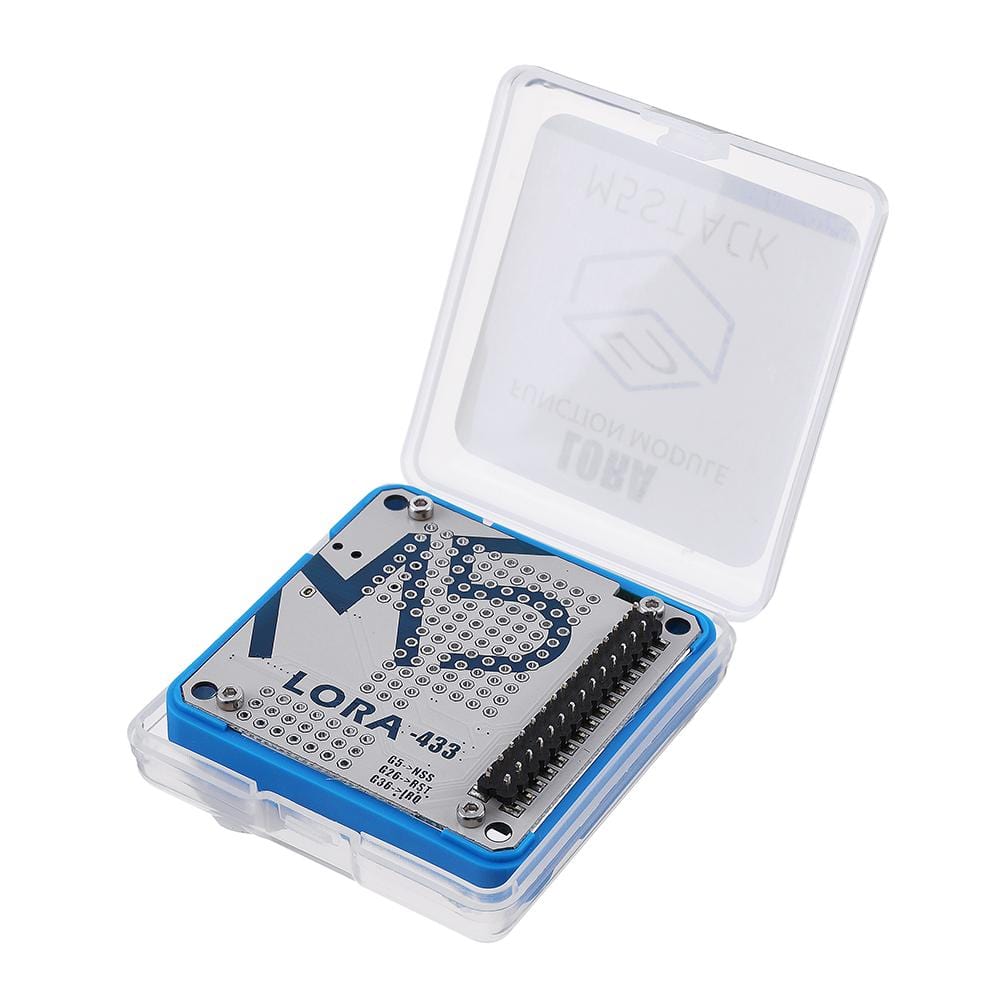

1x M5Stack LoRa Module

Specifications

Resources	Parameter
Net weight	13g
Gross weight	24g
Product Size	54.2 x 54.2 x 12.8mm
Package Size	60 x 57 x 17mm
