M5Stack UnitV2 - Standalone AI Camera for Edge Computing (SSD202D) TinyML

M5StackSKU: U078-D
£67.50
incl. VAT
excl. VAT
Only 10 units left

Awesome Extras

M5Stack UnitV2 M12 Version with Cameras - The Pi HutM5Stack UnitV2 M12 Version with Cameras - The Pi Hut
M5StackM5Stack UnitV2 M12 Version with Cameras
£96 incl. VAT excl. VAT
M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi HutM5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut
M5StackM5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit
£24 incl. VAT excl. VAT
Notify me
ATOM Matrix ESP32 Development Kit - The Pi HutATOM Matrix ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Matrix ESP32 Development Kit
£15 incl. VAT excl. VAT

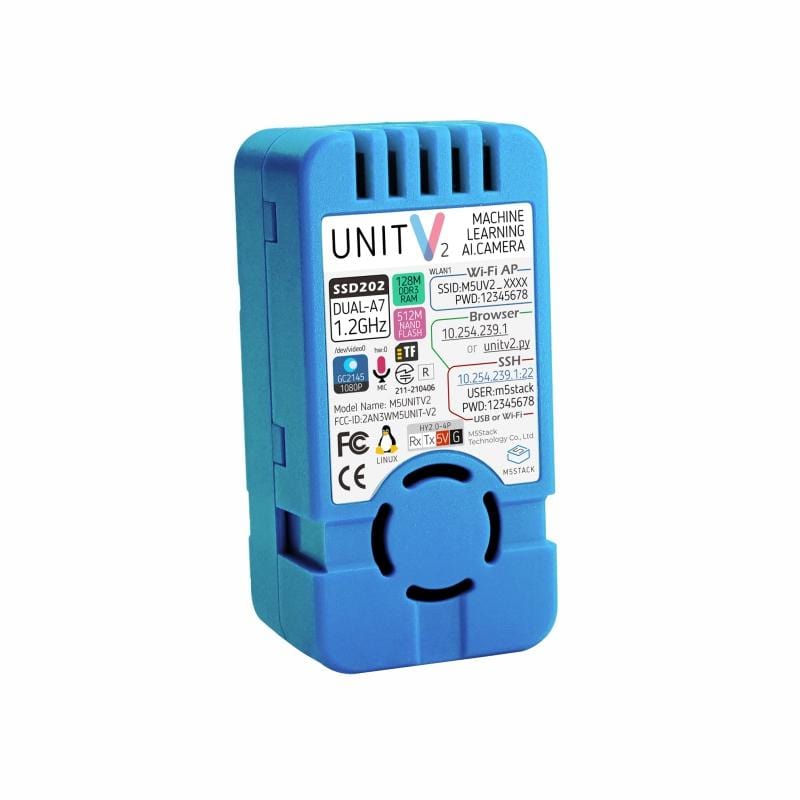

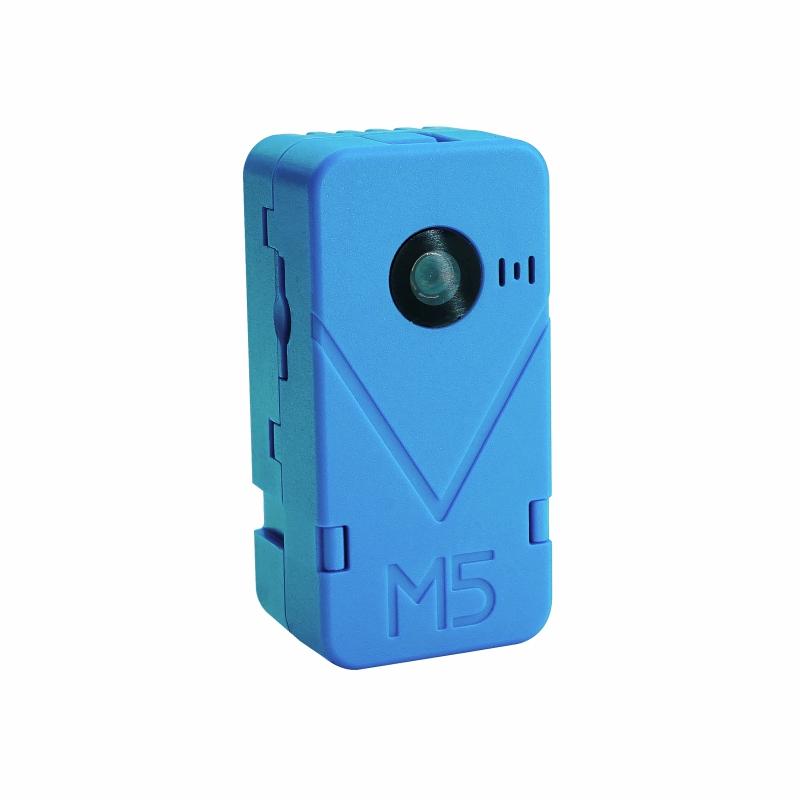

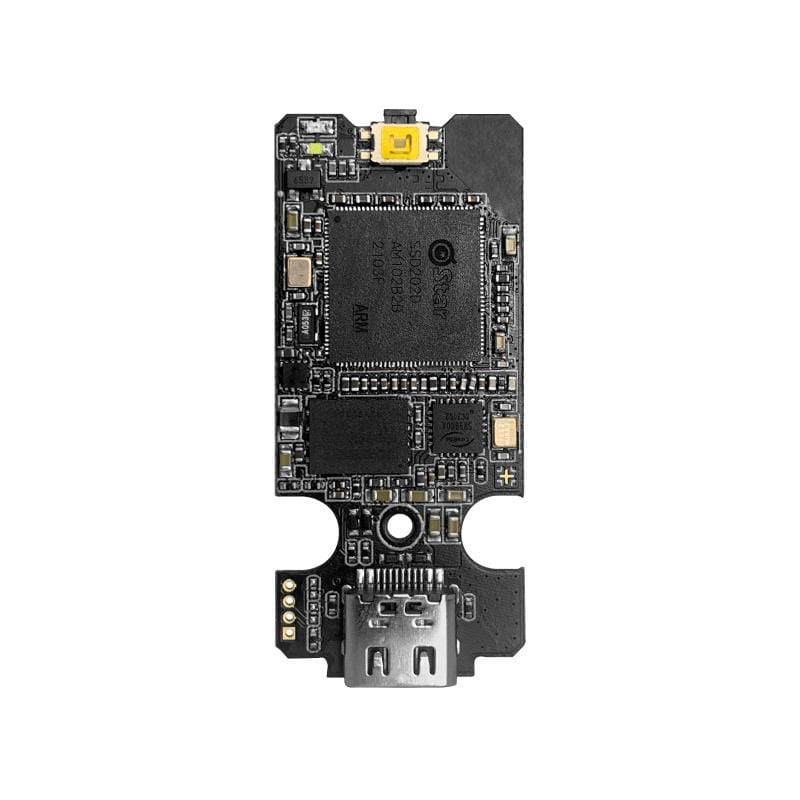

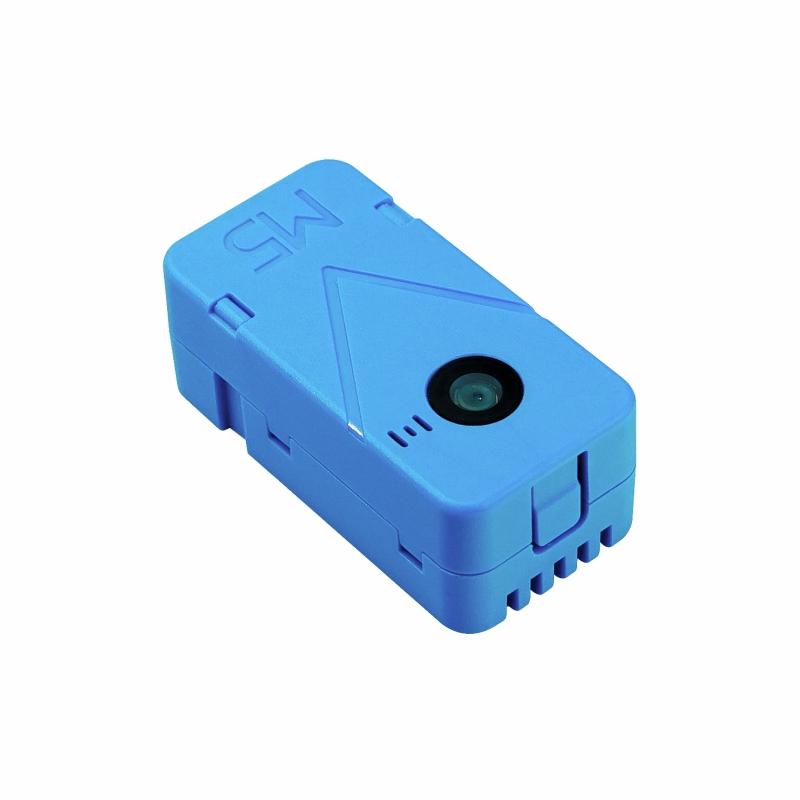

The UnitV2 is a high-efficiency AI recognition module launched by M5Stack, using Sigmstar SSD202D (integrated dual-core Cortex-A7 1.2Ghz processor) control core, integrated 128MB-DDR3 memory, 512MB NAND Flash, and 1080P camera.

With its embedded Linux operating system and rich software and hardware resources and development tools integrated, UnitV2 is committed to bringing users a simple and efficient AI development experience out of the box.

Features

  • Sigmstar SSD202D
  • Dual Cortex-A7 1.2Ghz Processor
  • 128MB DDR3
  • 512MB NAND Flash
  • GC2145 1080P Colored Sensor
  • Microphone
  • WiFi 2.4GHz

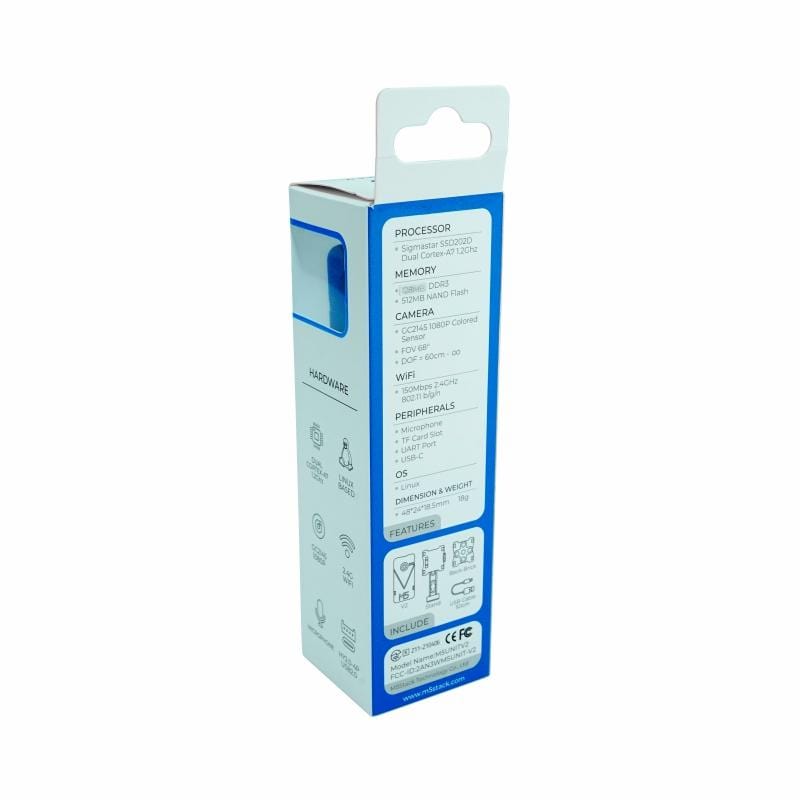

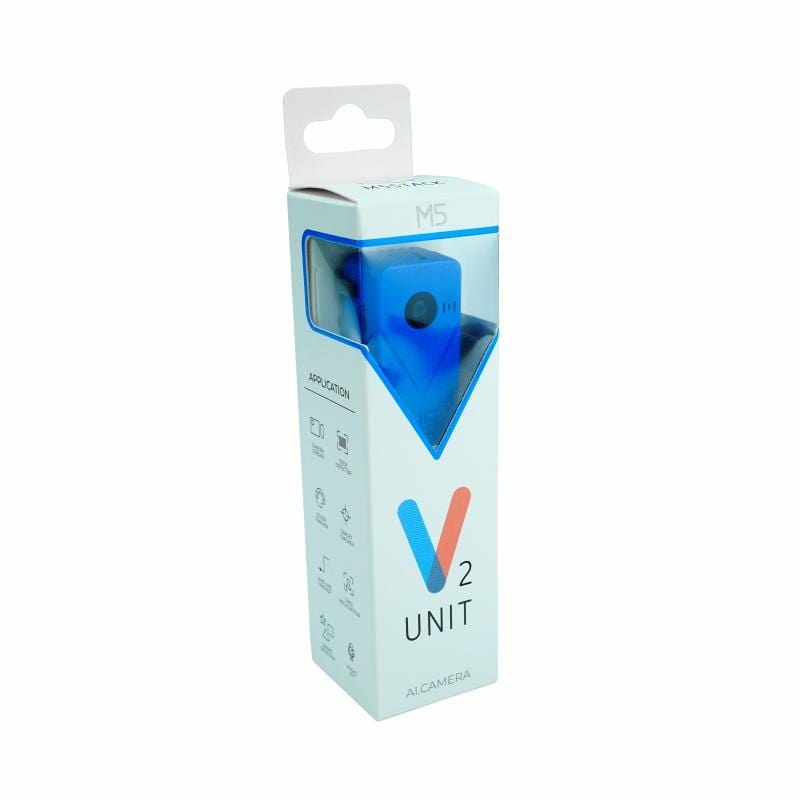

Package Contents

  • 1 x M5Stack UnitV2
  • 1 x 16g TF Card
  • 1 x USB-C Cabel (50cm)
  • 1 x Stand
  • 1 x Back Brick

Applications

  • AI recognition function development
  • Industrial visual identification sorting
  • Machine vision learning

Specification

Resources Parameter
Sigmstar SSD202D Dual Cortex-A7 1.2Ghz Processor
Flash 512MB NAND
RAM 128MB-DDR3
Camera GC2145 1080P Colored Sensor
Lens FOV 68° , DOF= 60cm- ∞
Power Input 5V @ 500mA
Peripherals TypeC x1, UART x1, TFCard x1, Button x1, Microphone x1, Fan x1
Indicator light Red, White
WiFi 150Mbps 2.4GHz 802.11 b/g/n
Operating Temperature 0°C to 60°C
Net weight 18g
Gross weight 62g
Product Size 48*18.5*24mm
Package Size 157*38*38mm
Case Material Plastic ( PC )

Resources

  • Documentation available here
    •
