M5Stack Encoder Unit

Price:
Sale price £7.90
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Awesome Extras

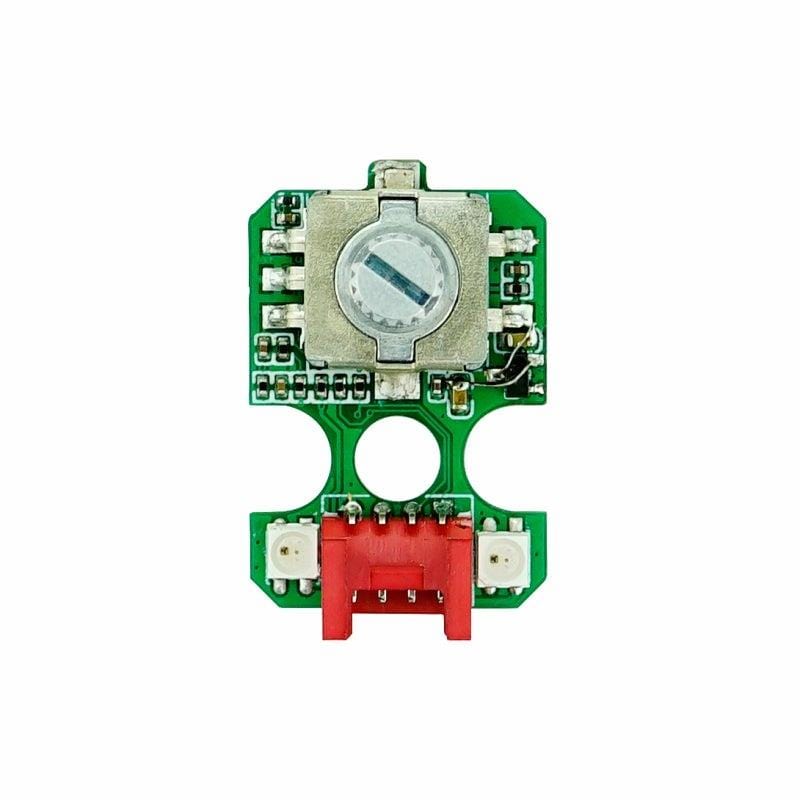

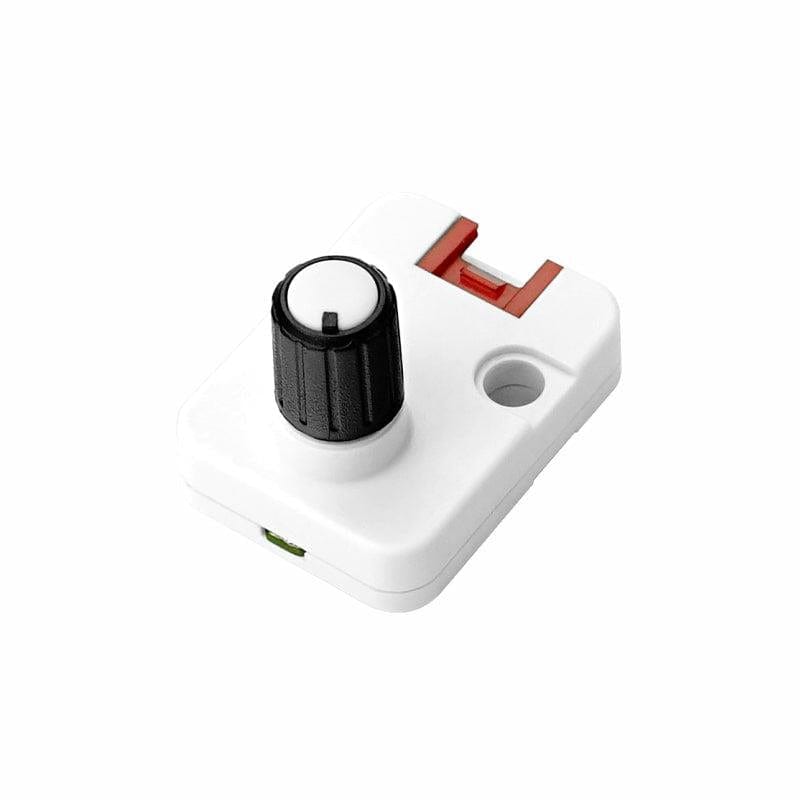

The M5Stack Unit Encoder is a rotary encoder expansion unit with an I2C interface, integrated with a 30-bit pulse encoding knob (with button function) and 2 x SK6812 programmable RGB LEDs.

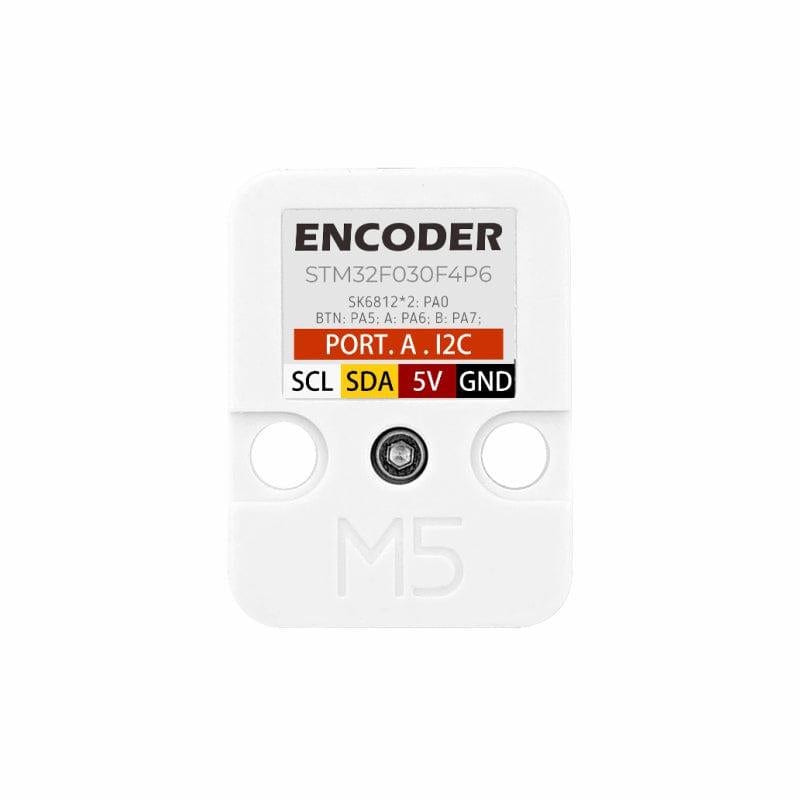

The built-in STM32F030 flashed with the encoder pulse acquisition firmware, allowing users to obtain the encoded value directly via I2C. Suitable for scale value control/volume adjustment and other control scenarios.

Features

  • 30-bit pulse encoding knob (30 pulses per rotation)
  • 2x SK6812 programmable RGB LEDs
  • 1x Button input

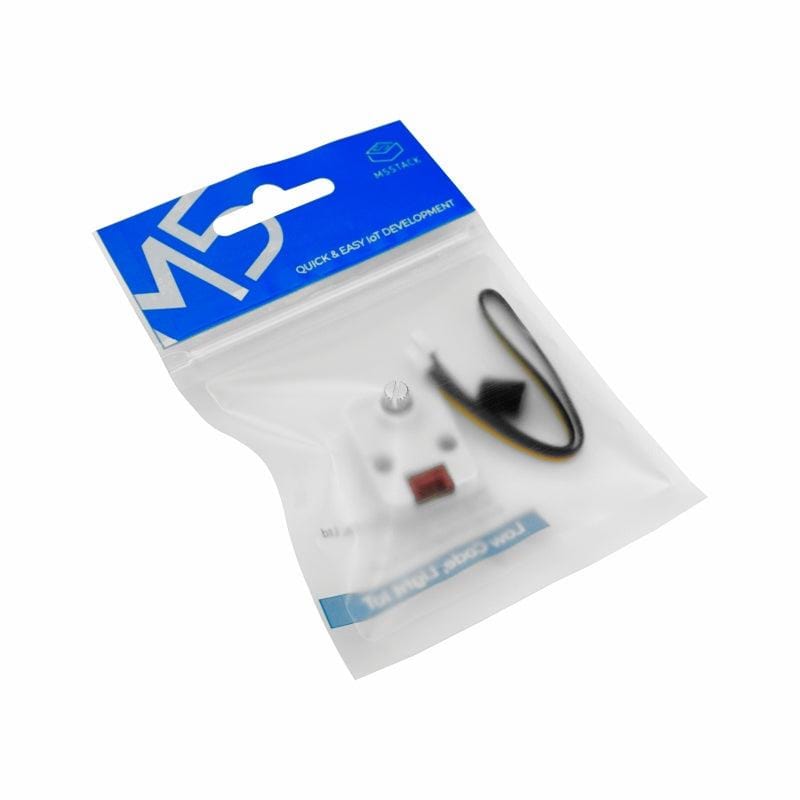

Package Contents

  • 1x Unit Encoder
  • 1x HY2.0-4P cable (20cm)

Applications

  • Human Machine Interaction (HMI)
  • Volume knob

Specification

Specifications Parameters
Pulse encoder knob 30-bit pulse encoder knob (with key input)
Programmable RGB LED 2x SK6812
Working current Encoder working (DC-5V@17mA)
Net weight 7.4g
Gross weight 12.3g
Product size 32 * 24 * 22mm
Packing size 93 * 138mm

Resources
