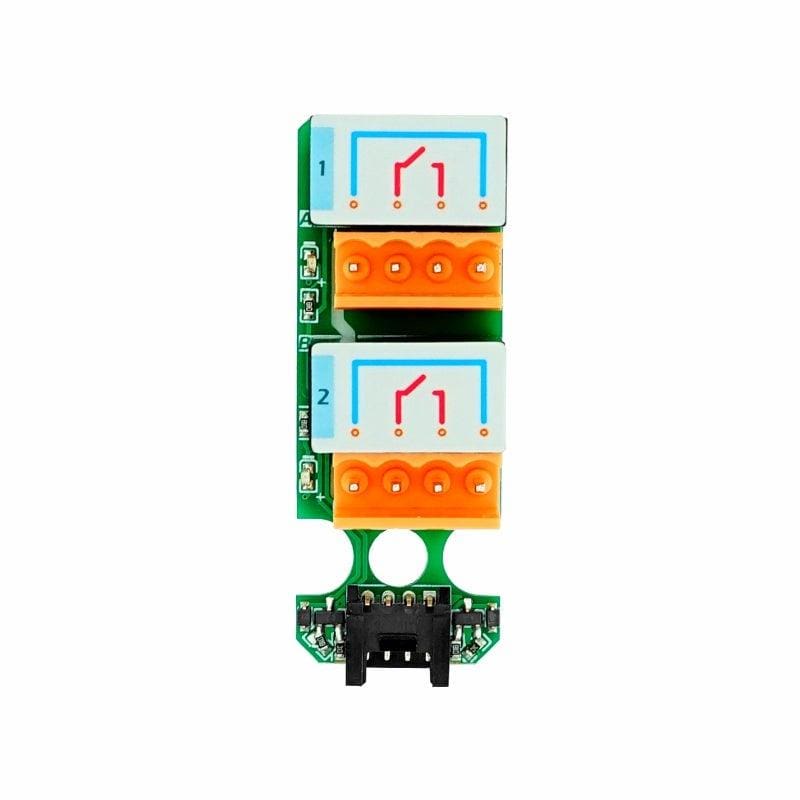

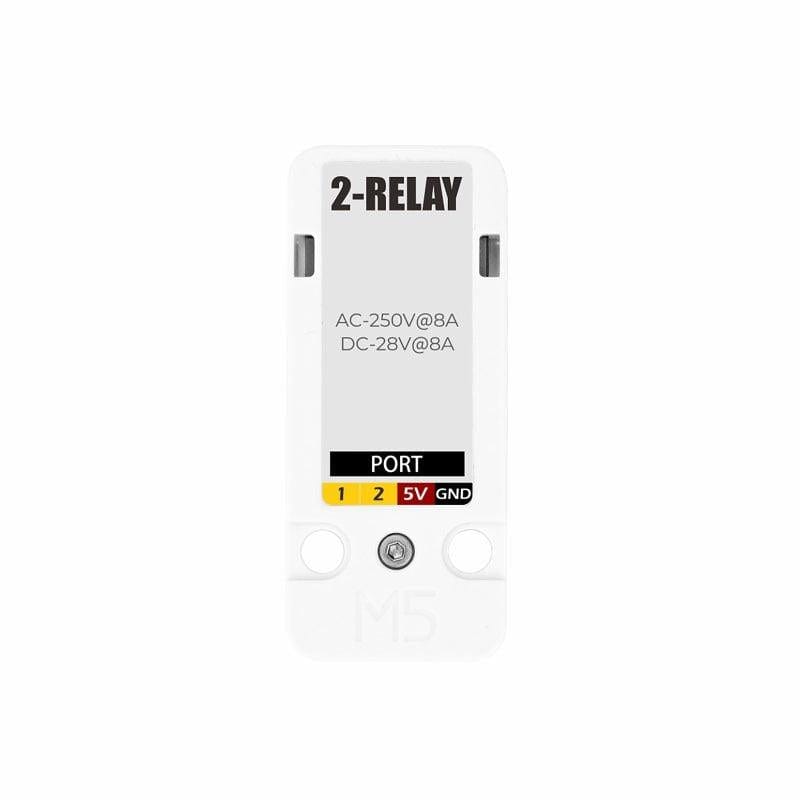

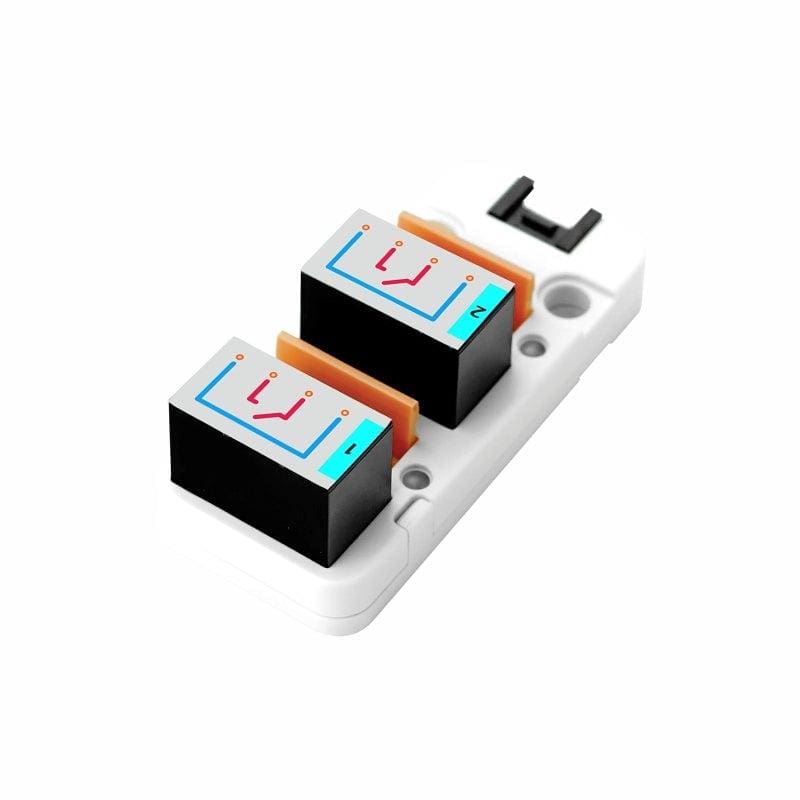

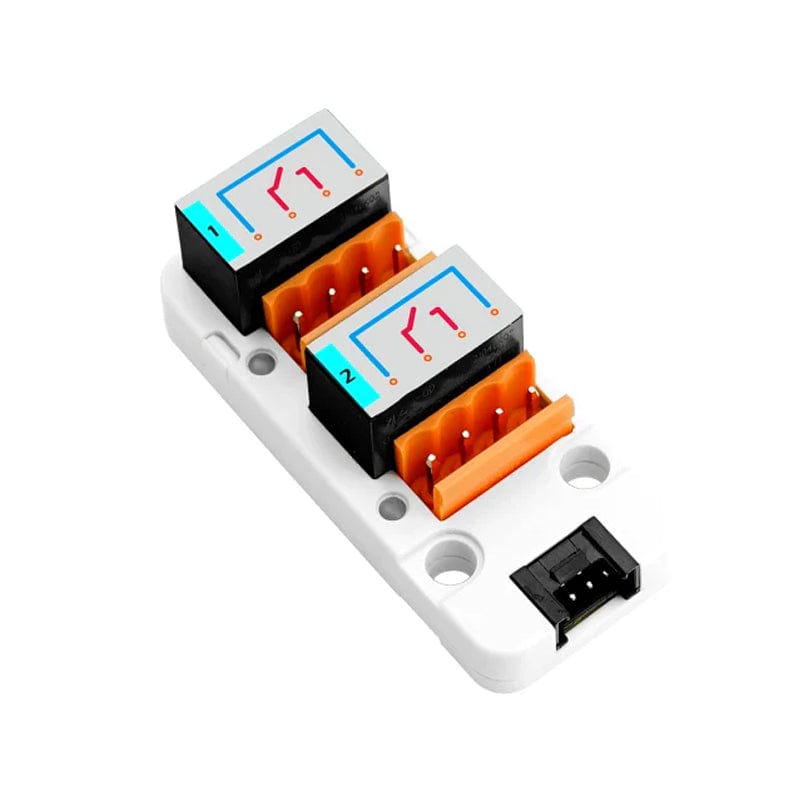

The 2-Channel SPST Relay Unit from M5Stack is a 2-channel SPST relay module equipped with two high-current relays that work under AC250V 8A or DC28V 8A.
Each relay adopts independent IO control and status indicator LED. It's suitable for home appliance power control or ON/OFF switch for industrial equipment.

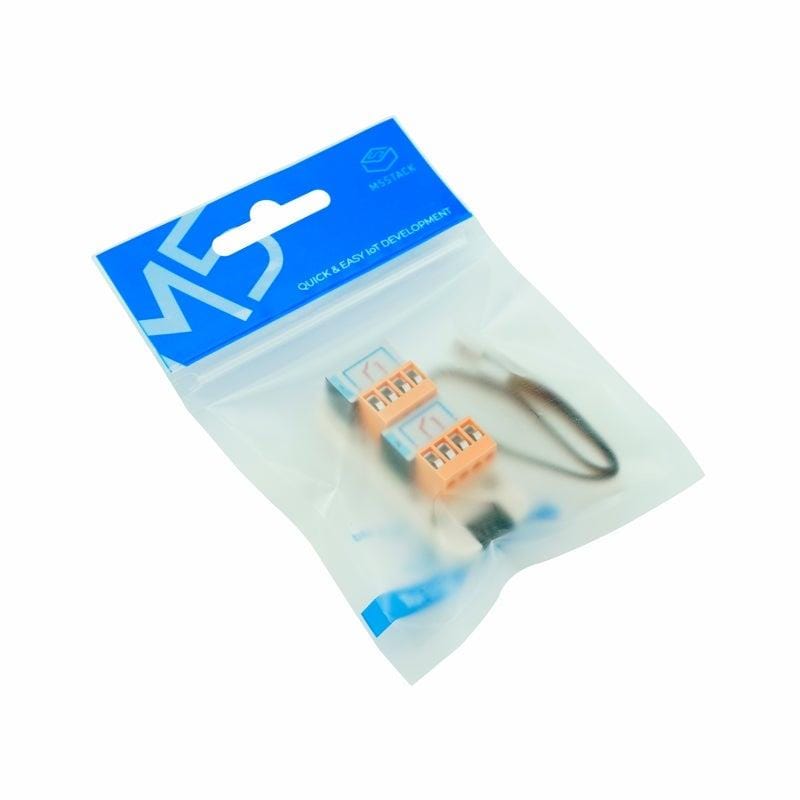

The module comes with connector blocks and a cable.
- 2-channel relay
- AC-250V/DC-28V @ 8A
- Status Indicator LED

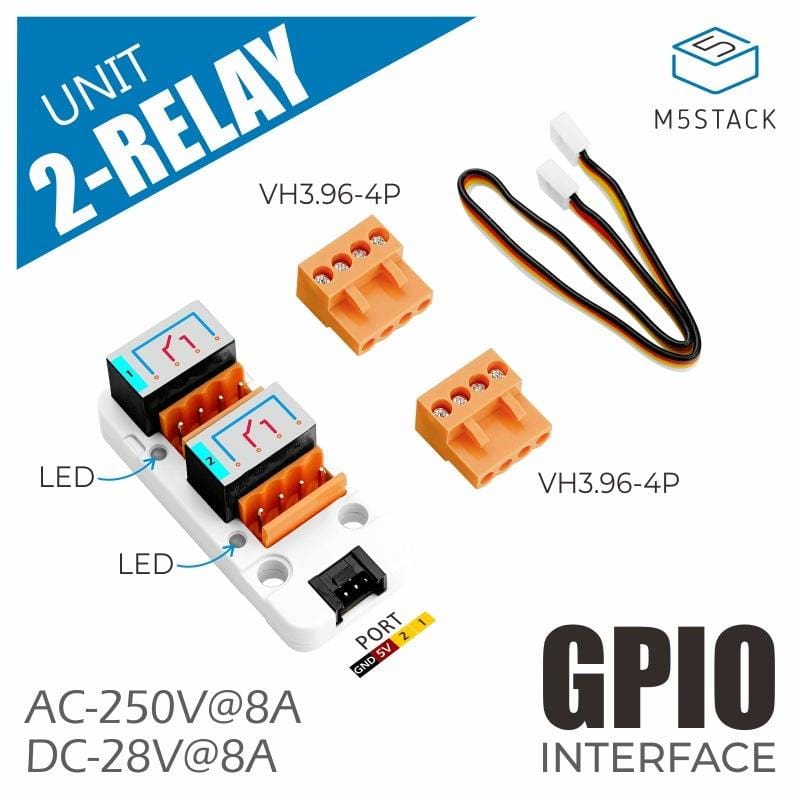

- 1x 2-RELAY Unit
- 1x HY2.0-4P cable (20cm)
- 2x VH3.96-4P Plug terminal
|Maximum on-off voltage||AC-250V/DC-28V|
|Coil control voltage||DC5V|
|Coil power consumption||5V@154mA|
|Coil action time||≤ 8ms|
|Coil release time||≤ 5ms|
|Contact form||A normally open type|
|Relay indicator||Blue x2|

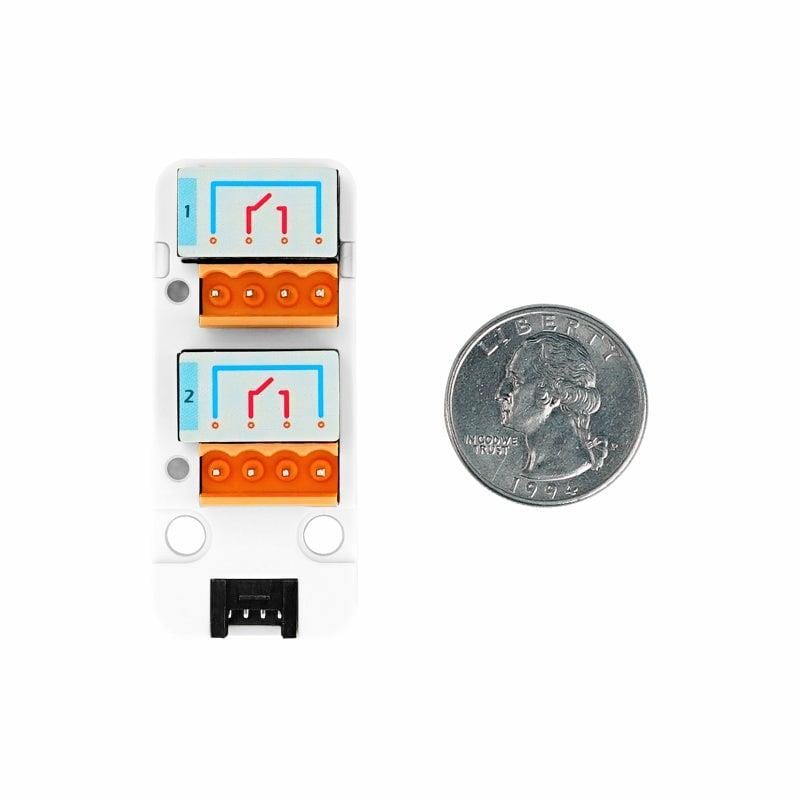

|Product size||56 * 24 * 19mm|
|Packing size||93 * 138mm|
