This 140-degree ultra-wide angle M12 lens is an inexpensive lens option for the Raspberry Pi High Quality Camera, which can be fitted using the included HQ Camera adapter.
The lens can also be used as an alternative lens option for the Arducam Mini High Quality Camera.
The lens has a 140° FoV - great for CCTV-style applications where a wide field of view is essential.
Why an M12 lens?
- Lightweight: M12 lenses are tiny and take up less space than traditional C-mount lenses
- Cost-effective: M12 lenses are generally cheaper than most C-mount lenses
- Project-centric: Different projects require different lens requirements. M12 lenses provide a more affordable way to collect lenses for different scenarios.

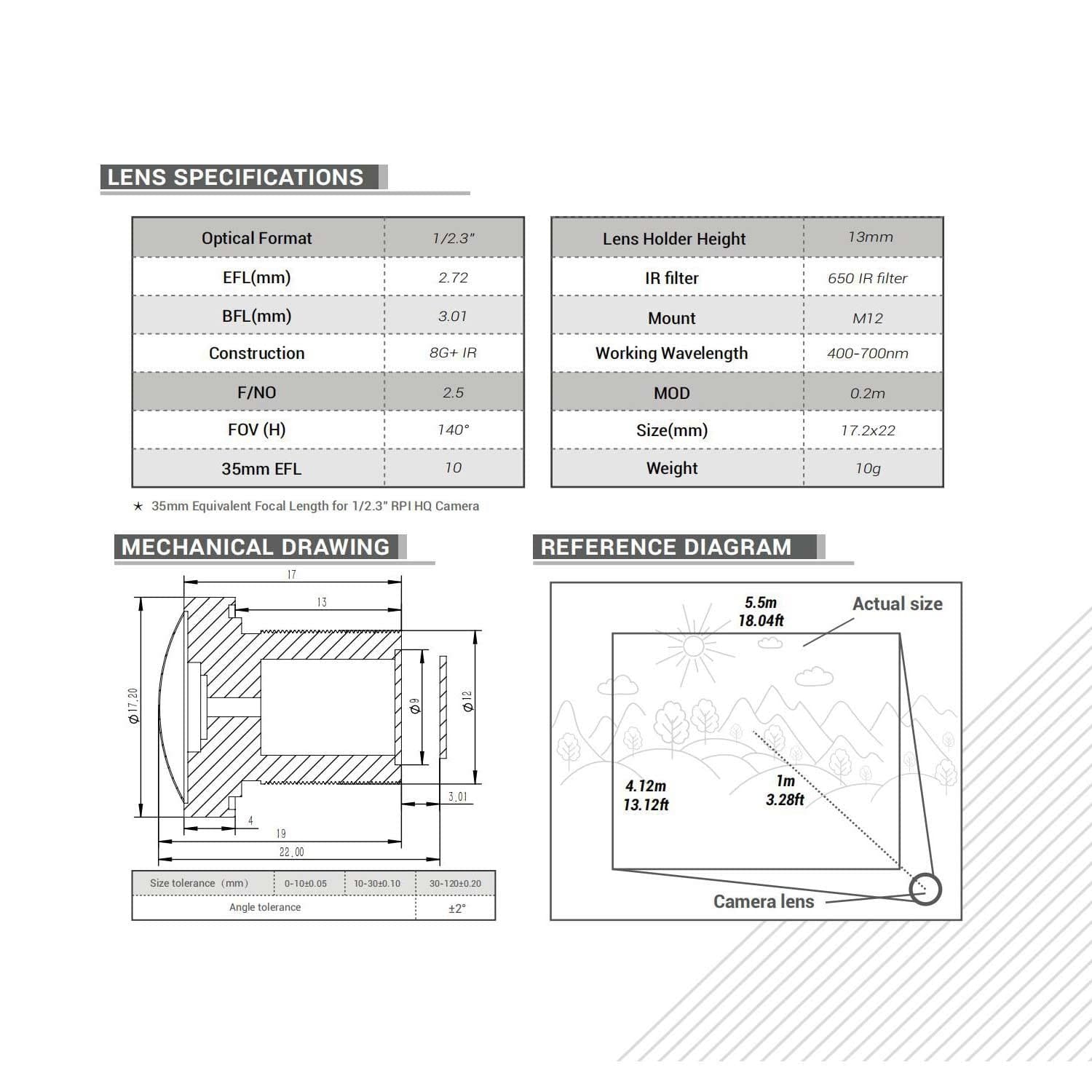

- Optical Format: 1/2.3”
- Focal Length: 2.72mm
- Aperture: F2.5
- Field of View (FOV): 140° (H), 80° on Arducam B0103 camera
- Mount: M12 mount
- Back Focal Length: 3.01mm
- MOD: 0.2m
- Dimension: Φ17.2×17.3mm
- Weight: 8g
- IR Sensitivity: sensitive to visible light, with 650nm IR filter
- Model No: M23272M14
Note: HQ camera not included.
