ExtensionBlock

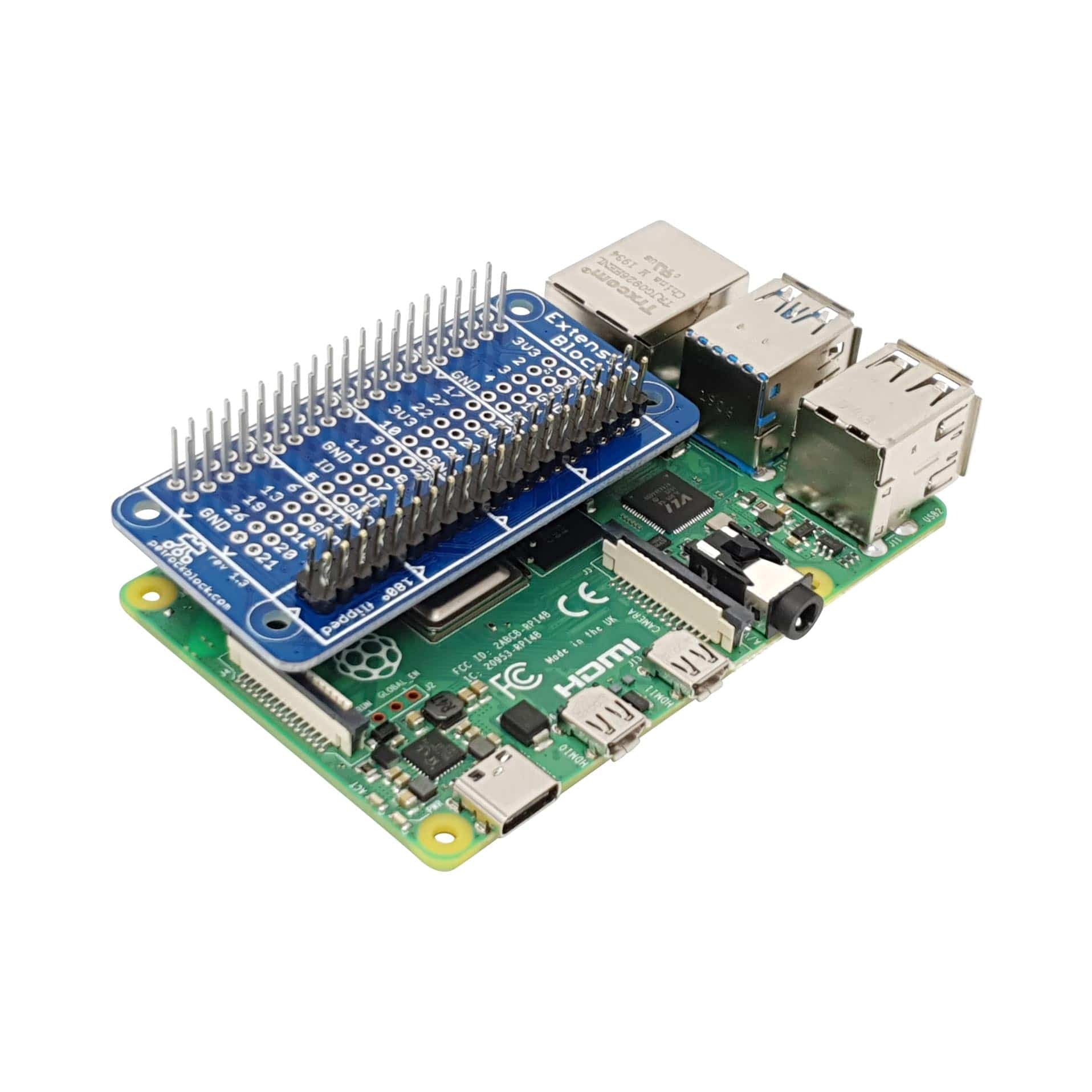

The ExtensionBlock is an add-on board for the Raspberry Pi and compatible System-on-Chip platforms. It is a three-way distributor for the 2×20 GPIO pin header. You stack it on top of the existing 2×20 pin GPIO header. It allows you to stack two full-size HATs side-by-side onto the Raspberry Pi.

In addition to the pin headers for the HATs, the ExtensionBlock has a third 2×20 pin out so that you even have access to the GPIO pins when two HATs are installed. This should give you a maximum of comfort during development and debugging of your project.

Features

• Three-way distributor for 2×20 GPIO pin header

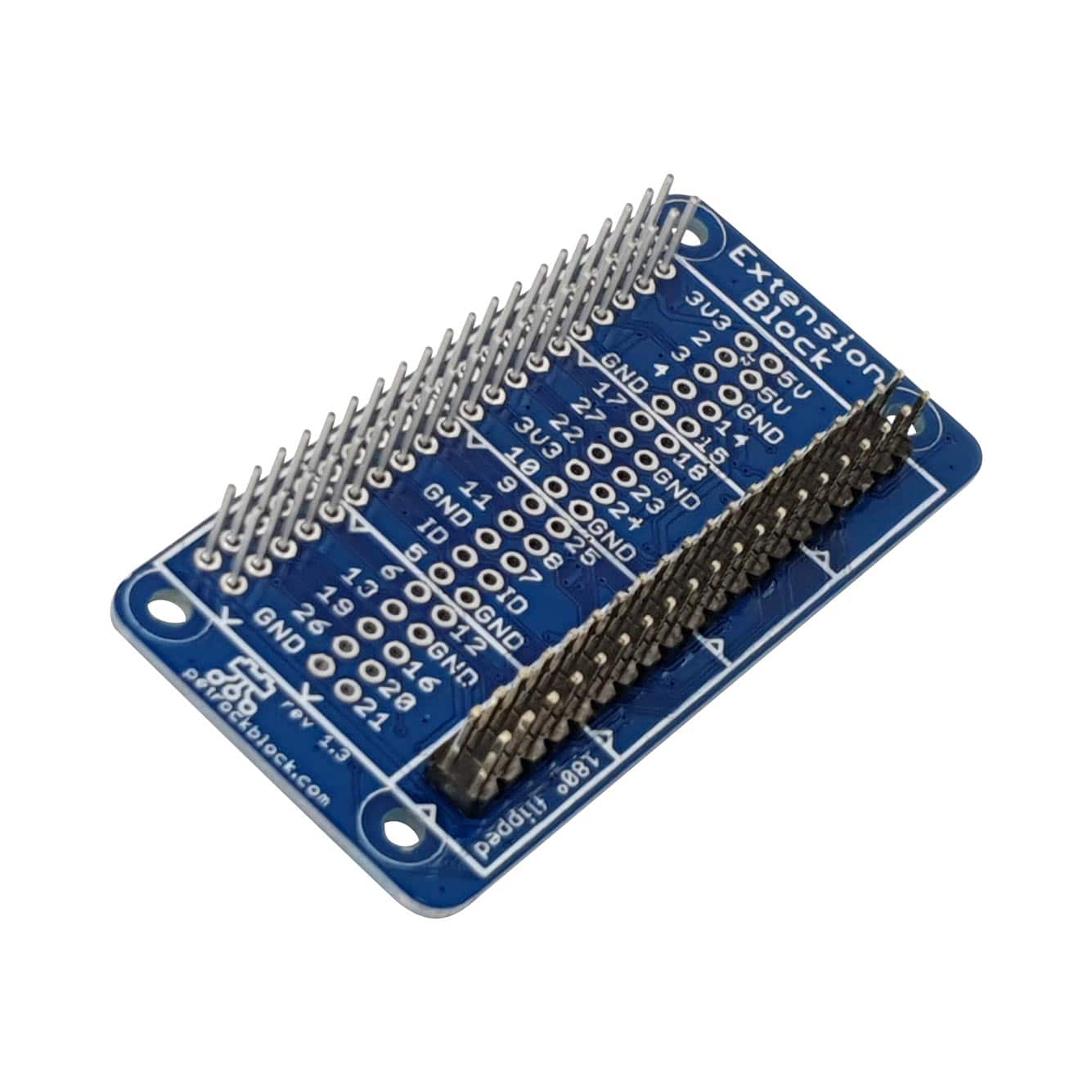

• First and second 2×20 pin out faced towards the original direction, while the third 2×20 pin out is faced in opposite direction.
• Allows side-by-side installation of two full-size HATs

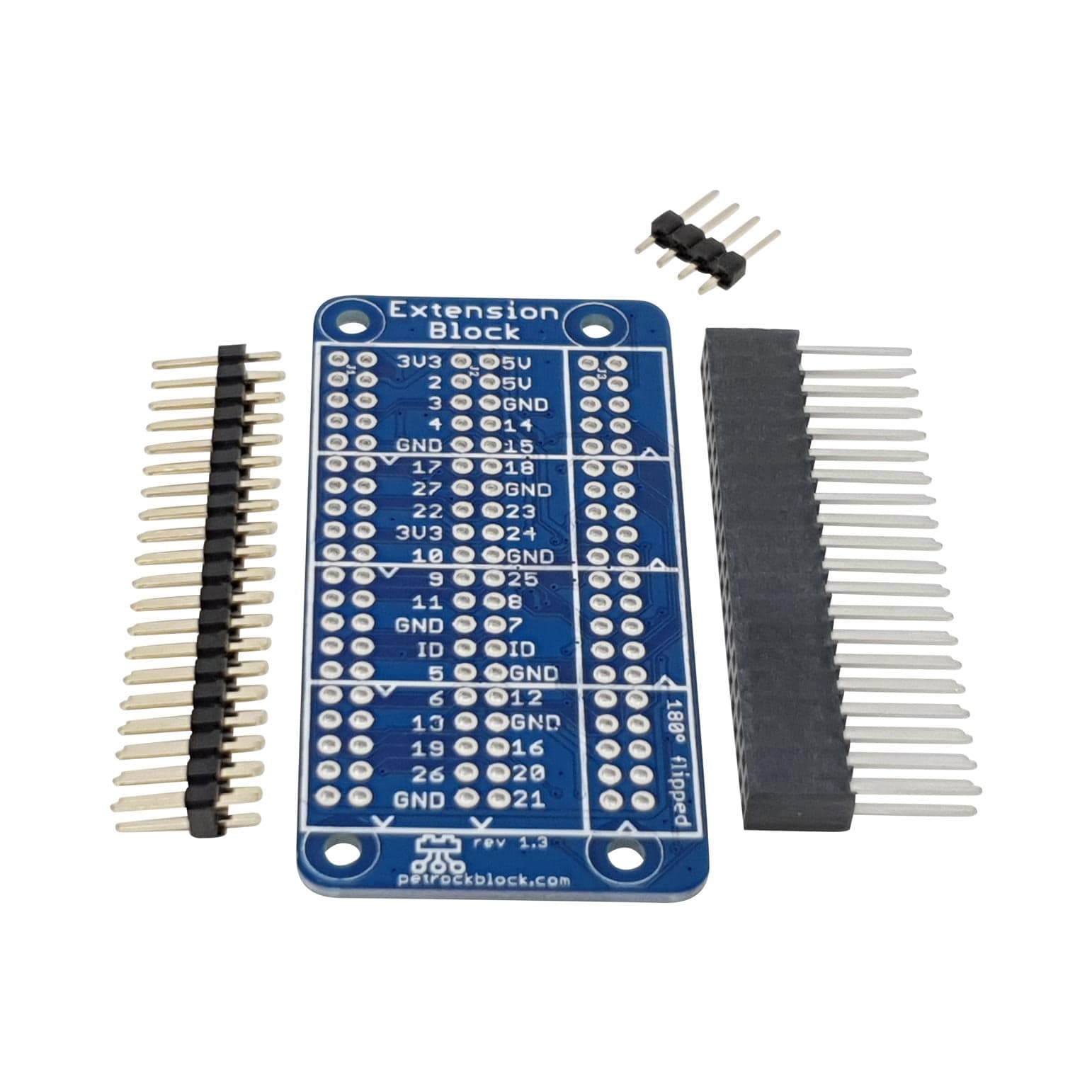

• Comes with two stackable 2×20 pins headers. You need to solder these to the board.
• Compatible with Raspberry Pi and comparable systems
