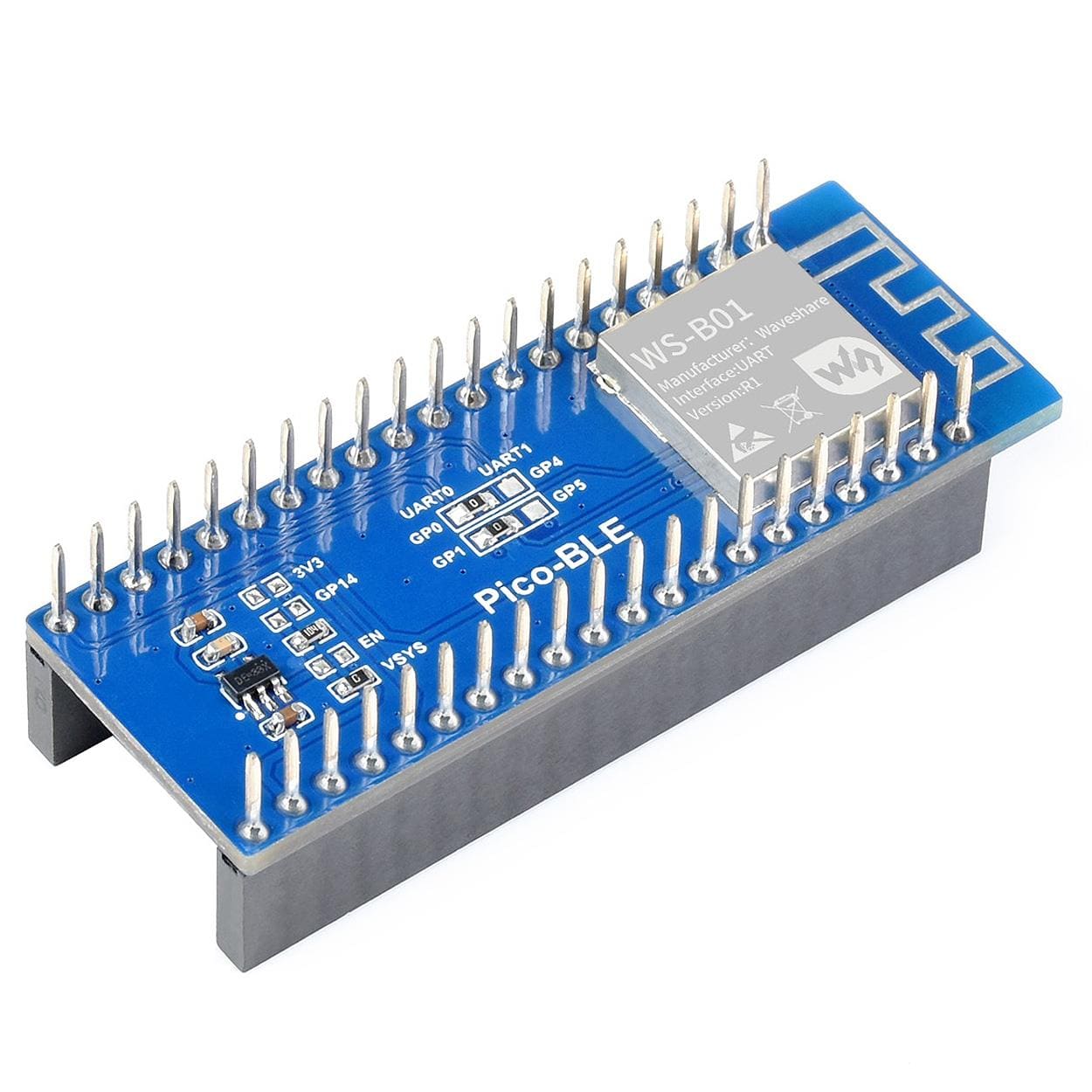

This is a dual-mode Bluetooth 5.1 expansion module designed for the Raspberry Pi Pico. It is controlled via UART AT commands, with Serial Port Profile (SPP) and Bluetooth Low Energy (BLE) support.

Designed to allow the communication between your Pico and a mobile phone*, this module comes pre-soldered and ready to fit to your Pico (with male headers soldered). UART pin selection is available via solder bridge if required.

* Currently only communication with mobile phones is officially supported. Compatibility with other Bluetooth devices has not been tested - your mileage may vary!

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

Specifications

Bluetooth Module Dual-mode Bluetooth to UART module
Transmission Distance 30m (open air)
Communication UART
Antenna Onboard PCB antenna
Transmission Cache 1K bytes UART cache
Recommended to transmit less than 512 bytes per transmission for SPP
UART Baudrate 13 different baud rate configurations, 115200 bps by default
Input Voltage 5V / 3.3V
Operating Current Startup transient current: about 25mA for about 300ms
Stable status current: about 6mA, non-low power mode
Low power mode current: refer to the user manual
Operating Temperature -40℃ ~ 80℃
Operating Humidity 5% ~ 95%
Dimensions 56.5mm x 21mm

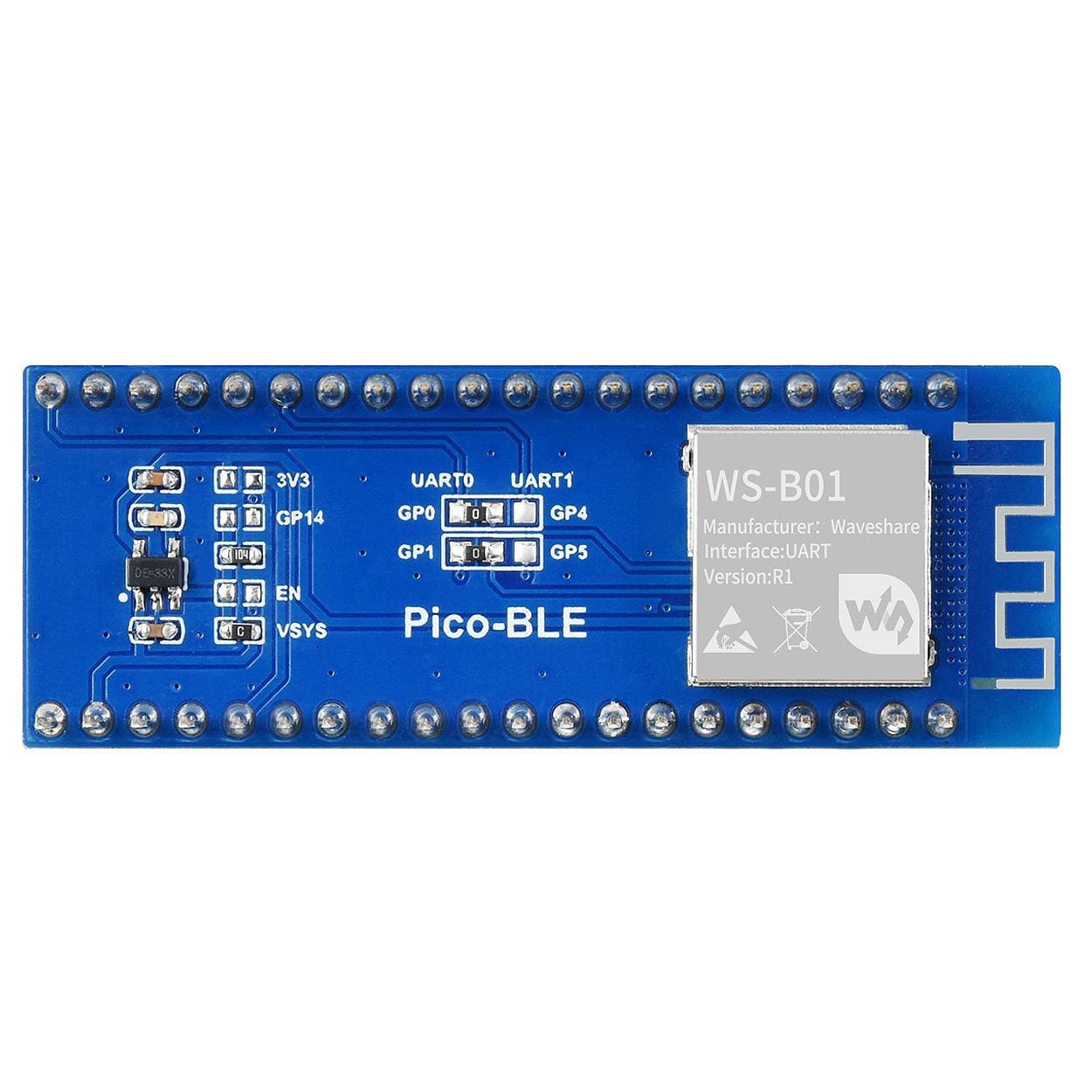

What's Onboard

1) Bluetooth module
2) RT9193-33
 - 3.3V regulator
3) Raspberry Pi Pico header
4) UART input pins selection
5) Onboard Bluetooth antenna

Package Contents

  • 1x Dual-mode Bluetooth Module for Raspberry Pi Pico

Raspberry Pi Pico not included

Resources

Pinout
