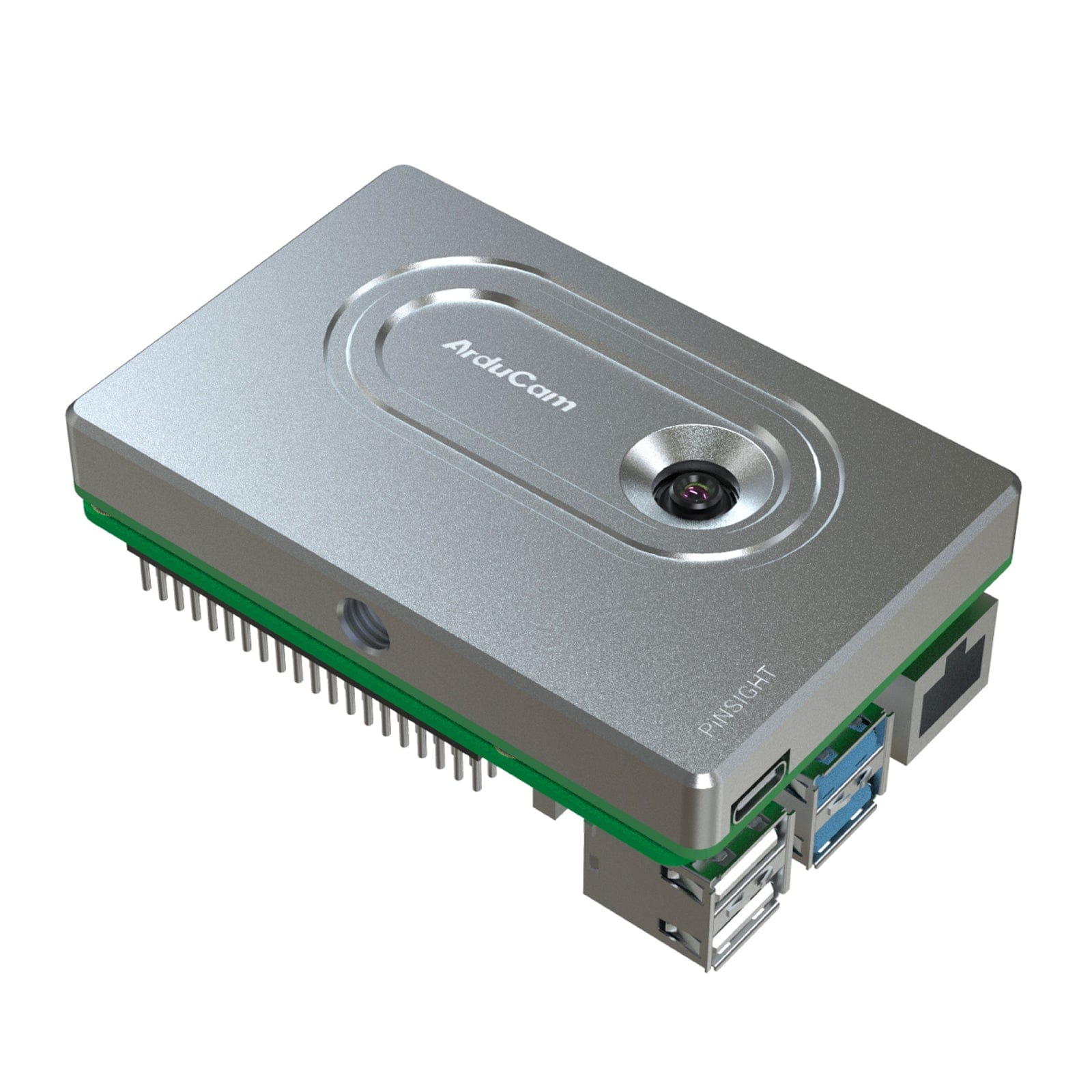

The Arducam Pinsight is a 12MP AI camera module that integrates with the OAK-SoM for efficient video processing and has hardware-based encoding (H.264, H.265, MJPEG). The 4K camera module provides clear visuals and supports 4K/30FPS and 1080P/60FPS encoding. This allows for precise, real-time video processing and the ability to handle multiple video streams simultaneously. This module provides the Raspberry Pi with improved AI vision capabilities and can be used for a range of intelligent applications.
Notes
The Raspberry Pi Board and the tripod is not included in the package.
Performance with Rpi 3 and below might be affected.
Other power supplies may cause the Pi 5 to limit downstream USB current. For power supplies under 25W, enable usb_max_current_enable=1. For power supplies with POE HAT, set PSU_MAX_CURRENT=5000.
Features

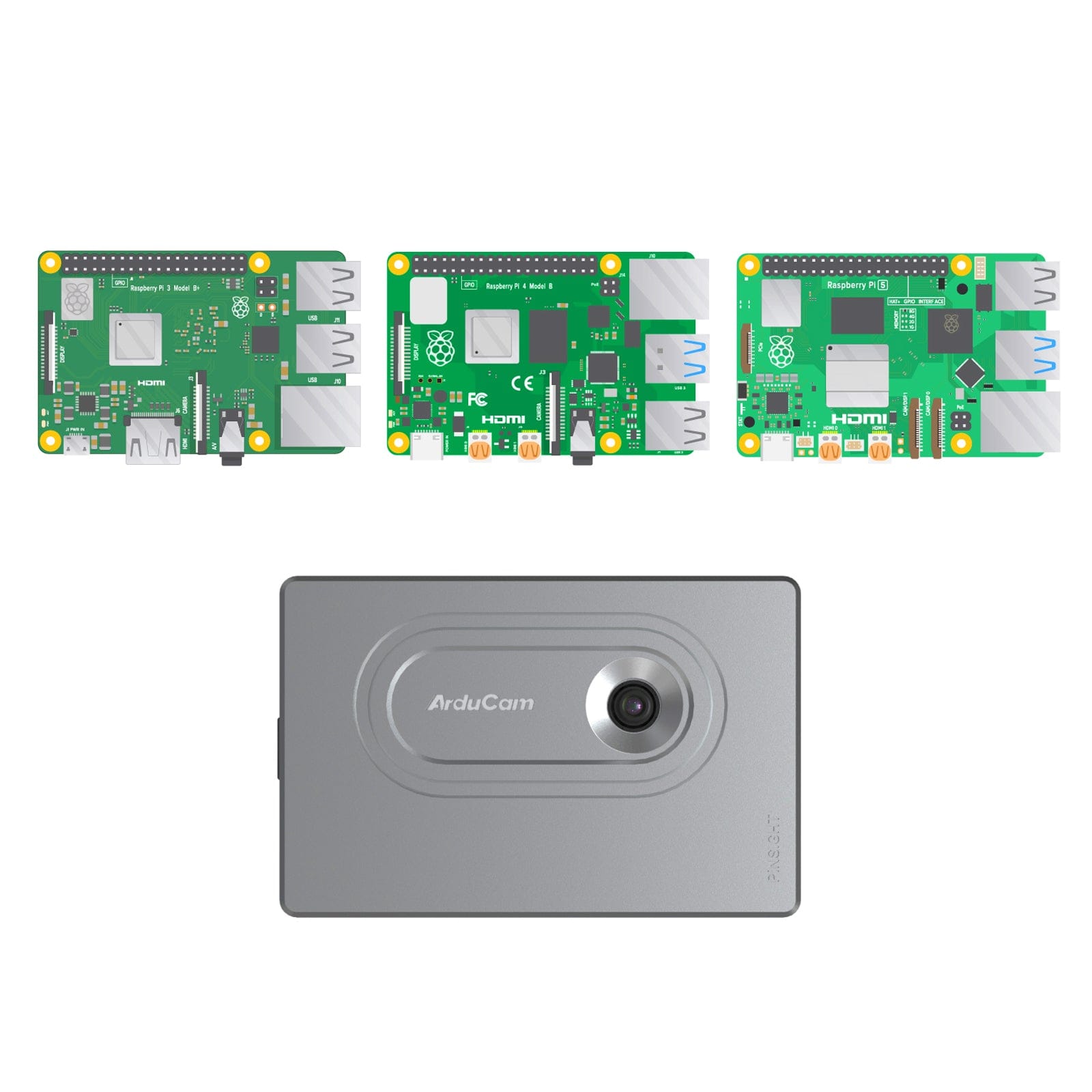

Seamless Integration: Pinsight effortlessly transforms Raspberry Pi into an AI powerhouse, offering expanded possibilities for intelligent vision. It’s backwards compatible with Pi 4B/3B+.
OpenVINO Harmony: Pinsight seamlessly integrates with OpenVINO, enabling flexible deployment of advanced AI capabilities in a diverse ecosystem.
Efficient Hardware Encoding: OAK-SoM enables hardware-based encoding (H.264, H.265, MJPEG), ensuring superior efficiency, faster video processing, and optimized power consumption when paired with the Arducam 12MP camera module.
High Performance, Low Power: Pinsight delivers consistent real-time performance with dedicated hardware acceleration, ideal for power-constrained applications, supporting parallel processing of multiple video streams.
Simple and Affordable: Pinsight’s easy adaptation to Raspberry Pi 5, sleek design, and cost-effectiveness make it the prime choice for an excellent and budget-friendly AI camera solution.
Specifications
Still Resolution
12.3 Megapixels
Video Modes
4056 x 3040@30fps, 3840 x 2160@30fps, 1920 x 1080@60fps
