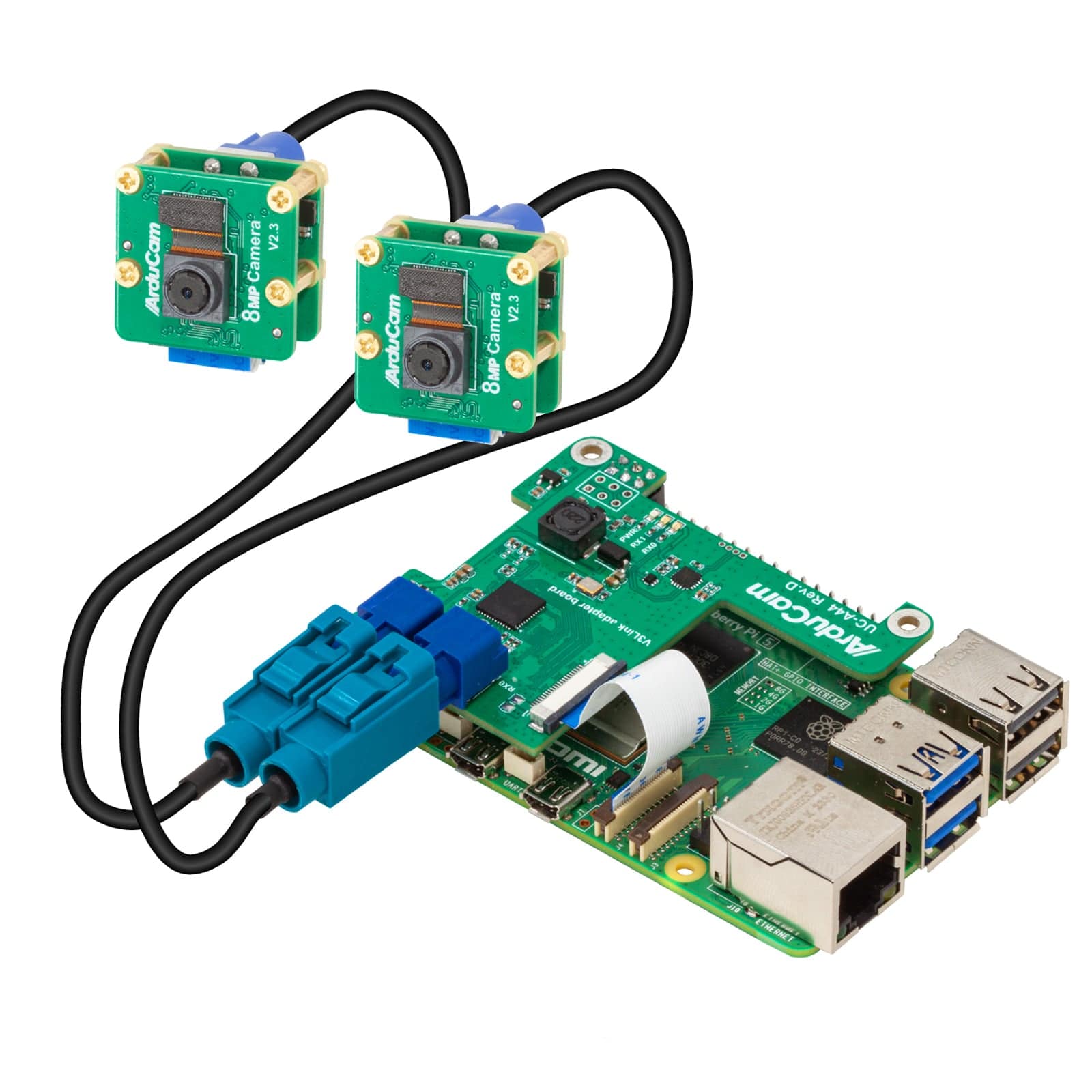

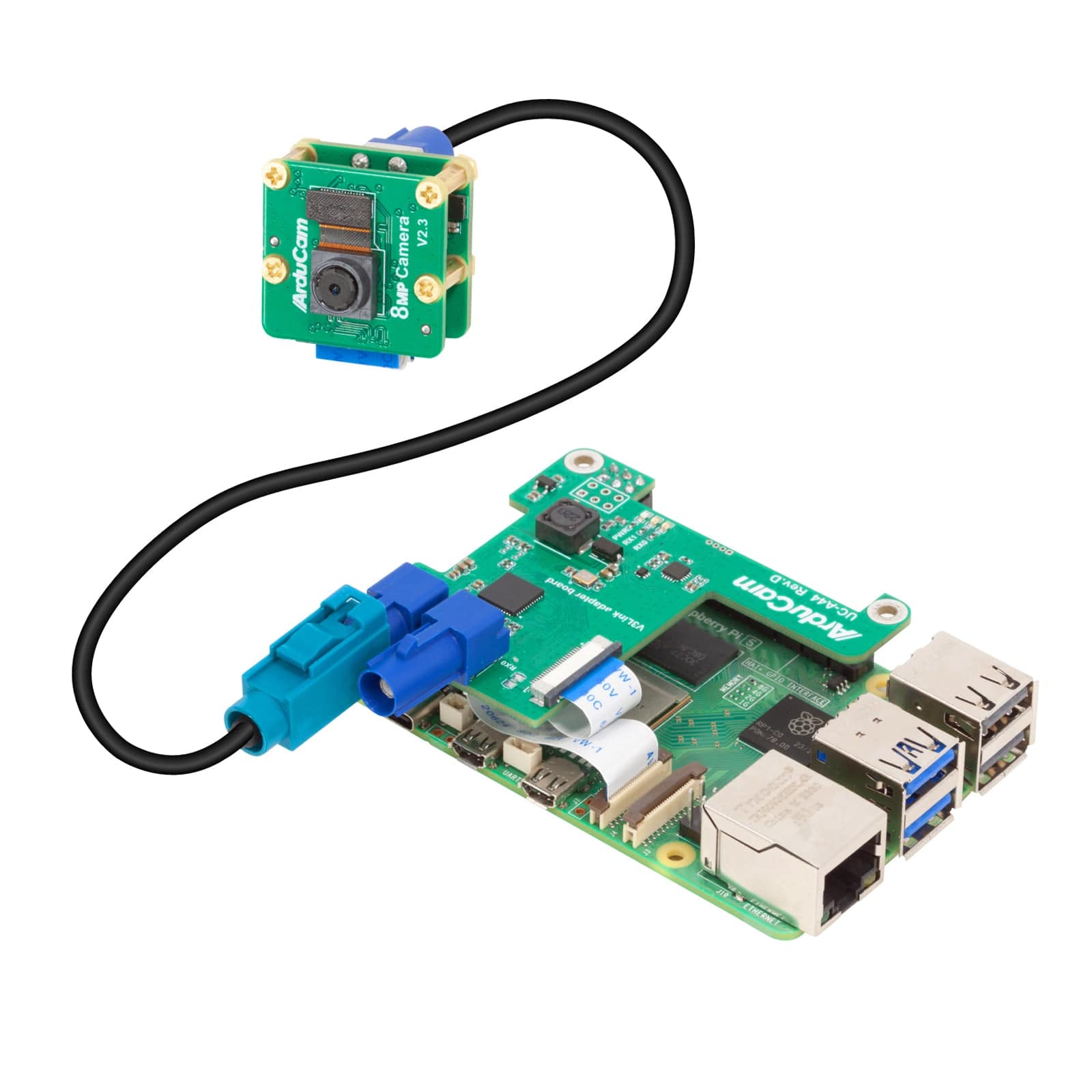

This IMX219 V3Link camera kit features an 8MP sensor, which is perfect for clear imaging in various projects. The kit uses the V3Link protocol, making it suitable for high-bandwidth applications over extended ranges. It has a shielded coaxial cable that supports stable power and data transmission up to 10 meters, helping maintain low latency. It requires no extra drivers or complex setup and easily connects to the Raspberry Pi 4B and the 5 . Its adaptable channel management allows switching between two cameras independently, making it versatile for different uses, from automotive to medical imaging.
Notes
Raspberry Pi board is NOT included in the package. This kit includes IMX219 camera modules and cannot be mixed with other sensors. The kit currently only supports video streaming mode. The image capture function is being continuously updated. When hot swapping is required such as switching cameras, please wait 2 seconds before reconnecting the camera. Features Raspberry Pi Compatibility: Ideal for Pi 5 & 4B, our multi-camera solution ensures high bandwidth and long-range transmission. IMX219 CMOS Excellence: Achieve superior imaging with the 8MP sensor, and stable cable connections up to 10m for multi-camera sync. Adaptable Channel Management: Switch between 2 cameras independently for diverse applications, from automotive to medical imaging. Cost-Effective 2-Channel System: Cut development costs with synchronised 2-channel vision systems, perfect for compact deployments. Effortless Plug-and-Play: Simplify integration with our solution – no additional configuration or drivers are needed for fast deployment. Specifications Image Sensor IMX219 Still Resolution 8 Megapixels Video Modes 1080p47, 1640 x 1232p41 and 640 x 480p206 Sensor Resolution 3280 × 2464 pixels Sensor image area 3.68 x 2.76 mm (4.6 mm diagonal) Pixel Size 1.12 µm x 1.12 µm Optical Size 1/4″ IR Sensitivity Integral IR-cut Filter, visible light only Focus Type Fixed Focus Focal Length 3.04mm F.NO F2.0 Field of View (FOV) 62.2°(H) x 48.8°(V) Lens Type Stock Lens Focus Distance 200mm to infinity Electrical and Mechanical Camera Board Size 25 x 24mm Peaking Current 300mA

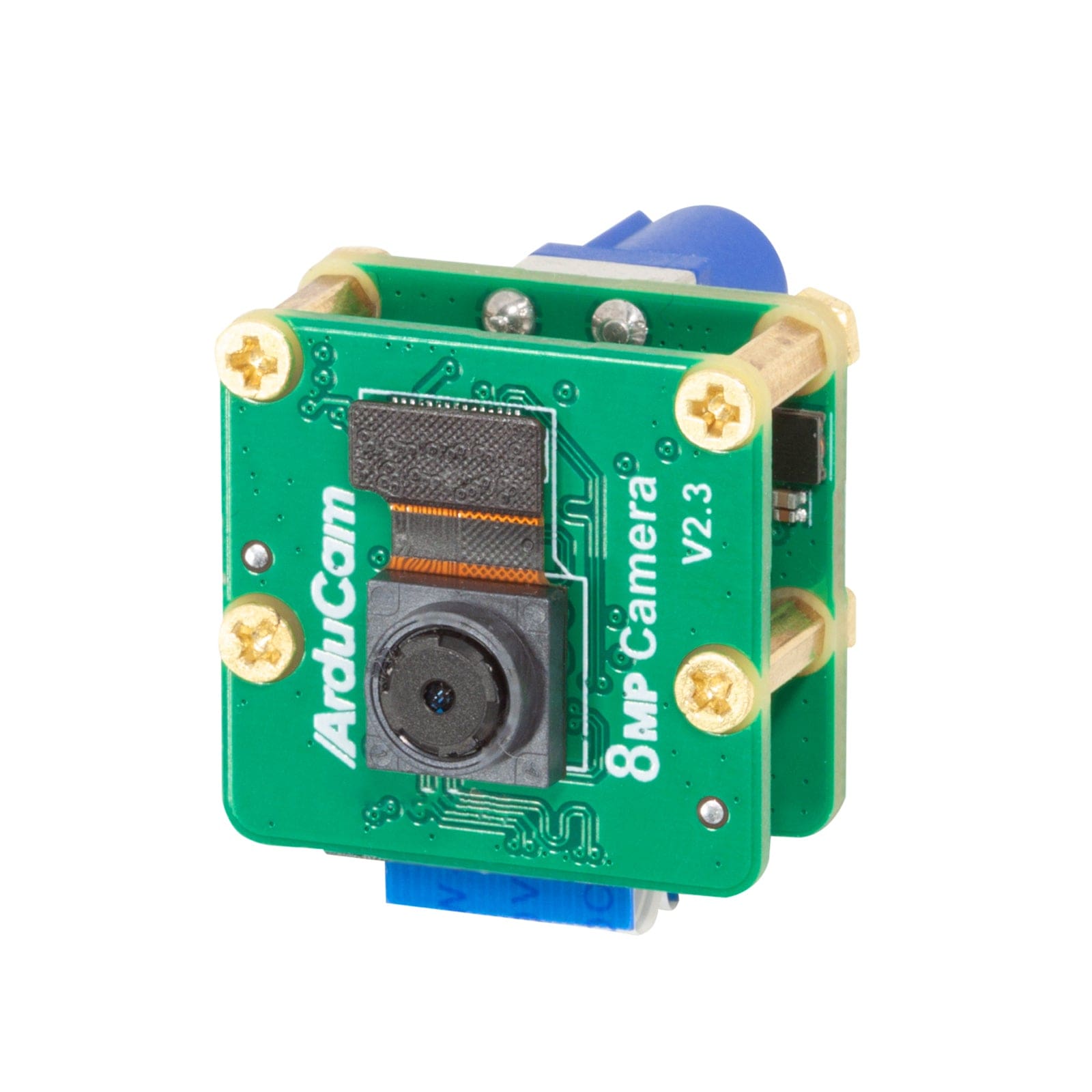

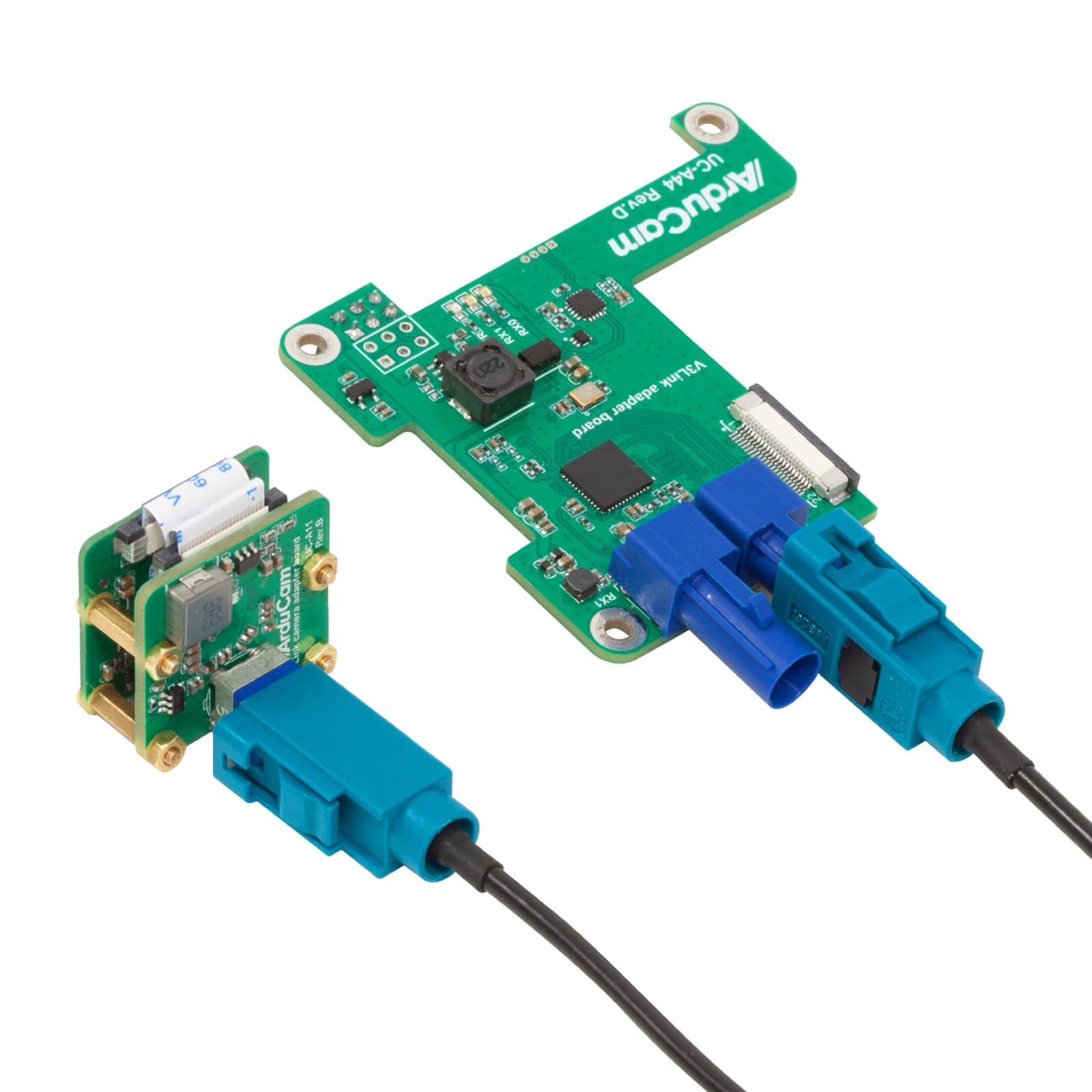

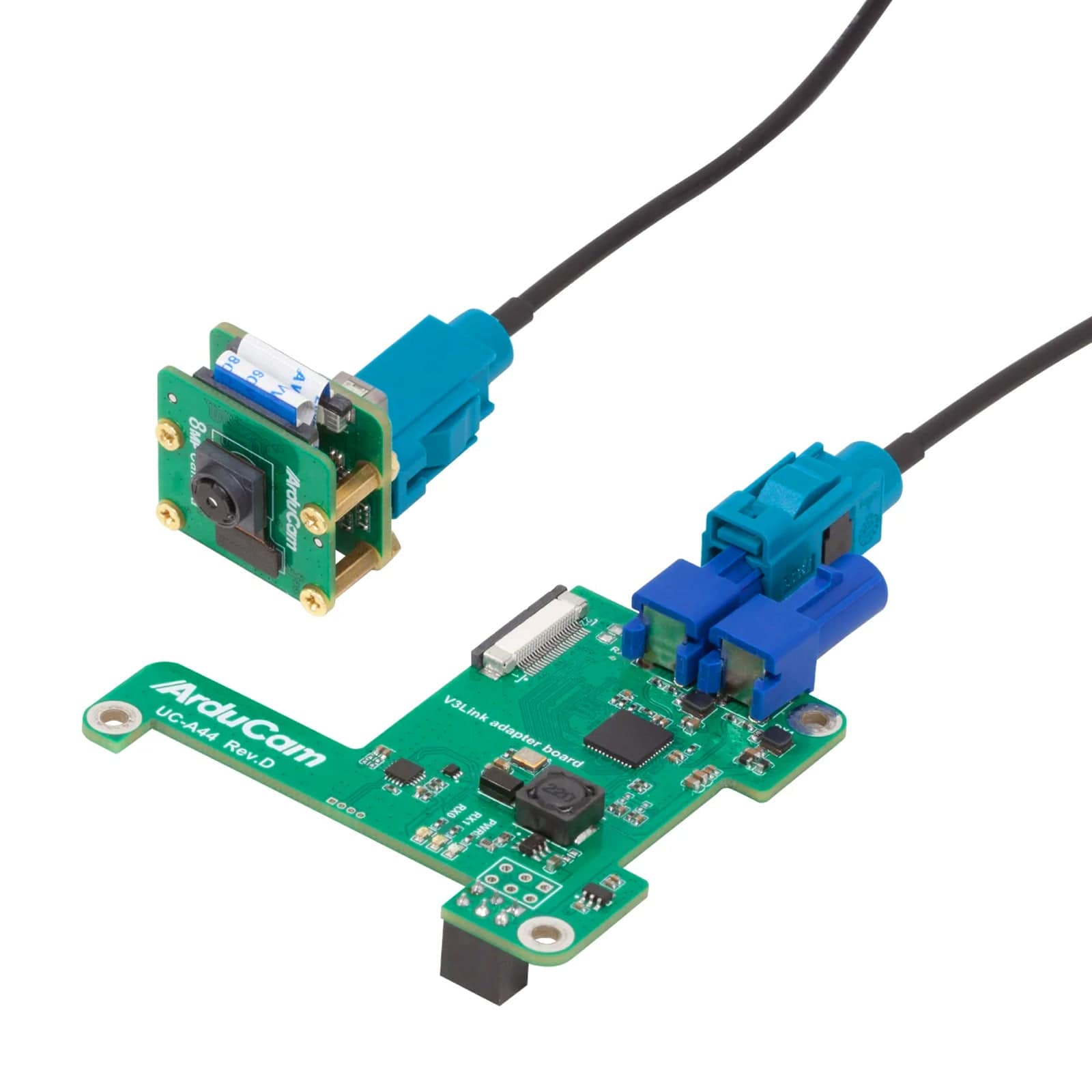

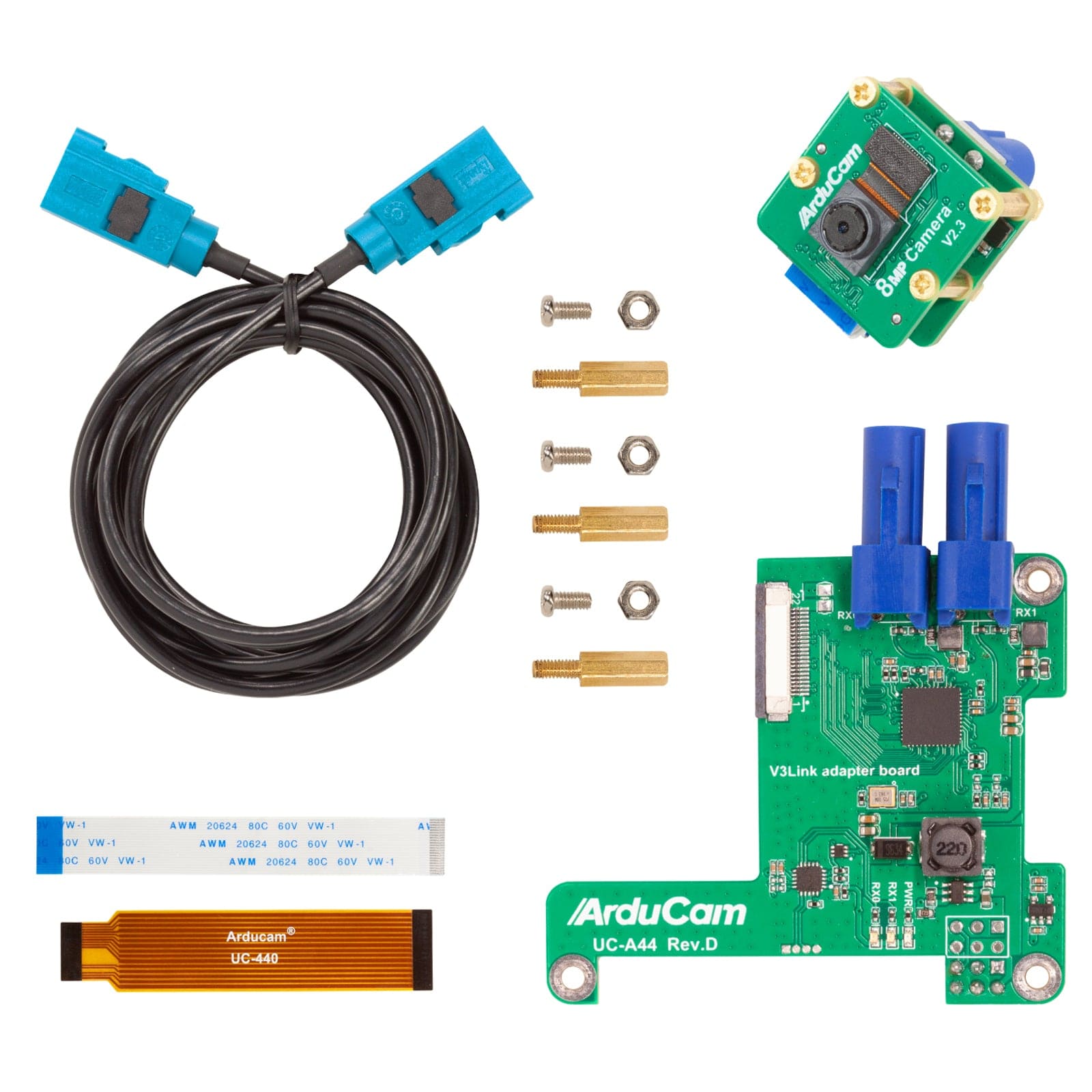

Resources Package Contents 1x Arducam V3Link Rx board 1x Arducam V3Link camera Tx board 1x 1m Fakra Z Female to Female RF Coaxial Cable 1x Arducam IMX219 Camera Module 1x 40mm 22-22pin FPC Cable 1x 80mm 22-22pin FPC Cable 1x 73mm 15-22pin FFC Cable 1x Screw Pack
