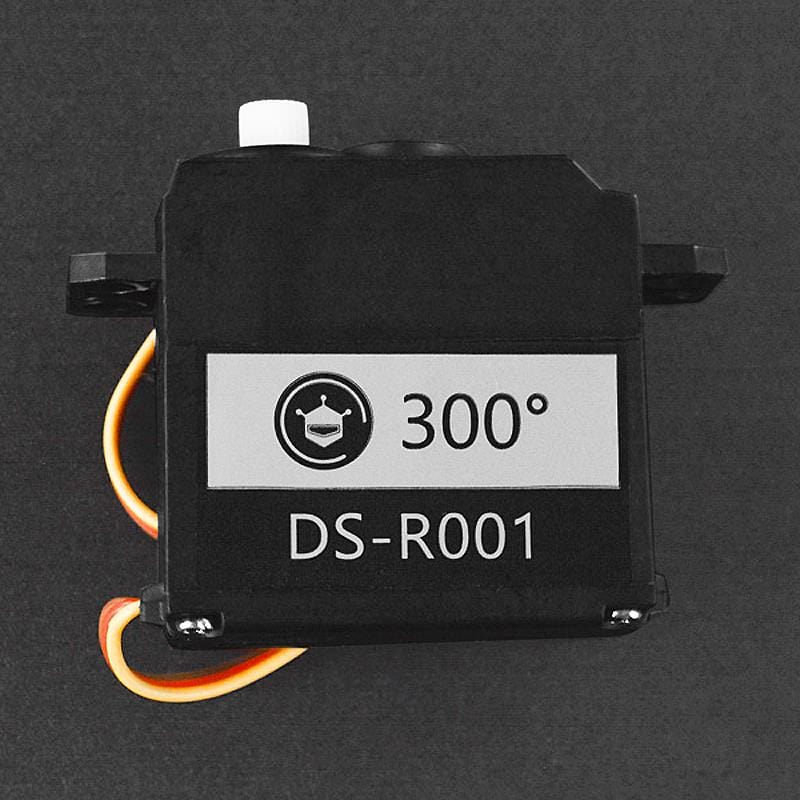

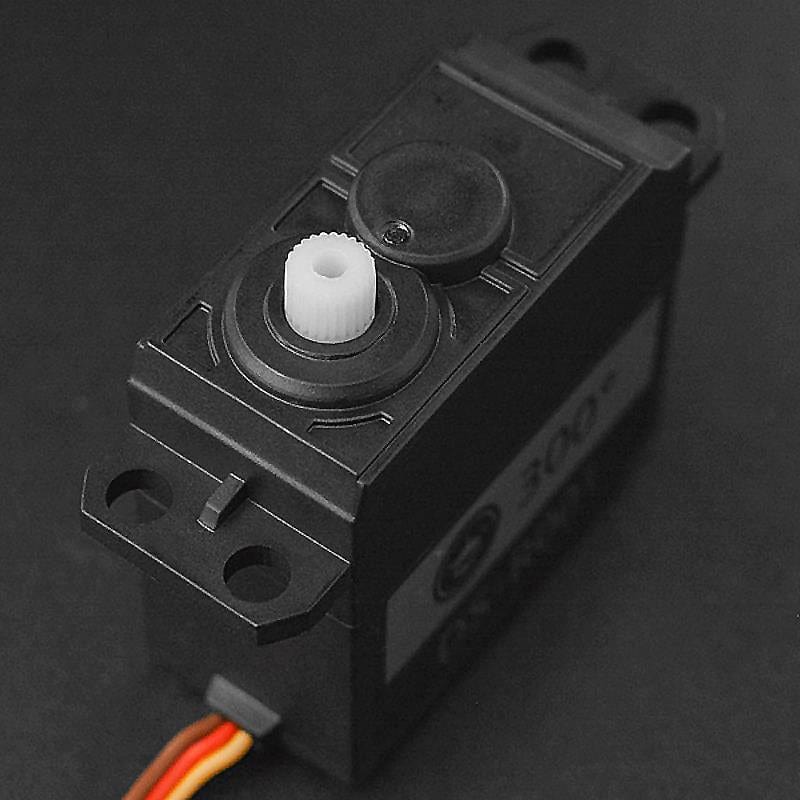

6Kg 300° Clutch Servo

DFRobotSKU: SER0057
Price:
Sale price £8.70
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

Raspberry PiRaspberry Pi Pico W
Sale priceFrom £6.30 incl. VAT excl. VAT
WaveshareServo Driver Module for Raspberry Pi Pico
Sale price £12.90 incl. VAT excl. VAT
WaveshareMotor & Servo Driver for micro:bit
Sale price £20.50 incl. VAT excl. VAT

When a servo is operated under heavy conditions such as in robotics, it may get stuck, stall, and damage can be caused if your project continues to push the servo.

Now DFRobot is launching a series of servos with a clutch function and electronic protection that can solve these problems perfectly!

This servo features high torque, stable performance, accurate running angles and easy installation. The operating voltage is 4.8~6V. When the servo is powered at 6V, its stall torque will exceed 6kg.cm. Since there is no limit switch inside the servo, users can make the servo rotate smoothly at 360 degrees (manually only). The servo can operate fluently with minimal power and can be directly controlled using servo libraries in the Arduino IDE, reaching a maximum 300 degrees rotation angle within the pulse range of 500-2500μsec.

Clutch function

When the angle of a servo is changed by external forces during normal operation, the servo can automatically reset and continue working through the clutch function, which prevents it from being damaged.

Electronic protection

After being blocked for 5 seconds, the servo will automatically turn off its power to avoid damage.

Specifications

  • Operating Voltage: 4.8-6V DC
  • Static Current: ≤10mA @ 6.0V
  • Current(at no load): ≤60mA @ 6.0V
  • Current(at stopped): ≤1.65A @ 6.0V
  • Rated Torque: ≥4.4kg·cm @ 6.0V
  • Stall Torque: 6kg.cm @ 6.0V
  • Operatable Travel: 300°±10°
  • Pulse Width Range: 500~2500μs
  • Communication Mode: PWM

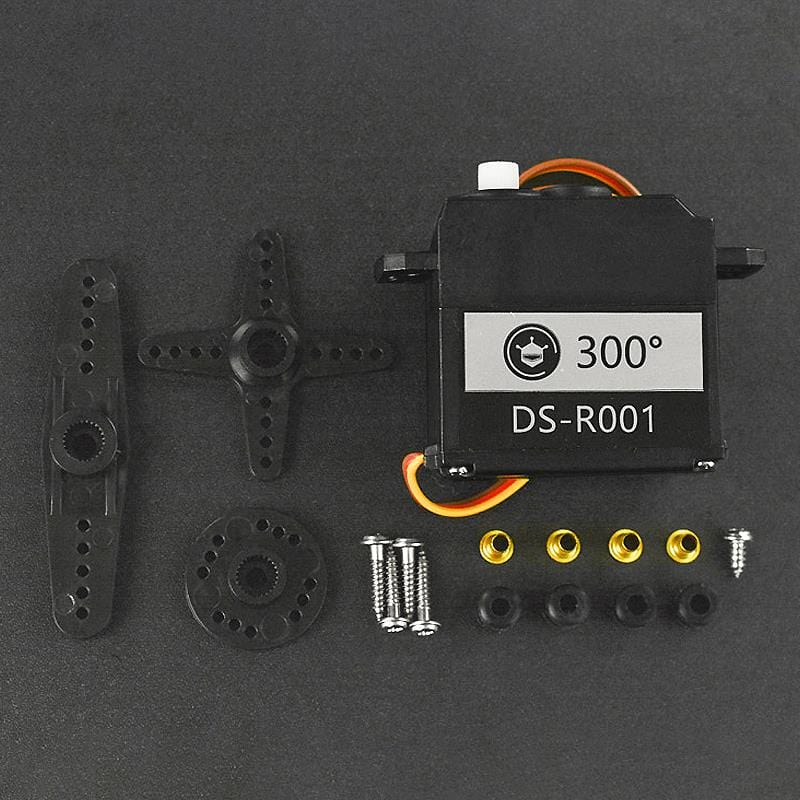

Package Contents

  • 1x 6Kg 300° Clutch Servo

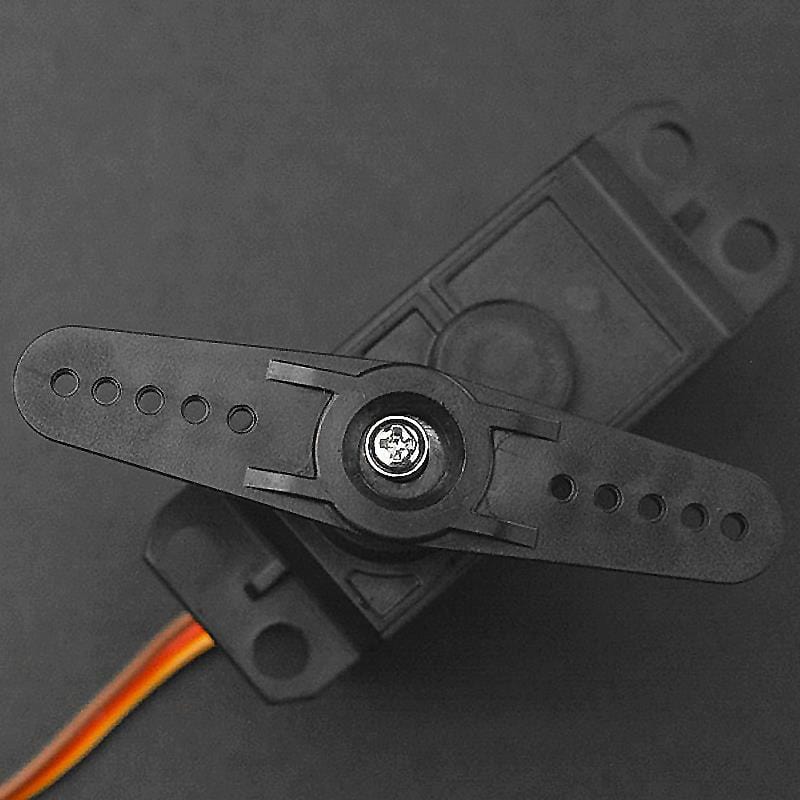

  • 1x Servo Plate & Accessories
