Voltaic Magnetic Panel Mounting Set for Solar Panels

The Voltaic Magnetic Panel Mounting Set provides a simple way to secure solar panels to surfaces, with a 4-piece mounting kit designed for quick installation.

The Voltaic Magnetic Panel Mounting Set is a mounting solution for securing compatible Voltaic ETFE solar panels to a wide range of surfaces. Designed for simple installation, this kit includes everything needed to attach your panel securely.

Each set includes four complete mounting assemblies, with high-strength neodymium magnets, corner mounts, screws, washers, and post nuts, allowing for stable and evenly distributed fixing. The hardware uses stainless steel components and durable materials to support outdoor use and long-term reliability.

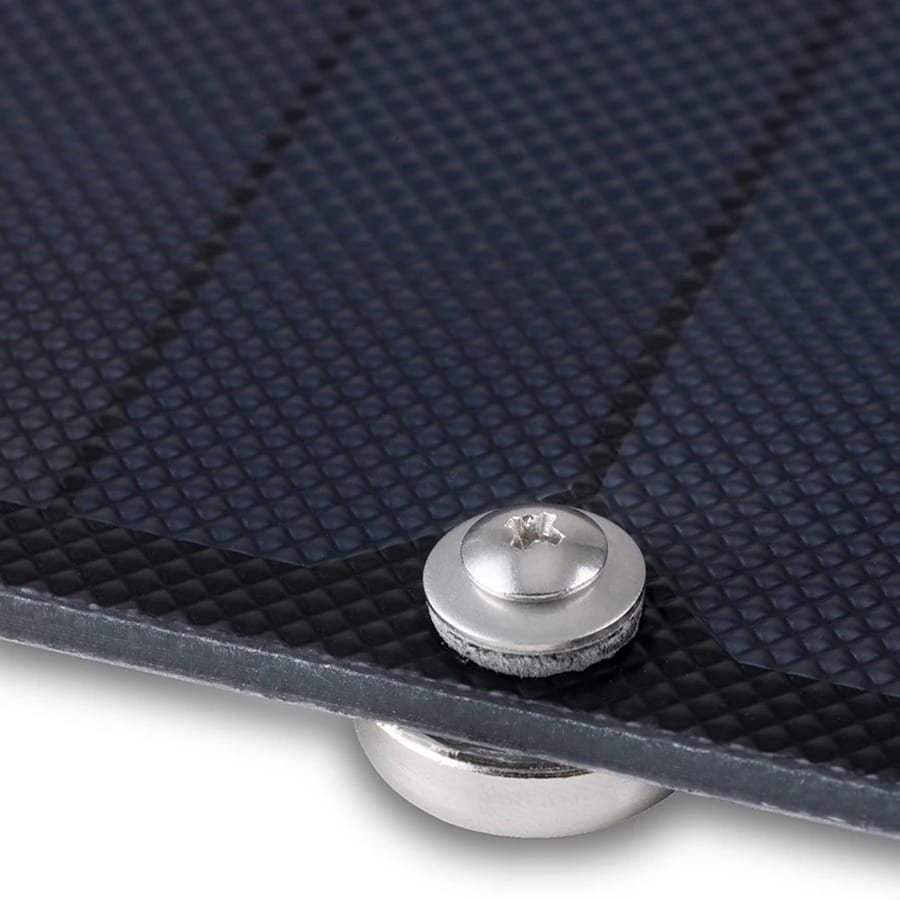

Installation is simple, using a screw-through design that secures the mount behind the panel for a clean and secure fit.

Not compatible with urethane solar panels (which include an embedded screw and ABS post nut).

Features

• Four complete corner mounting assemblies included
• Compatible with Voltaic ETFE solar panels with corner mounting points
• Stainless steel components for outdoor durability
• Includes screws, washers, and post nuts
• Secure corner-point mounting design

• Simple screw-through installation
• Evenly distributed weight support
• Clean, secure fit
• Spare magnets available

Specifications

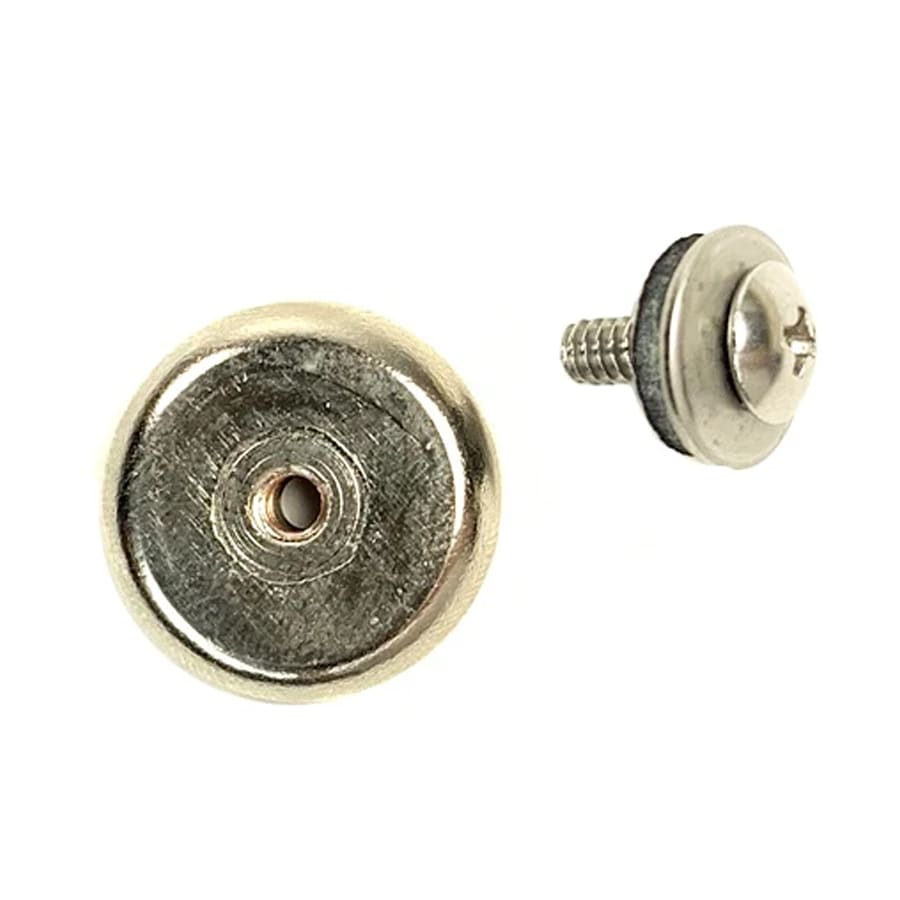

Magnet

• Diameter: 5/8"
• Internal Thread: 4/40
• Height: 3/16"
• Material: high-strength neodymium (NdFeB, Grade N42)
• Plating: Ni-Cu-Ni (Nickle)
• Pull Force: 9.45lbs
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe
• Weight: 0.217oz

Screw

• Extra-Wide Truss Head Phillips Screws
• Passivated 18-8 Stainless Steel
• 4/40 Thread
• 3/8" Long

Washer

• Neoprene Backed Stainless EPDM Washer
• Outer Diameter: 3/8"

Compatibility

• All EFTE Voltaic solar panels with corner mounting holes
• Not compatible with urethane solar panels (which include an embedded screw and ABS post nut).

Package Contents

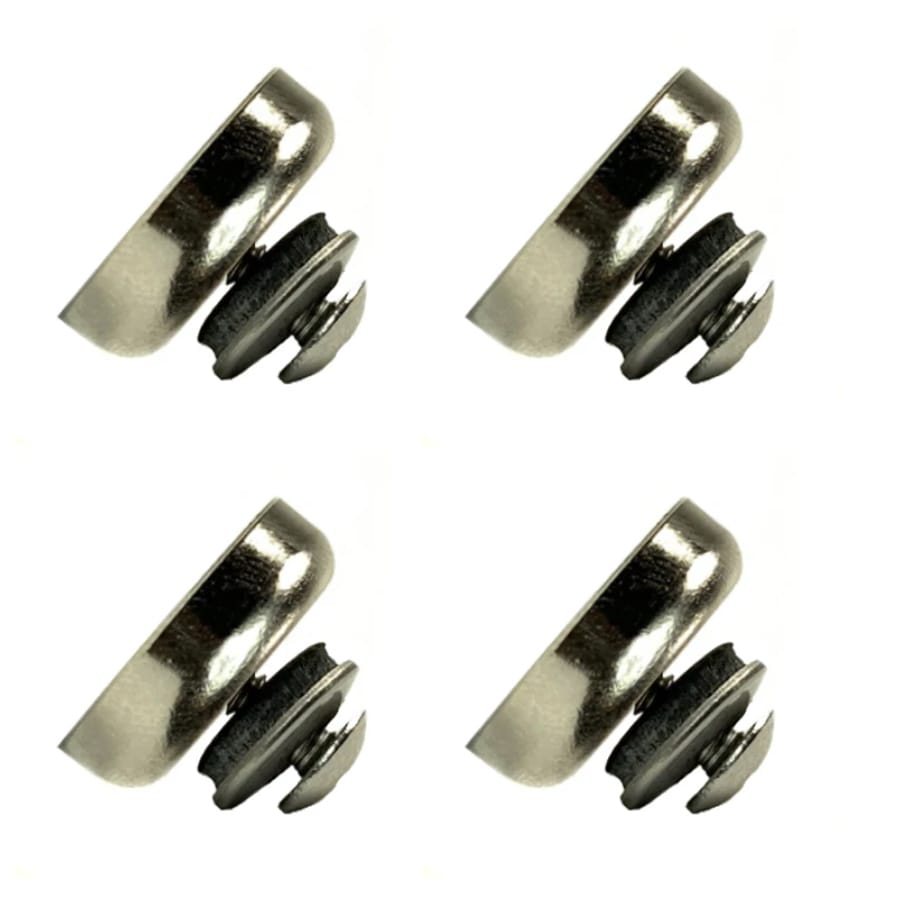

• 4x Voltaic panel magnet mounts and fixings
