Voltaic Medium Solar Panel Bracket

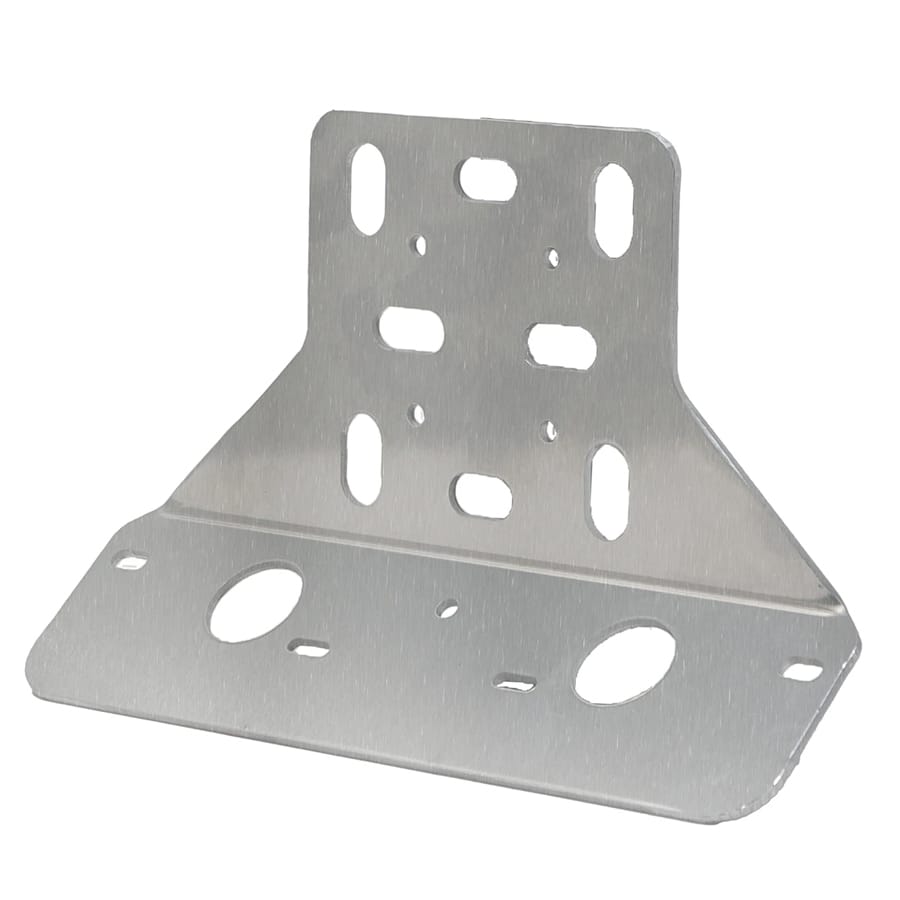

The Voltaic BK102 Medium Solar Panel Bracket is an aluminium mount designed to securely attach small Voltaic solar panels to poles or flat surfaces.

The Voltaic BK102 Medium Solar Panel Bracket is a robust mounting solution for securing the Voltaic P105 solar panel in outdoor and embedded applications.

Designed for flexibility, it allows panels to be mounted to both vertical and horizontal poles, as well as flat surfaces, making it suitable for a wide range of deployment scenarios.

Constructed from 2.5mm 6063 aluminium, the bracket is built to withstand harsh weather conditions, including strong winds and long-term outdoor exposure. Its fixed mounting angle helps optimise panel positioning for improved solar capture, while maintaining a stable and secure installation.

Screw & Washer Set (or similar DIY solution) to attach the solar panel to the bracket is required.

Bracket only - fixings and solar panel are not included.

Features

• Aluminium construction (2.5mm 6063 aluminium)
• Compatible with Voltaic P105/P016 solar panels

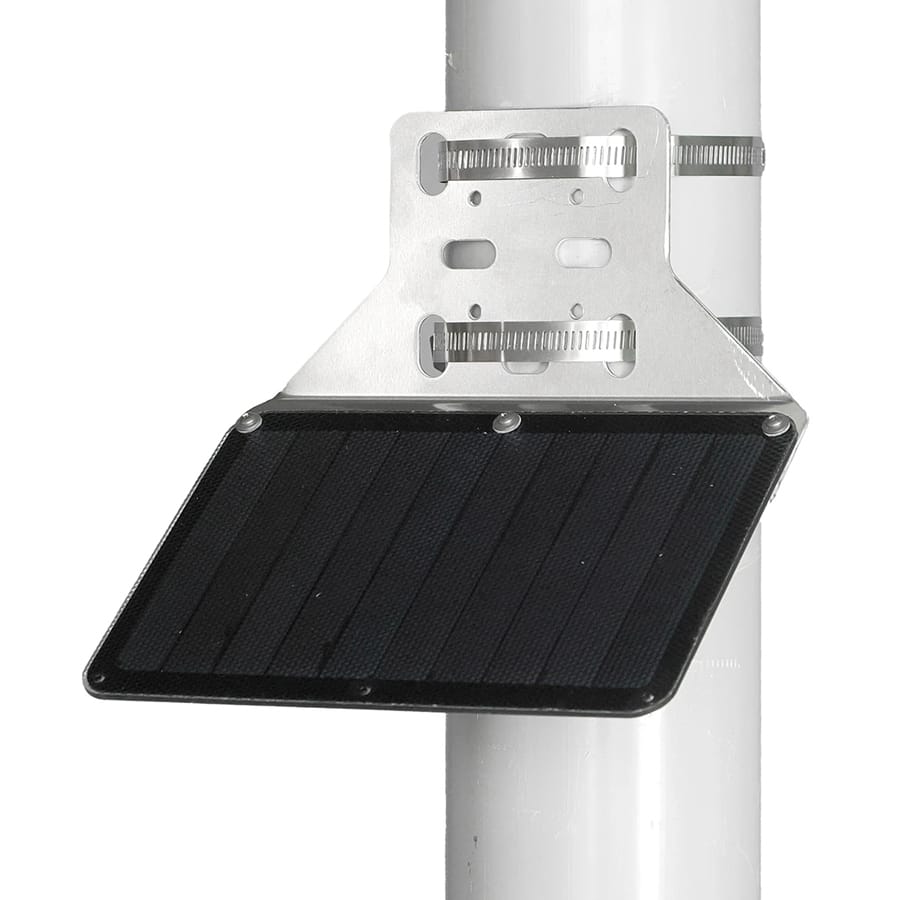

• Mounts to vertical and horizontal poles or flat surfaces
• Fixed mounting angle optimises solar panel positioning
• Supports U-bolts and pipe clamps for flexible installation

• Suitable for IoT, monitoring, and off-grid power systems
• Stable and secure installation in outdoor environments

Specifications

• Material: 2.5mm 6063 aluminium
• Weight: 156g
• Angle from horizontal: 40 degrees

Compatibility

• Compatible with Voltaic P105 and P106
• Connect to bracket using the Voltaic Screw & Washer Set (not included)

Resources

• Technical drawing
• Model
• Mounting options

Package Contents

• 1x Voltaic BK102 Medium Solar Panel Bracket

Bracket only - fixings and solar panel are not included.
