Dual-USB Charger (UK Plug)

ANSMANNSKU: 104901
Price:
Sale price £5.95
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

The Pi HutUSB-A to Micro-USB Cable
Sale priceFrom £1.50 incl. VAT excl. VAT
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
Save 50%
The Pi HutUSB-A to USB-B Cable
Sale priceFrom £2.50incl. VAT excl. VAT

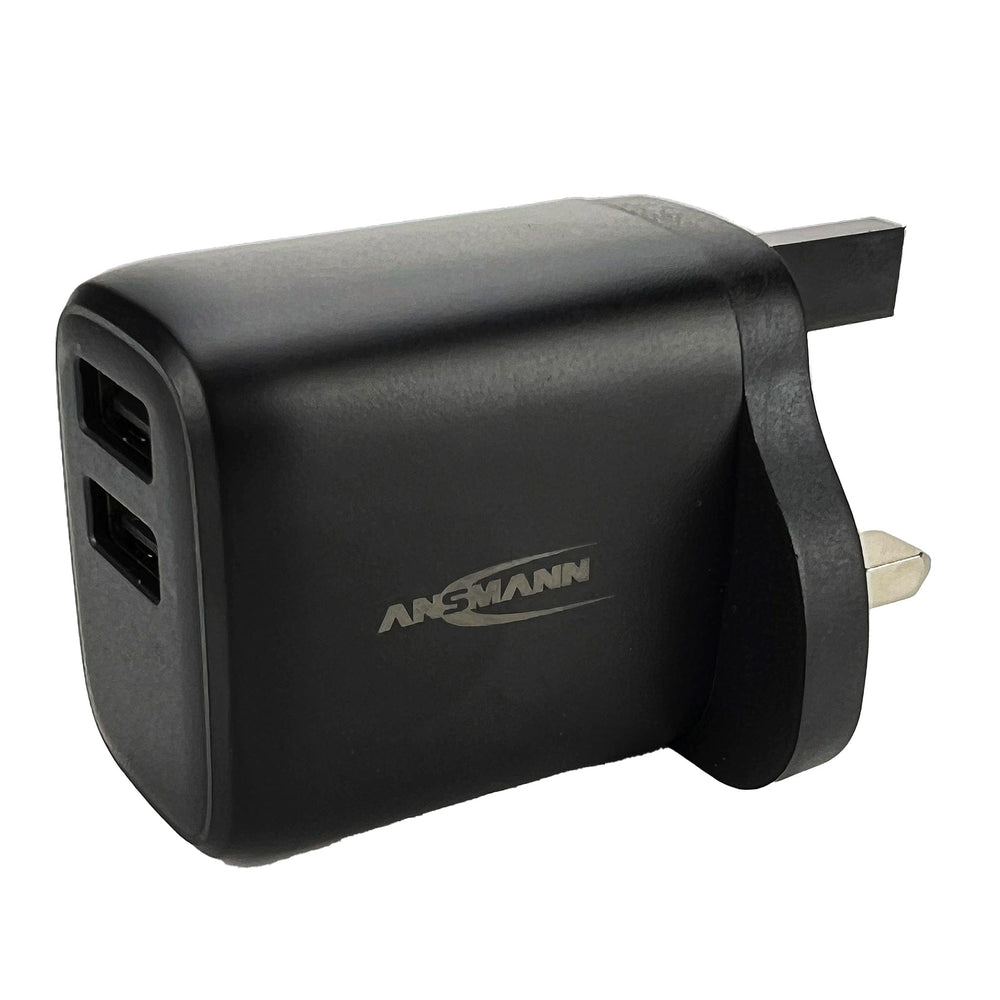

This ANSMANN UK USB charger is the perfect power source for development boards and projects that don't have an included/recommended power supply. It'll also charge your smartphone of course - handy!

Great for the Raspberry Pi Pico, Arduino Nano, Adafruit Feather, Teensy, SparkFun Thing Plus boards and more. If you want to power your board once it's away from a PC and installed in a project, this is just the job.

We do not recommend this power supply for the Raspberry Pi 4/3/Zero - stick to official or dedicated power supplies.

The two USB ports are regulated to 5V and can offer 2.4A max (per port, and all ports combined). This 12W charger is rated LEVEL VI Efficiency Standard with a maximum mains current use of 0.5A with a no-load power consumption of just 0.08W.

Multiple protection is built-in, with short circuit, over-voltage and over-current protection keeping you and your devices safe.

Features

  • 2x USB Port charger
  • UK 3-pin plug
  • 5V 2.4A output
  • Built-in protection
  • LEVEL VI Efficiency Standard
  • Quality ANSMANN product

Specification

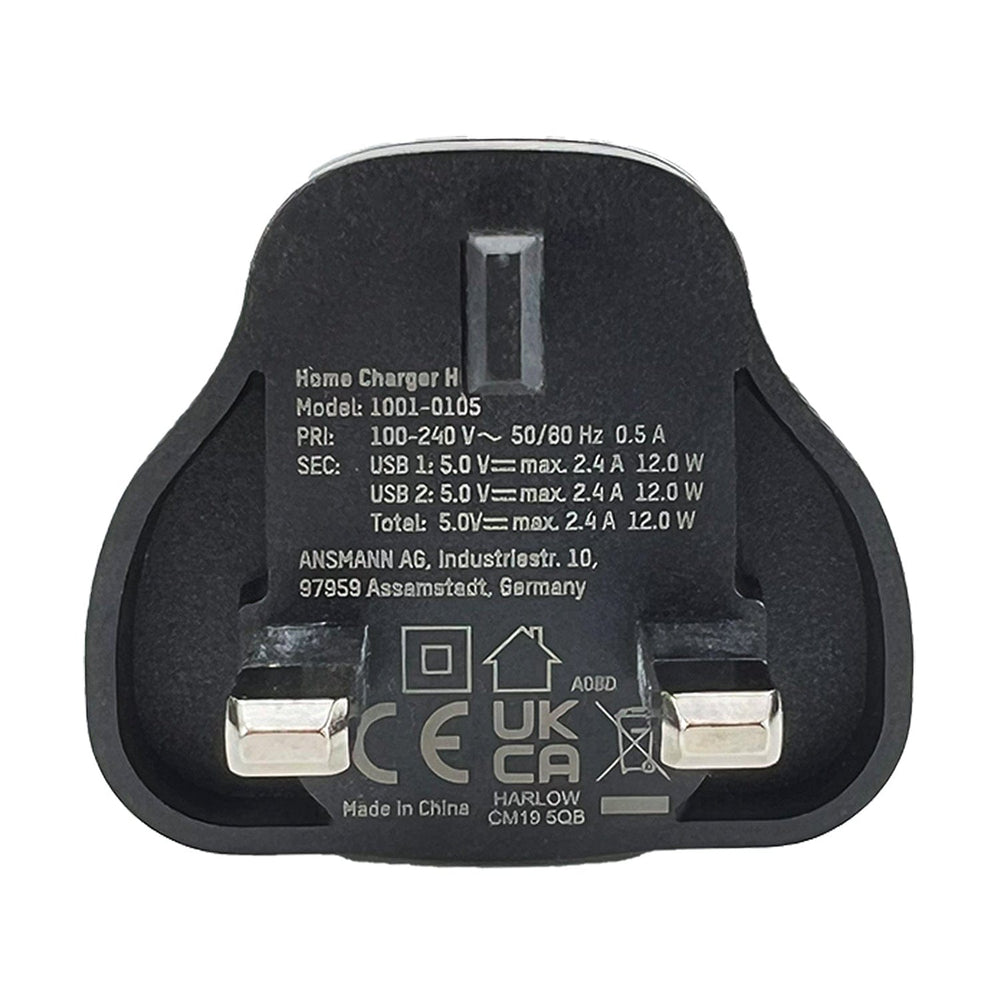

Input plug: UK plug
Input voltage: 100 V - 240 V +10%AC
Input current: Max. 0.5A
Input AC frequency: 60 Hz / 50 Hz
Output voltage: 5.0 V 5%DC regulated
Output current: 2.4 A
Output power: 12.0 W
Average active efficiency: 0.859
Efficiency at low load (10 %): 0.702
No-load power consumption: 0.08 W
Output connection: 2x USB standard Type-A socket
Output protocol: Battery Charging Specification R1.2
Protection class: Il
Housing material: Plastic
Housing type: Plug-in case
Operating temperature: -20 °C - 35°C
Approvals: CE
Weight: 59 g
Output protection: - Short circuit - Overvoltage - Overcurrent
Insulation: 3 kV primary/secondary
Storage temperature: -25 °C - 75°C
Shipment: AC USB power supply - Multilingual operating instruction
Package: White folding box
MPN 1001-0105
EAN 4013674176519
