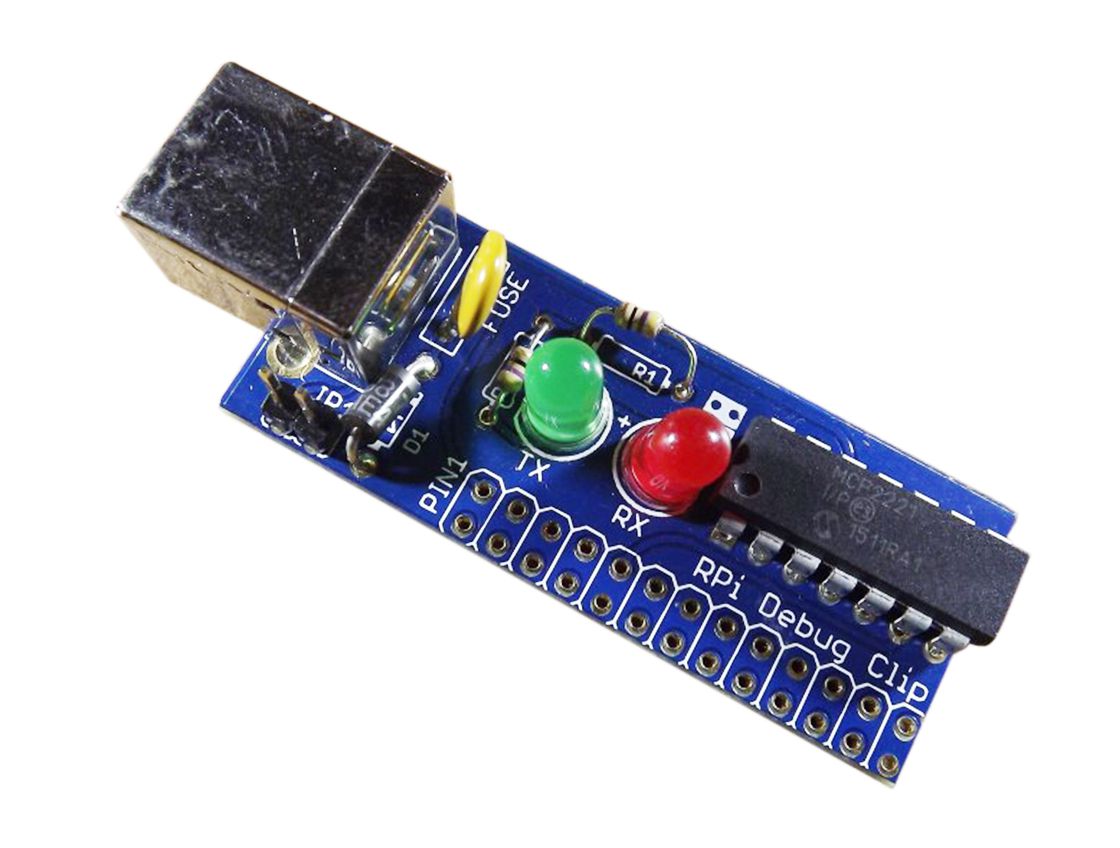

Ryanteck Debug Clip - RPi Compatibility Information
Operating Systems
We have tested the debug clip to be compatible with Raspberry Pis running the following operating systems.
| Operating System | Version | Tested On | Compatible? | Work Around? |
|---|---|---|---|---|
| Raspbian Via IMG | 2015-05-05 | 2015-06-08 | Yes | N/A |
| Raspbian Via NOOBs | To be tested | Unknown | ||
| Ubuntu Mate | 15.04 | 2015-06-08 | No | Unknown |
| ArchLinux ARM | ||||
| Pidora | 2014 R3 | |||
| RiscOS | 2014-02-17.14 |
Add-Ons
The Raspberry Pi Debug Clip is designed to work with most add-ons including hats by clipping inbetween the first 26 pins. The only add-ons excluded are the ones that require use of the serial port / uart pins such as Wireless Things / Ciseco modules and some RFID & Fingerprint readers. This is where the add-on uses the Pins as a serial port instead of a linux console.
You can however hack a ciseco wireless radio and debug clip for a wireless RPi console.
