PiOT Relay Zero Case Assembly Instructions

PiOT Relay Zero Case Assembly Instructions

The laser-cut parts of the case are protected by an adhesive film which needs to be removed before assembly.

Bill of Materials

  • ModMyPi PiOT Relay Board
  • 6x Acrylic plates
  • 3x M2.5 x 25mm F/F Stand Off
  • 4x M2.5 x 8mm M/F Stand Off
  • 7x M2.5 Screw
  • 1x M2.5 Nut
  • 4x Sleeved Grommet

NOTE: Acrylic is a hard and stiff plastic which is sensitive to stress concentrations and shares a certain level of fragility with glass. Acrylic can scratch easily and should be cleaned with a mild solution of dish detergent and warm water. Never use cleaners unsuitable for acrylic. Never use a dry, abrasive cloth.

Here are the parts from the case kit:

Follow these images checking parts and orientation of the acrylic pieces. You will see a before and after image for each step. Make sure you have all the parts ready, shown in the before picture.

Start by attaching the 8mm stand offs to the bottom clear acrylic plate using the M2.5 screws.

Now place the relay board on to the 8mm stand offs, and secure the top left stand off with a nut.

Install the Pi Zero. The Pi Zero needs a 40 pin header attached to the underside of the board.

Using the 3x 25mm F/F stand offs, secure the relay board by screwing the stand offs on to the thread of the 8mm stand offs.

Now we need to insert the sleeved gromets in to the relay side plate. Check the orientation of the plate, compare with the picture, and slide the gromets in from behind.

Now we need to insert each of the side plates, one by one.

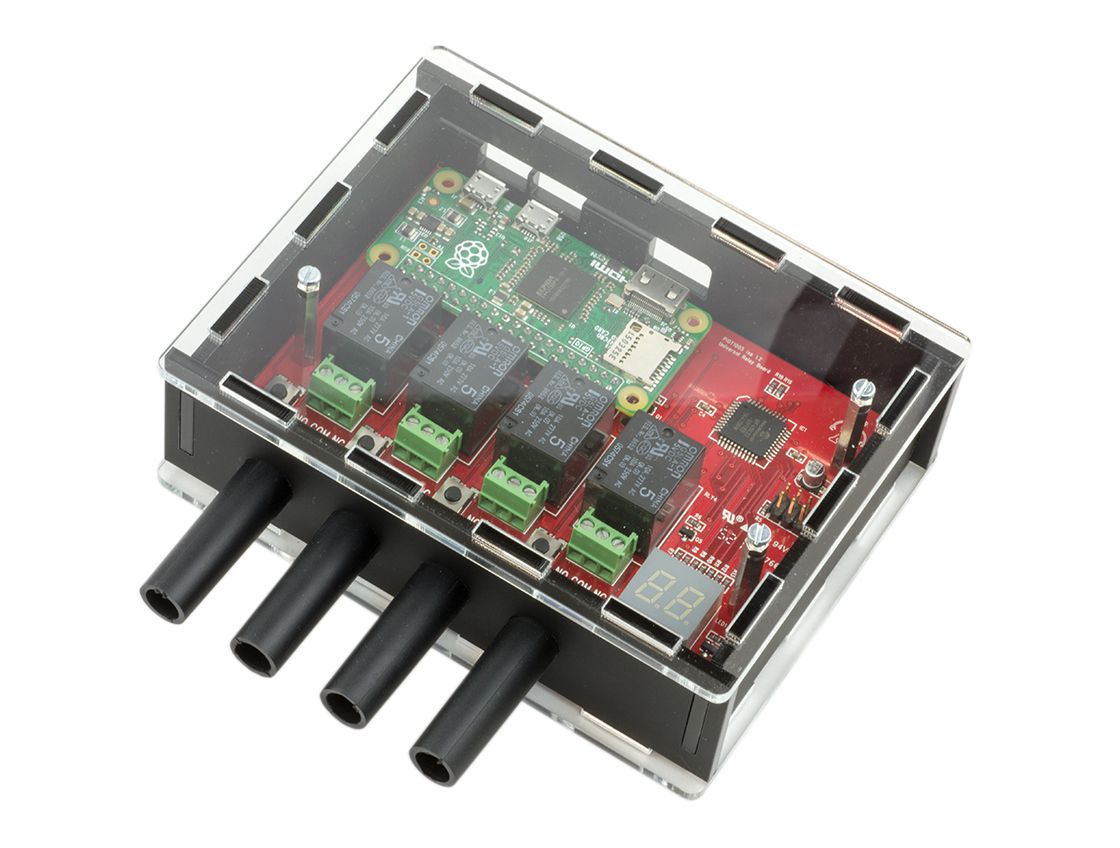

To finish, simply attach the top clear acrylic plate, and secure using the remaining screws.
