Naked USB Hub Case Assembly Instructions

Bill of materials:

  • 4x 1/4" OD Hex Standoffs (Male-Female) / 4-40 x 3/4"
  • 4x 1/4" OD Hex Standoffs (Male-Female) / 4-40 x 3/8"
  • 4x 1/4" OD Hex Standoffs (Female-Female) / 4-40 x 1/4"
  • 4x 4-40 Hex Machine Screw Nuts
  • 12x 4-40 x 1/4" Machine Screws
  • 2x Perspex Pieces

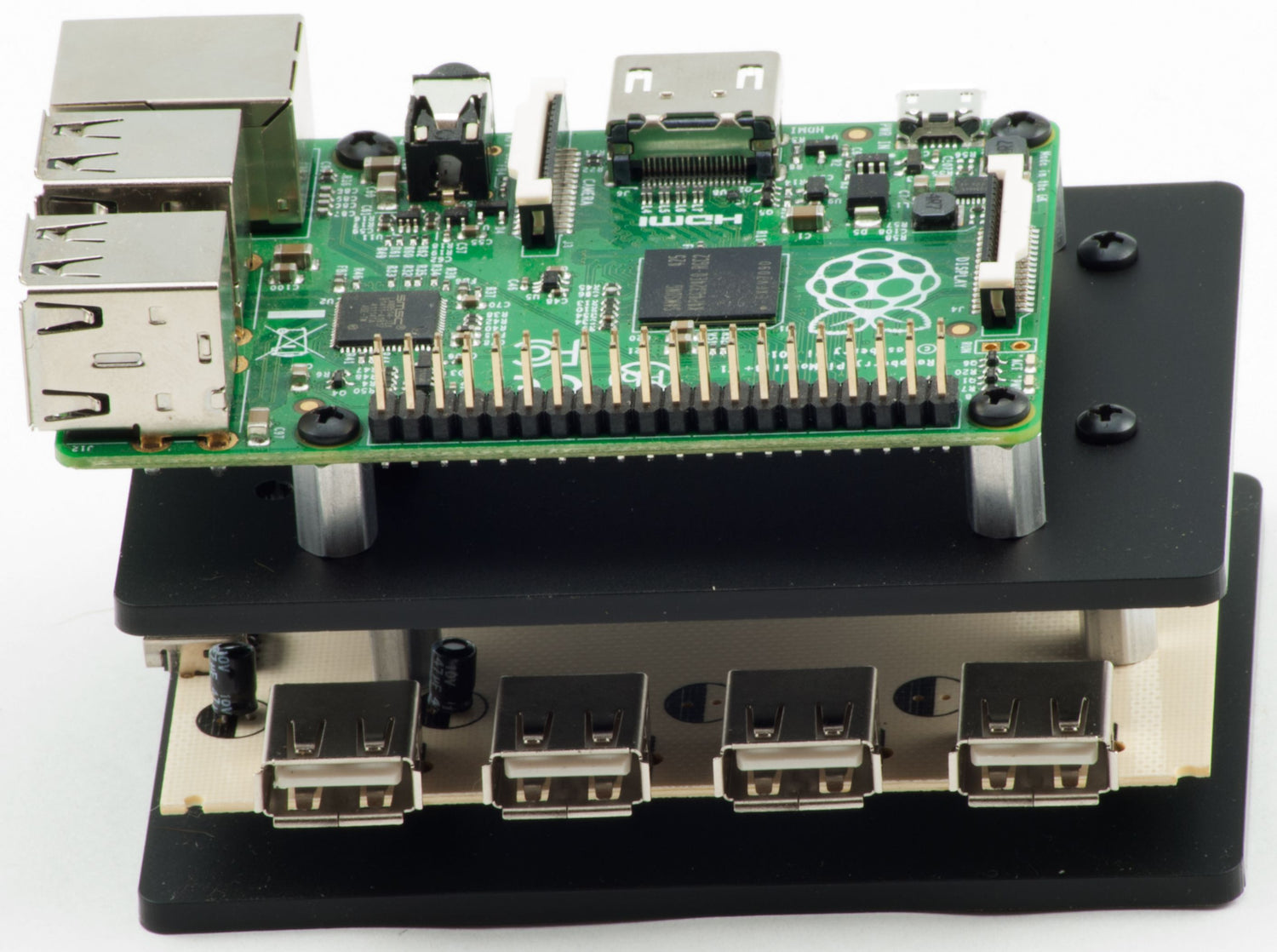

To assemble the case, simply refer to the images below, they show the parts needed for each step, along with the orientation of the perspex pieces.
