ModMyPi Grove Pi Case Assembly Instructions

The laser-cut parts of the case are protected by an adhesive film which needs to be removed before assembly.

Bill of Materials

  • Raspberry Pi B+ / 2 / 3
  • Grove Pi
  • 4x M2.5 x 8mm M/F Stand Off
  • 6x M2.5 Screw
  • 2x M2.5 Nut
  • 2x M2.5 x 16mm F/F Stand Off
  • 4x M3 x 40mm F/F Stand Off
  • 8x M3 Screw

NOTE: Acrylic is a hard and stiff plastic which is sensitive to stress concentrations and shares a certain level of fragility with glass. Acrylic can scratch easily and should be cleaned with a mild solution of dish detergent and warm water. Never use cleaners unsuitable for acrylic. Never use a dry, abrasive cloth.

Here are the parts from the case kit:

Follow these images checking parts and orientation of the acrylic pieces. You will see a before and after image for each step. Make sure you have all the parts ready, shown in the before picture.

Start by securing the 4 8mm M/F stand offs to the bottom plate.

Now add the outside supporting pillars to the bottom plate, use the M3 screws to fasten.

Time to add the Pi. Place the Pi over the 8mm stand offs. Fasten the top two (closest to the USB ports) with the 16mm F/F stand offs, and the bottom two with the M2.5 nuts.

Next, plug in the Grove Pi breakout board, and secure with two M2.5 screws.

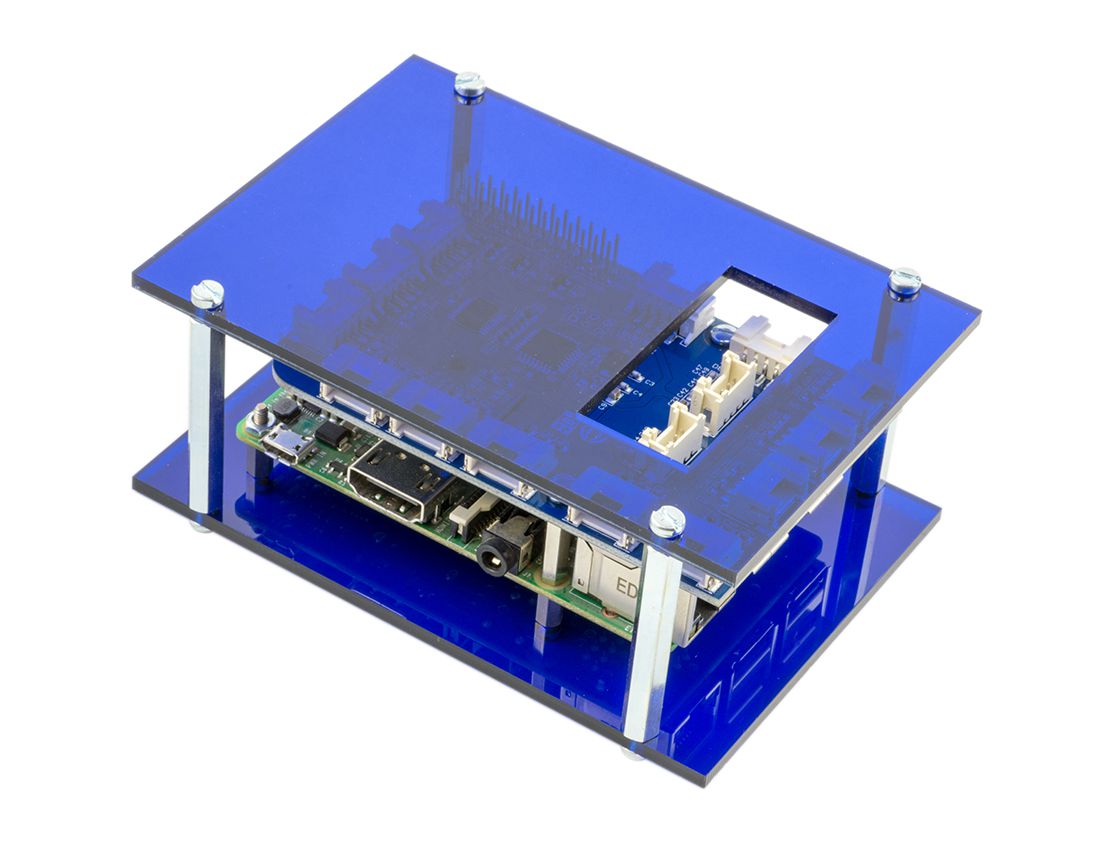

Finally add the top plate and secure using M3 screws.
