ZIP Hex LED (pack of 5)

KitronikSKU: KIT35140
Price:
Sale price £6.30
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

Compatible with:

Awesome Extras

micro:bit V2 - The Pi Hutmicro:bit V2 - The Pi Hut
BBC micro:bitmicro:bit V2.2
Sale price £15.60 incl. VAT excl. VAT
Small Alligator Clip Test Lead (set of 12) - The Pi HutSmall Alligator Clip Test Lead (set of 12) - The Pi Hut
The Pi HutSmall Alligator Clip Test Lead (set of 12)
Sale price £3.40 incl. VAT excl. VAT
ZIP Circle - 12 ZIP LEDs - The Pi HutZIP Circle - 12 ZIP LEDs - The Pi Hut
KitronikZIP Circle - 12 ZIP LEDs
Sale price £6.50 incl. VAT excl. VAT

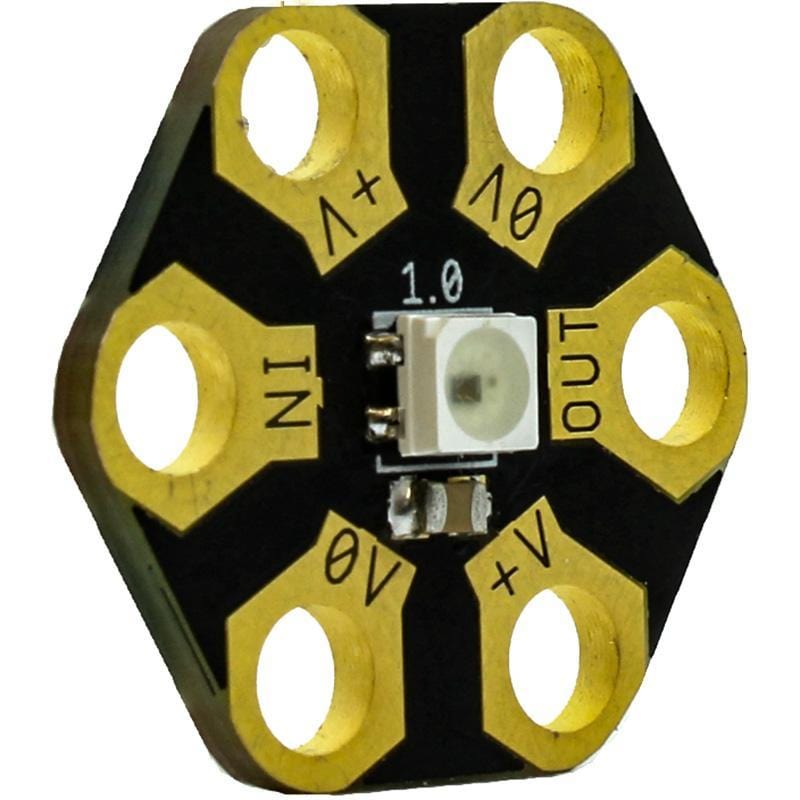

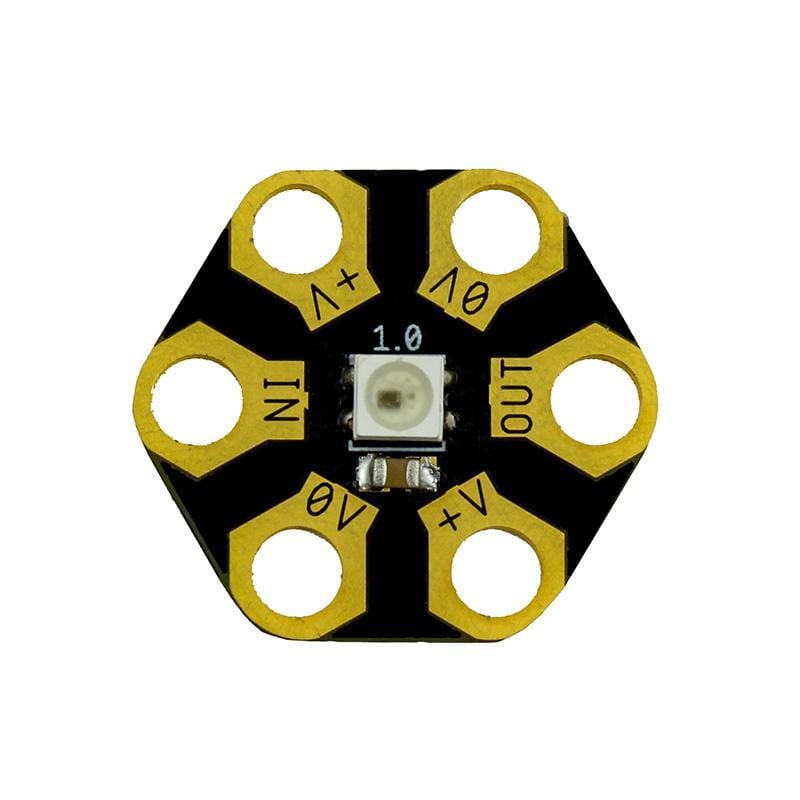

The Kitronik ZIP Hex LED has a single RGB LED which can be controlled with a Microprocessor to produce a full spectrum of colours.

The LED is a WS2812Mini, for which software packages are available for the BBC micro:bit and other processors.

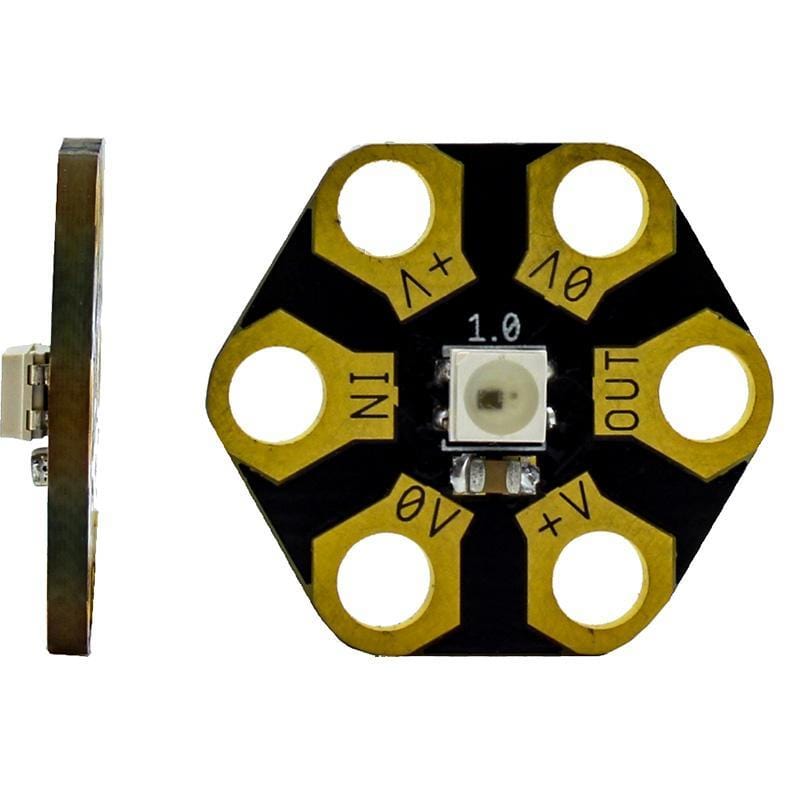

The board has been specifically designed to allow you to chain the boards together. They have 6 evenly spaced pads around the outside of the PCB that can be connected to with crocodile clips or M3 fixings. They can also be stacked by rotating the PCB 180 degrees to create columns.

The ZIP Hex LED has an operating voltage of between 3.5V to 5V and can be fed into the boards via the +V and 0V pads. Data to the LED is fed to the LED via the IN pad. When chaining ZIP Hex LEDs together, or other ZIP LED boards, the OUT of the first board should have a connection to the IN of the second board, repeated for each board in the chain. You would also connect the +V and 0V pads of each board together.

Features

  • Features a single WS2812Mini LED which can produce a full spectrum of colours
  • Can be controlled by a Microprocessor such as the micro:bit
  • Multiple boards can be chained together
  • Pads can be connected to with crocodile clips or M3 fixings

Resources

Contents

  • 1 x Kitronik ZIP Hex LED (pack of 5)

Dimensions

  • Point to Point Width: 21.5mm.
  • Length To Length Width: 19.5mm.
  • Height: 3.6mm.
  • PCB Thickness: 1.6mm

Tech Specs

  • Operating Voltage (V) 3.5V to 5V
  • Supply Current (mA) 50mA at 5V
  • LED Current (mA) 16mA per RGB channel at 5V
  • Pin +V Voltage supply
  • Pin 0V Ground supply
  • Pin IN Data in to LED
  • Pin OUT Data out of LED
