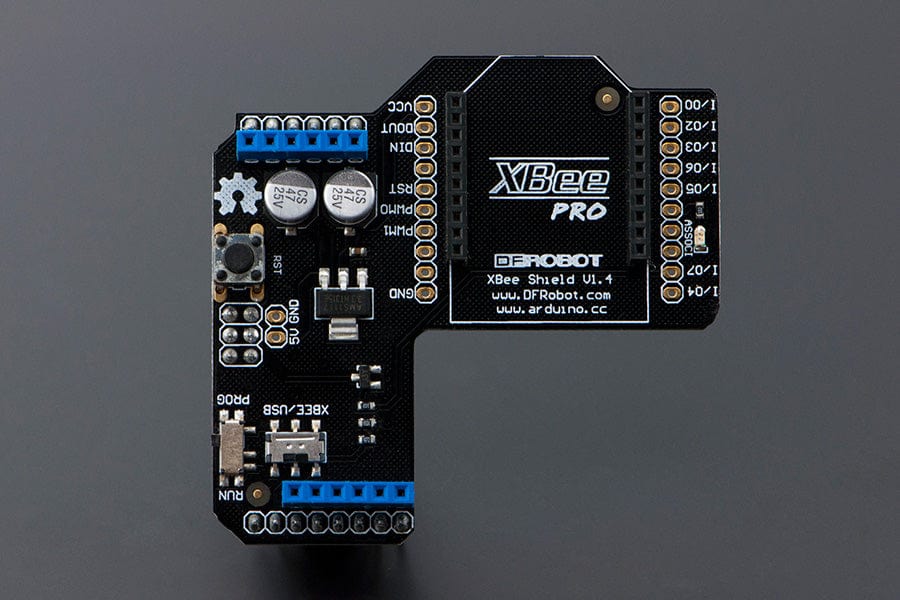

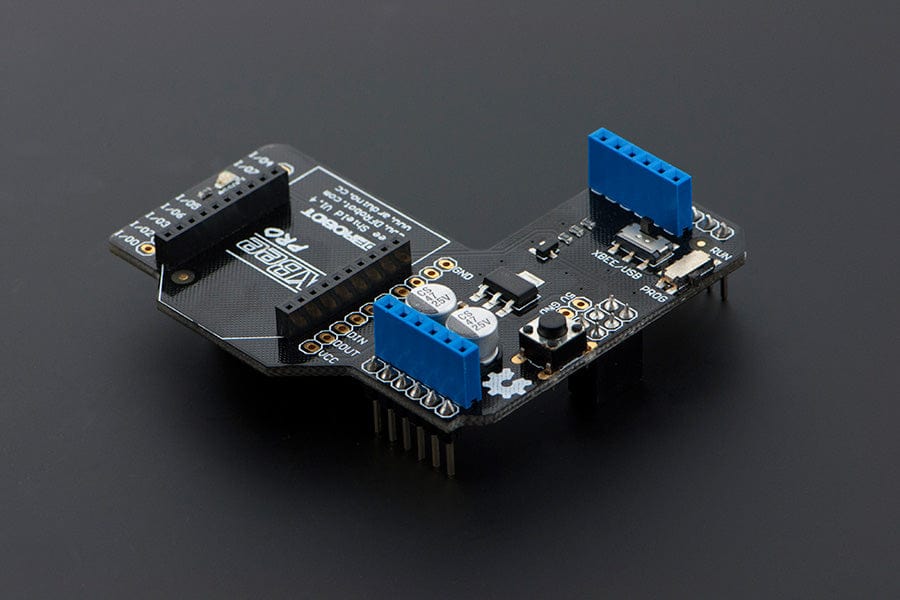

This xbee shield for arduino can be directly stack on top of Arduino Uno / Leonardo and Mega. It provides a 5-3.3V voltage converter to allow 3.3V communication modules to interface Arduino 5V system.
The compatibility of this arduino xbee shield is now extremely good. It supports not only zigbee module, but also wifi and bluetooth module. Such as Wifi bee, Bluetooth 2.0 Bee Ready Board , Bluetooth 4.0 Bee Ready Board. It also supports the most popular Esp8266 wifi bee module.
The Xbee module is widely used in the United States, Canada, Australia, Israel and Europe. The establishment of RF communication does not require any configuration and the module's default configuration supports a wide range of data system applications. You can also use a simple AT command to advanced configuration. An OEM developer is now XBee code development package. It is self-developed in collaboration with the MaxStream ZigBee/802.15.4 RF module code.
- Wiki (Xbee Shield For Arduino)
- Schematic (Version 1.4)
- Xbee configuration tutorial
- Arduino xbee library
- Xbee Shield For Arduino x1
