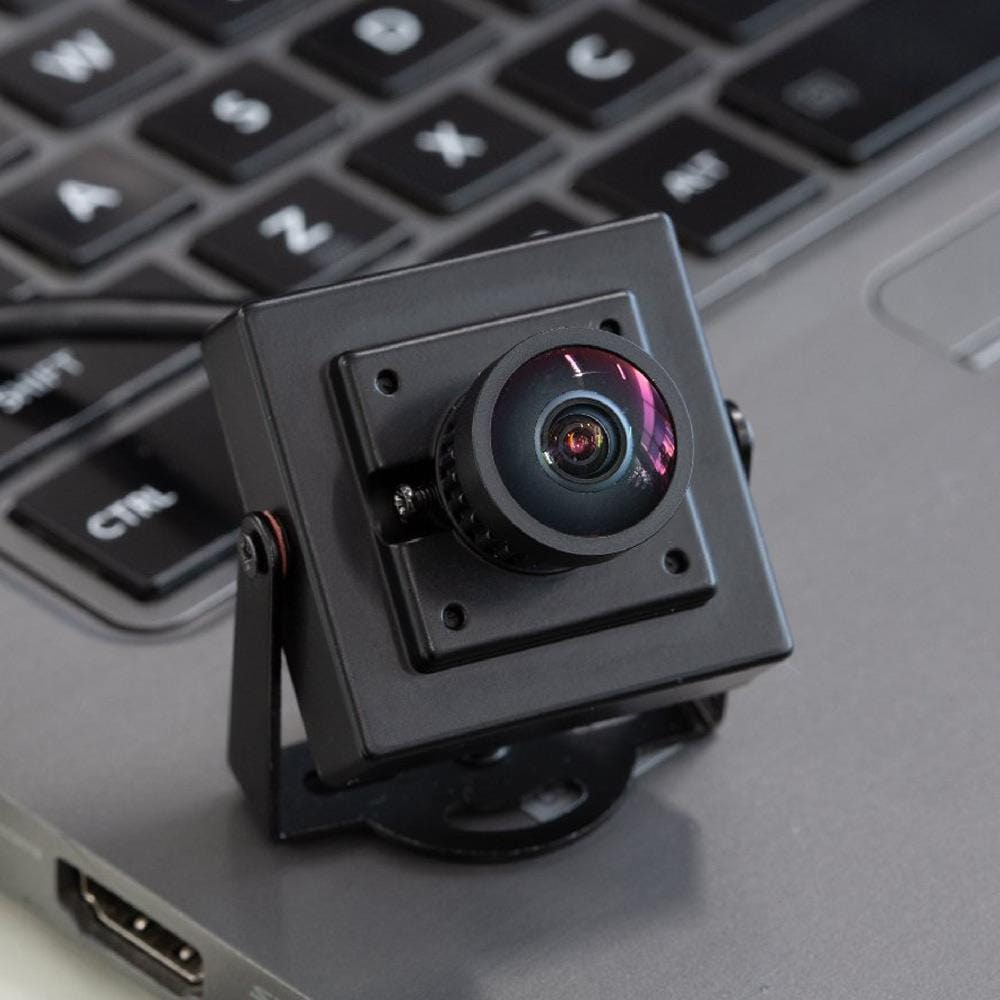

Wide-Angle 1080p UVC-Compliant USB Camera Module with Metal Case

The B020201 is a new member of Arducam’s USB camera family. Based on the 1/2.8” Sony IMX291 image sensor, it’s a 2MP, UVC-compliant, ultra-wide-angle, low light, high-speed USB 2.0 camera with a metal case!

We also stock a different version with a tripod for desk setups.

The camera features dual stereo microphones to enable your project to capture video and audio at the same time (see below for framerates). The camera comes with a metal case providing both protection and mounting options via the lower plate.

No installing drivers - the native UVC drivers of Windows, Linux and Mac are compatible with this camera so that it does not require extra drivers to be installed.

Combine with our alternative M12 lens options to customise your project further!

Features

• HD Resolution and Low Light: The Sony 2MP IMX291 colour sensor provides the camera with an 80DB wide dynamic range and can capture minimum illumination of 0.001Lux, which gives you a wider angle of view and clearer visuals for day and night
• Ultra Wide Angle: High quality 160-degree super wide view angle (diagonal) M12 lens with IR filter
• Capture Video with Audio: High frame rates, H.264 30fps@1920×1080; MJPG 30fps@1920×1080; YUY2 30fps@640x 480; Audio, dual stereo microphones
• Plug & Play: UVC-compliant, supports Windows XP/7/8/10, Linux, and Mac OS - just connect the camera to your computer, laptop or Raspberry Pi with the USB cable without extra drivers needing to be installed
• Applications & Projects: This tiny camera board with metal case can be placed in the most hidden and narrow position for a home video surveillance system, day & night low-light vision security camera system, dashcam or other machine vision application

Specifications

Camera

• Sensor: 1/2.8” Sony IMX291
• Resolution: 2MP 1945H x 1109V
• Data Format: MJPG/YUY2/H.264
• Frame Rate: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
• Dynamic Range: 80DB
• Minimum Illumination: 0.001Lux
• Shutter type: rolling shutter
• USB speed: USB 2.0
• Focus type: Fixed

Lens

• Field of View (FOV)：D= 160°
• Lens Mount: M12
• Focusing Range: 6.56ft (2M) to infinity
• IR Sensitivity: Integral IR filter, visible light only

Functionality and Compatibility

• Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
• Audio: Dual microphones
• System Compatibility: Windows, Linux, and Mac with UVC

Power

• Power Supply: USB powered 5V
• Working Current: MAX 300mA

Physical

• Operating Temp.: -4°F~167°F (-20°C~+75°C).

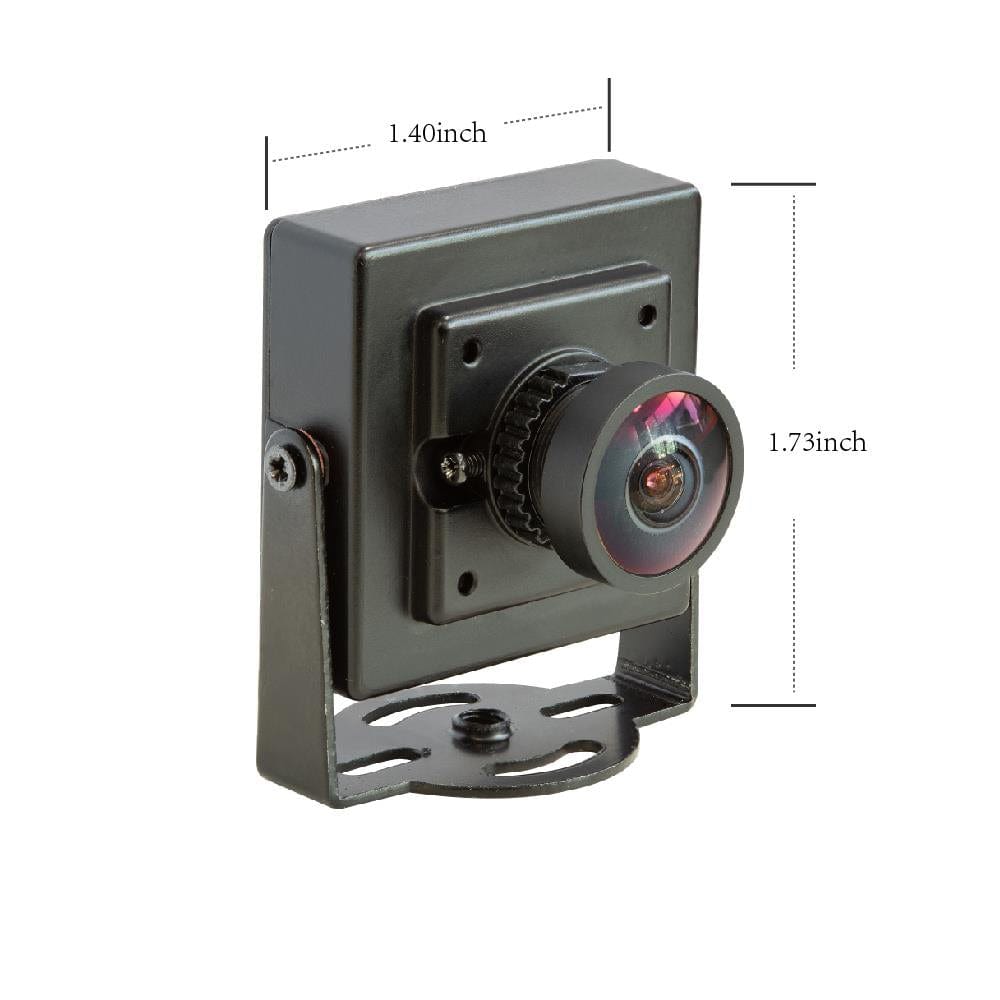

• Dimension: 1.73″×1.4″
• Cable Length: 3.3ft (1m)

Package Contents

• 1 × 2MP IMX291 USB 2.0 camera board with metal case
• 1 × 3.3ft (1M) USB 2.0 cable
