Waveshare RP2350 Plus

Who doesn't want a Pico 2 with a few extra features?! The RP2350 Plus is a board inspired by the Raspberry Pi Pico, built around the Raspberry Pi RP2350A dual-core microcontroller. It has the same dual-core Arm Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, with clock speeds up to 150 MHz. The board includes 520KB of SRAM and 4MB of onboard Flash memory, which gives you plenty of resources for various projects.

To get you powered up, there is a USB Type-C connector, and one of the extra features that the Pico 2 doesn't have is a lithium battery recharge/discharge header, which is very useful for a project that is on the go! The MP28164 DC-DC chip is a high-efficiency, low-quiescent current buck-boost converter that can supply a maximum 2A load current. The board is compatible with most of the Raspberry Pi Pico add-on modules (Just when you were wondering if you could use them with it)

With 26 multi-function GPIO pins, the Plus provides flexibility for various configurations. It supports multiple interfaces, including 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC channels, and 16 controllable PWM channels. The plus is compatible with C/C++ and MicroPython. It has a comprehensive SDK, development resources, and tutorials to assist you in getting up and running!

This is available in two versions: one without a pin header and one with pre-soldered pin headers. Please select which one you want before adding it to your cart!

Please note: this board uses a tiny MX1.25 connector for LiPo power. Most LiPo batteries on the market (including ours) use a larger JST fitting. We do not yet stock batteries with an MX1.25 connector, however, you can customise your battery with one of our 1.25mm pitch cables to make a compatible battery yourself (assuming you have the ability, knowledge and tools to do this safely).

Features

• RP2350A microcontroller chip designed by Raspberry Pi
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 4MB of onboard Flash memory
• Type-C connector, keeps it up to date, easier to use
• Lithium battery recharge/discharge header, suitable for mobile devices
• DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26x multi-function GPIO pins
• 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12x Programmable I/O (PIO) state machines for custom peripheral support

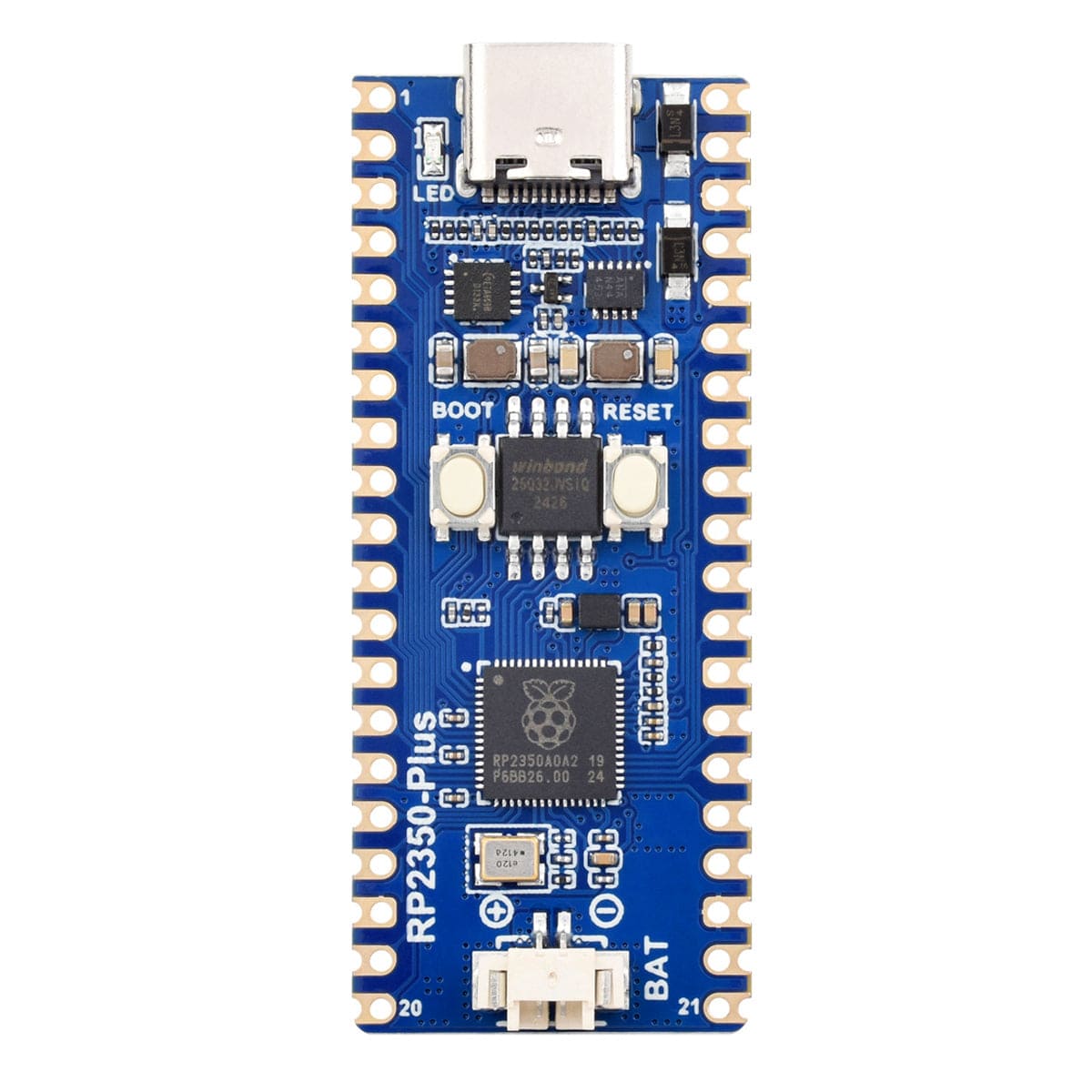

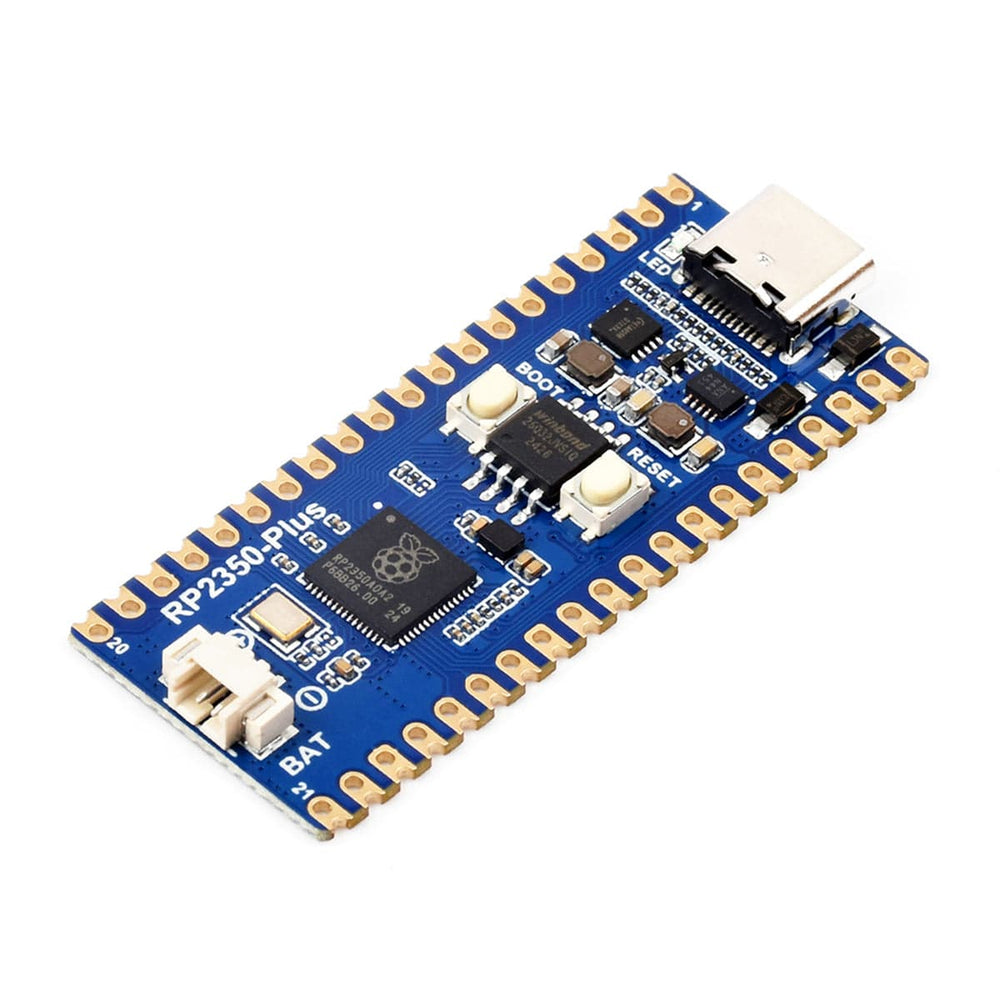

What's on Board

1. LED
   User LED (not power indicator)
2. USB Type-C connector
3. ETA6096
   High-efficiency Lithium battery recharge manager
4. MP28164
   High-efficiency DC-DC buck-boost chip
5. BOOT button
   Press it when resetting to enter download mode
6. On-board flash memory
   4MB: W25Q32JVSSIQ
7. RESET button
8. RP2350A
   Dual-core and dual-architecture design, up to 150 MHz operating frequency
9. Battery header
   MX1.25 header, for a 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
10. Pinout
    Compatible with Raspberry Pi Pico 2
11. USB test points
    Connecting to the USB interface
12. BOOT test point
    Connecting to the BOOT button
13. DEBUG points

Resources

• Product Wiki
• Schematic

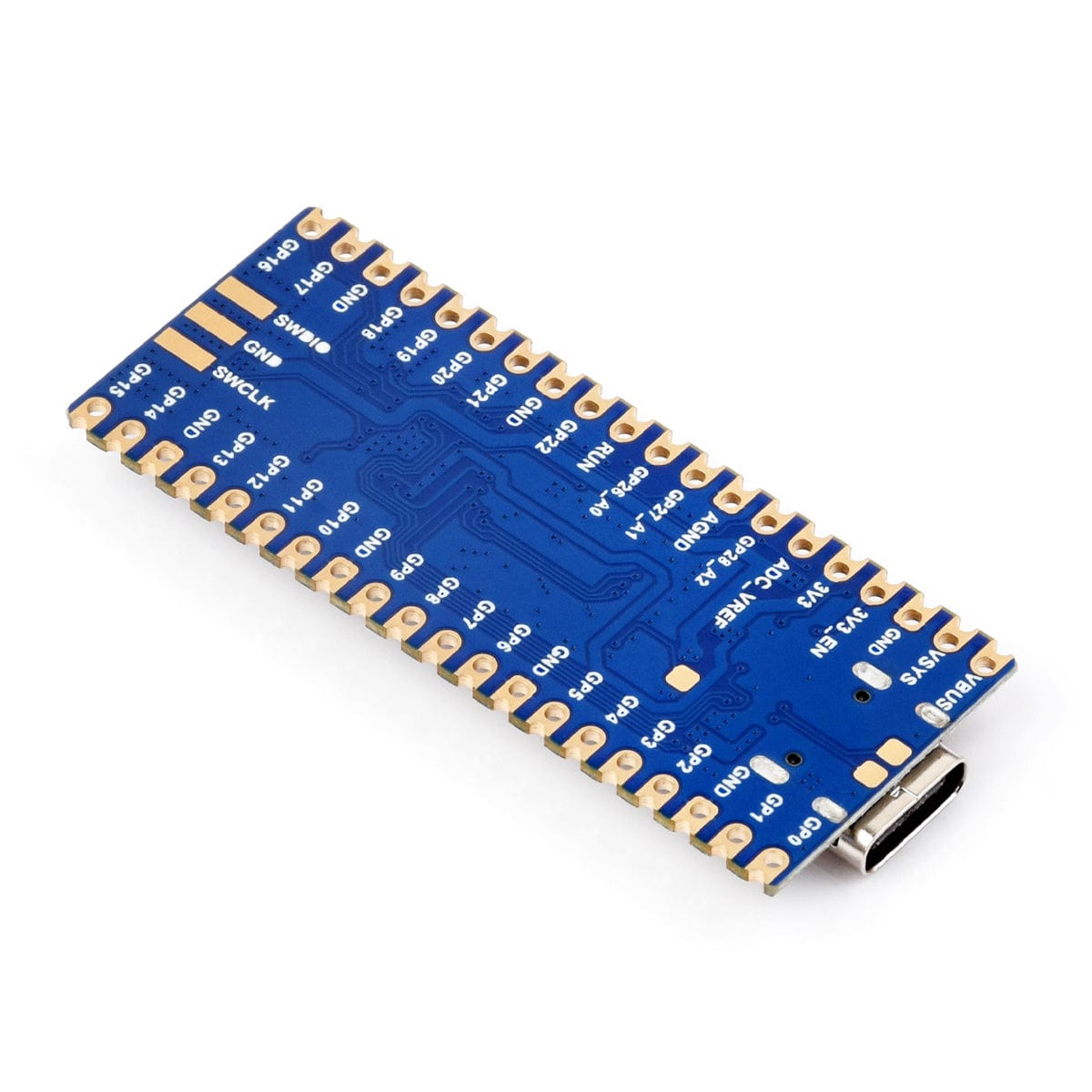

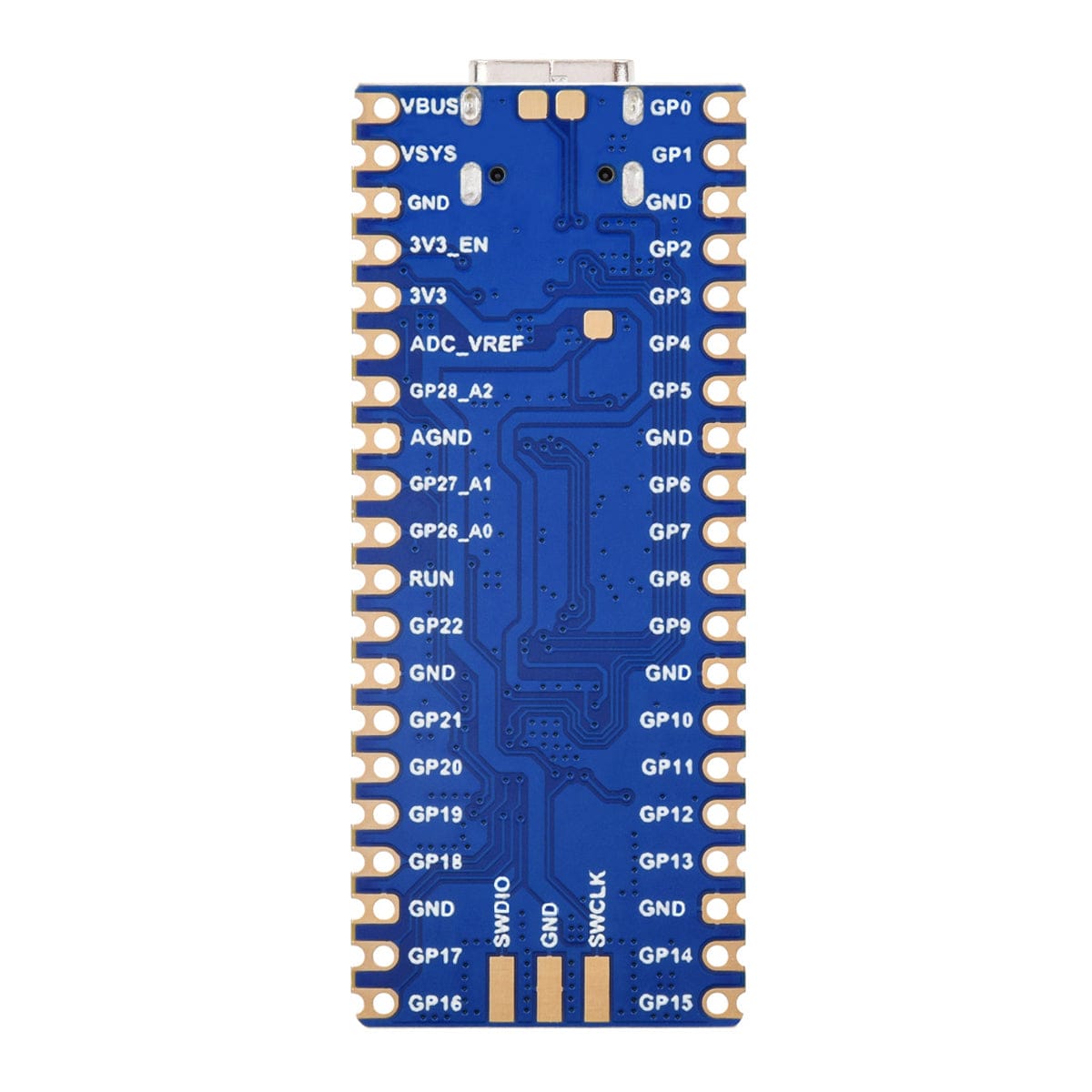

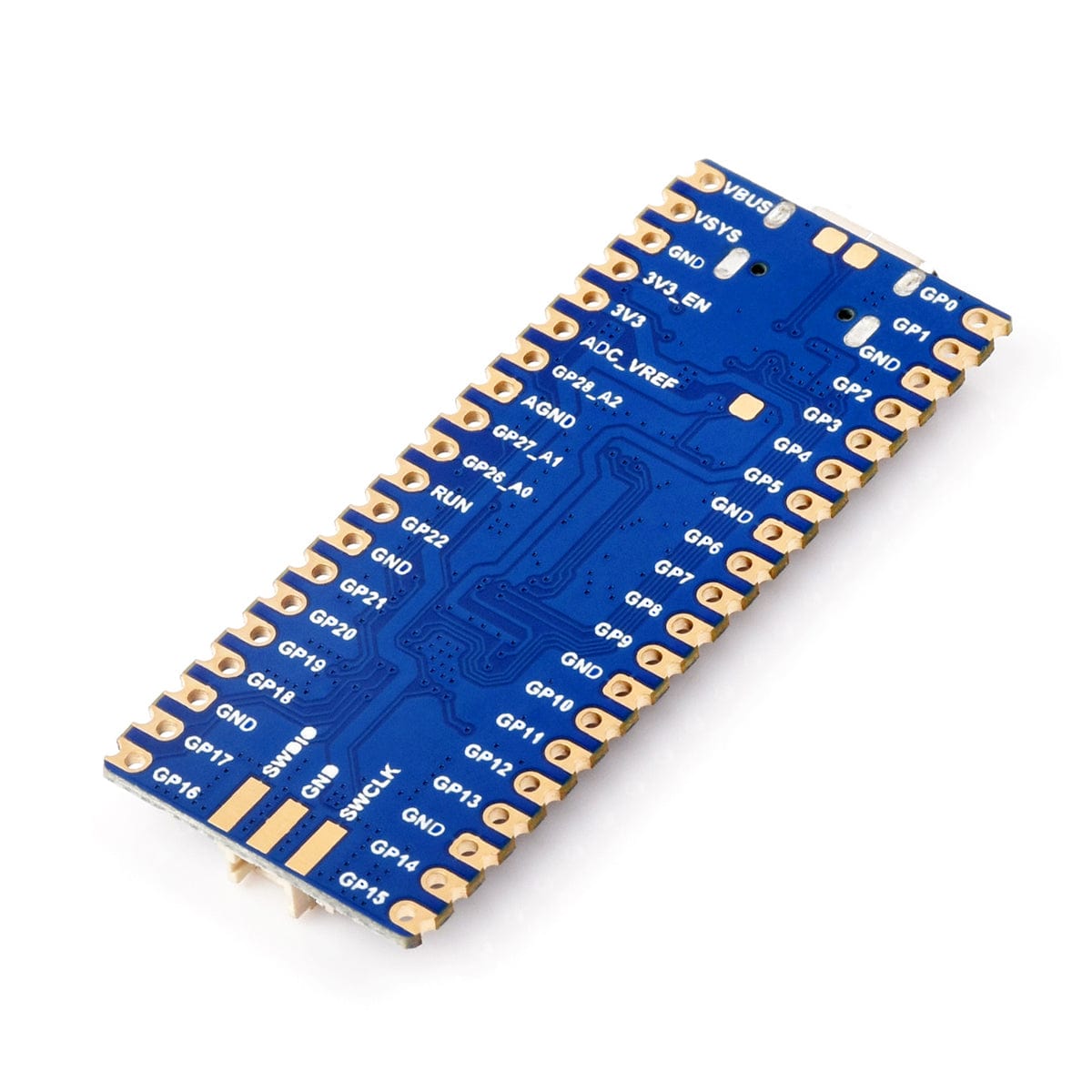

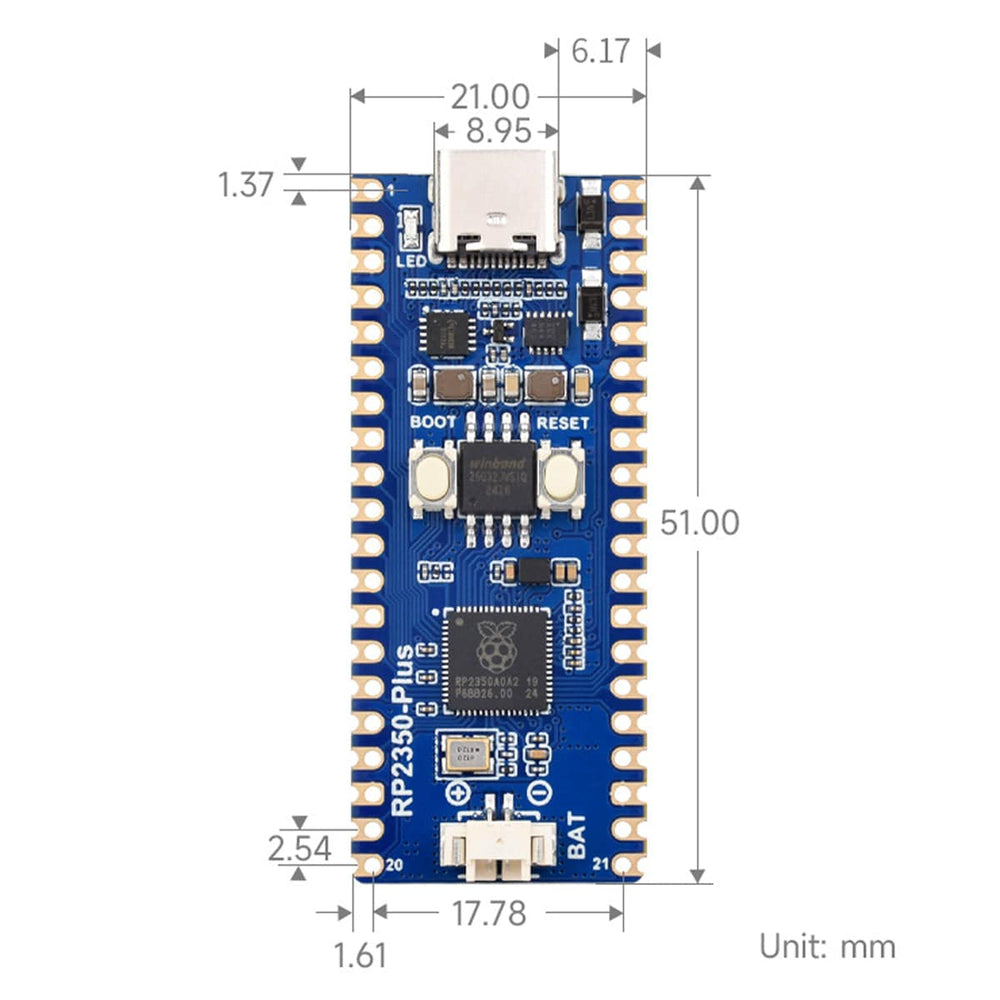

Pinout

Package Contents

RP2350-Plus

• 1x RP2350-Plus

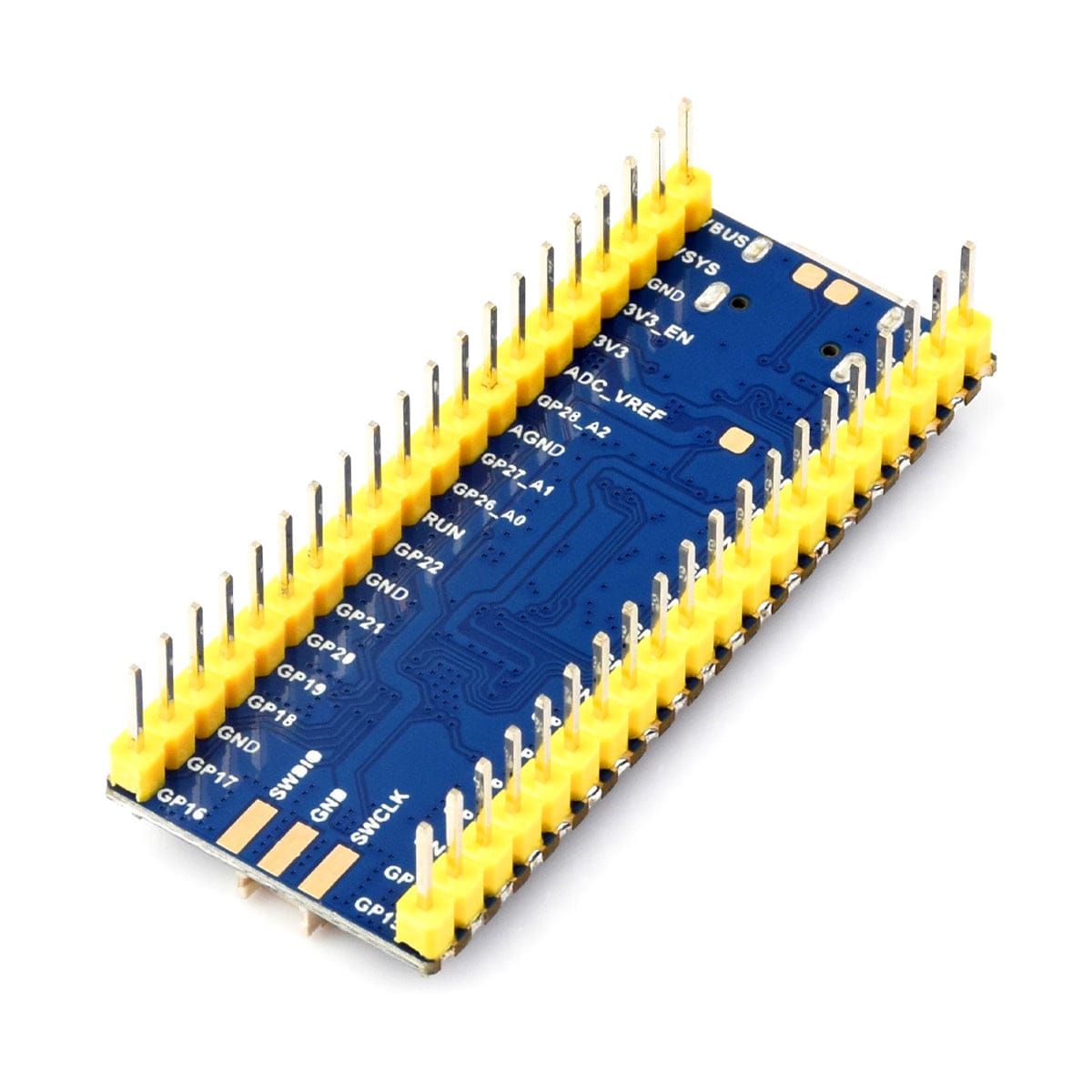

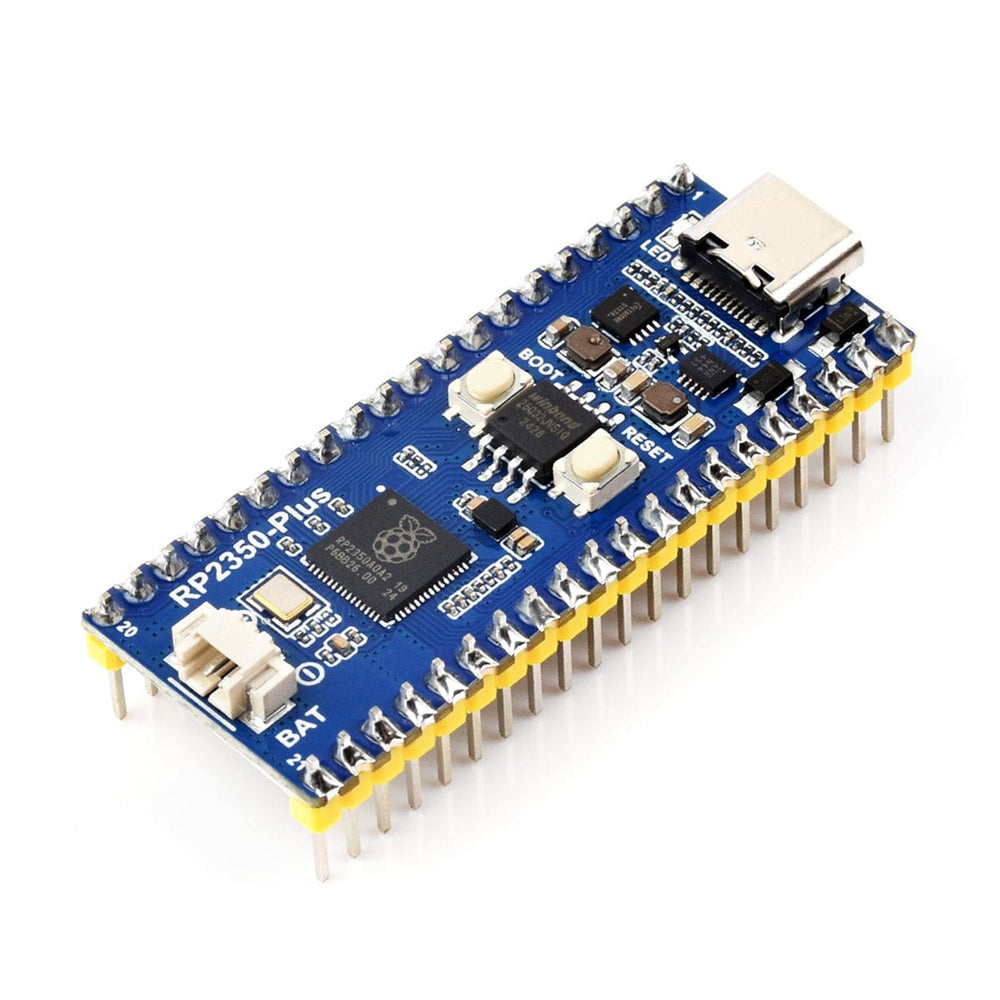

RP2350-Plus with Headers

• 1x RP2350-Plus with Headers
