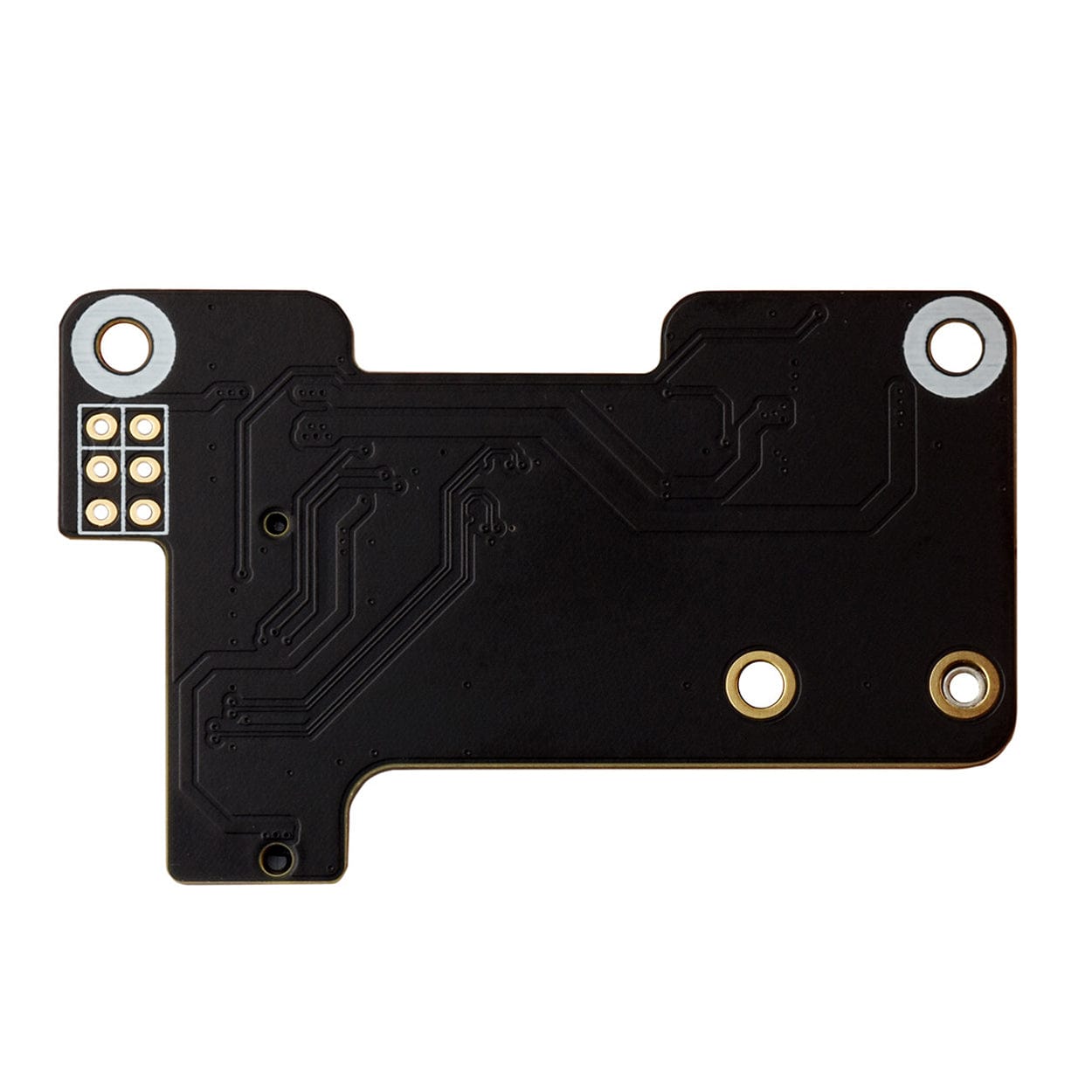

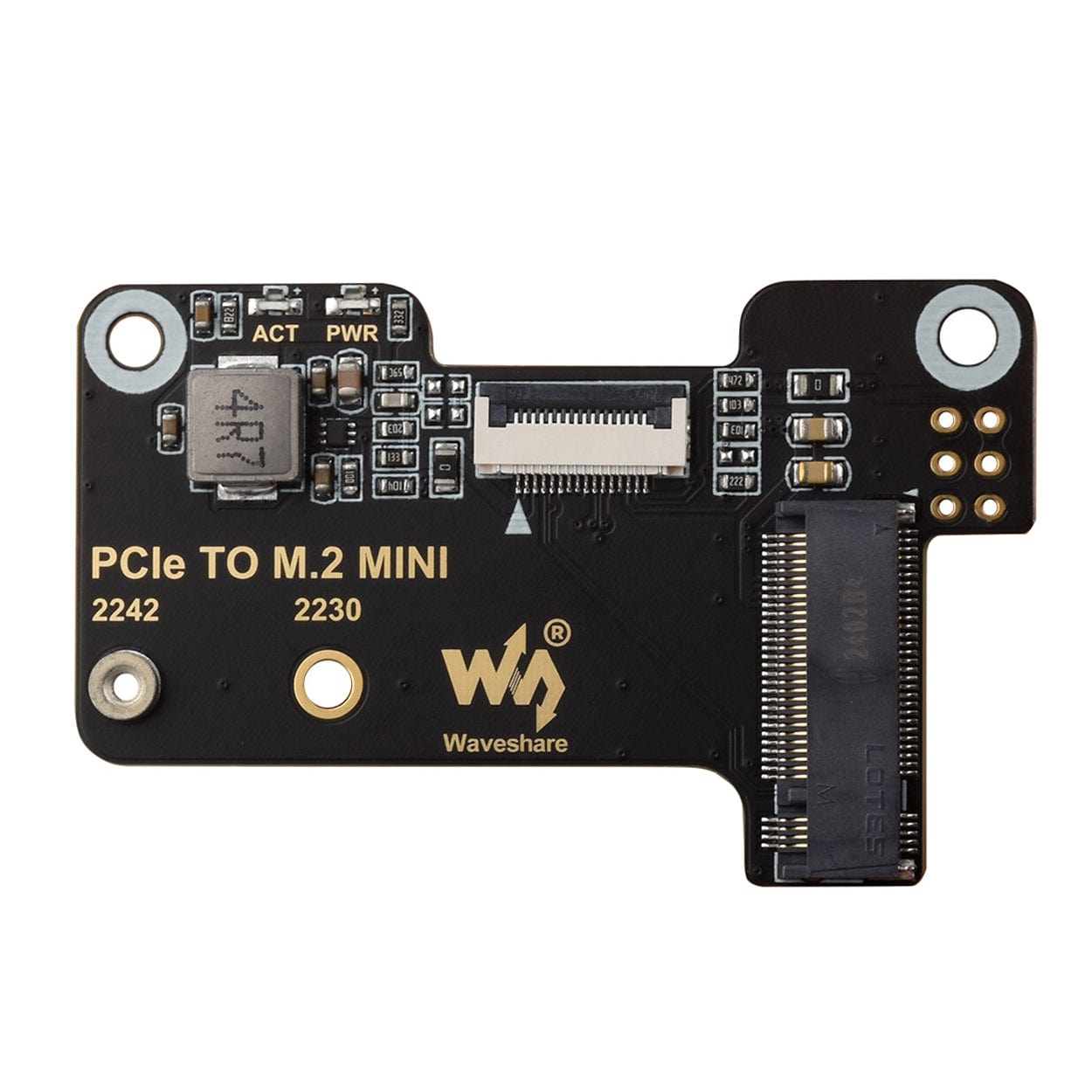

Waveshare Mini M.2 Adapter for Raspberry Pi 5

This mini M.2 adapter for Raspberry Pi 5 is a compact way to add a PCIe M.2 slot to your Pi 5, supporting 2230 and 2242 format M.2 devices such as NVMe SSDs, Gen2 and Gen3 modes, and booting from SSD.

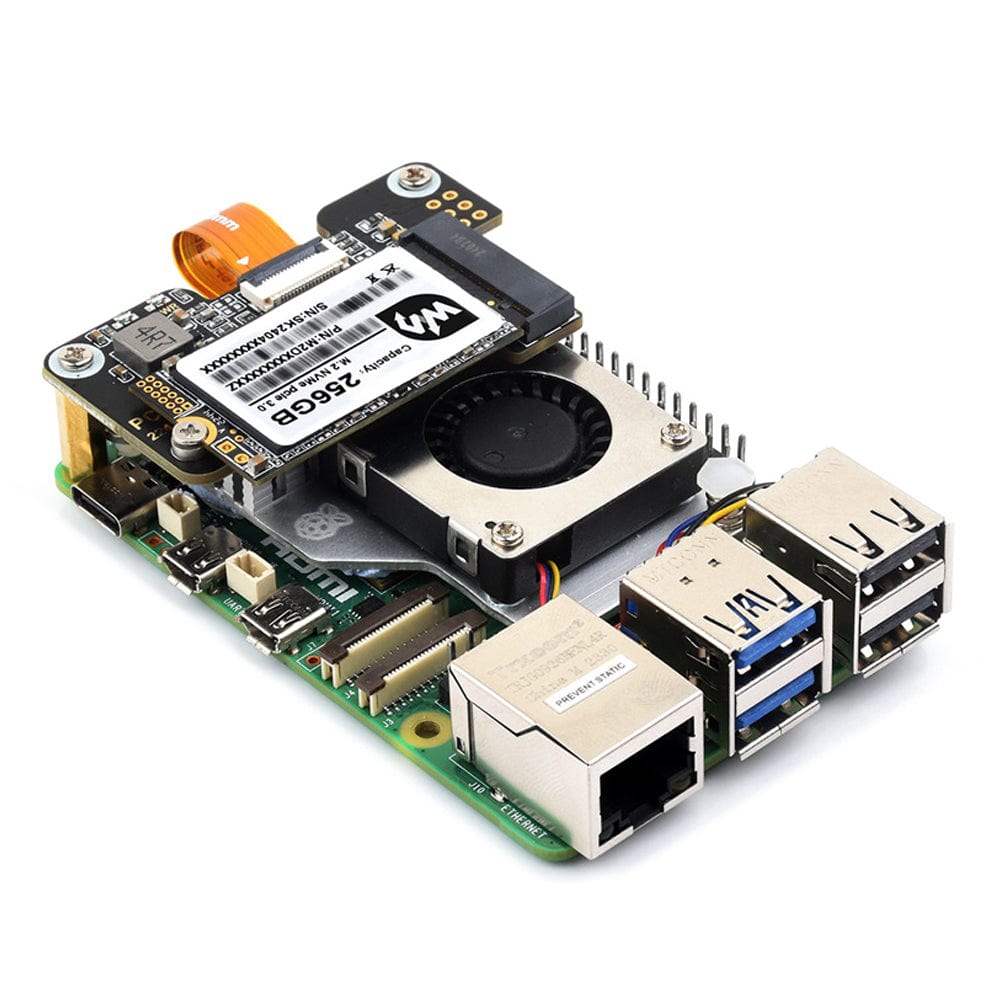

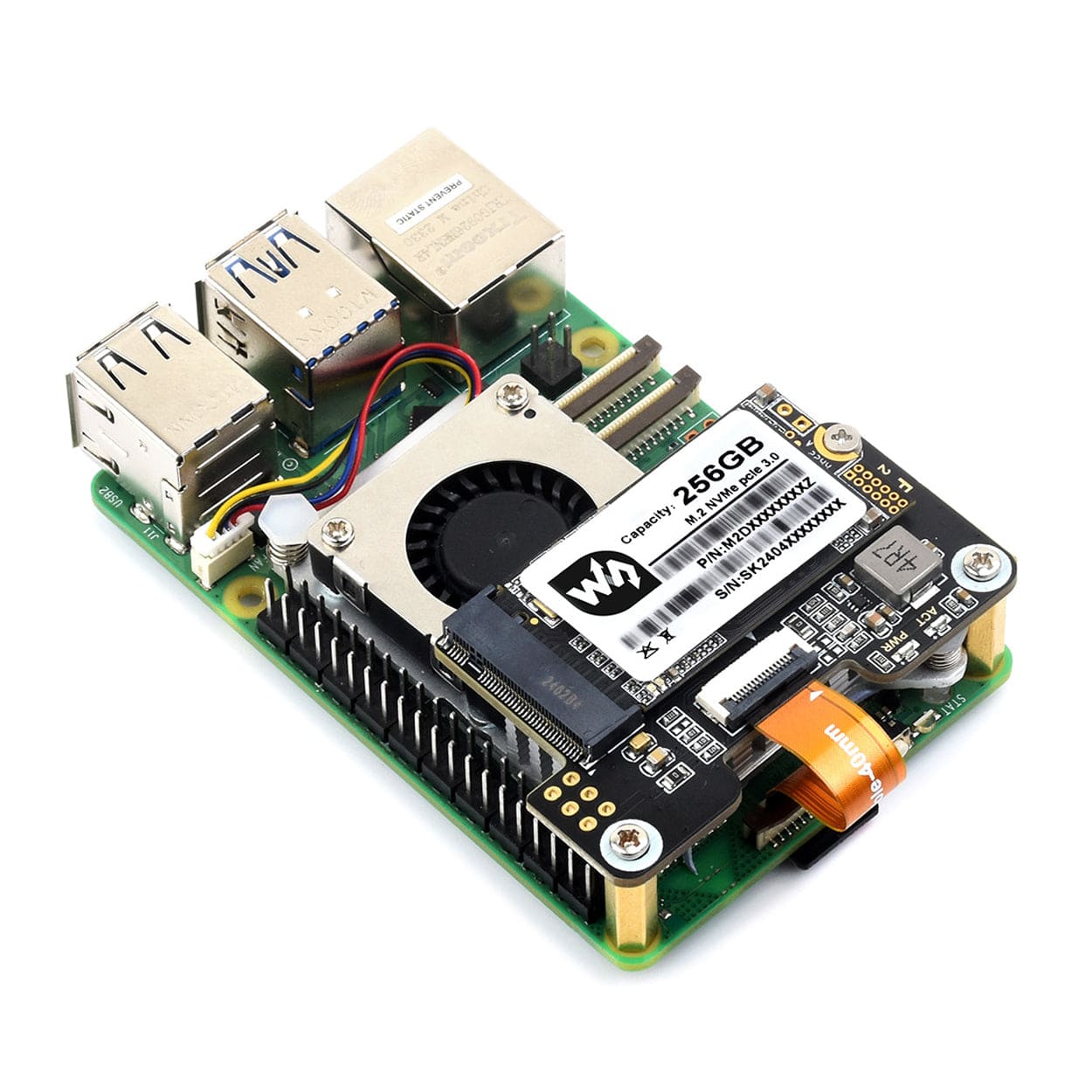

Its small size keeps it out of the way of cooling devices such as the Raspberry Pi Active Cooler when fitted, and only partially consumes the GPIO header. Onboard LED indicators highlight power status and M.2 activity.

The adapter comes with a PCIe cable, GPIO extender header and the necessary fixings to mount it to your Raspberry Pi 5.

Raspberry Pi and SSD not included

Features

• Mini PCIe M.2 adapter for Raspberry Pi 5
• Supports NVMe protocol and M.2 solid state drives
• Support PCI-Ex1 Gen2 or Gen3 modes

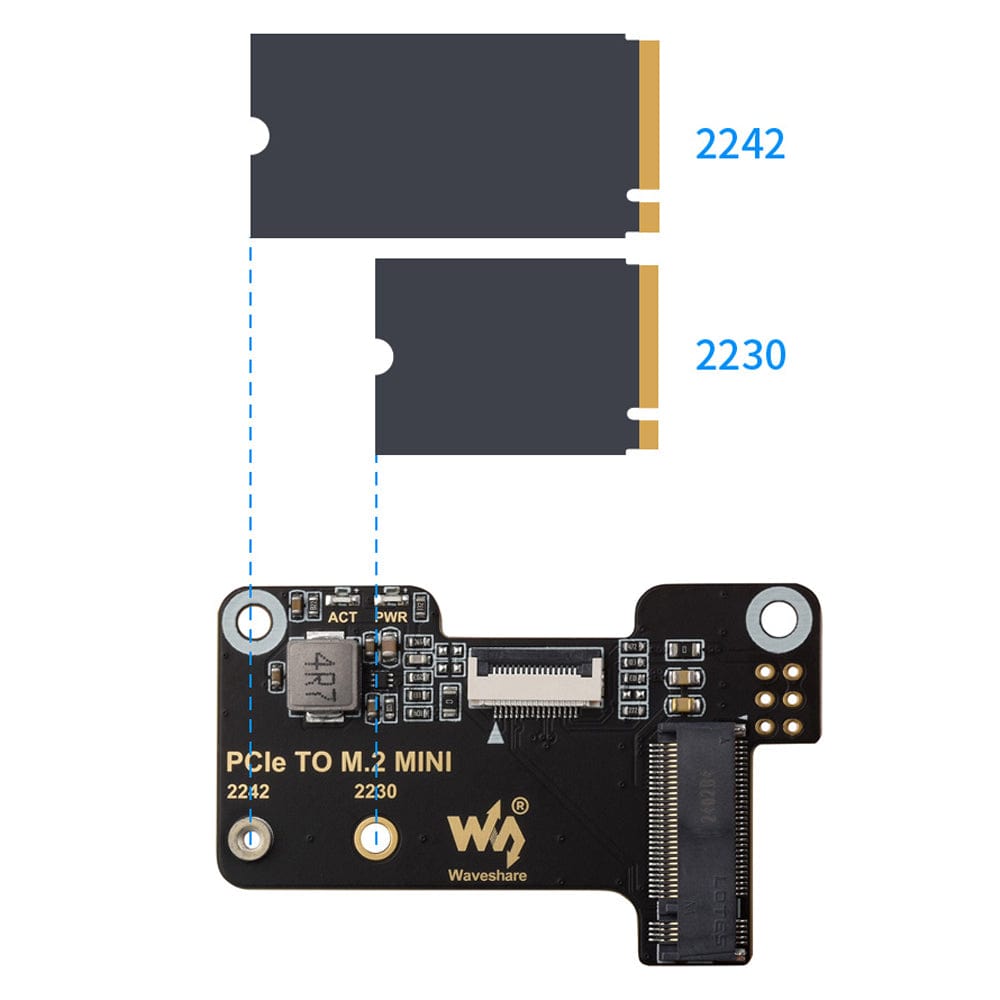

• Compatible with M.2 solid state drive in 2230/2242 sizes

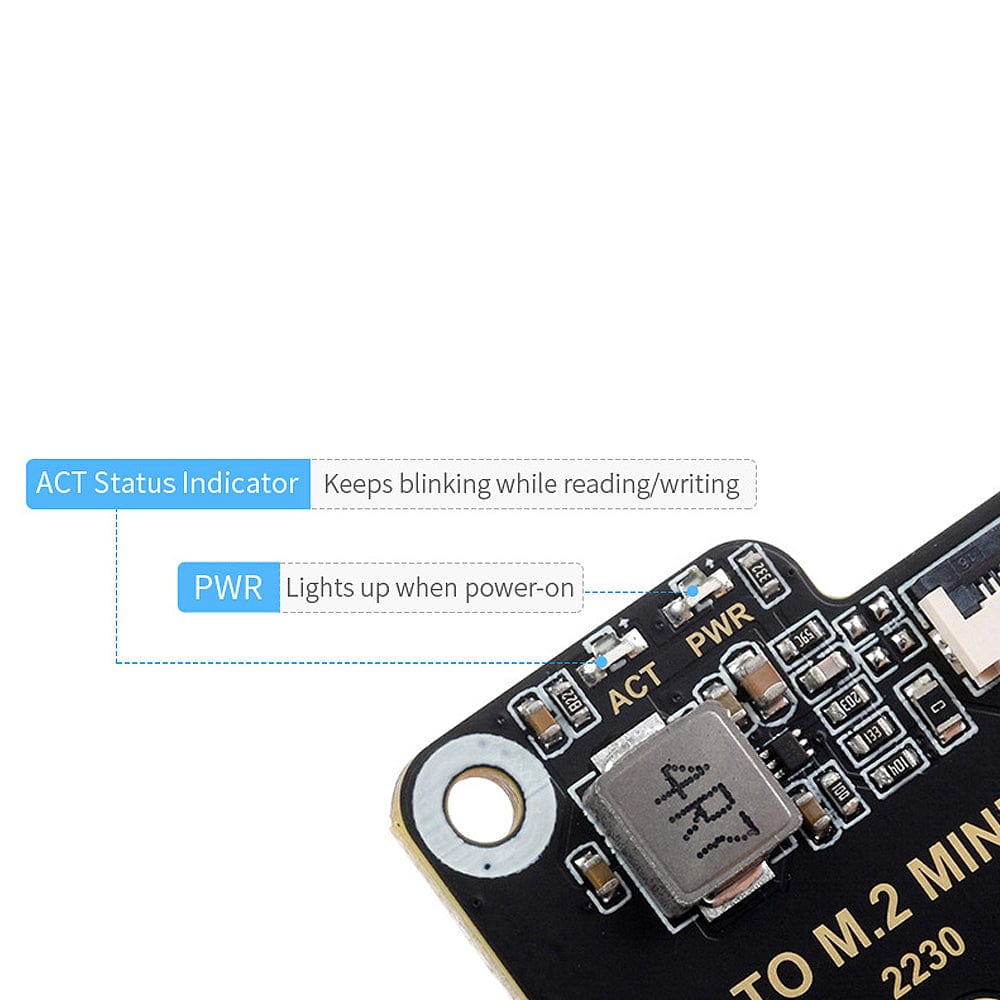

• Onboard LED indicators, with PWR on continuously when powered, and ACT blinking during read/write

Resources

• Product Wiki

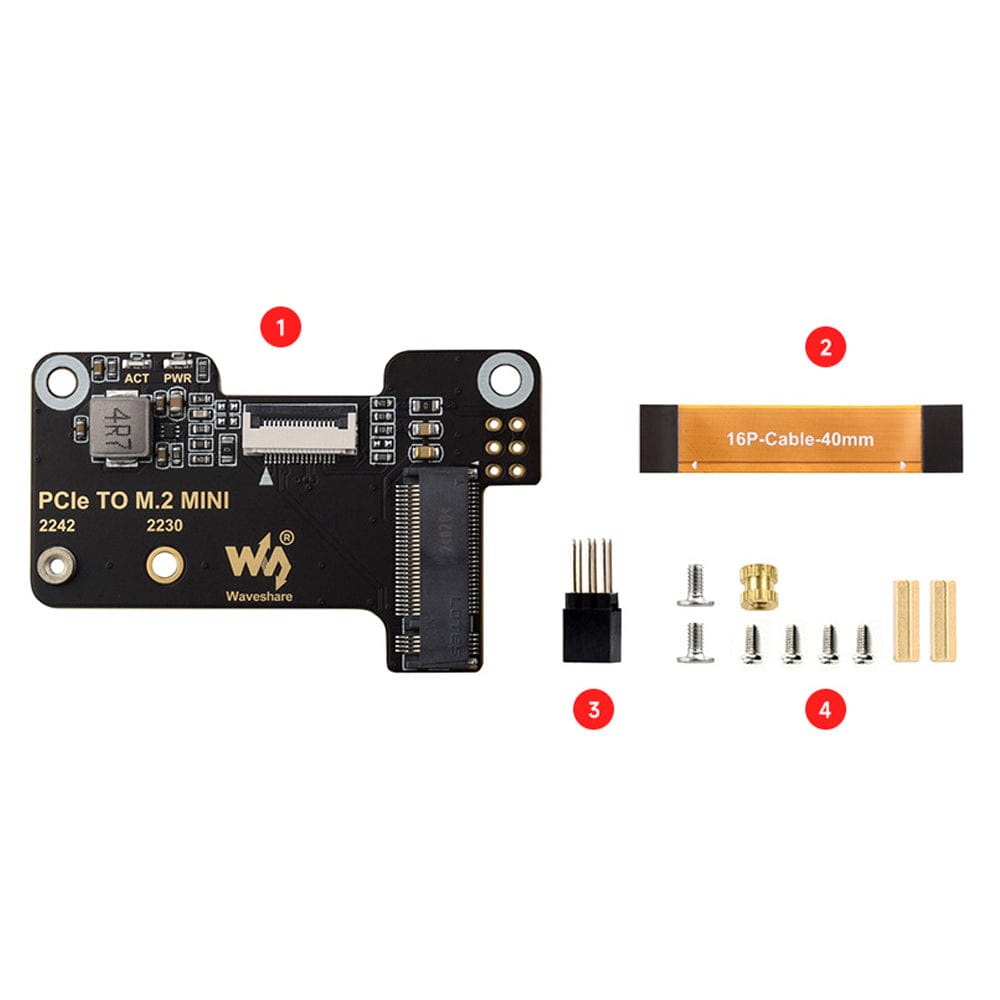

Package Contents

• 1x Waveshare Mini M.2 Adapter for Raspberry Pi 5
• 1x 40mm PCIe cable
• 1x 2x3 GPIO header
• 1x Screws pack

Raspberry Pi and SSD not included
